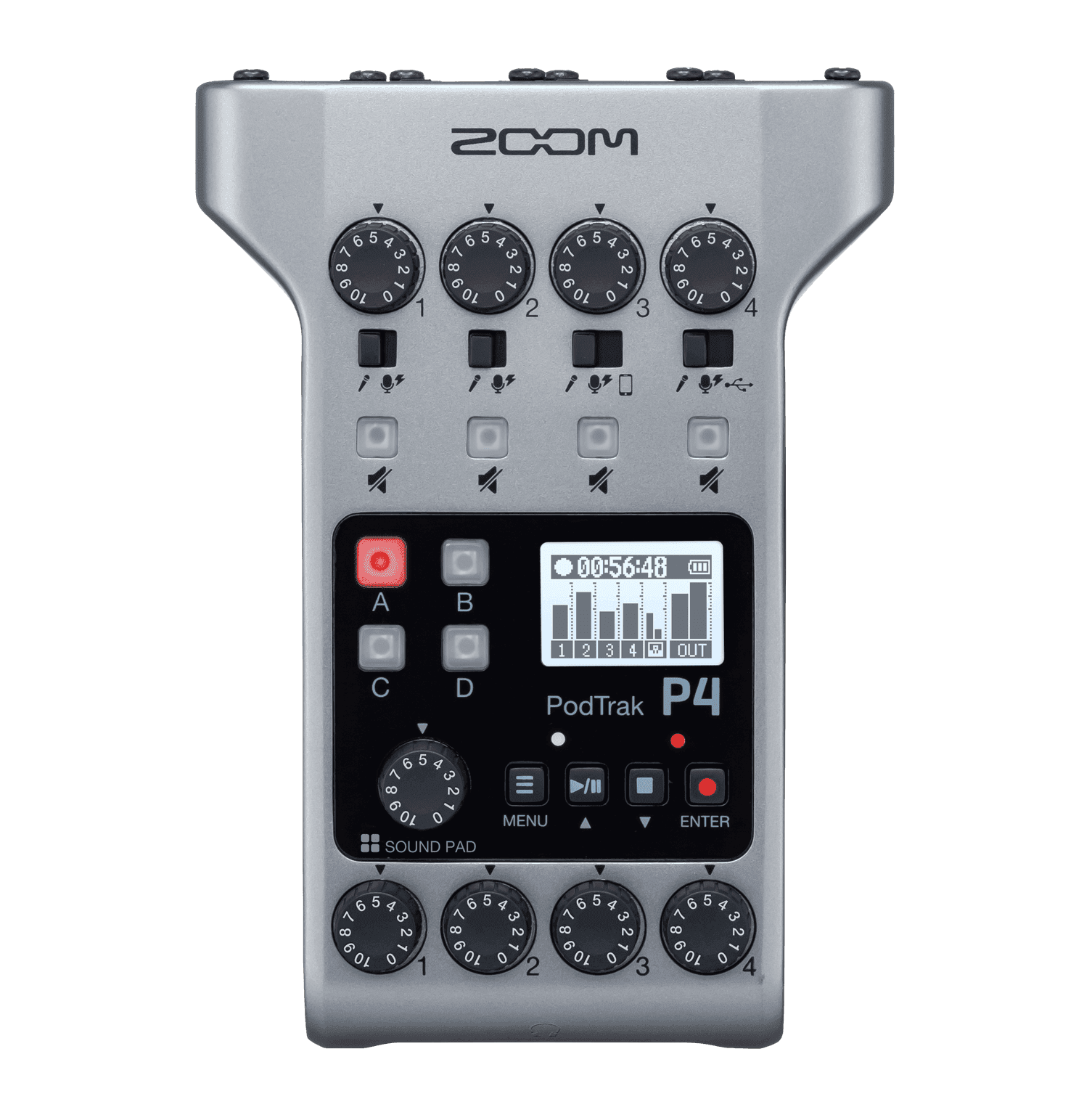

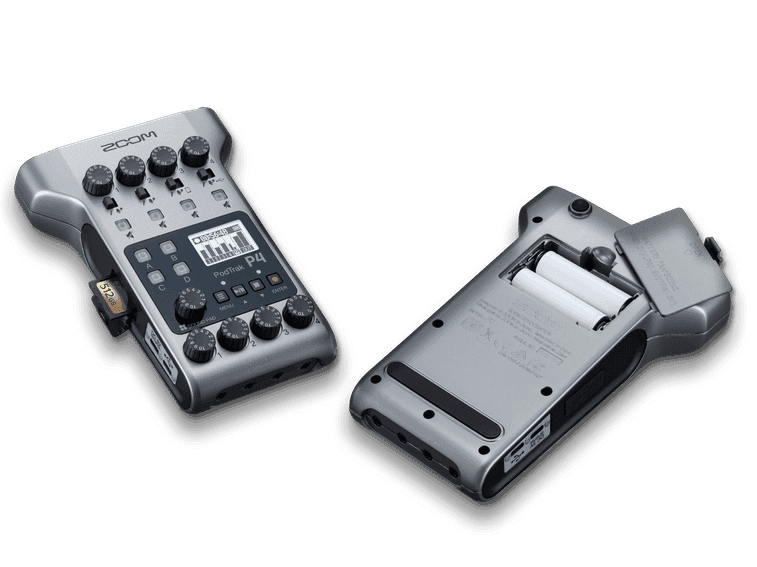

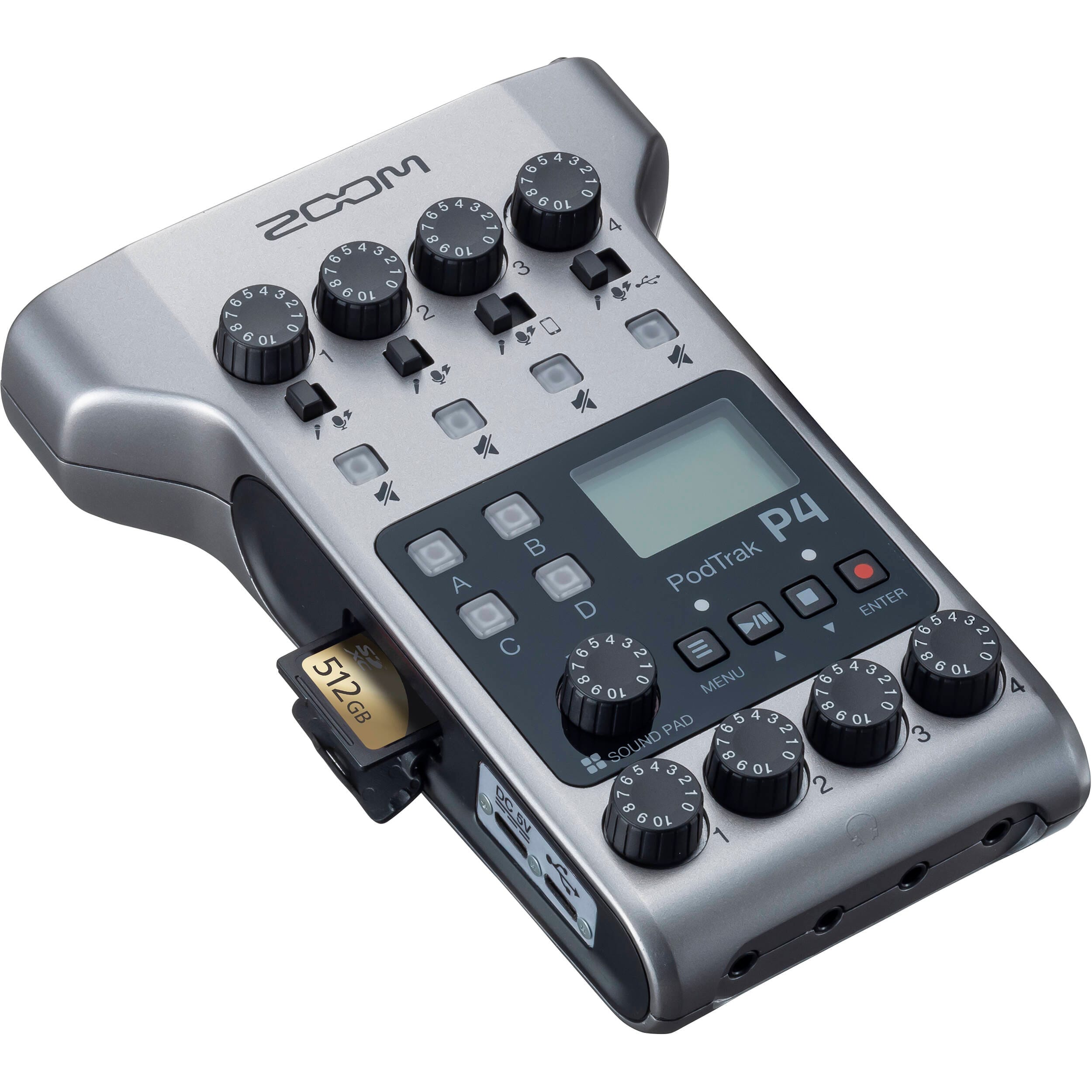

Zoom Podtrack P4

Name: Zoom Podtrack P4
Brand: Zoom
SKU: P4
Availability: InStock

0 customer reviews

In stock at supplier

View details

R5,295.00

Podcast Recorder

Availability: In stock

Add to quote

SKU: P4 Categories: Accessories Podcasts Stands Z3 Brand: Zoom

Product Description

Compact, affordable, and loaded with features, the PodTrak_™ P4 makes it easy to capture professional quality audio wherever you’re recording your podcasts.

FEATURES

Four mic inputs with XLR connectors
Four headphone outputs with individual volume control
Gain control knobs and mute buttons for each input
Phantom power for all XLR inputs
Automatically prevent feedback from call audio using the Mix-Minus function
Easily connect your phone using the TRRS connection
Trigger sound effects using four assignable Sound Pads with 11preset sounds
All input sources can be recorded on separate tracks
16-bit /44.1kHz audio WAV
Records directly to SD, SDHC and SDXC cards up to 512 GB
2-input, 2-output USB audio interface
Class-compliant mode for iOS compatibility
Up to four hours of use with just two AA batteries or a USB power supply

SPECIFICATIONS

INPUTS & OUTPUTS

NUMBER OF INPUT CHANNELS	4 (mono/stereo)
NUMBER OF OUTPUT CHANNELS	1 (headphone x 4)

CONNECTORS

MIC	XLR jacks (2: HOT)
SMARTPHONE CONNECTION JACK	TRRS mini jack (4 contacts, TIP: L, RING1: R,RING2: GND, SLEEVE: MIC)
USB	USB Type-C (audio interface and mass storage functions)
	Note: Use a USB cable that supports data transfer. USB bus power is supported.
DC 5 V	USB Type-C (for power supply)
HEADPHONES	3.5 mm stereo mini

PHANTOM POWER

+48 V

RECORDER

RECORDER	Formats: WAV 44.1 kHz, 16-bit, mono/stereo
	Recording media: 4 GB−32 GB SDHC-compliant cards (Class 10 or higher);
	64 GB−512 GB SDXC-compliant cards (Class 10 or higher)

AUDIO INTERFACE

44.1 kHz, 16-bit, 2-in/2-out

POWER

POWER	2 AA batteries (alkaline, NiMH or lithium)
	• We recommend using NiMH
	AC adapter (ZOOM AD-17): DC 5 V/1 A (USB bus power is supported.)
EST. CONTINUOUS OPERATION TIME USING BATTERIES	Recording 44.1 kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 63 Ω)
	Alkaline batteries: about 4 hours
	NiMH batteries (1900 mAh): about 4.5 hours
	Lithium batteries: about 9 hours
	• The above values are approximate.
	• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
