Wharfedale Pro TITAN X15

R5,935.00

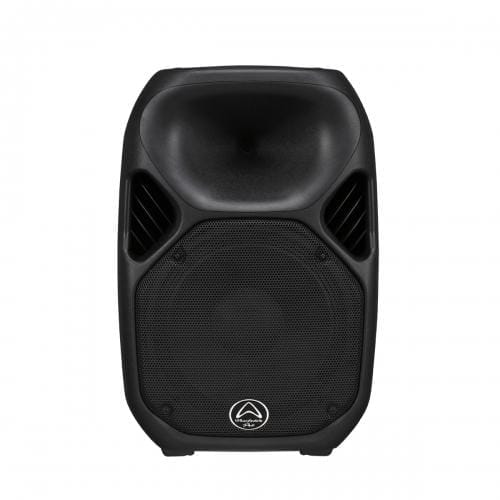

Portable, lightweight and durable the Titan X15 is one of our most versatile loudspeakers.

Availability: Out of stock

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Product Description

Portable, lightweight and durable the Titan X15 is one of our most versatile loudspeakers. Rated at 1600W peak and with 129dB Max SPL, it’s an ideal solution for small to medium sized venues..

We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN X15 raises the bar for portable PA and is built to last.



Key Features

  • 400W RMS / 800W Program / 1600W Peak
  • 129dB Max SPL
  • 50Hz – 20kHz frequency response
  • Titanium HF Driver has been honed acoustically for high-frequency detail and power
  • 15″ LF Driver rejects moisture for resistance in all environments
  • Proprietary 100° x 80° Hybrid Symmetry Horn design
  • 3″ LF voice coil
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications
  • Available in black or white
  • Titan Tourbags available



PORTABILITY
There is more demand now than ever for agile sound systems that deliver a similar experience to fixed installation ply wood cabinets. Mobile DJs and bands need to pack everything down into one vehicle while conference rooms need to cater for loud presentations where equipment can be discreet. The Titan range is designed for these applications, without faltering in sound whatsoever. Wharfedale Pro have achieved this by using state of the art, gas assist injection moulding technology, plus an internal laminar flow rib pattern, increasing rigidity and reducing its weight compared with standard injection moulded enclosures.
INDOOR AND OUTDOOR INSTALLATION
Although the product weight and rubberised handles are perfect for the mobile musician, this technology also lends itself to installations where weight is an issue, not to mention that the dynamic polypropylene material and moisture proof LF drivers can withstand outdoor conditions. Additional protection can be found with the Titan Tourbags, custom made speaker bags with a unzippable front panel meaning your Titan X15 loudspeaker is always protected.
ENHANCED HIGH FREQUENCY
The high-frequency section has been completely reevaluated in the Titan X15 for both coverage and sound quality. Firstly the HF unit has been strengthened via a rear aluminium cover, which improves heat dissipation for high-pressure audio during prolonged time periods. Wharfedale Pro engineers have paid particular attention to the acoustic properties of the new HF to ensure a much smoother sound, especially at high output. While the high frequencies are clear and detailed, a new custom phase plug has been formed for dimensional stability and accurate phase coherence. Combined with the hybrid symmetry horn, the full range sound of Titan X15 is heard loud and clear to everyone in the crowd.
SPECIFICATIONS
System TypePassive
Configuration15″ 2-way
Frequency Response (+/-3dB)50Hz-20kHz
Frequency Range (- 10 dB)40Hz-20kHz
Sensitivity (2.83v/1m)97dB
Calculated Maximum SPL @1m129dB
System Rated Impedance
Low Frequency Transducer
Size381mm / 15″
Voice-Coil Size75mm / 3.0″
Rated Impedance8Ω
LF Power (re:AES2-2012)400W
High Frequency Transducer
HF Driver TypeCompression Driver
Voice-Coil Size44mm / 1.75″
Exit Size25mm / 1″
Diaphragm MaterialTitanium
Rated Impedance
HF Power (re:AES2-2012)40W
Nominal Coverage (H x V)Hybrid Symmetry Horn 100°x80°
Power
System Continuous Power400w
System Programme Power800W
System Peak Power1600w
Crossover frequency2.7kHz
Input Connector2 x NL4 (speakON compatible)
Hardware35mm Speaker Pole Insert with lock screw
2 handles on sides
M8 x 10 rigging points
Enclosure
Enclosure MaterialTrapezoidal / Polypropylene
FinishBlack / white
Grille Material & Finish1.2 steel
Dimensions – Unpacked
Height728.5mm / 28.7″
Width Front480.6mm / 18.9″
Width Rear480.6mm / 18.9″
Depth395.6mm / 15.6″
Dimensions – Packed
Height830mm / 32.7″
Width Front514mm / 20.2″
Width Rear514mm / 20.2″
Depth489mm / 19.3″
Weight
Net Weight22.0kg / 48.4lbs
Gross Weight26.8kg / 59.0lbs
