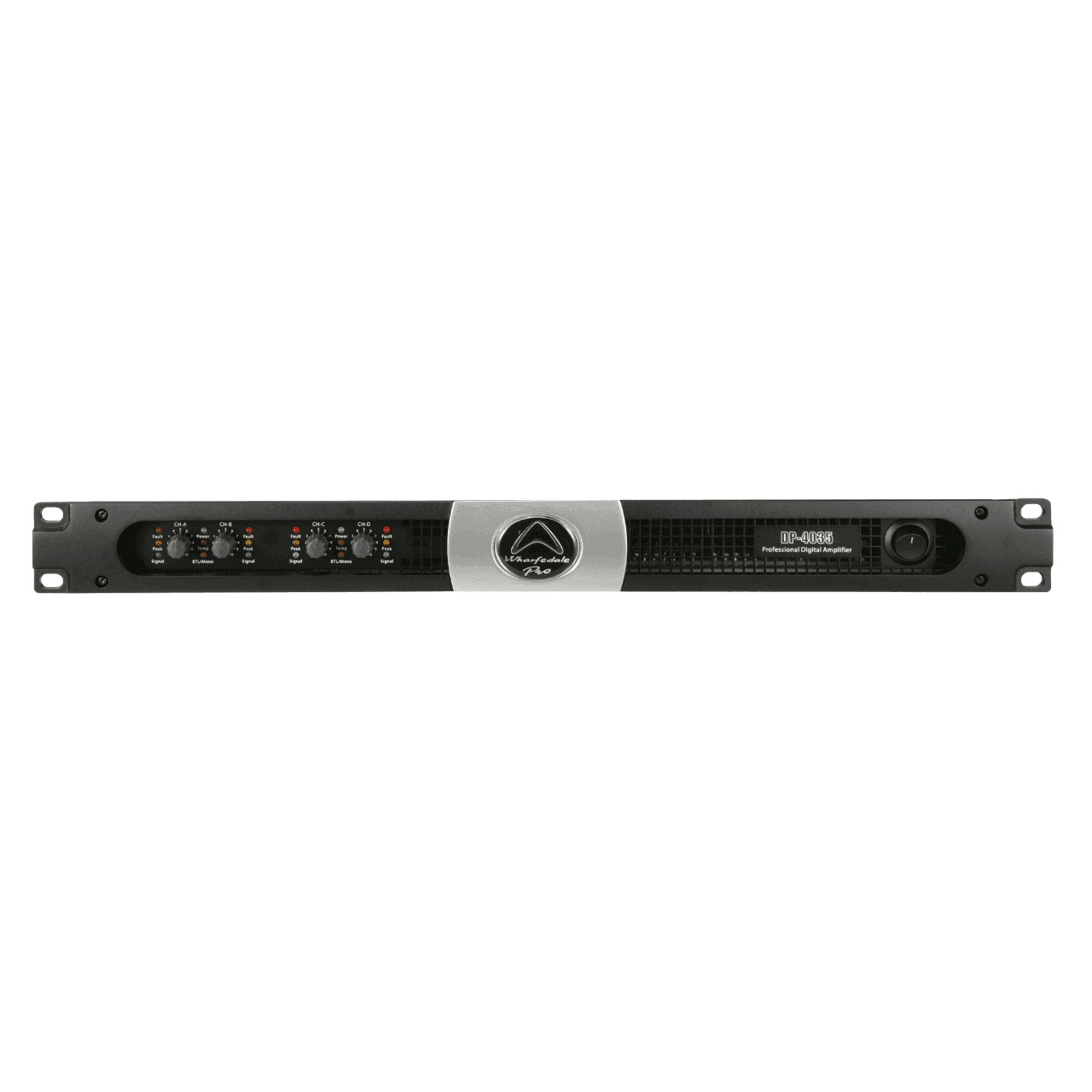

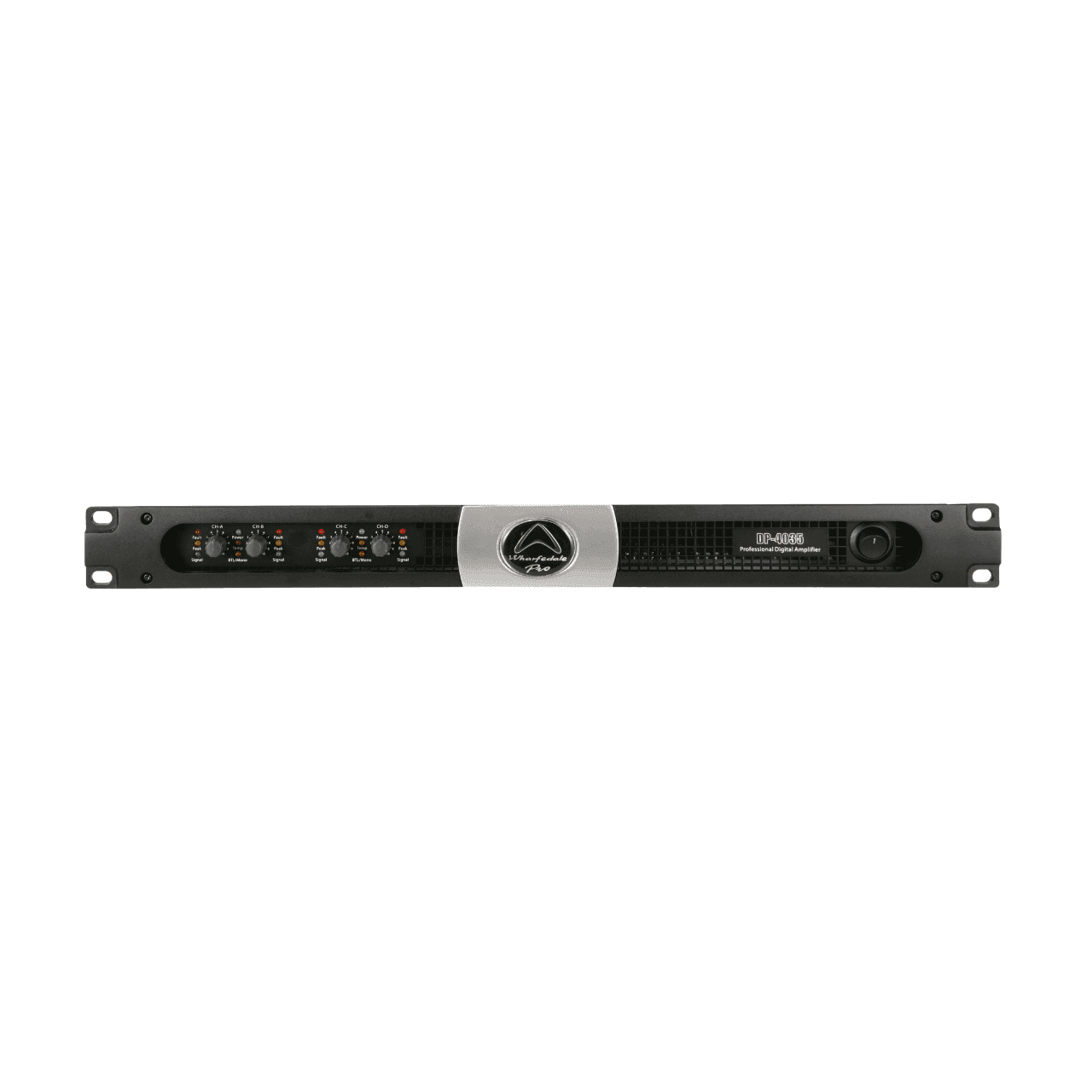

Wharfedale Pro DP-4035

R13,995.00


The DP-4035, suitable for professional live sound reinforcement or fixed installations, the 4-channel DP-4035 delivers extreme power from a lightweight box. Its advanced switch mode power supply and super-efficient Class D topology deliver high power with low distortion. With 4 discrete channels and multiple operating modes, it’s simple to configure into the most complex of installations or touring rigs.

Availability: Out of stock

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Product Description

The DP-4035

Suitable for professional live sound reinforcement or fixed installations, the 4-channel DP-4035 delivers extreme power from a lightweight box. Its advanced switch mode power supply and super-efficient Class D topology deliver high power with low distortion. With 4 discrete channels and multiple operating modes, it’s simple to configure into the most complex of installations or touring rigs.

Key Features

  • Super lightweight – Only 8.14kg
  • 4 Channel Configuration
  • Power Output 8Ω : 4 x 350w
  • 2 x 1190w@8Ω BTL.
  • Ultra-quiet variable speed fans
  • Advanced protection circuitry
  • Class D topology

Protection

Internally, a full suite of protection circuitry includes thermal, over-current, DC, short circuit protection, and power on/off mute. This level of protection ensures long-term system reliability and peace of mind should the worst ever happen. Front panel LEDs also keep the sound engineer well informed with fault, peak, and signal LEDs.The variable speed fans keep the amplifier rack quiet when not in use – and cool while it’s running at high volume.

Modes and Switches

The DP Series feature stereo, bridge, and mono modes. Use in bridge mode with an individual high-powered subwoofer or use a single DP to power your whole sound system equally. Mono mode saves external cabling by splitting a single input to feed both channels of the amplifier. In addition, gains can easily be controlled by the rear panel gain switch. This allows for installation into almost any rig or venue. The DP-2200 features XLR inputs with a maximum input level of +22dBu allowing for integration with any typical professional audio system.

Design

The 1U design allows for powerful systems to be configured in extremely confined spaces. In the tour rack or in the amp room, DP delivers reliable power from a small box. Lightweight, powerful and portable. It’s that simple!

General Specifications

Model Name DP-4035
Power Output
Stereo power output 8Ω x 2 4 x 350w
4Ω x 2 4 x 595w
Bridged mono output 16Ω 2 x 700w
Bridged mono output 8Ω 2 x 1190w
Input sensitivity & Impedance
Sensitivity selectable 1Vrms/32dB/26dB
Balanced XLR input 20KΩ
Max input level 22dBu (9.7Vrms)
Voltage gain 35dB
Slew rate >50V / μs
Crosstalk <-70dB
S/N >105dB
Distortion (1W) <0.05%
Frequency response
+/-1dB @ 8Ω 20Hz – 20kHz
+/-3dB @ 8Ω 20Hz – 30kHz
Damping factor >500
Topology Class D
Connectors
Signal input Female XLR jacks
Power output speakON compatible
Controls
Front panel AC Switch, 4 x channel gain knobs
Rear panel Parallel, Stereo & Bridge mode switch, Limiter switch
Protections Thermal, Over-current, Output DC, Output short protect.
Indicators Power, Protect, Signal, Limiter
Cooling Variable speed fan
AC Power 90 ~ 260VAC, 50 ~ 60Hz.
Dimensions 44 * 485 * 312mm
Weight (Net) 8.14kg
Weight (Gross) 10.2kg
