Product Description

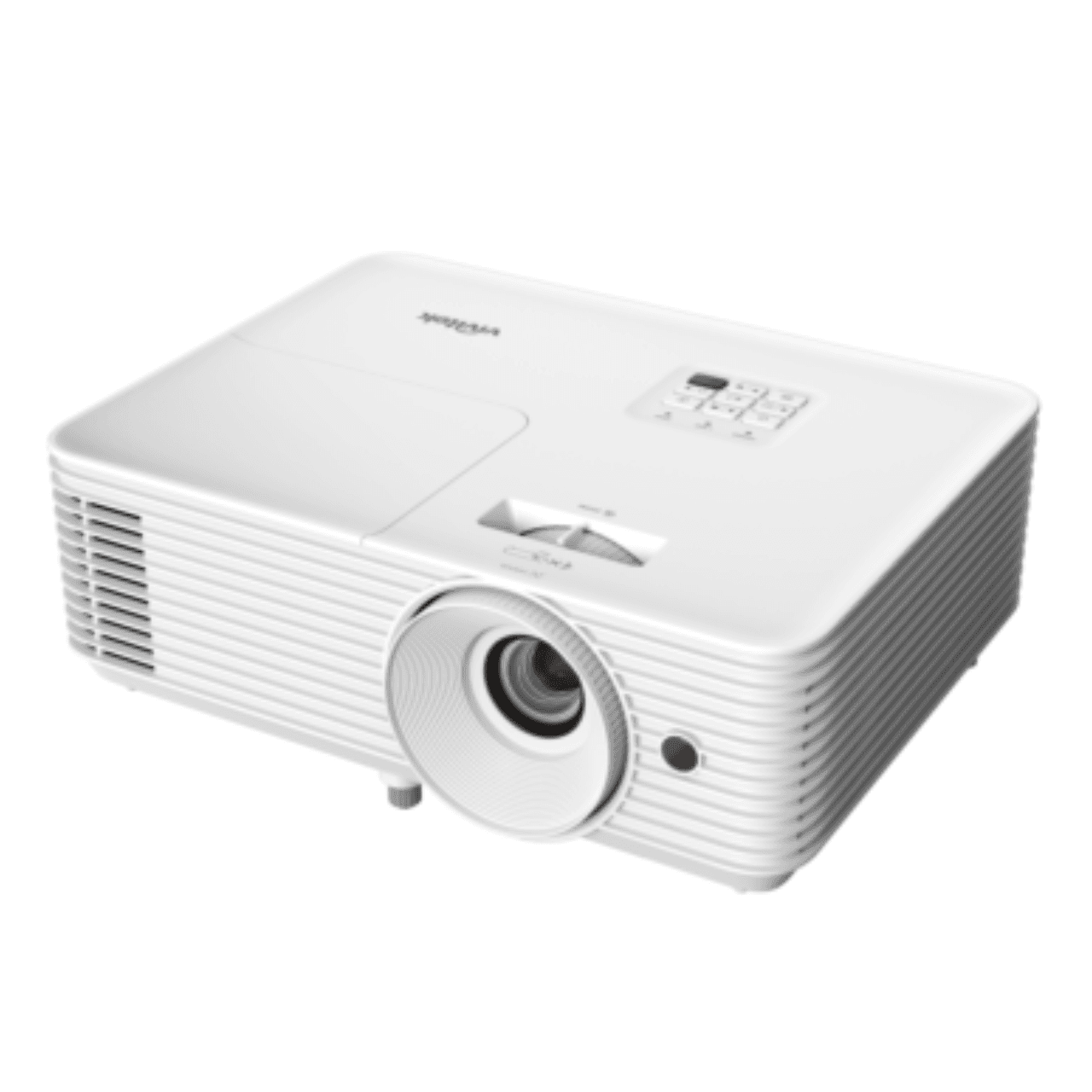

The DX330 is a native XGA digital projector from Vivitek. It features DLP® and BrilliantColor™ technologies to display distinct, vibrant images in a widescreen format. The Vivitek DX330 features numerous connectivity options including two HDMI v1.4, a brightness level of 4000 Lumens and a 30,000:1 contrast ratio. With its lightweight and compact form, the DX330 projector is easy to install and will fit into any budget.
Key Features
- DLP® technology with BrilliantColor™ for vibrant and rich picture quality
- 4000 Lumens of brightness and a 30,000:1 contrast ratio for clear, crisp and bright presentations
- XGA (1024 x 768) native resolution scalable up to a maximum WUXGA (1920 x 1200) resolution
- A long lamp life of up to 10,000 hours for a low Total Cost of Ownership (TCO)
- 6-segment (RYGCWB) colour wheel for vivid colour reproduction.
- HDMI inputs for high-definition content with the same high-quality
- 3D Ready for creating immersive, interactive, and visually stunning experiences across various applications.
- The USB-A power provides for seamless integration with multimedia devices.
- Audio ready with built-in 10-watt audio speaker, audio-in and audio-out ports
- Compact and lightweight at 2.6kg for easy portability
General Specifications
| Native Resolution |
XGA (1024 x 768) |
| Brightness |
4000 ANSI Lumens |
| Contrast Ratio |
30,000:1 |
| Max. Supported Resolution |
WUXGA (1920 x1200) @60Hz |
| Native Aspect Ratio |
4:3 |
| Lamp Life and Type |
5,000 / 7,000 / 10,000 Hours (Normal / Eco. / Long Eco. Mode), 203W |
| Display Type |
Single chip DLP® Technology by Texas Instruments |
| Chip Size |
0.55” DMD |
| Throw Ratio |
1.94 – 2.33 : 1 |
| Image Size (Diagonal) |
27.34″ – 300″ |
| Projection Distance |
1.2 – 12 m |
| Projection Lens |
F = 2.42 – 2.62, f = 22.5 – 25.79 mm |
| Zoom Ratio |
1.1x |
| Offset |
1.15 |
| Keystone Correction |
Vertical: +/-40° |
| Speakers |
10W |

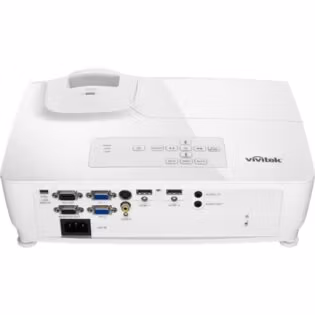

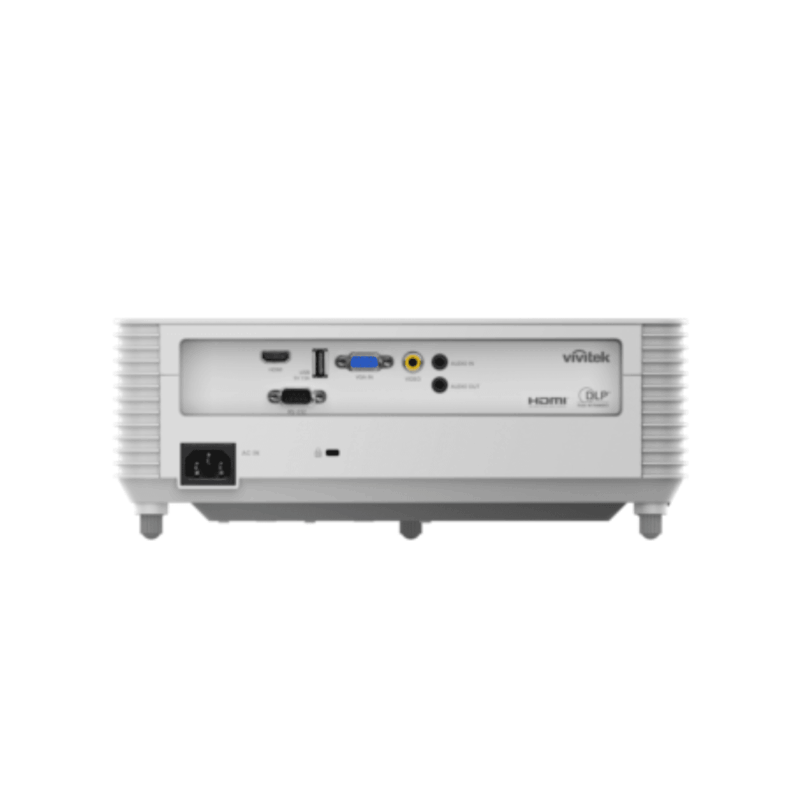

| I/O Connection Ports |
VGA-In (15pin D-Sub) (x1), HDMI (x1), Composite Video, Audio-In (Mini-Jack), Audio-Out (Mini-Jack), RS-232, USB A (x1 (power 5V/1.5A)), USB miniB (Service) |
| Dimensions (W x D x H) |
313 x 236 x 114mm |
| Weight |
2.6 kg |
| Noise Level |
31dB / 27dB (Normal / Eco. Mode) |
| Power |
Supply: AC 100-240V, 50/60Hz Consumption: 210W (Eco. Mode), 250W (Normal Mode), <0.5W (Standby) |
| 3D Ready(DLP link, PC+Video) |
Yes |
| Standard Accessories |
Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
| Optional Accessories |
Spare Lamp P/N: XX5810005600, Remote Control P/N: SS-45-76U01G023-VV |
| Warranty |
Entry Warranty: 2 years projector / 1 year on lamp or 1.000 hours whichever comes first, Education Warranty: 5 years projector / 3 years on lamp or 2.000 hours whichever comes first |
