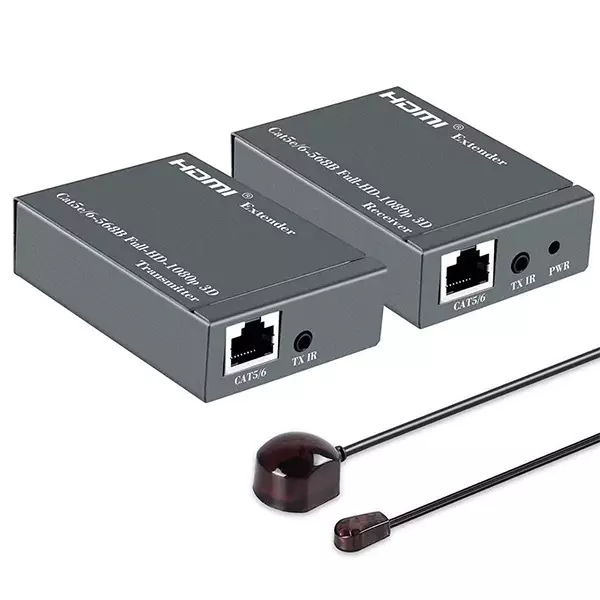

TVA – HDMI OVER CAT5/6 EXTENDER 60m WITH IR

R1,070.00


Extender over 60m

Availability: In stock

SKU: 128.819TVA Categories: Brand:

Product Description

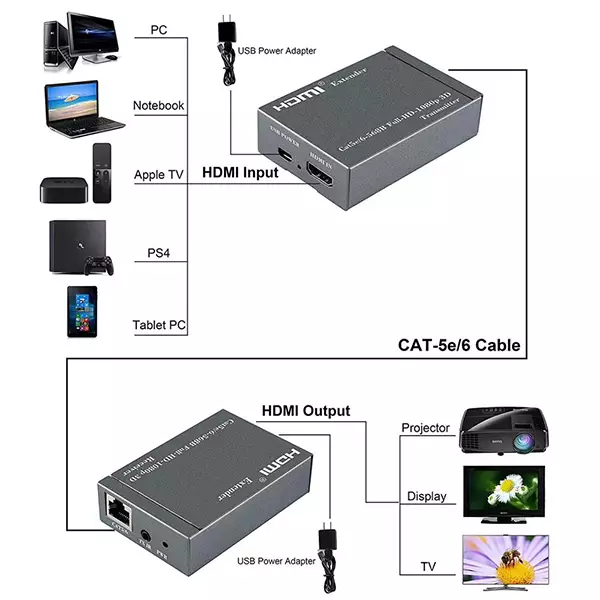

The extender uses single cat-5E or cat-6 (recommended) cables instead of HDMI cable to transmit high definition signal up to 60m, cutting down the cost. It is designed to supply long distance transmission of high definition signal. A solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

HDMI Input : 24/50/60fs/1080p/1080i/720P//576p/576i/480P/480i

Support Audio Input: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

HDMI Output: 24/50/60fs/1080p/1080i/720P//576p/576i/480P/480i

Support Audio Output: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth: 165MHz

Max baud rate: 1.65Gbps

Input video signal : 0.5-1.5 Volts pp

Output DDC signal : 5Volts p-p (TTL)

Temperature : -15 degree to +55 degree

Using humidity : 5% to 90% RH (no condensation)

TX Max working current: 510mA

RX Max working current: 100mA

Power adapter format: Input: AC (50Hz, 60Hz) 100V-240V; Output:DC 5V/1A

Dimensions(L*W*H) : 81X43X22mm

TX weight : 100g

RX weight : 120g
