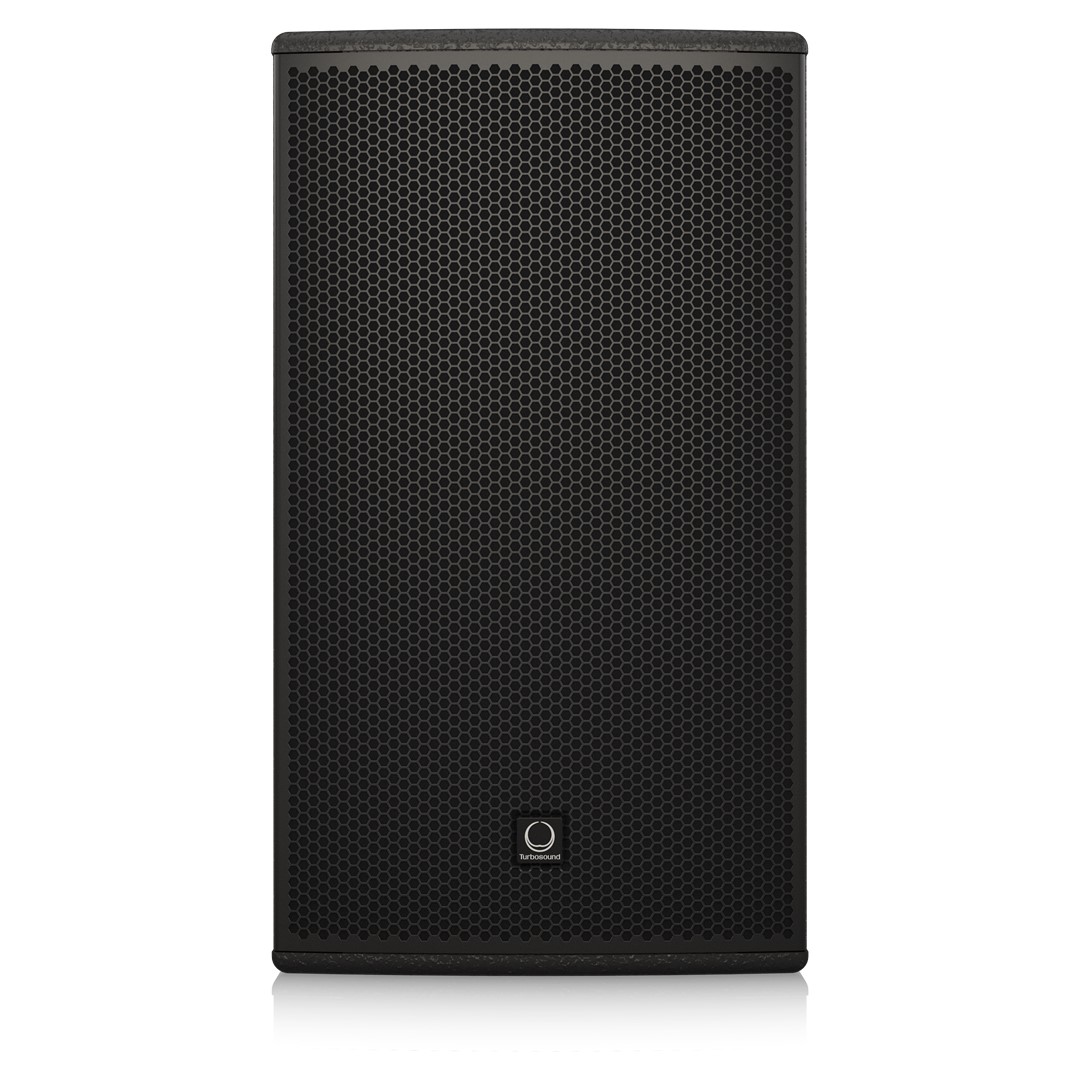

Turbosound NuQ122-AN

Name: Turbosound NuQ122-AN
Availability: OutOfStock

0 customer reviews

Check stock before ordering

View details

R22,495.00

Turbosound NuQ122-AN –2500 Watt 2 Way 12″ Full Range Powered Loudspeaker with Klark Teknik DSP Technology and ULTRANET Networking

Availability: Out of stock

Add to wishlist

Add to quote

Categories: Speakers Z6

Product Description

NuQ122-AN

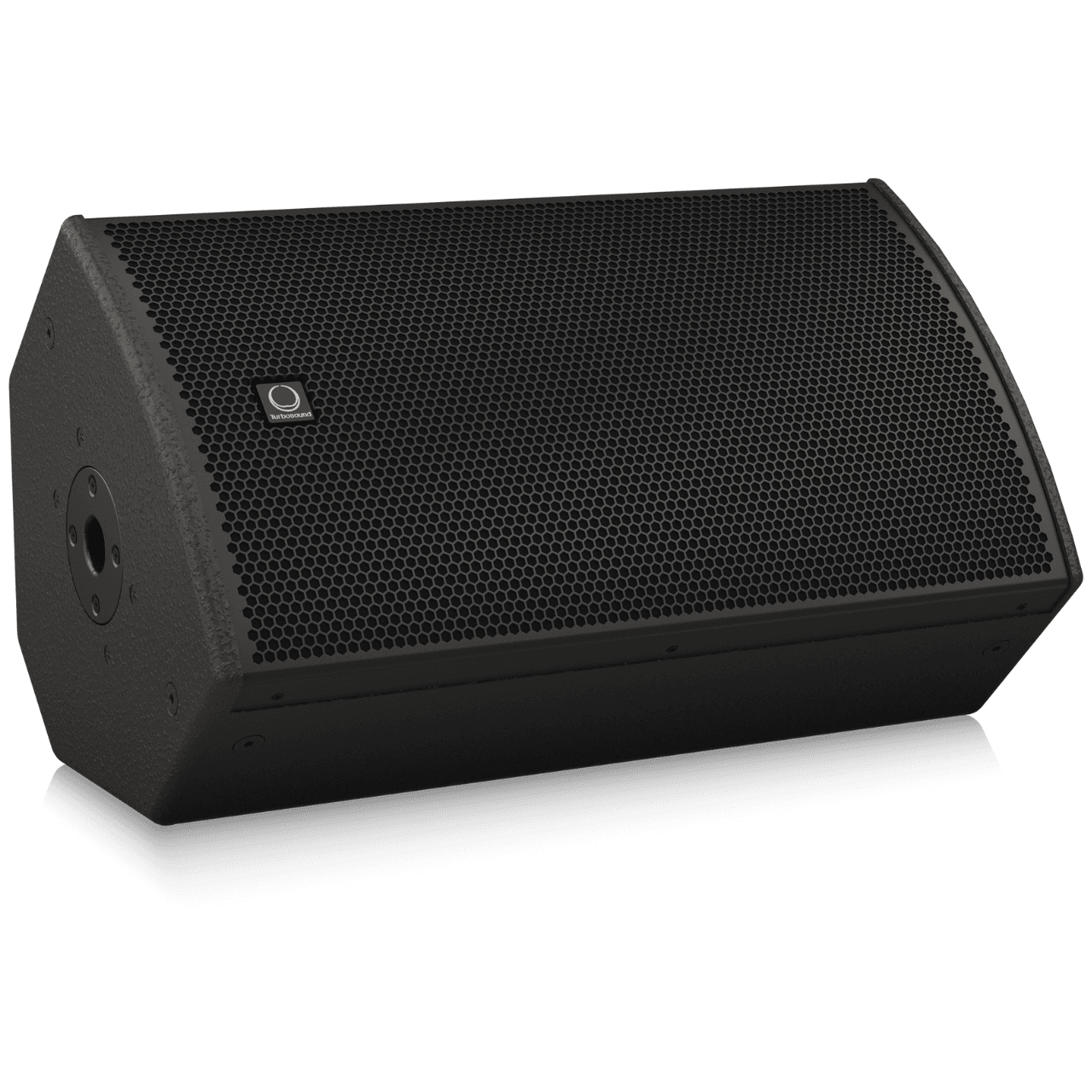

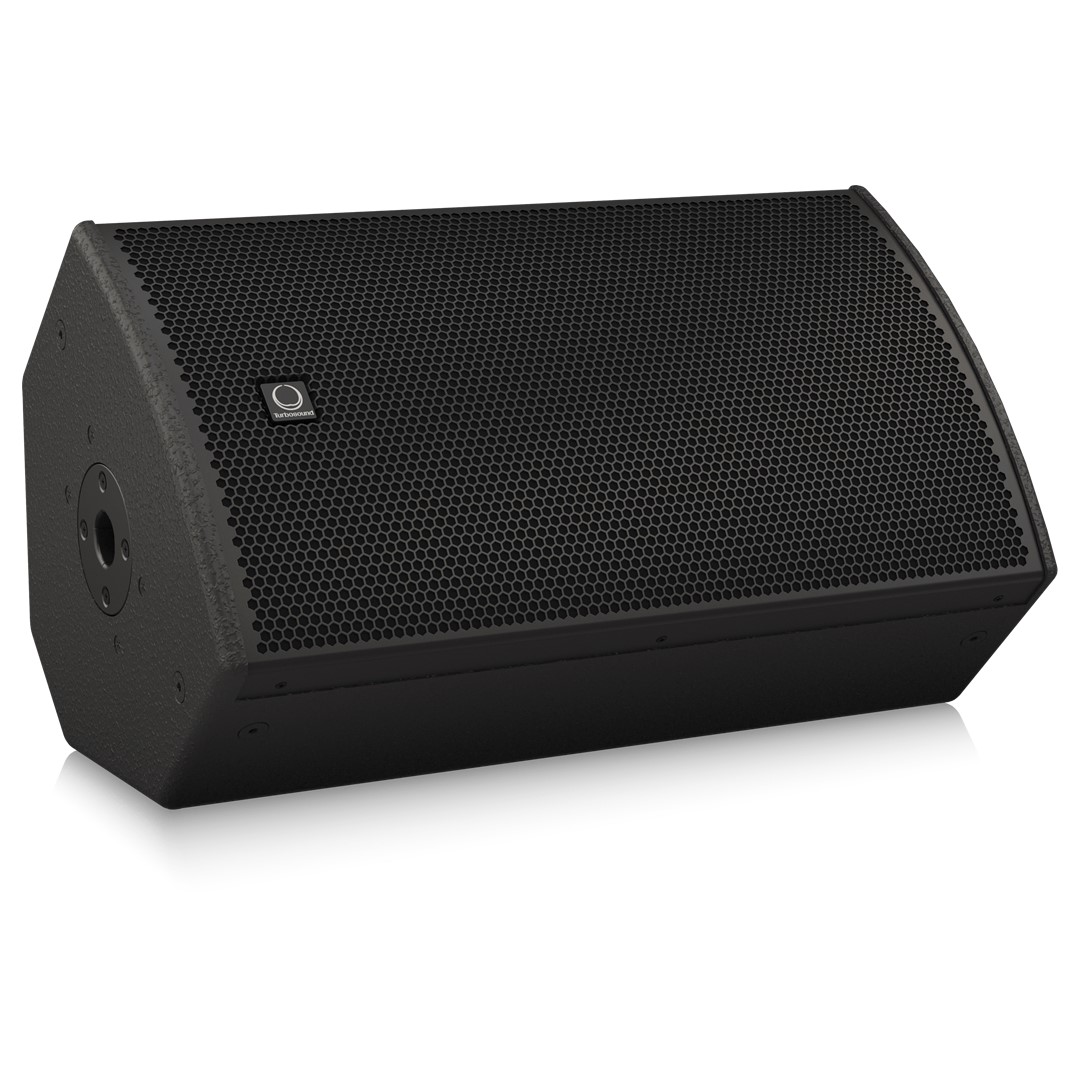

The 2-way full range NuQ122-AN is a 2,500 Watt 12″ powered loudspeaker system that is ideally suited for a wide range of portable and fixed installation speech and music sound reinforcement applications. Designed to work individually without a controller, the NuQ122-AN provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. It also offers the flexibility to accommodate venue-specific requirements for install applications.

The NuQ122 loudspeaker features a 12″ low-frequency driver with a low mass voice coil for improved transient response and an aluminium dome 1″ neodymium high-frequency compression driver, which is mounted on a 70° horizontal by 70° vertical dispersion low distortion waveguide.

Output power for the NuQ122-AN is provided by means of an efficient and lightweight Klark Teknik 2,500-Watt Class-D power amplifier. A sophisticated, but easy-to-use Klark Teknik Digital Signal Processor (DSP) provides dynamic EQ for impressive full-range response at low volume levels and transparent limiting for clarity at high output levels – and for long-term reliability.

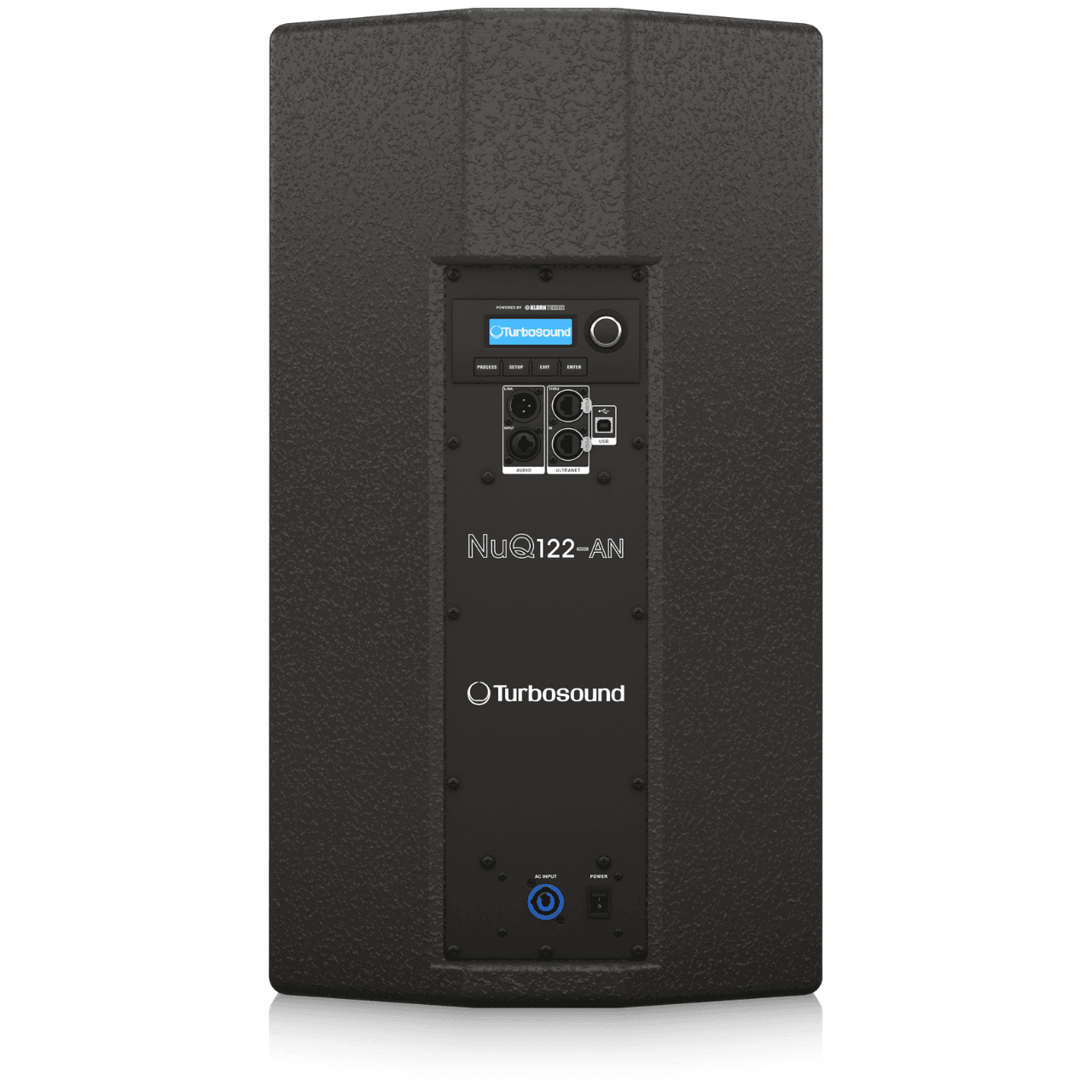

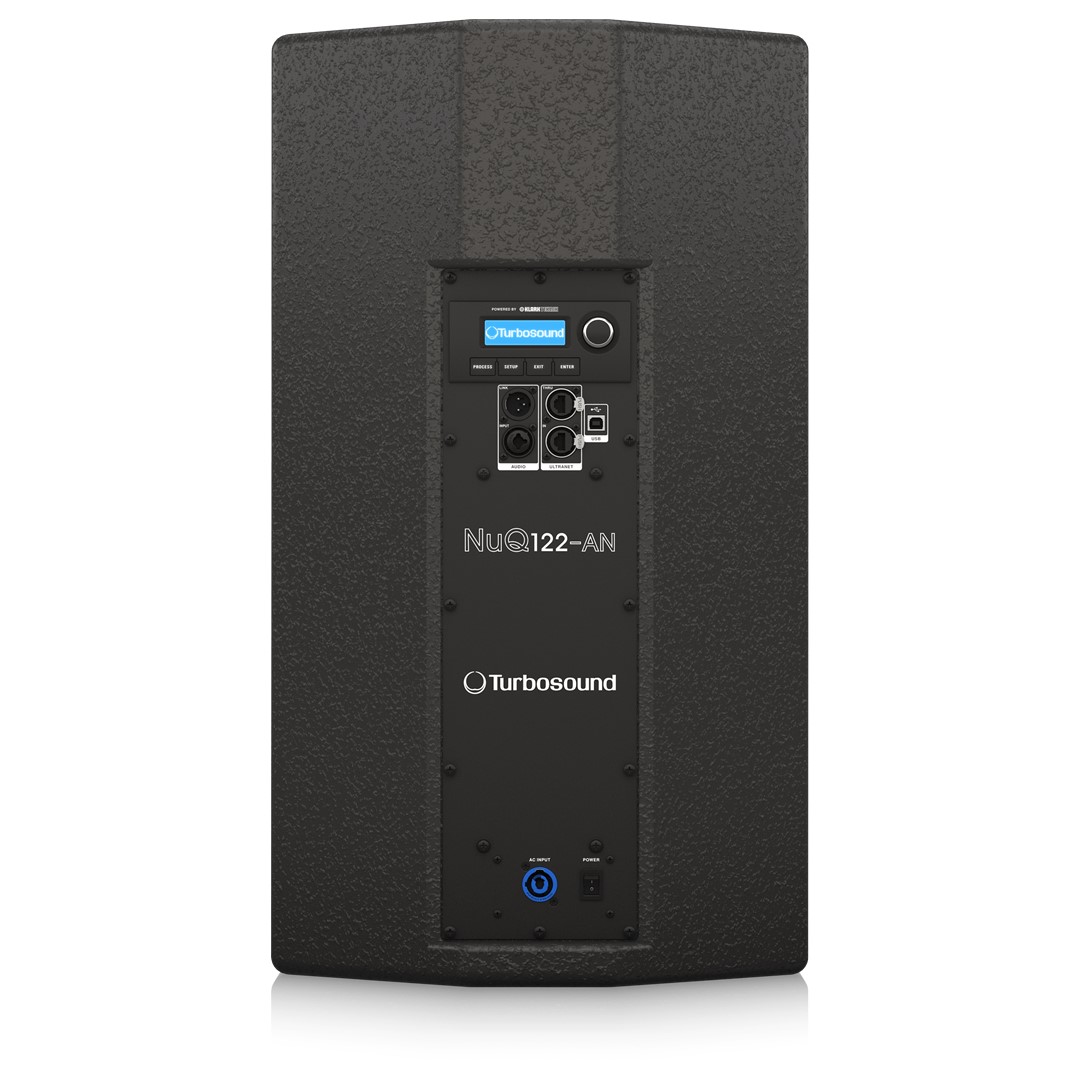

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to position compensation, user EQ control, subwoofer integration and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the NuQ122-AN via PC computer, as well as DSP firmware updates.

ULTRANET connectivity is provided by two locking etherCON * connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

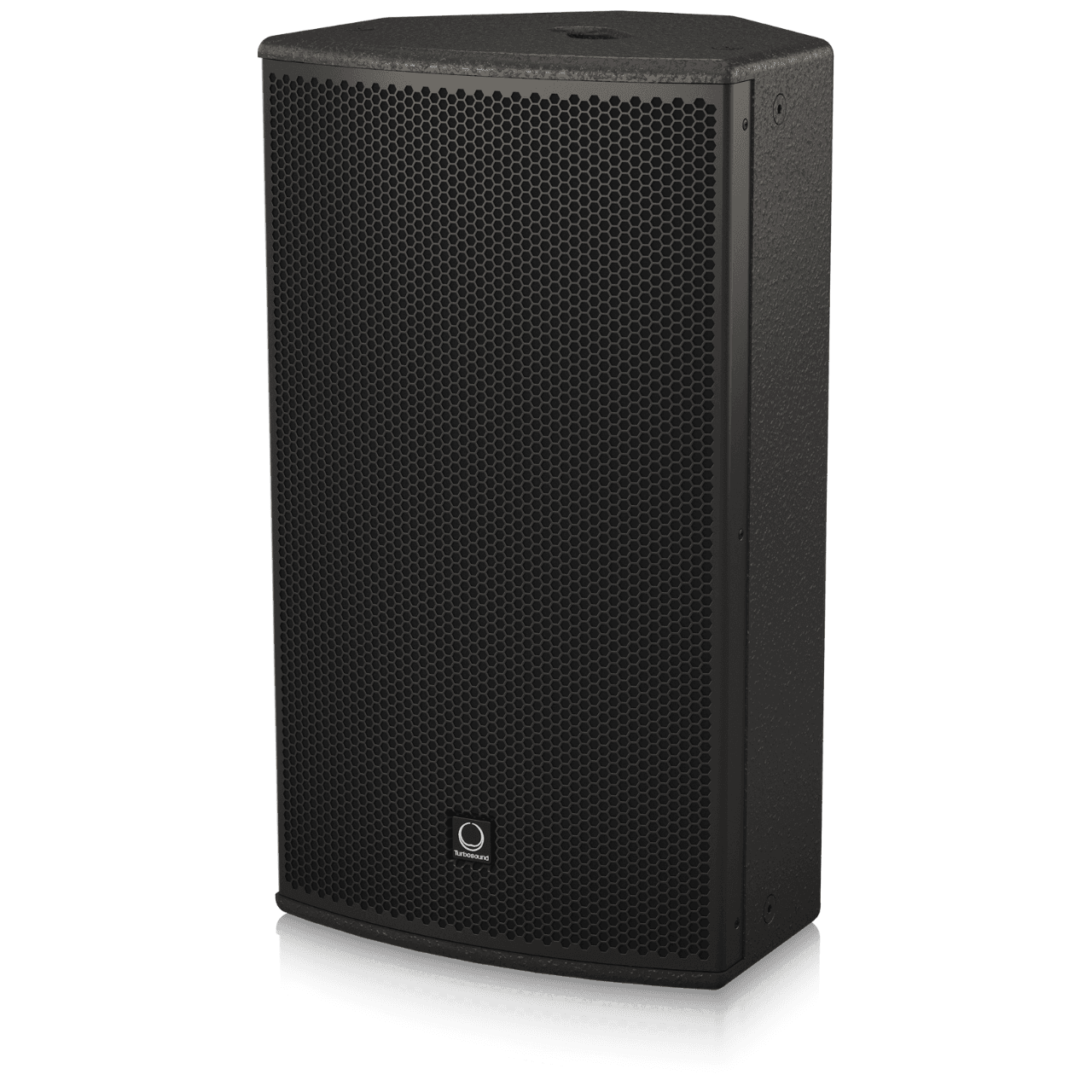

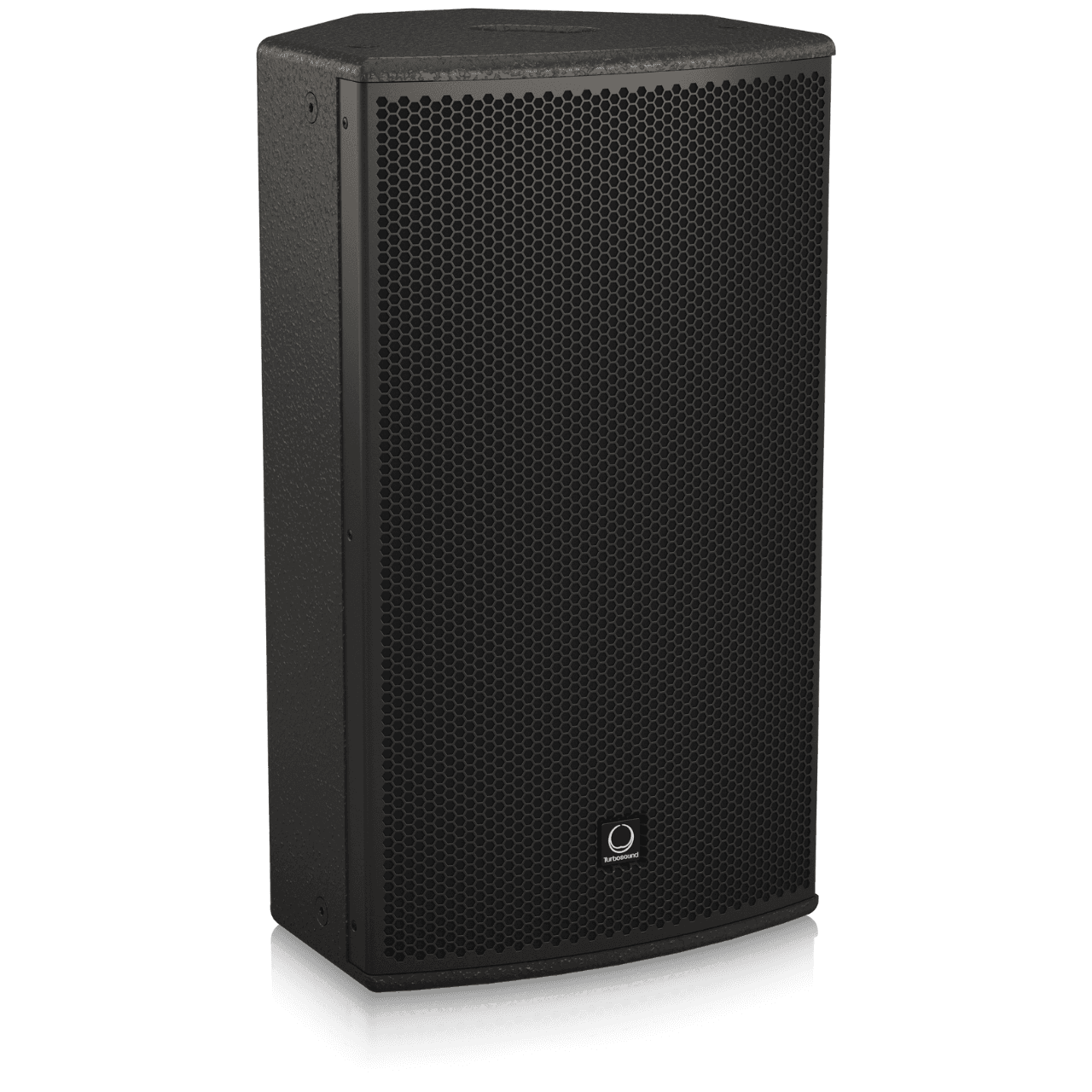

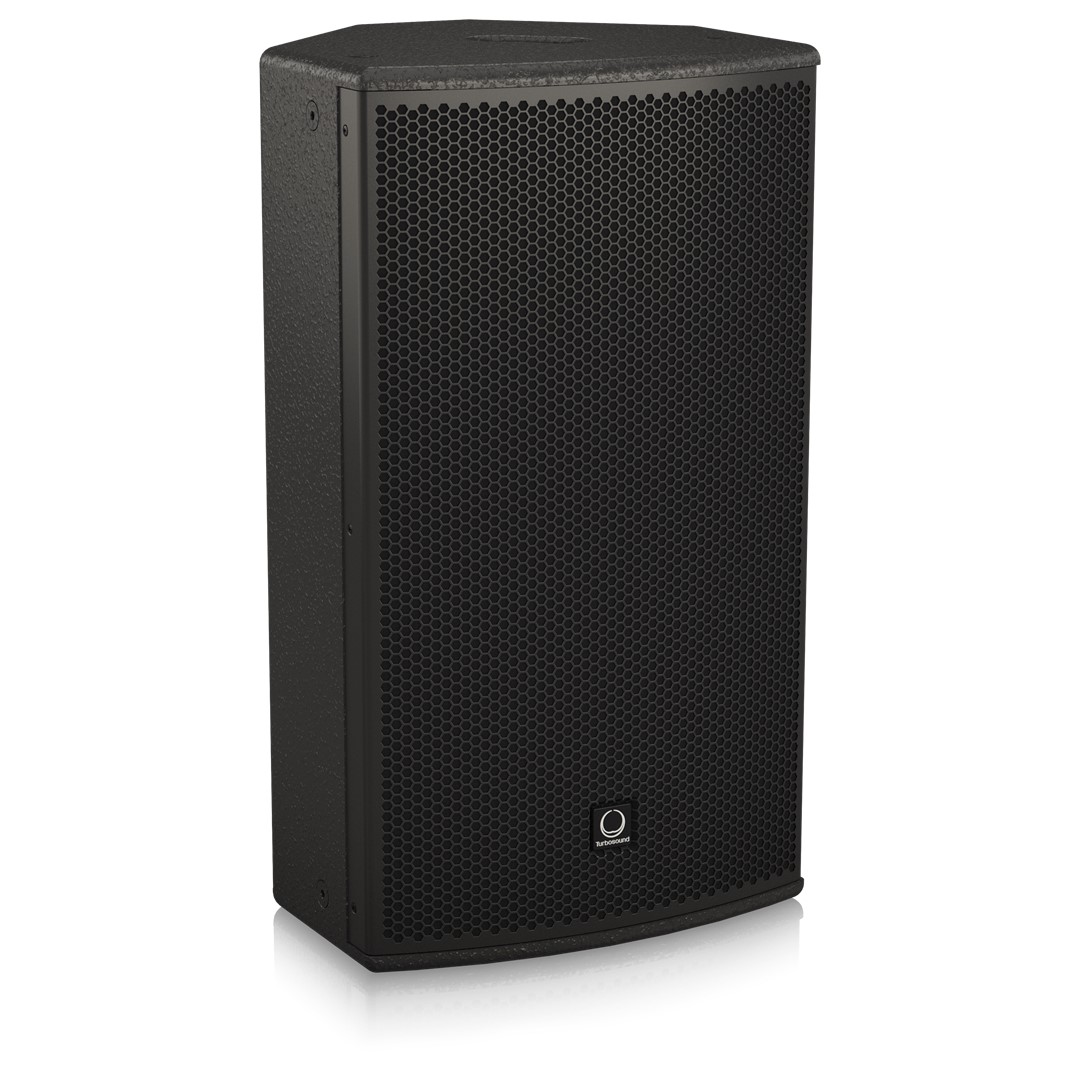

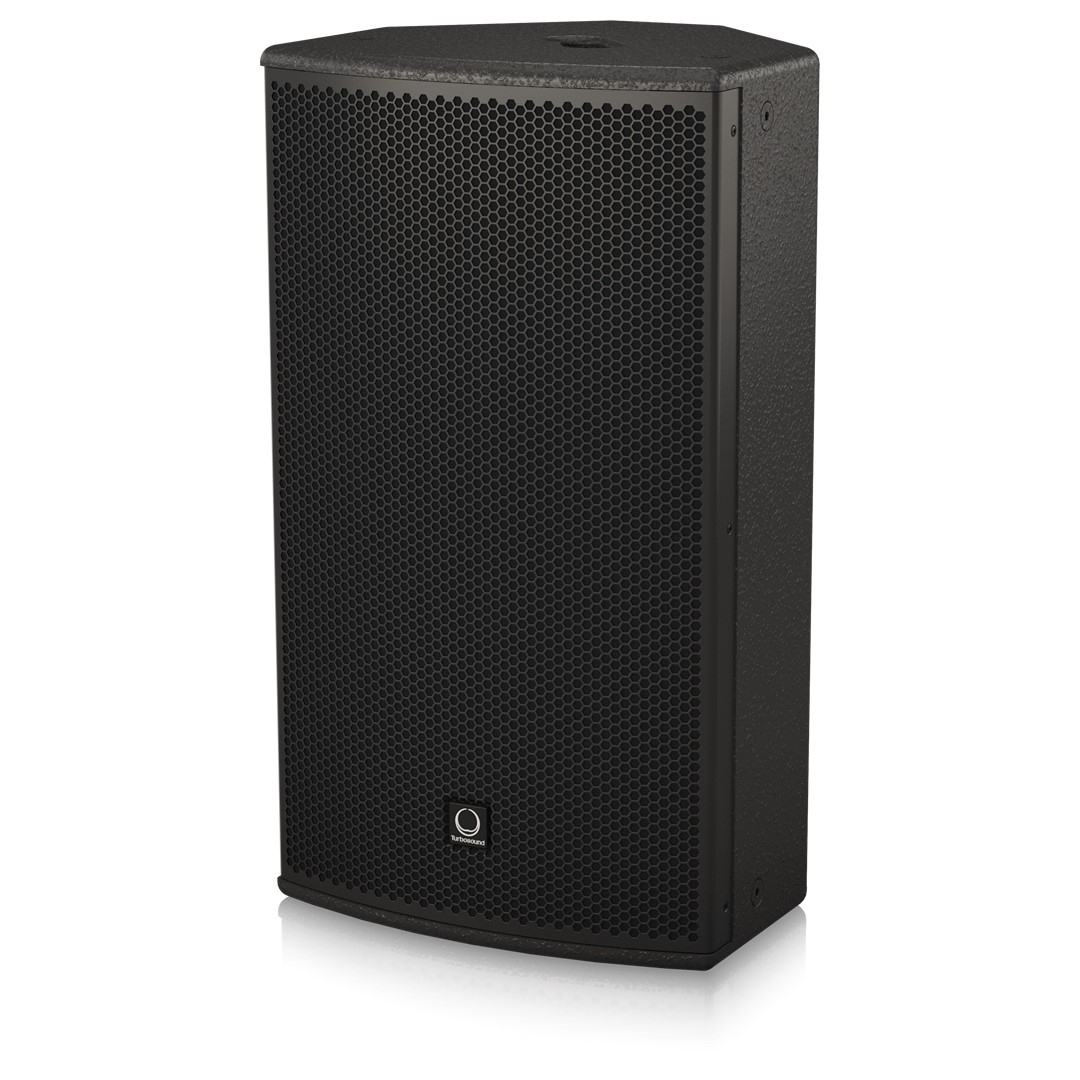

Finished in a highly durable semi-matt black paint, the trapezoidal cabinet is constructed from 15 mm (5⁄8″) birch plywood – and includes a rugged powder-coated perforated steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation. The NuQ122-FY flying yoke kit provides added flexibility in permanent install applications (available separately). The NuQ122-AN also features a 35 mm socket for standard pole mounting – plus integrated handles for convenient transport. Mains power input is provided via a Neutrik powerCON * connector.

Key Features

2-way full-range powered loudspeaker for portable PA and installation applications
2,500 Watt power featuring Klark Teknik Class-D technology
Klark Teknik Digital Signal Processing for total system control
ULTRANET digital audio networking connects to mixers and other sources
12″ low-frequency driver with low mass voice coil for improved transient response
Aluminium dome 1″ neodymium motor compression driver
Low distortion waveguide provides 70° H x 70° V dispersion
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
Rugged powder-coated perforated steel mesh grille
Integral 35 mm pole mount and handles
Multiple internal rigging points allow bracket mount and suspension in any orientation
Mains input on Neutrik powerCON connector

Architecture & Engineering Specifications

The loudspeaker shall be of the full range, two-way, powered type, consisting of one 12″ (316 mm) LF driver and one 1″ (25 mm) HF compression driver. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 55 Hz to 18 kHz and within -10 dB from 50 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall average 70° H x 70° V. Maximum amplifier output power shall be 2,500 Watts peak, independent of limiters and driver protection circuits. Maximum SPL (peak), measured at 1 metre with a music program, shall be 131 dB. Dimensions: 656 mm high x 374 mm wide x 340 mm deep (25.8″ x 14.7″ x 13.4″). Net weight: 20.2 kg (44.5 lbs). The loudspeaker system shall be the Turbosound NuQ122-AN. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above-combined performance/size specifications are equalled or exceeded.

General Specifications

System

Frequency Response
- 55 Hz – 18 kHz ±3 Db
- 50 Hz – 20 kHz -10 dB
Nominal Dispersion: 70° H x 70° V @ -6 dB points
Maximum SPL: 131 dB peak
Crossover Type: Active
Transducers
- 1 x 12″ (315.5 mm) LF driver
- 1 x 1″ (25.4 mm) HF compression driver
Limiter: Independent HF, LF, peak and rms
