Turbosound NuQ115B-AN
Check stock before ordering
R23,745.00
Turbosound NuQ115B-AN – 3000 Watt 15″ Front Loaded Subwoofer with Klark Teknik DSP Technology and ULTRANET Networking
Availability: In stock
Product Description
NuQ115B-AN
The 3,000 Watt NuQ115B-AN is a powered 15″ subwoofer system that is ideally suited for a wide range of music and live sound reinforcement applications. Designed to work individually without a controller, the NuQ115B-AN provides optimal FOH performance, as well as exceptional drum and side fill monitoring applications.
A bass reflex port design enclosure, the NuQ115B-AN features a high power, double suspension 15″ low-frequency driver that utilizes a specialized inside/outside wound voice coil for higher magnetic density, better heat dissipation, high power handling capacity, and improved efficiency. The NuQ115B-AN subwoofer provides a fast and accurate transient response for virtually distortion-free operation.
Output power for the NuQ115B-AN is provided by means of an efficient and lightweight Klark Teknik 3,000-Watt Class-D power amplifier. A sophisticated, but easy-to-use Klark Teknik Digital Signal Processor (DSP) provides dynamic EQ for impressive low-frequency response at low volume levels and transparent limiting for clarity at high output levels – and for long-term reliability.

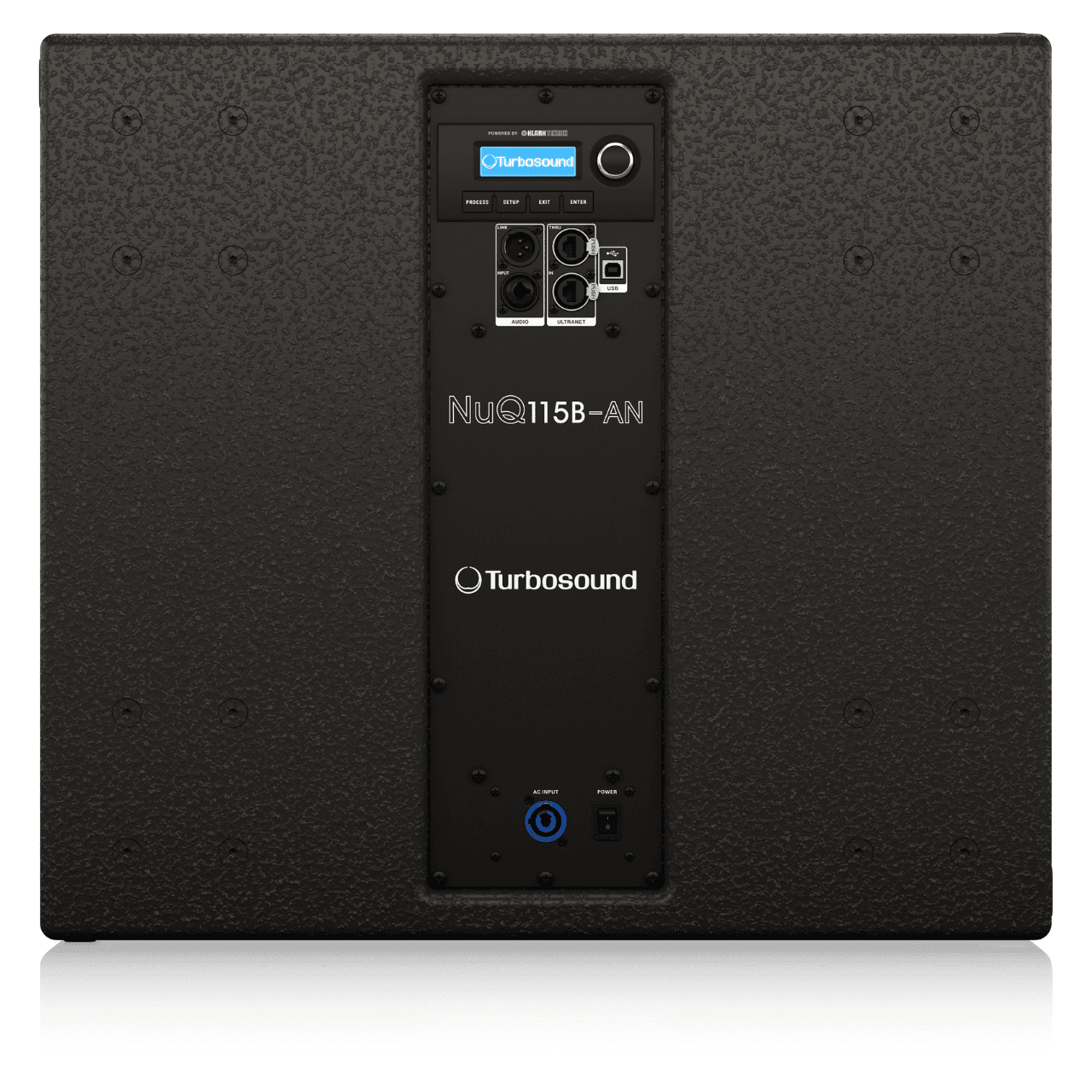

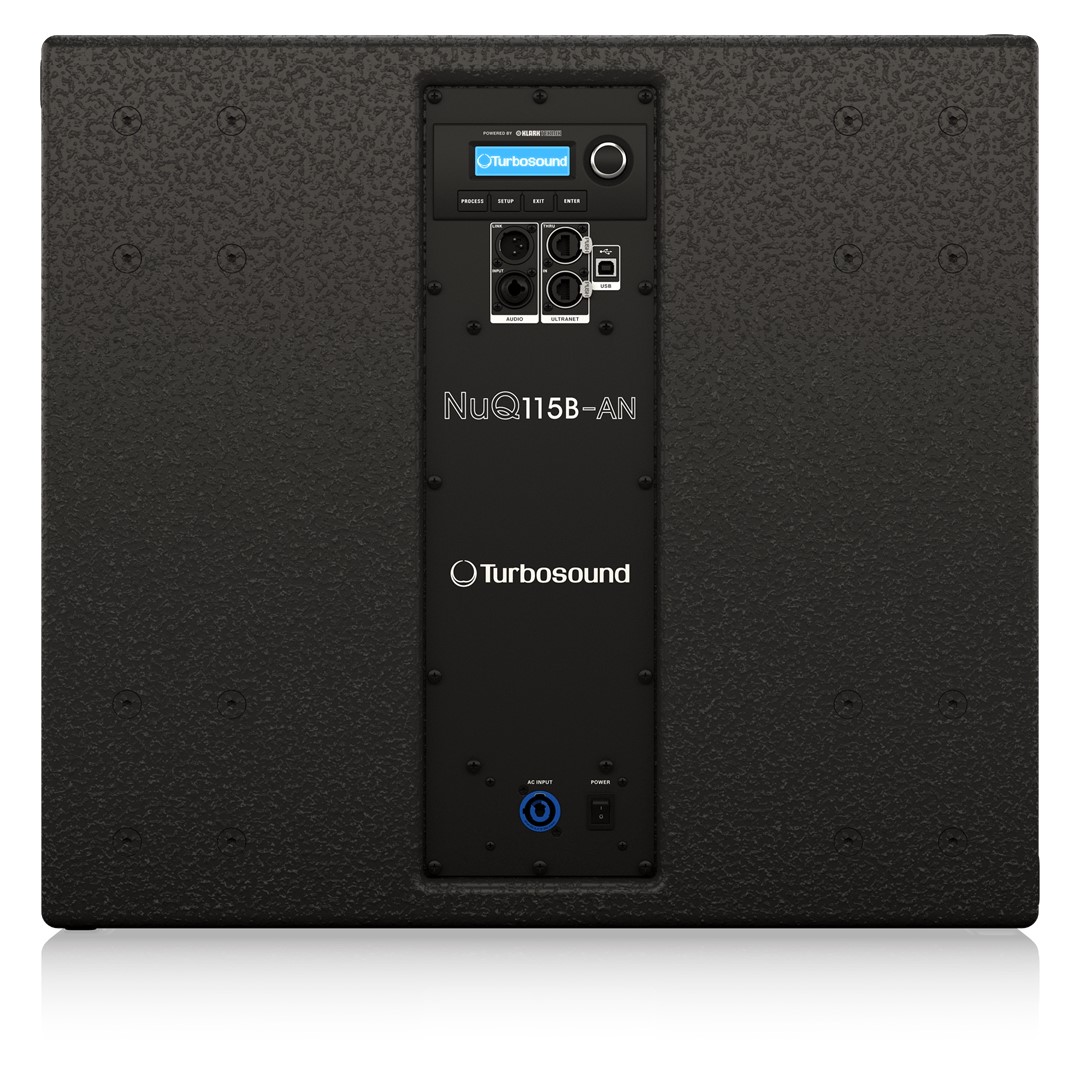

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, crossover alignment and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers, or for use with active full-range satellite speakers. An onboard USB port provides access for remote control of the NuQ115B-AN via PC computer, as well as DSP firmware updates.
ULTRANET connectivity is provided by two locking etherCON * connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
Finished in a highly durable semi-matt black paint, the cabinet is constructed from 18 mm (¾ “) birch plywood and includes – and includes a rugged powder-coated perforated steel mesh grille backed with reticulated foam; multiple M10 threaded rigging points; a 35 mm pole socket for satellite speaker mounting; integrated carry handles for convenient transport – and high impact interlocking corners for ground stacking stability. Mains power input is provided via a Neutrik powerCON * connector.
Key Features
- Front-loaded powered subwoofer for portable PA and installation applications
- 3,000 Watt power featuring Klark Teknik Class-D technology
- Klark Teknik Digital Signal Processing for total system control
- ULTRANET digital audio networking connects to mixers and other sources
- Double suspension 15″ low-frequency driver with inside/outside wound coil
- Fully featured user interface with LCD display for ease of navigation
- PC remote control software downloadable at turbosound.com
- Low distortion bass reflex port design
- 18 mm (3/4″) birch plywood enclosure with hard wearing semi matt black paint finish
- Integral M10 rigging points for ease of installation
- 35 mm pole mount to support satellite speaker
- Mains input on Neutrik powerCON connector
General Specifications
System
- Frequency Response
- 45 Hz – 150 Hz ±3 Db
- 38 Hz – 200 Hz -10 dB
- Nominal Dispersion: Half Space
- Maximum SPL: 135 dB peak
- Crossover Type: Active
- Transducers
- 1 x 15″ (387 mm) LF driver
- Limiter: Peak and rms
Amplifier
- Maximum Output Power*: 3000 W
- Type: Class-D
- Protection: Short circuit, thermal
Connectors
- Input/link: 1 x Combo Jack/XLR 1 x XLR
- Ultranet input/link: 2 x RJ45
- Mains Supply: Neutrik powerCON 20A†
Controls
- DSP: Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter
User DSP Functions
- Factory EQ Presets: Positioning, sound mode, FBQ
- Display: LCD 128 x 32, blue, backlit
- Delay: 0 – 300 ms
- Equalisation: High and low shelving EQ 2 x parametric EQ
- Limiter: Zero attack input limiter
- Presets: 20 total presets, 19 user-definable
- Crossover: High pass L-R 24 dB/oct
- Protection: Lock-out function for all settings
Power Supply
- Power Consumption: 180 W @ 1/8 max power
Enclosure
- Construction: 18 mm (5/8″) birch plywood
- Finish: Semi-matt black paint
- Grille: Powder-coated perforated steel
- Flying Hardware: M10 x 16 points
- Dimensions (WxDxH): 579mm x 620mm x 519mm / 22.8″ x 24.4″ x 20.4″
- Net Weight: 23.6kg / 52lbs
