Sound Town CARPO-P3B Passive Column Line Array Speaker – Pair

R7,995.00


CARPO-P3B Pair of High-Power 500W Passive Column Line Array Speakers with 2×5″ Woofers, Dual Compression Drivers, Birch Plywood, Wall Mount, Black

Availability: In stock

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Product Description

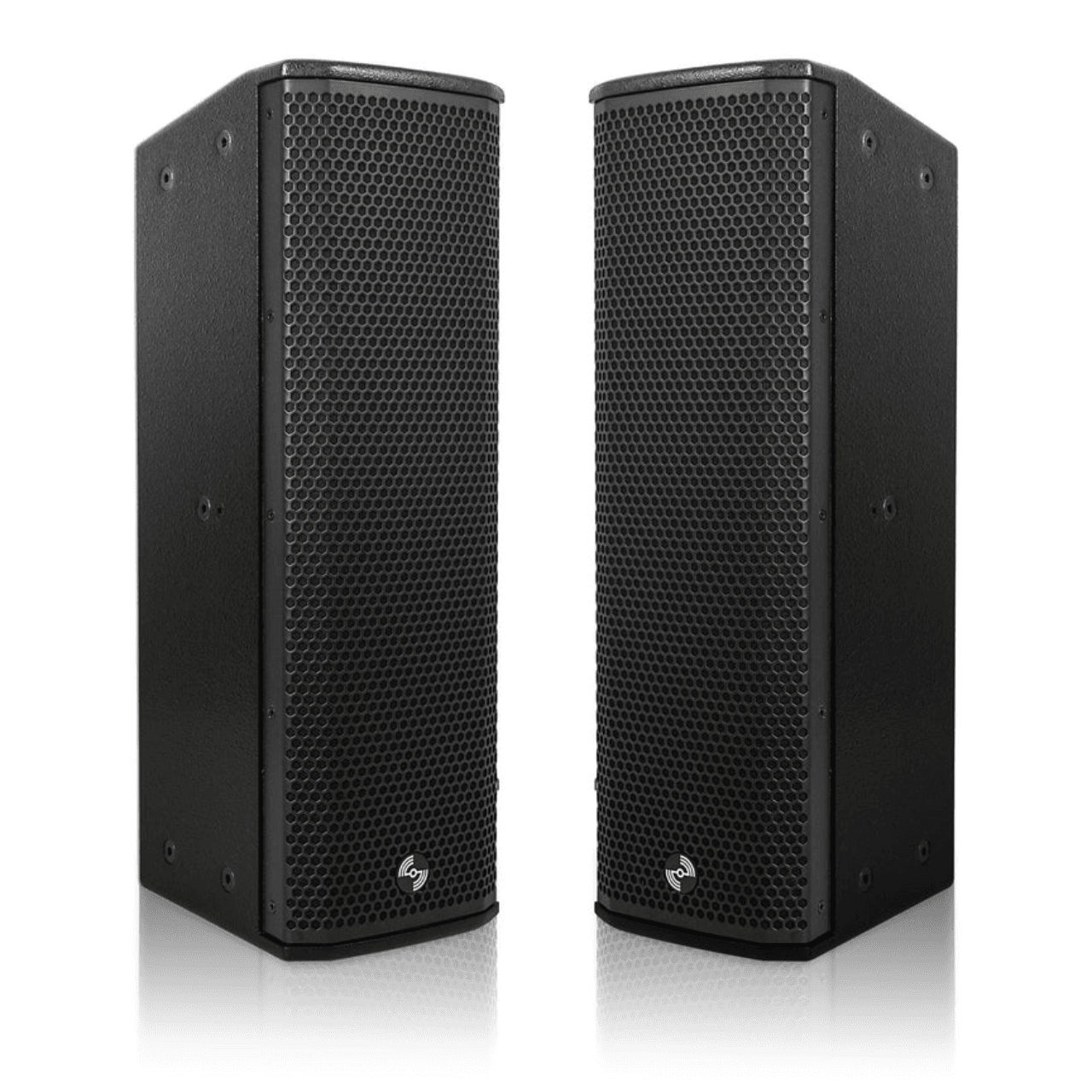

Introducing the CARPO Series CARPO-P3B which includes 2 line array column speakers, each equipped with dual 5″ woofers and dual 3/4″ compression drivers with line horns, producing a high-power performance of 250W RMS and 500W program at 8Ω for balanced, crisp audio. Permanent mounting setups or portable PA setups are simplified with CARPO-P3B’s versatile mounting options.

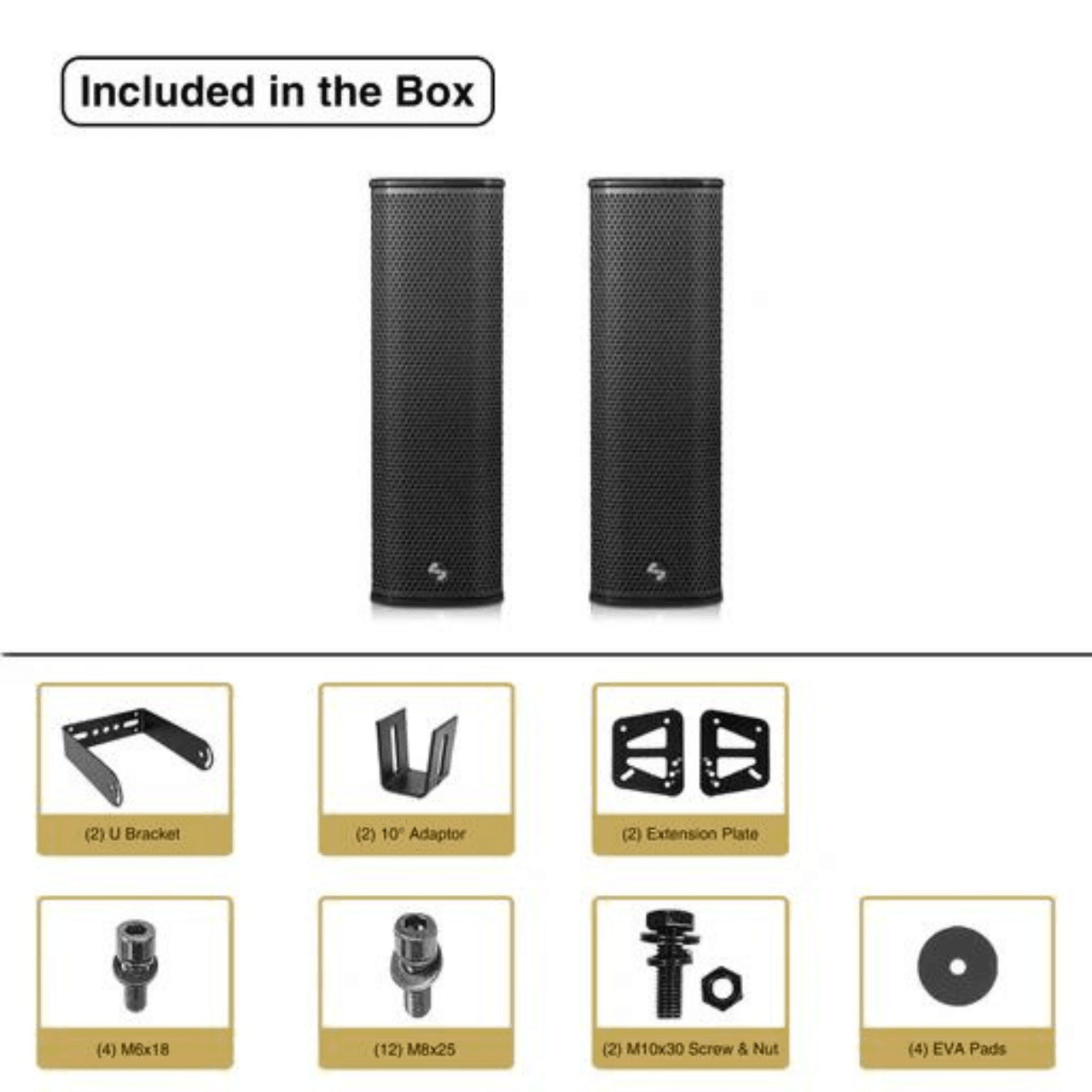

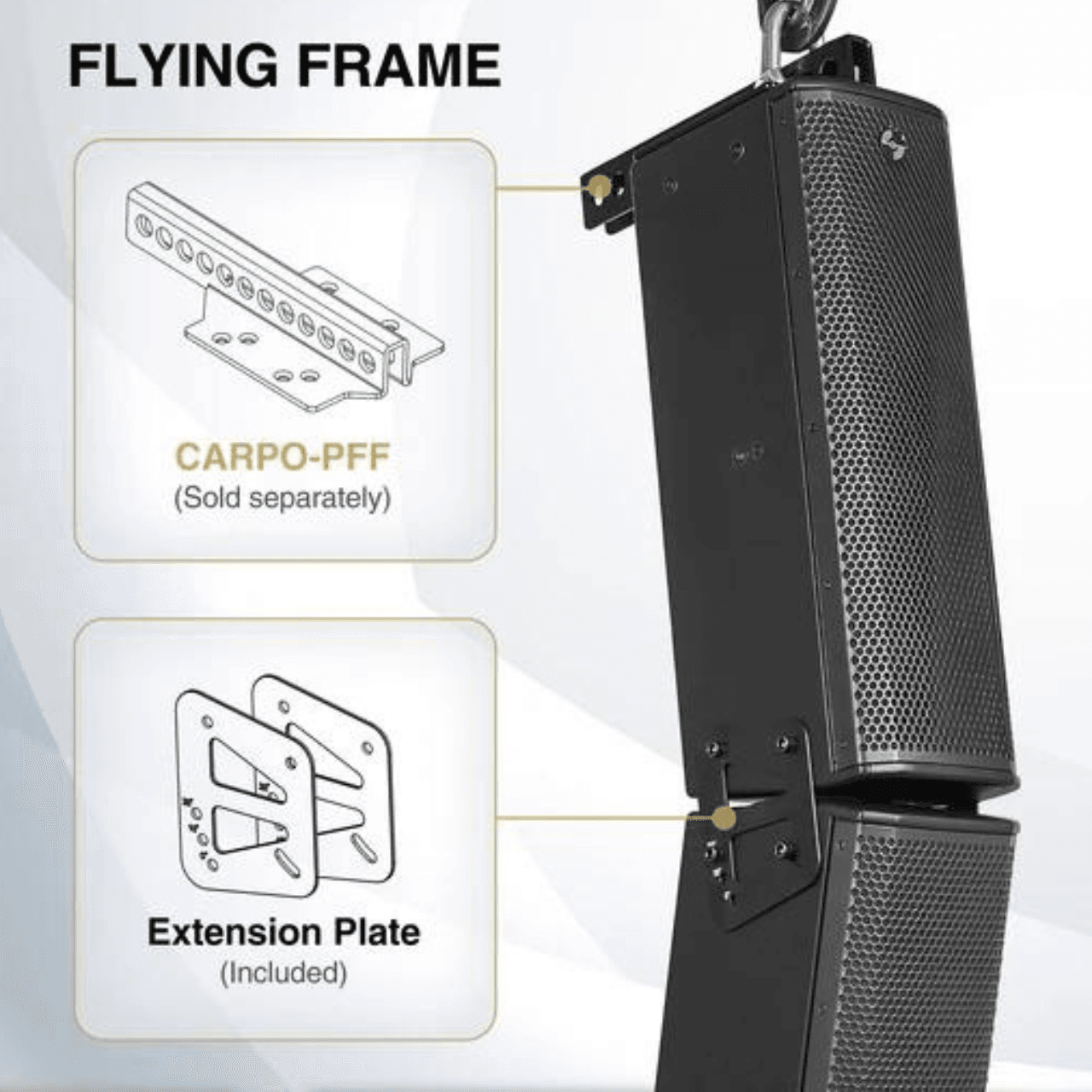

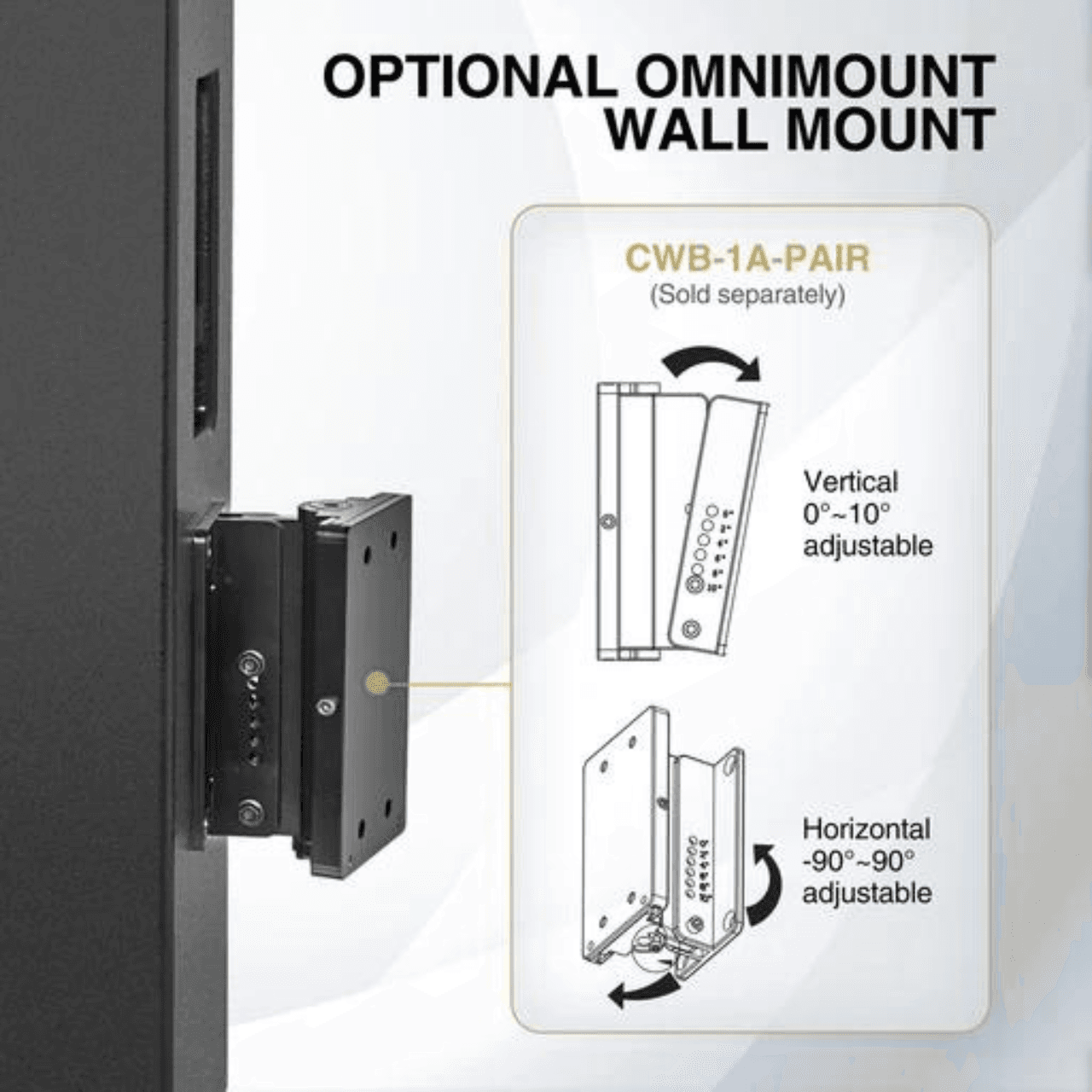

The CARPO-P3B features 2 included U-brackets and adapters for a 10° tilt in multiple directions as well as an extension bracket for combining 2 CARPO-P3B column speakers together. A 35mm socket on the bottom of each column speaker also makes portable setups a breeze with additional speaker poles or a tripod. The optional ‘CWB-1A-PAIR’ omni-mount wall mount allows for precise flexible angle adjustments and ‘CARPO-PFF’ flying frame for suspension setups is also available and sold separately.

Designed to be compact and lightweight without sacrificing sound quality and durability, each loudspeaker has 2 Speakon input connectors which make it easy to be connected with virtually any sound system. The robust cabinet constructed with birch plywood with a textured black paint finish combines durability with clean aesthetics. Whether as a permanent fixture or a portable PA solution, the CARPO-P3B is ideal for live performances, places of worship, conference centres, auditoriums, restaurants, and so much more!

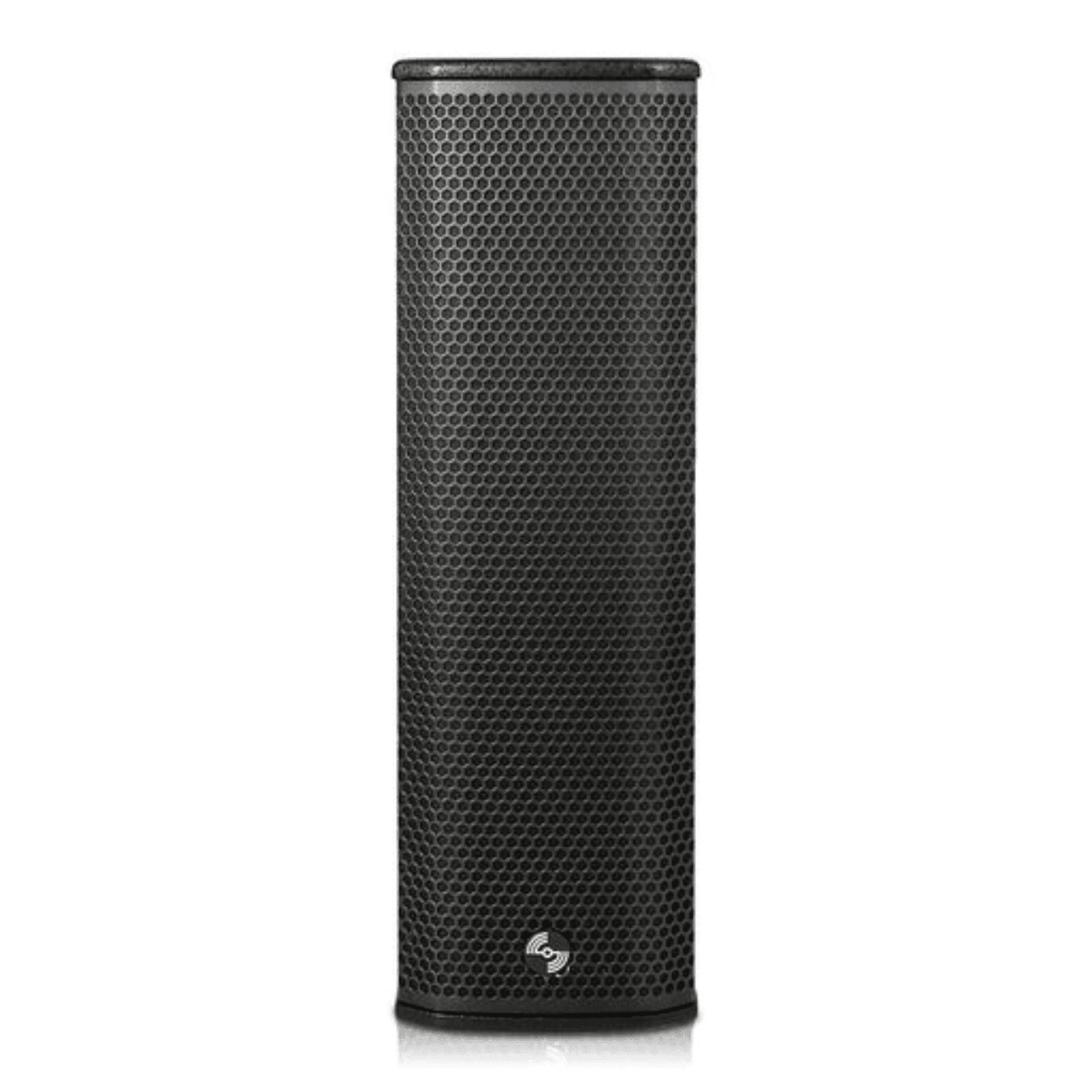

CARPO Series Column Speaker

The CARPO-P3B line array column speaker system includes 2 column line array speakers, each equipped with dual 5″ woofers and dual 3/4″ compression drivers with linear horns, delivering high-power performance, capable of 250W RMS and 500W program at 8Ω, ensuring a balanced and crisp audio experience.

Flexible Mounting Options

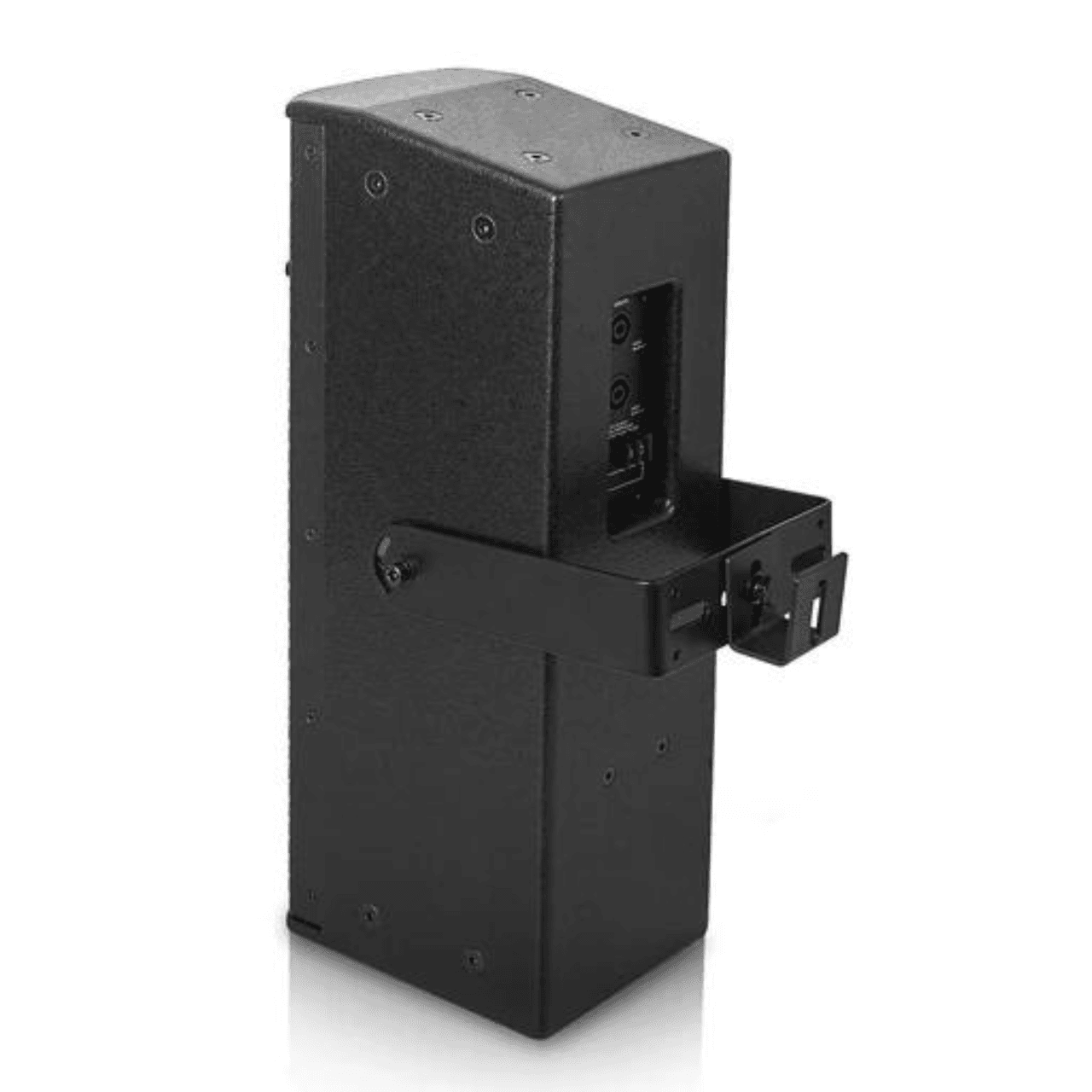

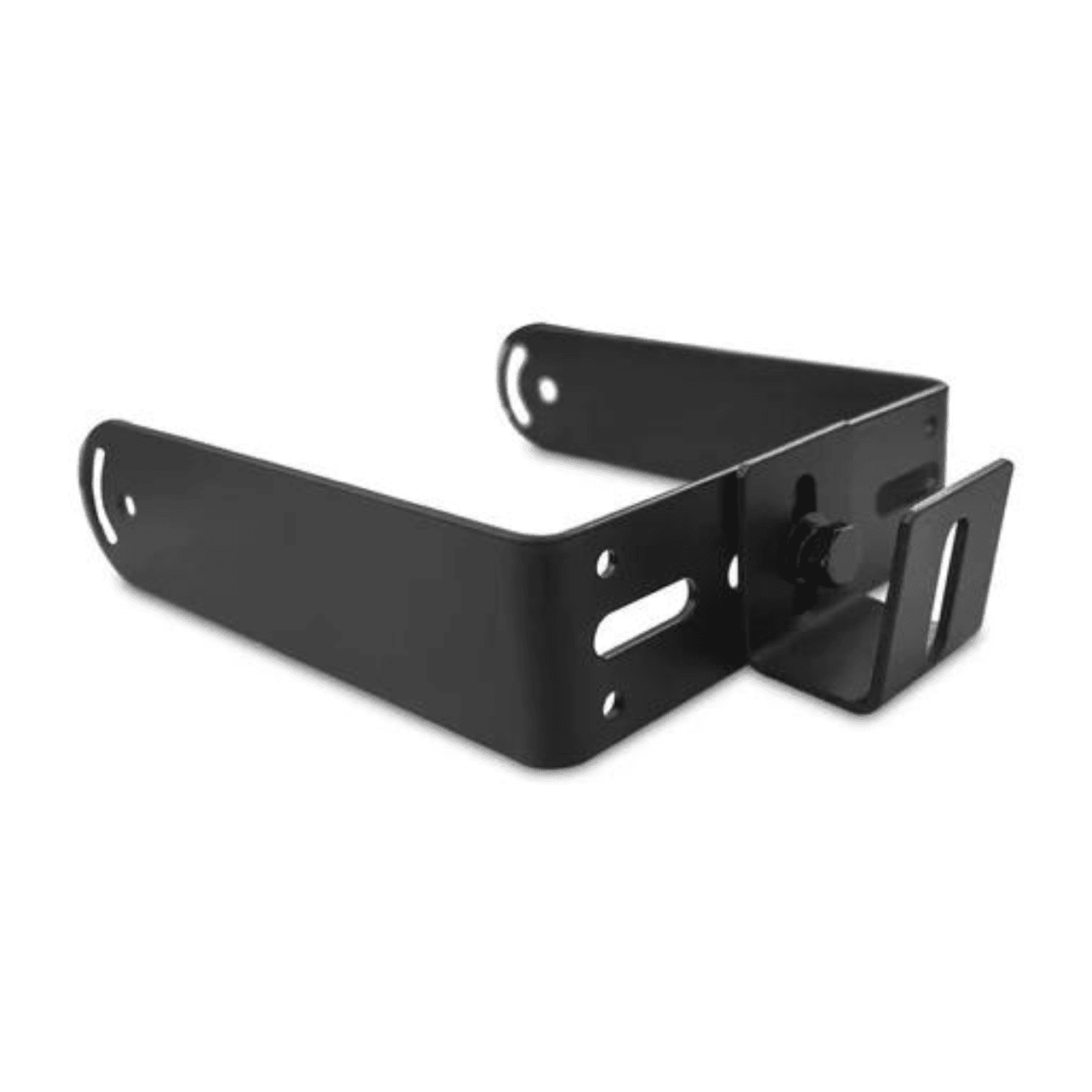

The CARPO-P3B includes U-brackets and adapters for 10° of tilt left, right and down as well as extension brackets for integrating 2 columns together. Optional ‘omni-mount’ wall mounts for precise angle adjustments and suspension setups (bracket and frame sold separately). Additionally, a 35mm socket on each column speaker is to be mounted with tripods and poles.

Compact and Lightweight Design

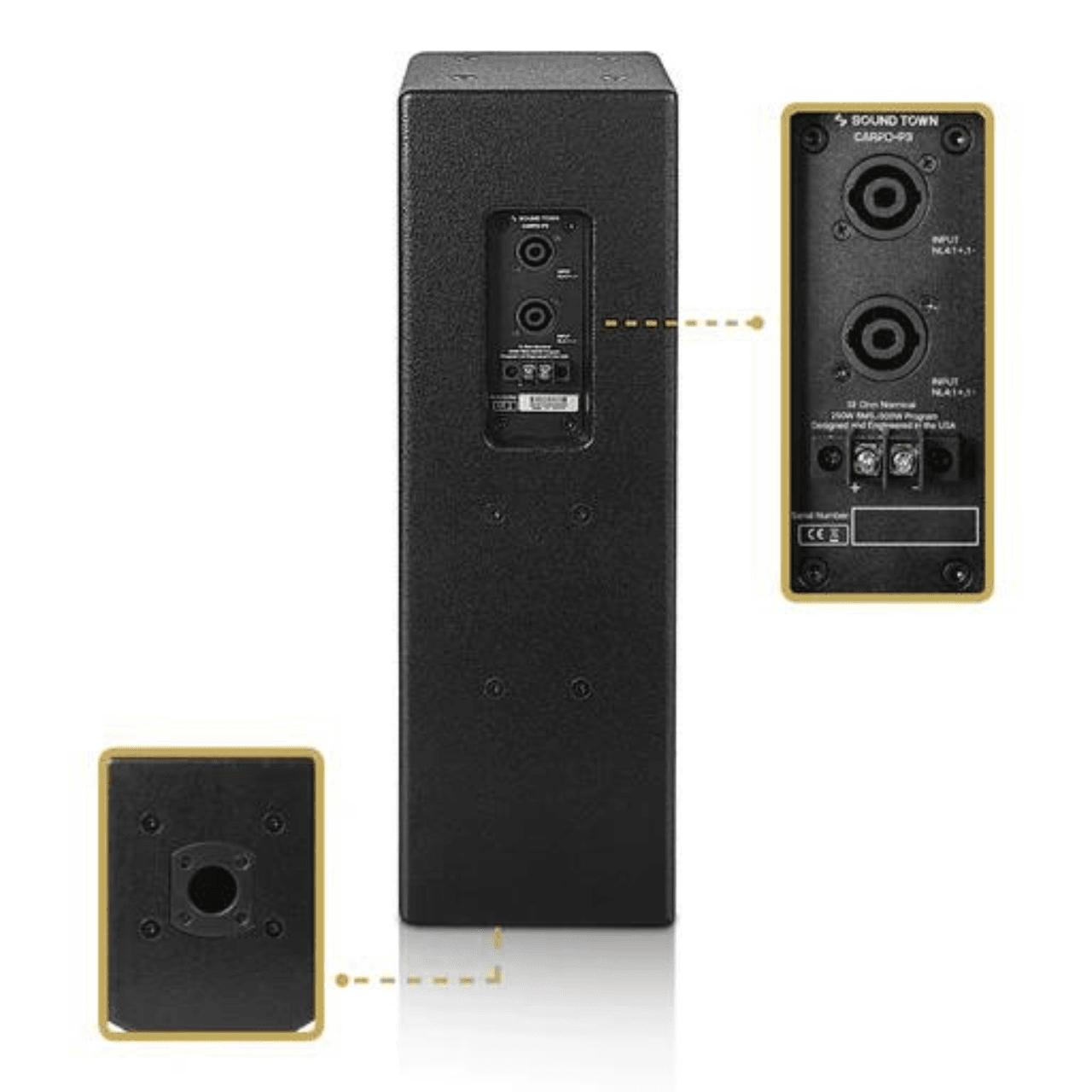

Designed for maximum portability without compromising on sound quality, each CARPO-P3B speaker has 2 Speakon inputs that easily connect with your PA system.

Durable Construction

Made with a birch plywood housing with a textured black painted finish for enhanced durability and superior sound resonance.

Versatile Applications

It can either be set up as permanent speakers or on-the-go portable PA speakers, ideal for auditoriums, stages, churches, restaurants, lounges and more.

General Specifications

  • Model: CARPO-P3B
  • Active / Passive: Passive
  • Frequency Range: 87Hz~20K Hz
  • Frequency Response: 92Hz~20K Hz
  • Sensitivity: 94dB, 1W @ 1
  • SPL Max: 122dB
  • Dispersion: 120 x 20 Degrees
  • Configuration: Dual 5″ woofers and dual 3/4″ compression drivers
  • Transducer LF: 2 x 5″, HF: 2 x 0.75″
  • Voice Coil: 1.5″
  • Magnet: 21 oz
  • Impedance: 8Ω
  • Power Handling: 250W RMS, 500W PROGRAM
  • Enclosure Material: High-grade 100% birch plywood
  • Mounting Hardware: U Bracket, CWB-1A-PAIR Optional Omnimount Bracket, CARPO-PFF Optional Flying Frame
  • Finish: Texture coating
  • Grill & Rigging Component: Steel with an anti-corrosion coat
  • Input: Speakon & Barrier Strip
  • Output: Speakon & Barrier Strip
  • Voltage: 100V-240V (50-60 Hz)

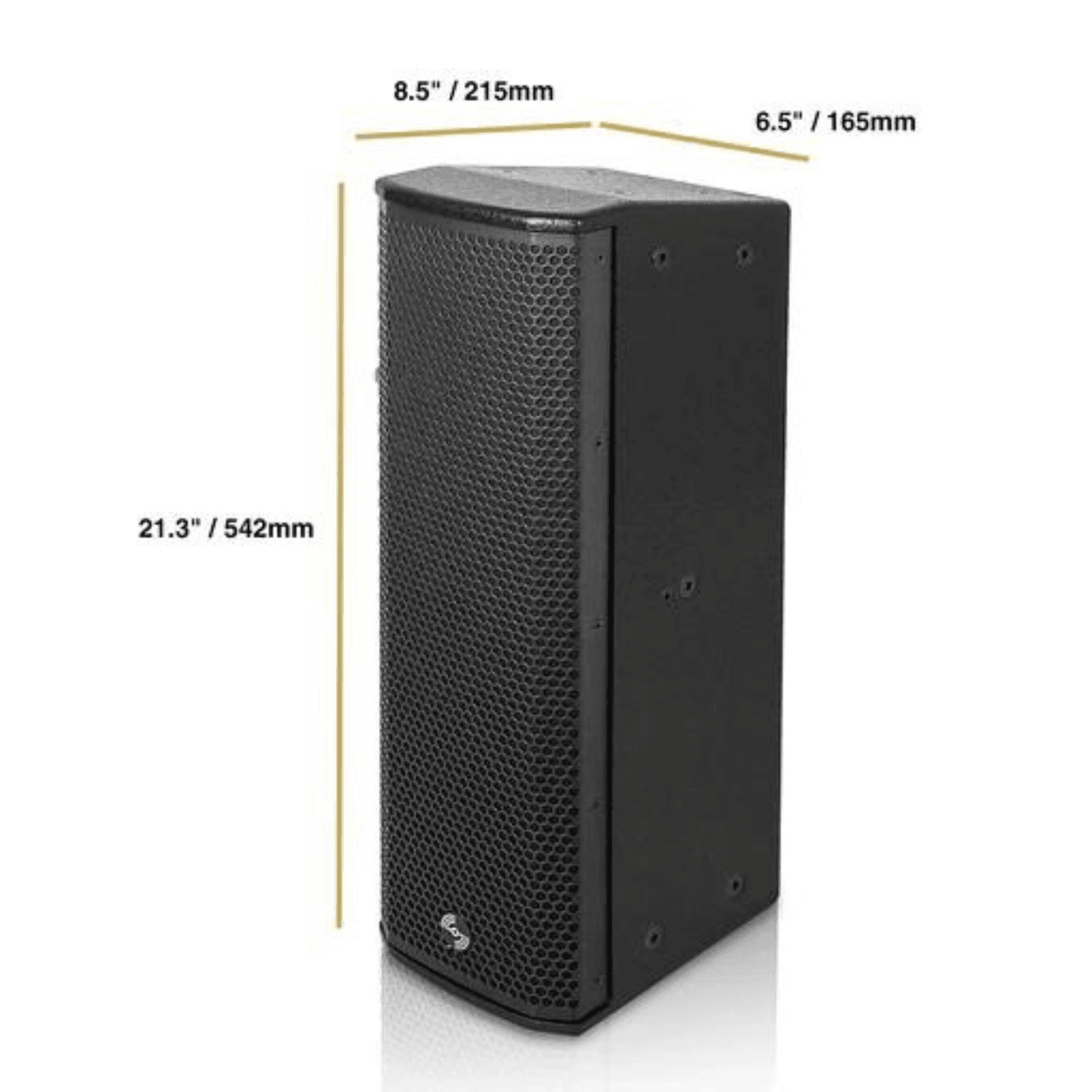

  • Dimensions (WxDxH): 6.5″ x 8.5″ x 21.3″
  • Weight: 21.5lbs (each)
