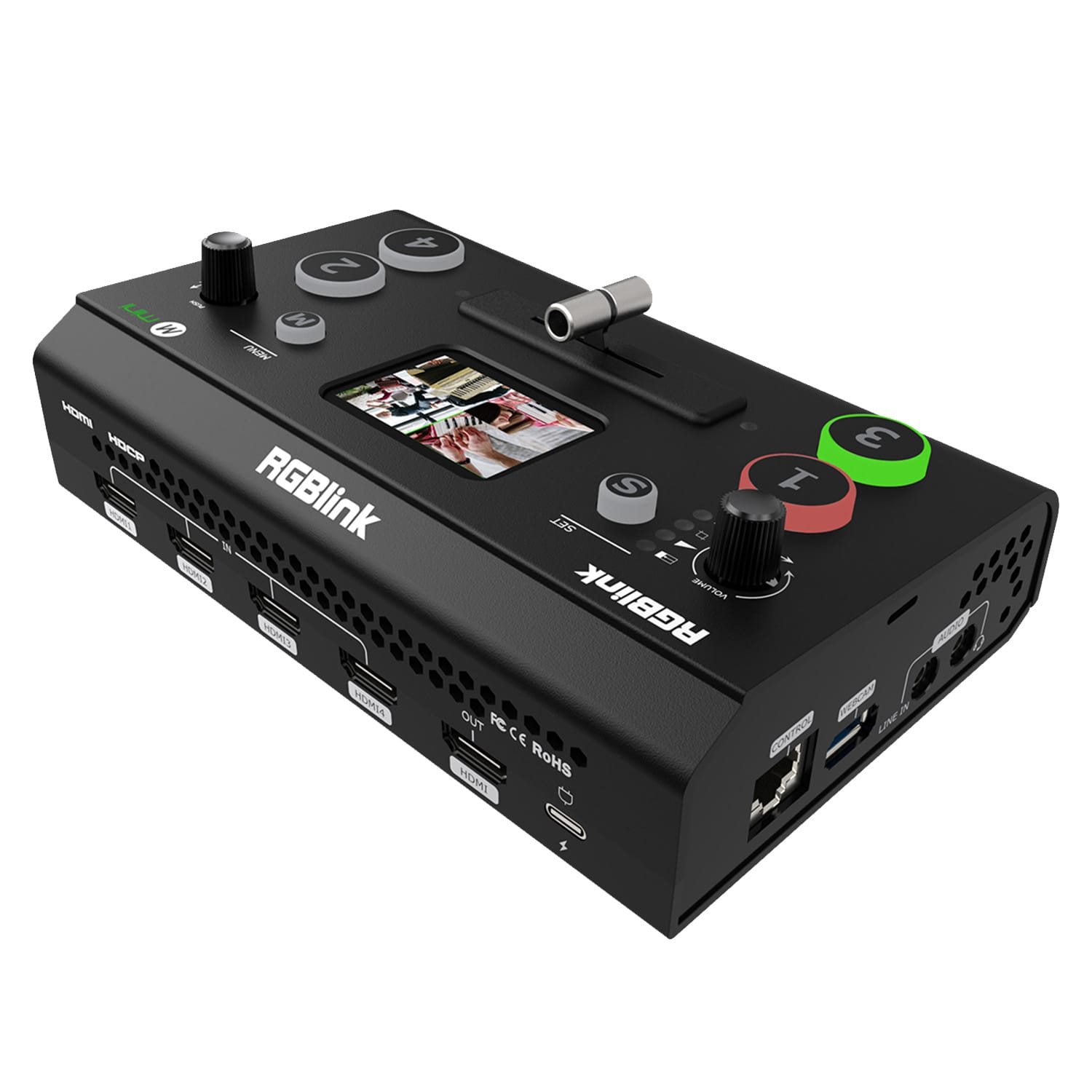

RGBlink mini Streaming Switcher

The RGBlink mini Streaming Switcher, in a portable design with common controls, a T-bar, and a display screen, allows you to switch between four HDMI signals and output them over an HDMI PGM and USB 3.0 live streaming outputs, with PiP and transition effects applied. The live streaming output lets you connect to popular UVC platforms such as OBS and YouTube Live. The HDMI inputs are resolution independent, allowing you to mix and match formats up to 1080p60/WUXGA. The signals are automatically scaled to the assigned resolution up to 1080p60 for uniform output in virtually all types of live productions. (For DSK, logo, chroma key, and PTZ camera support, please check out the mini+ switcher.)

Besides the HDMI PGM/PVW output, you can also monitor all four inputs via the built-in 2″ color TFT display. Additionally, 3.5mm audio input and output ports let you embed an independent mic signal and extract HDMI audio to external speakers or an audio mixer. The compact switcher also offers an RJ45 port for connecting to a LAN for remote control of the mini via optional software.
