Powerworks ZETHUS-ZS-V1812X2OC Passive Line Array System
R148,755.00
Sound Town | ZETHUS-ZS-V1812X2OC Passive Line Array System
Availability: In stock
Product Description

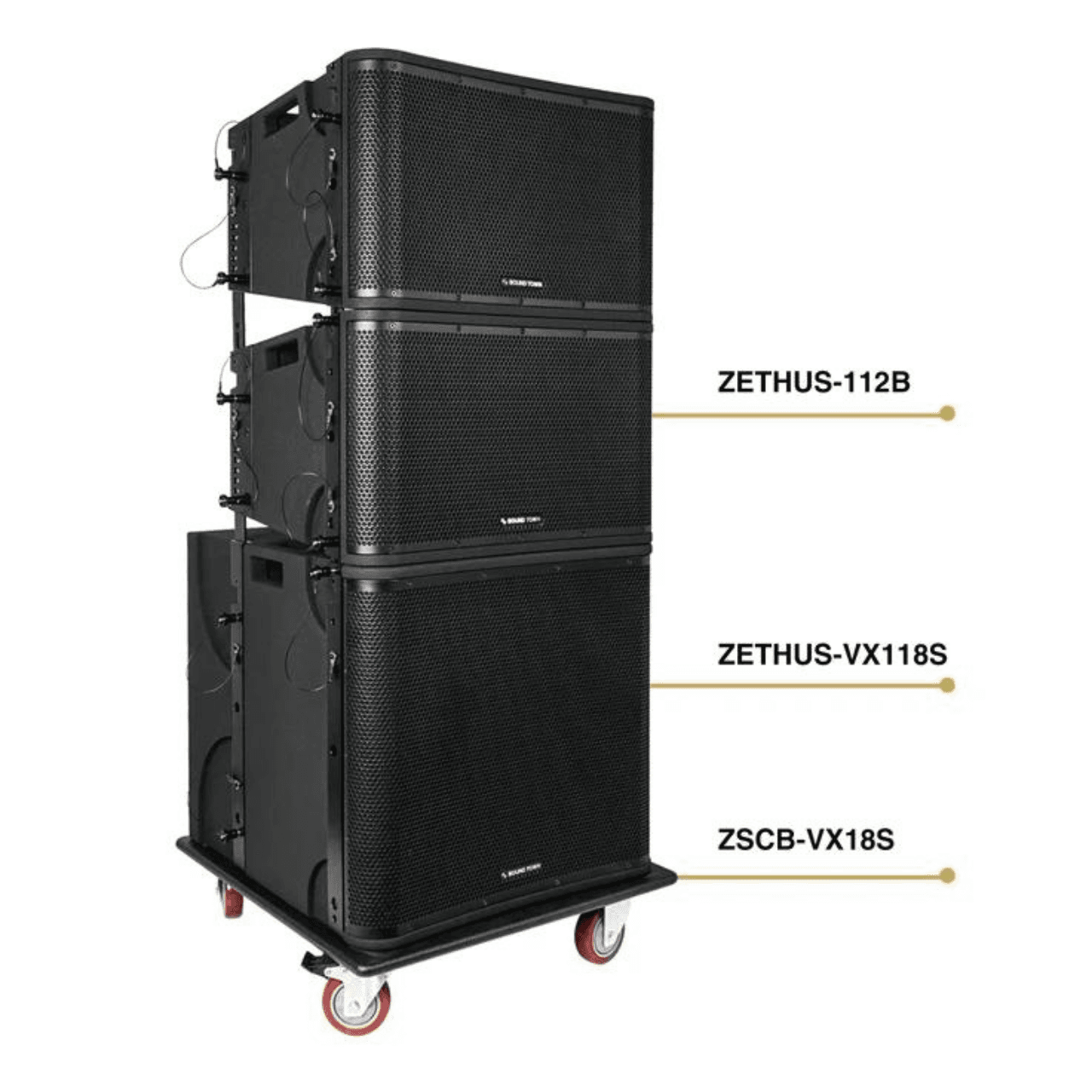

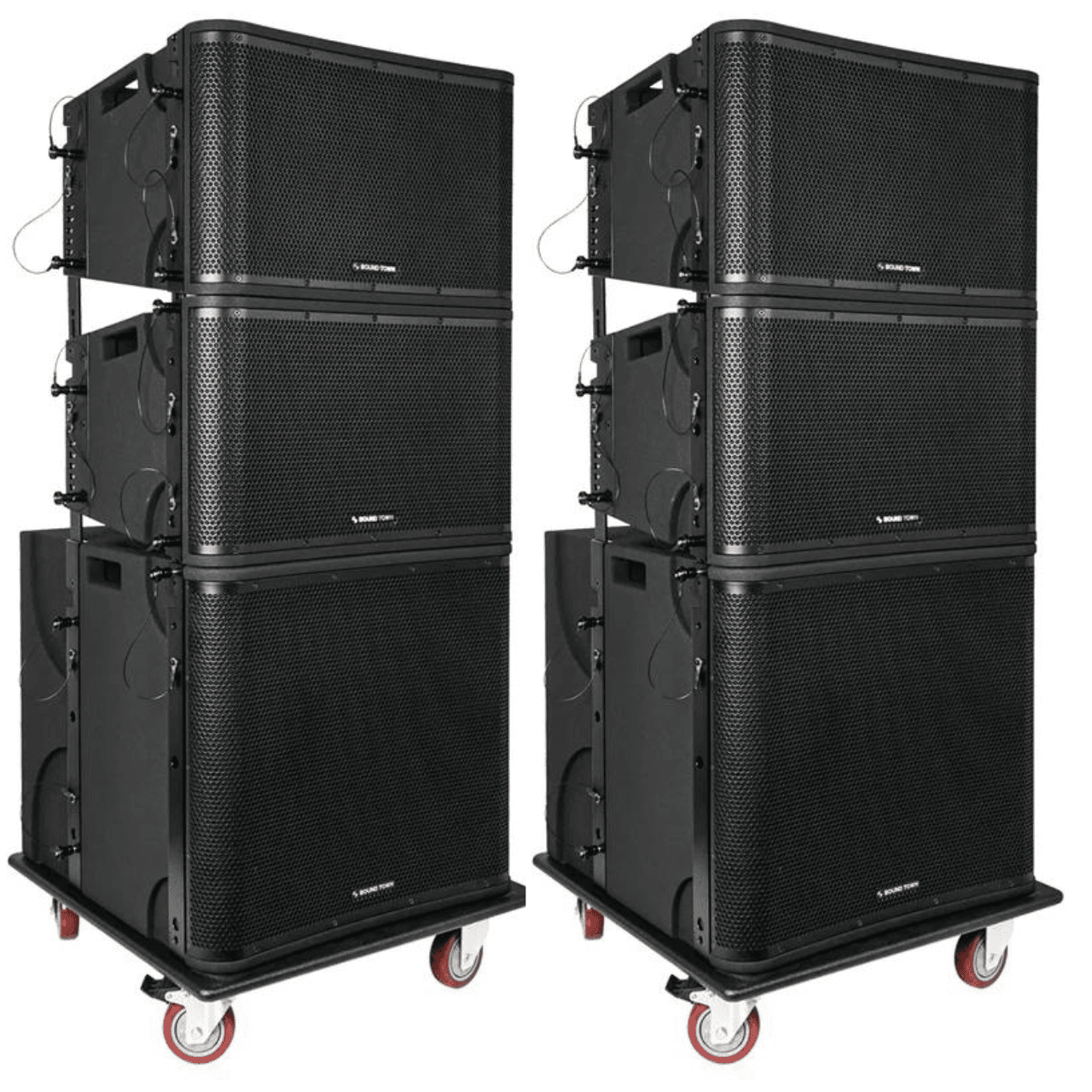

The ZETHUS-ZS-V1812X2OC includes:
- 4x ZETHUS-112B 12″ Two Way Powered Line Array Speaker, Full-Range/Bi-amp Switchable
- 2x ZETHUS-VX118S 18″ Powered Line Array Speaker

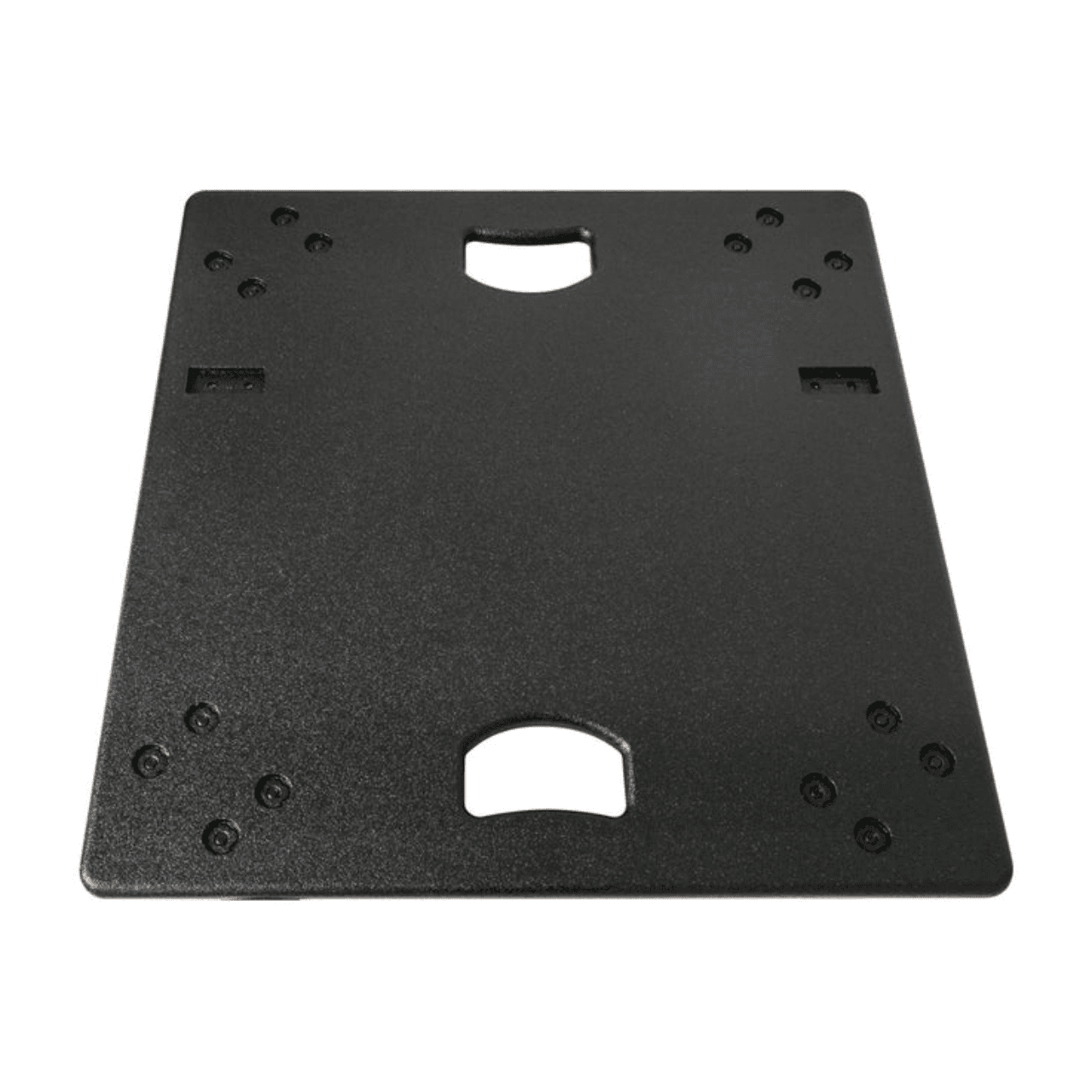

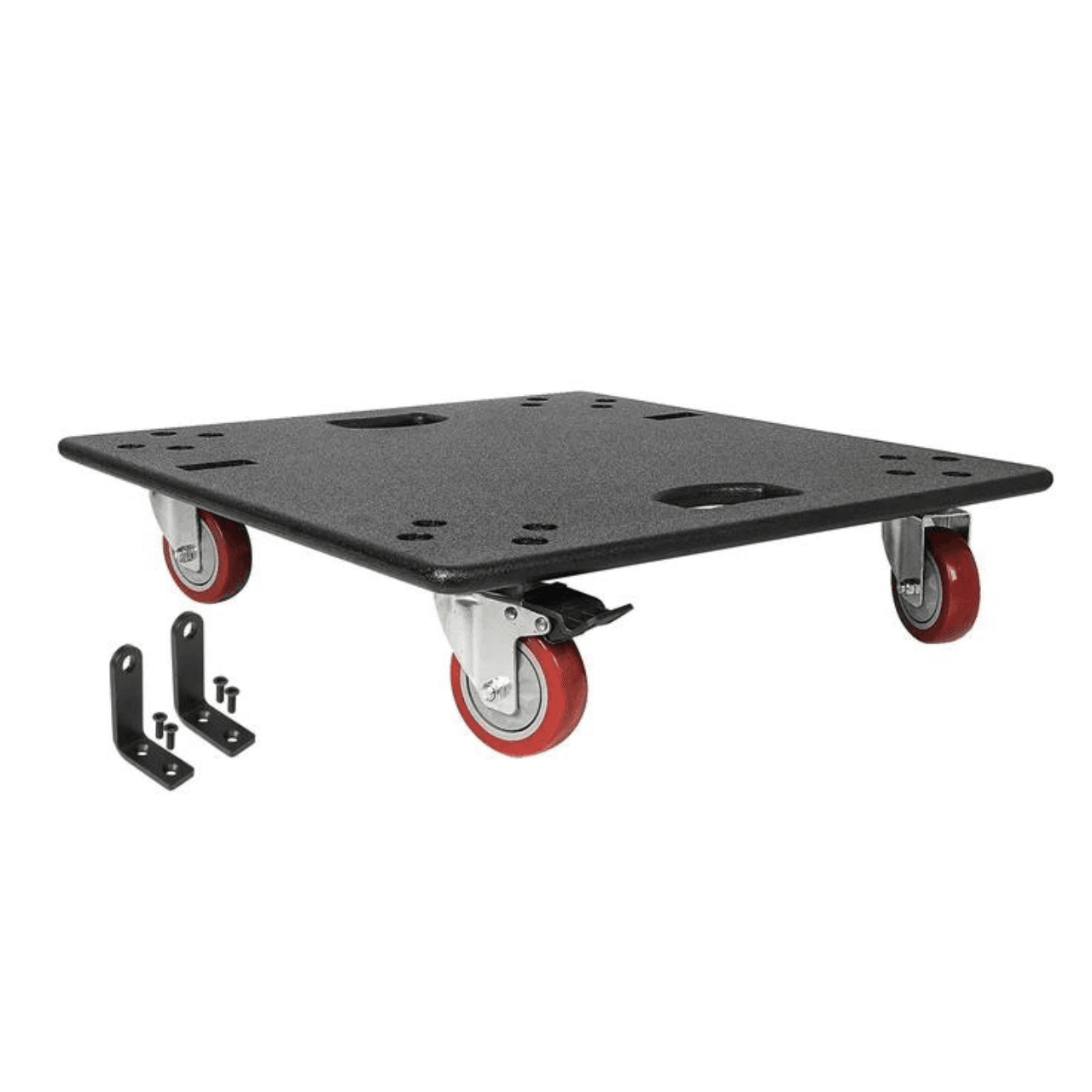

- 2x ZSCB-VX18S Caster Board
Experience unparalleled sound quality with the lightweight and compact ZETHUS-112B line array speaker. Featuring a 12″ woofer and two 1.4″ titanium compression drivers, with an impressive 400W RMS and 800W program (8Ω) power handling capability. With a broad frequency range from 40 Hz to 20 kHz, it provides exceptional audio coverage for every detail of your music. The ZETHUS-112B line array speaker offers full-range or bi-amp mode, ensuring quick connections for both simple and professional setups.

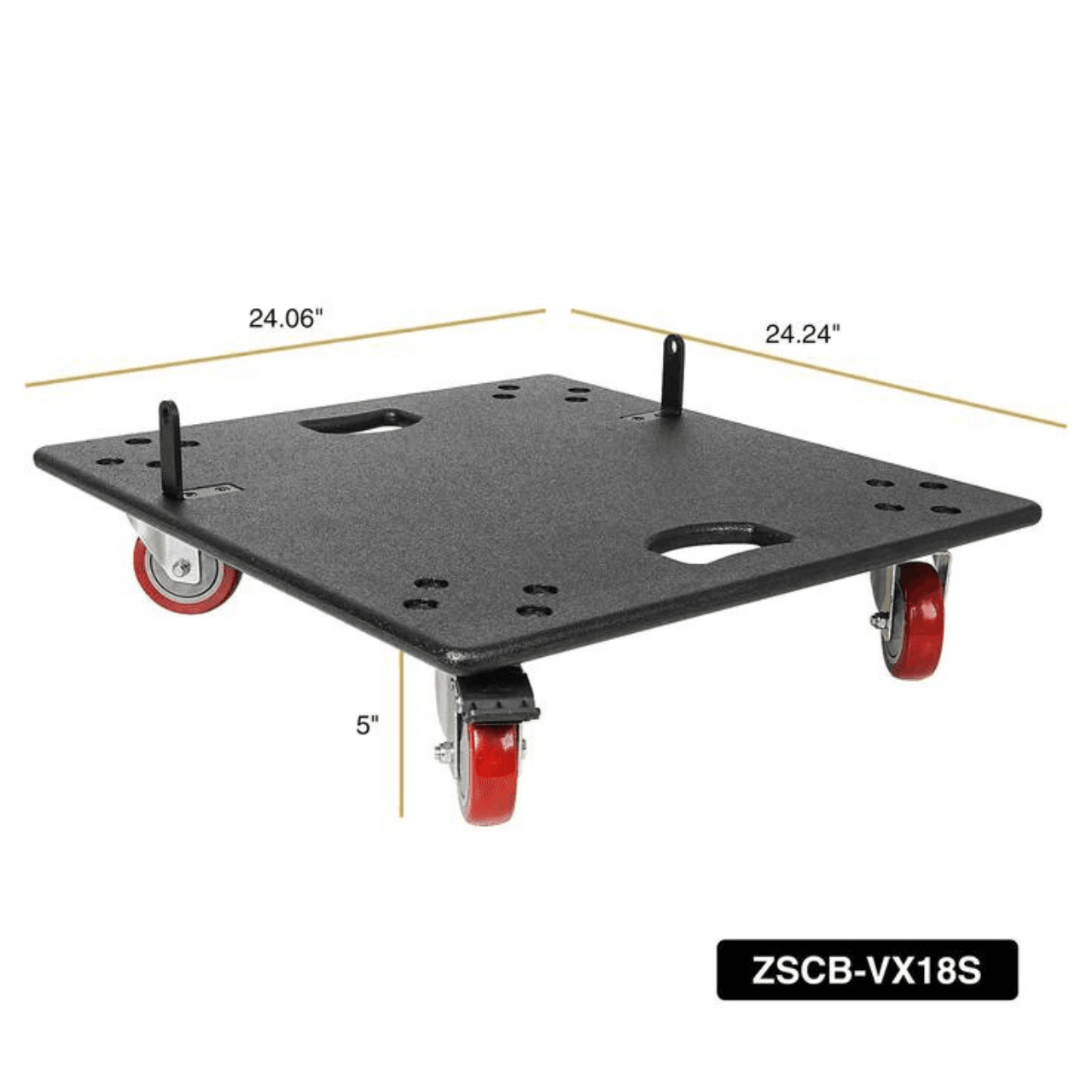

The ZETHUS-VX118S line array subwoofer delivers a powerful low-frequency reinforcement with its 18″ woofer, capable of handling 800W RMS and 1600W program power at 8Ω. The ZETHUS-VX118S subwoofer boasts a frequency range of 27 Hz – 180 Hz. With the included ZSCB-VX18S caster board, allow transportation and setup are a breeze! The ZSCB-VX18S supports up to 660 lbs and allows for an easy ground stacking setup. Stack ZETHUS-112B speakers to the ZETHUS-VX118S subwoofer secured with its integral rigging hardware.
The ZETHUS-112B and ZETHUS-VX118S are housed in a high-quality plywood enclosure, which reduces distortion and unwanted vibrations, even at high volume outputs, providing clean crisp audio you can expect from tour-quality craftsmanship. The ZS-V1812X2OC passive line array set is ideal for small to medium venues such as bars, clubs, restaurants, auditoriums, churches and more!
Features

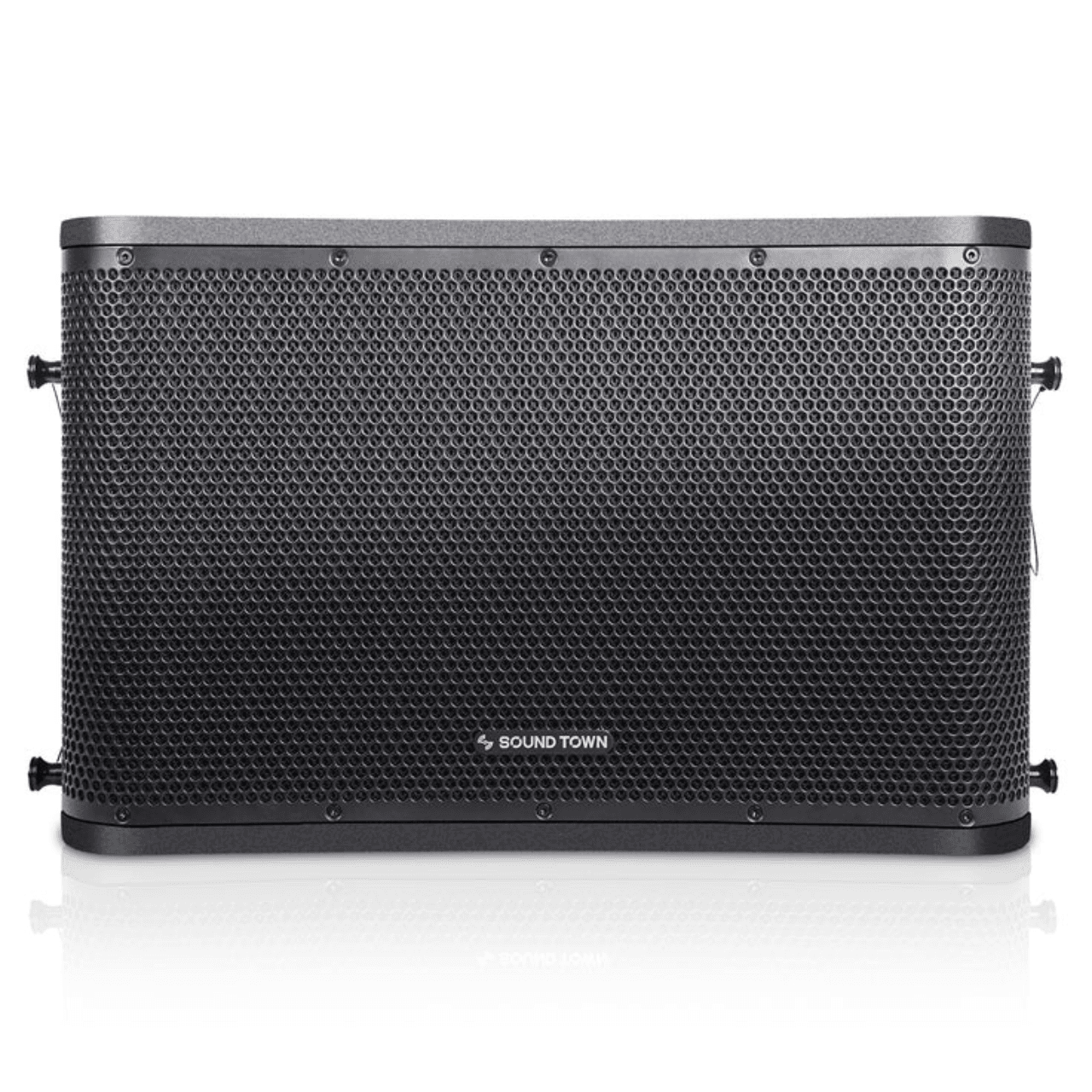

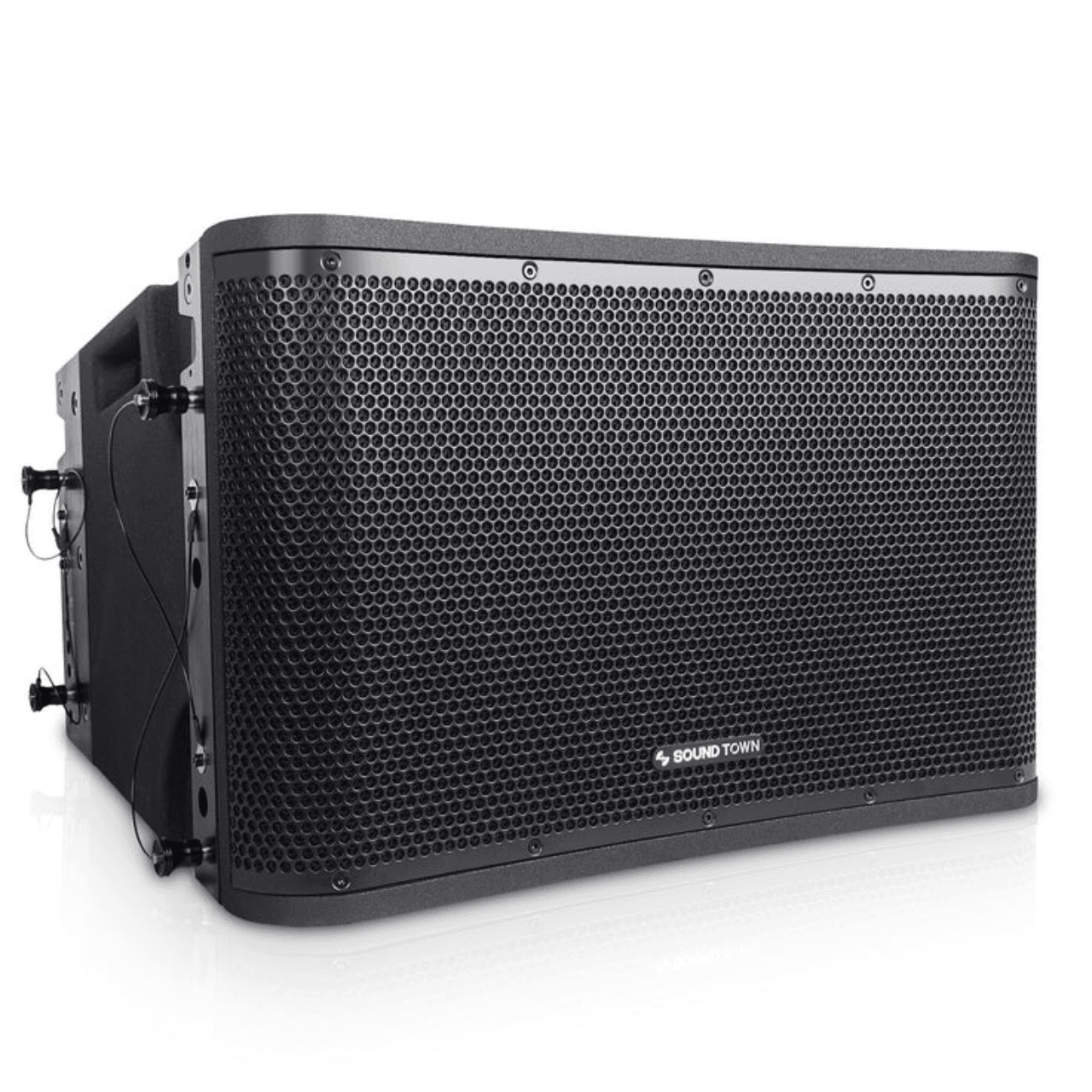

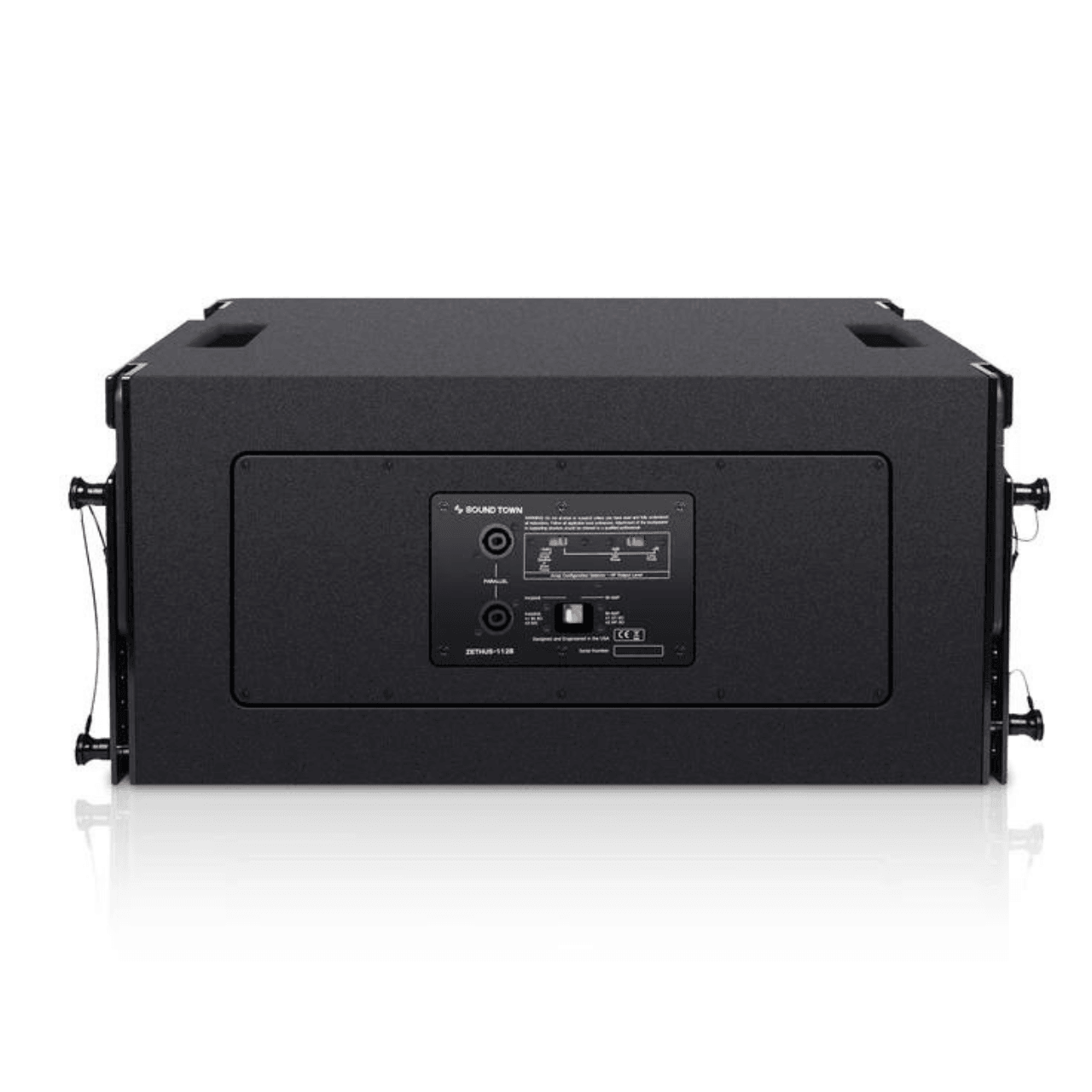

ZETHUS-112B Full-Range Speakers
Each ZETHUS-112B passive line array speaker features a 12“ woofer and two 1.4” titanium compression drivers, delivering 400W RMS, 800W program power (8Ω) handling capability and a full-range or bi-amp switch.

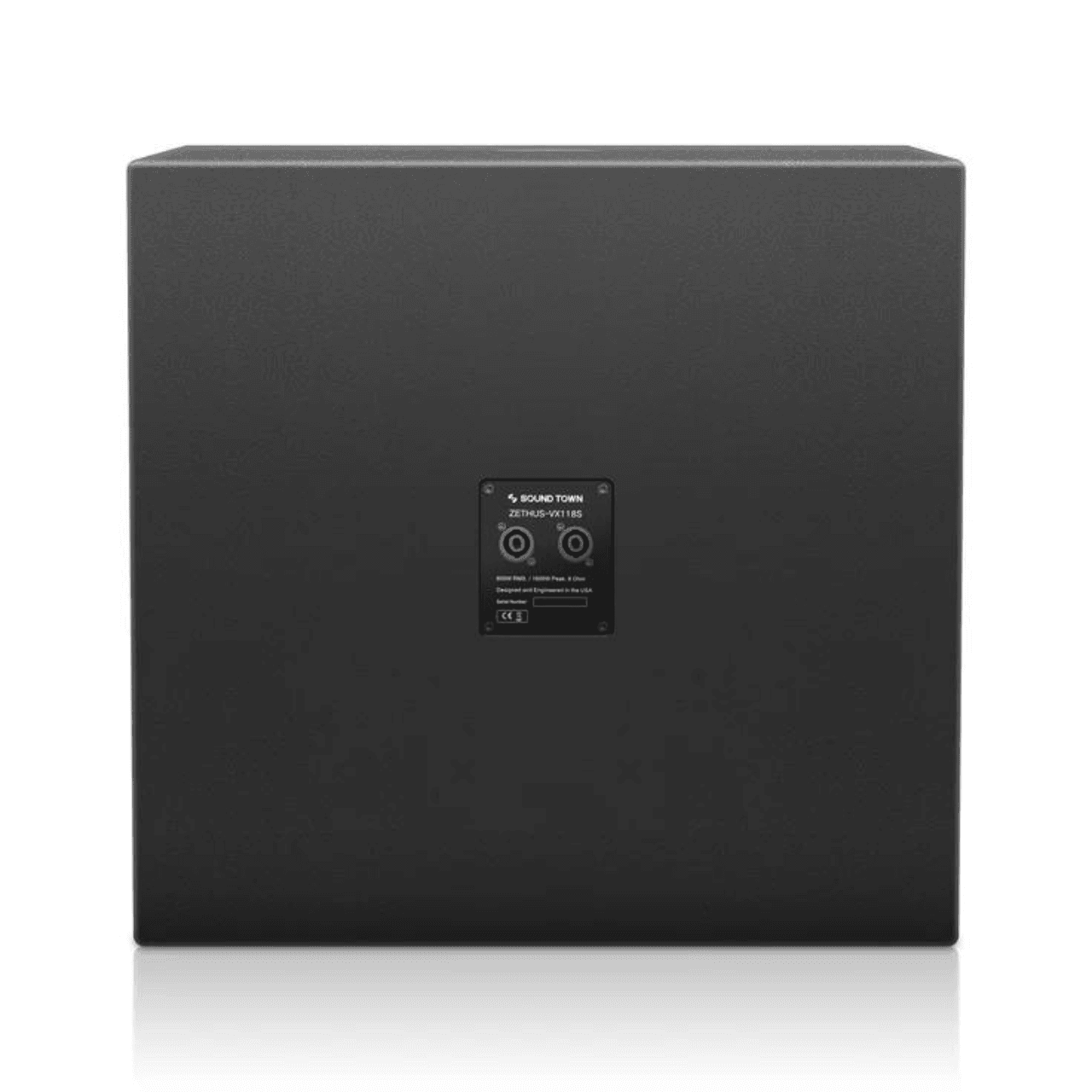

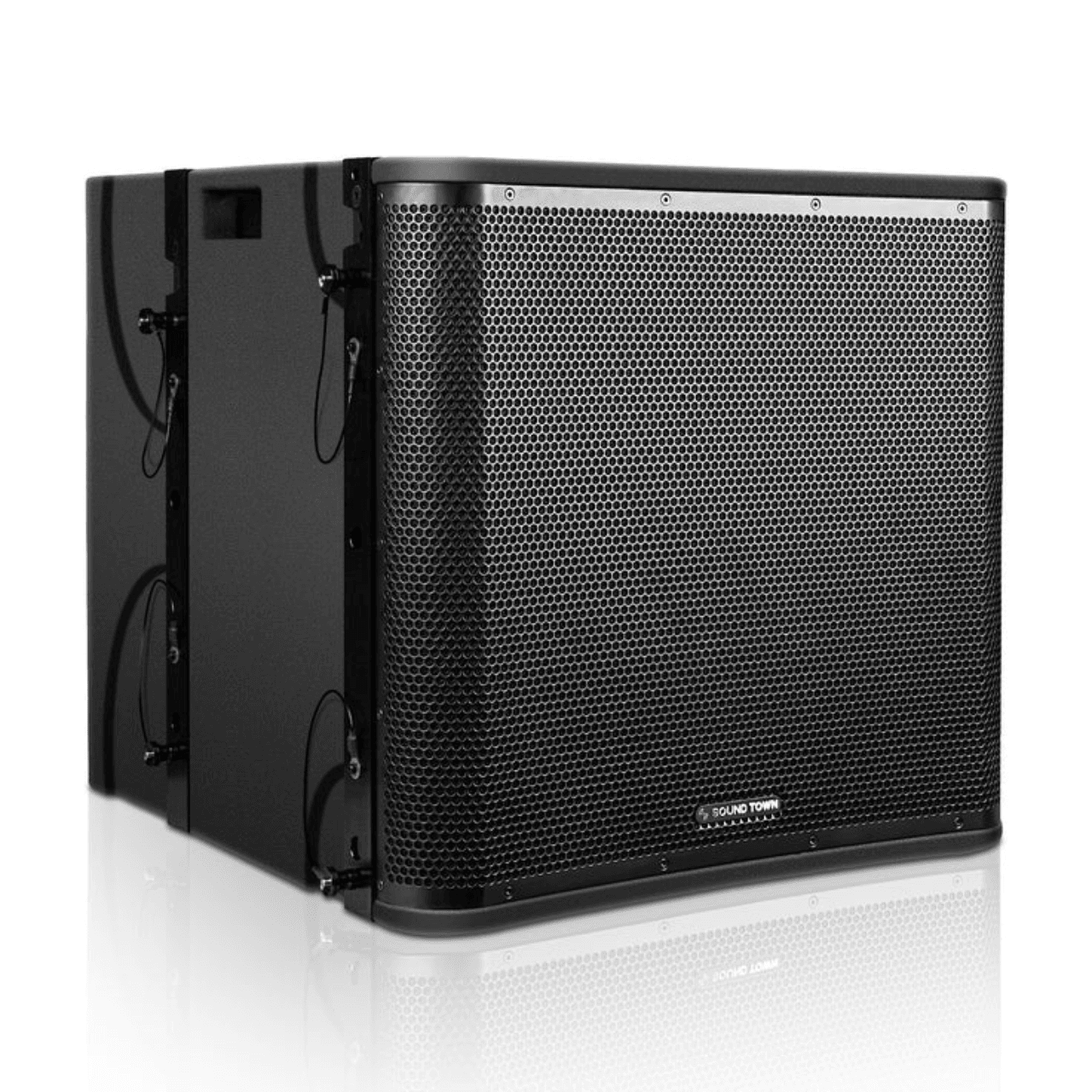

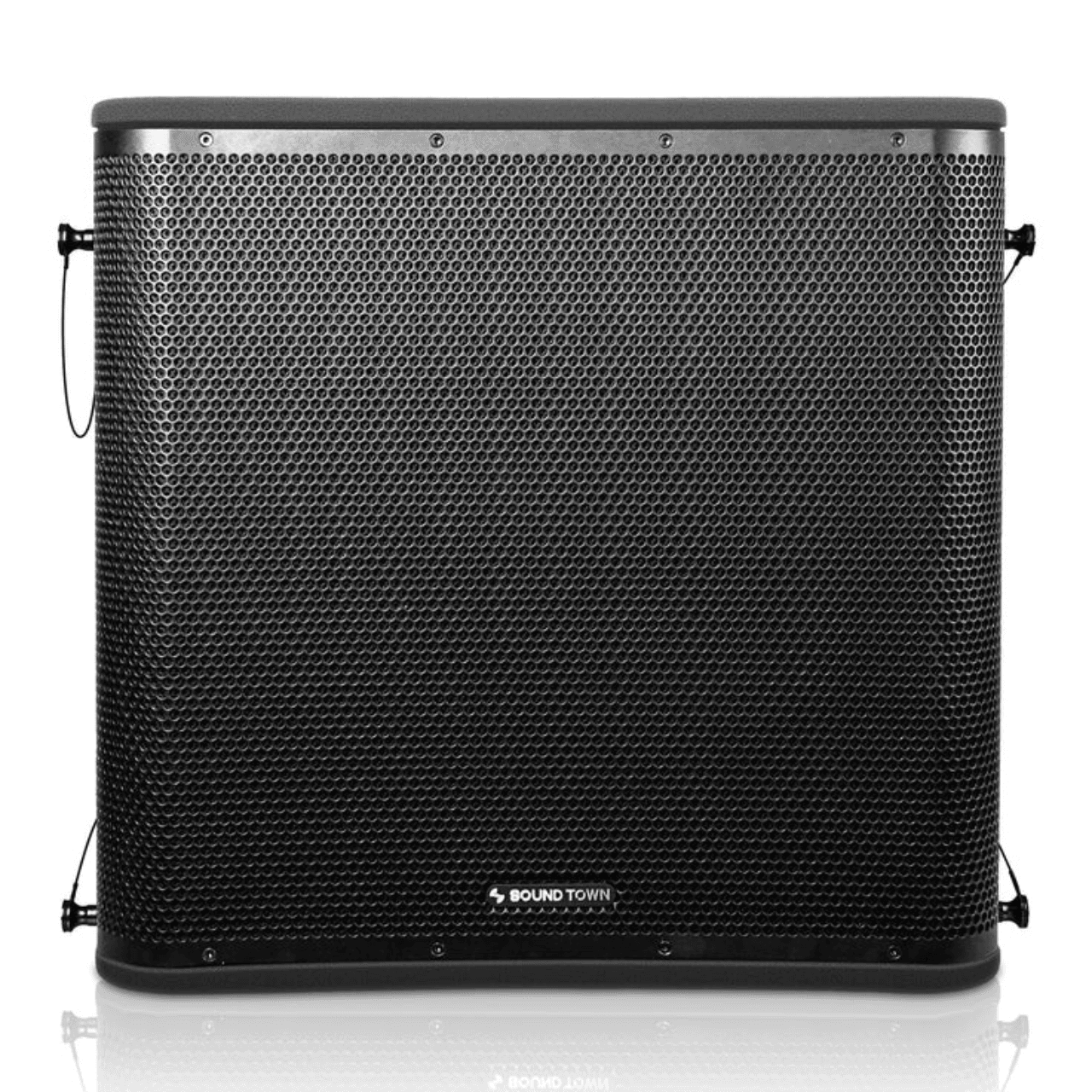

ZETHYS-VX118S Subwoofer
The ZETHUS-VX118S passive line array subwoofer features a powerful 18“ woofer delivering 800W RMS, 1600W program power (8Ω) handling capability. Includes the ZSCB-VX18S caster board for hassle-free transportation (supports up to 660 lbs).
Versatile Setup Options

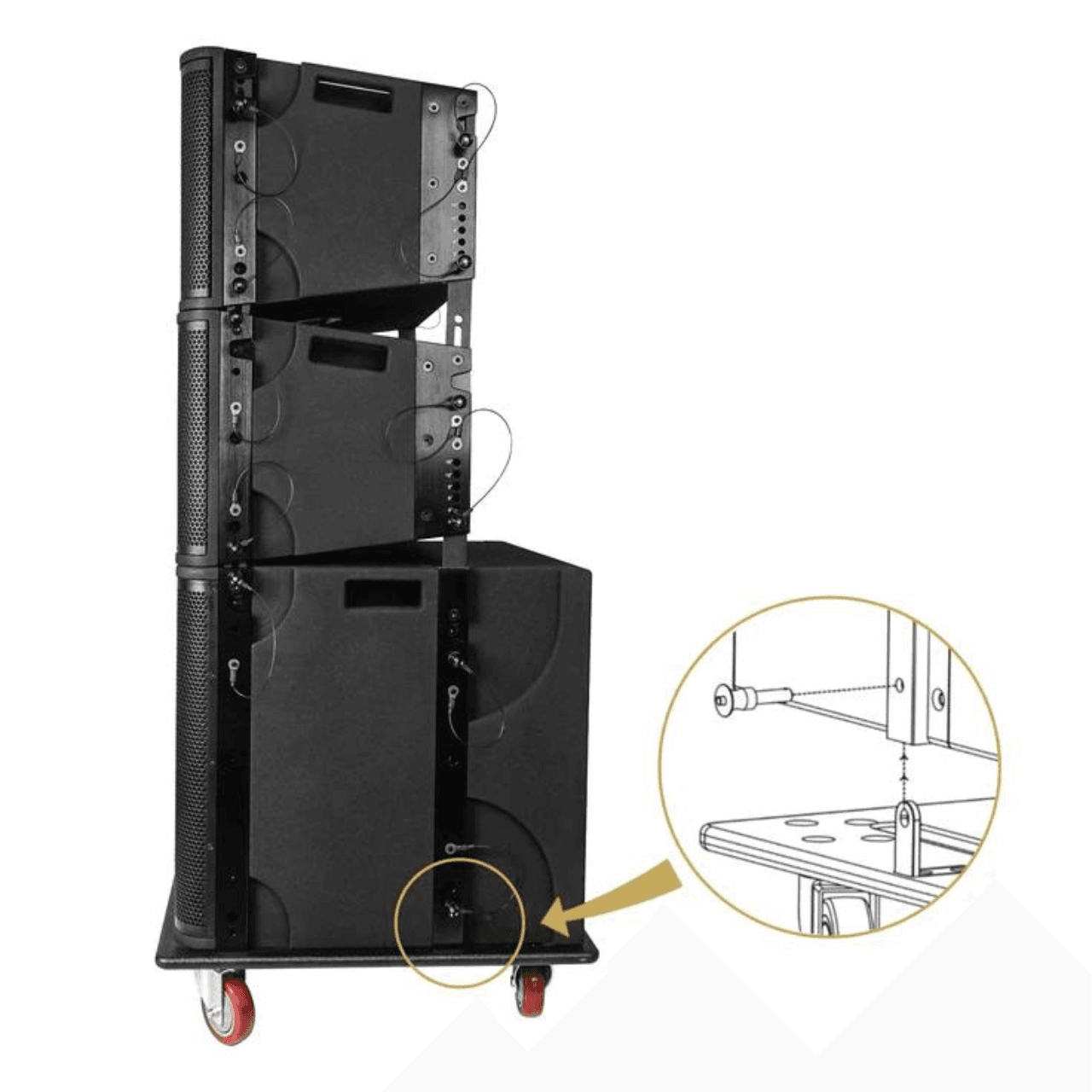

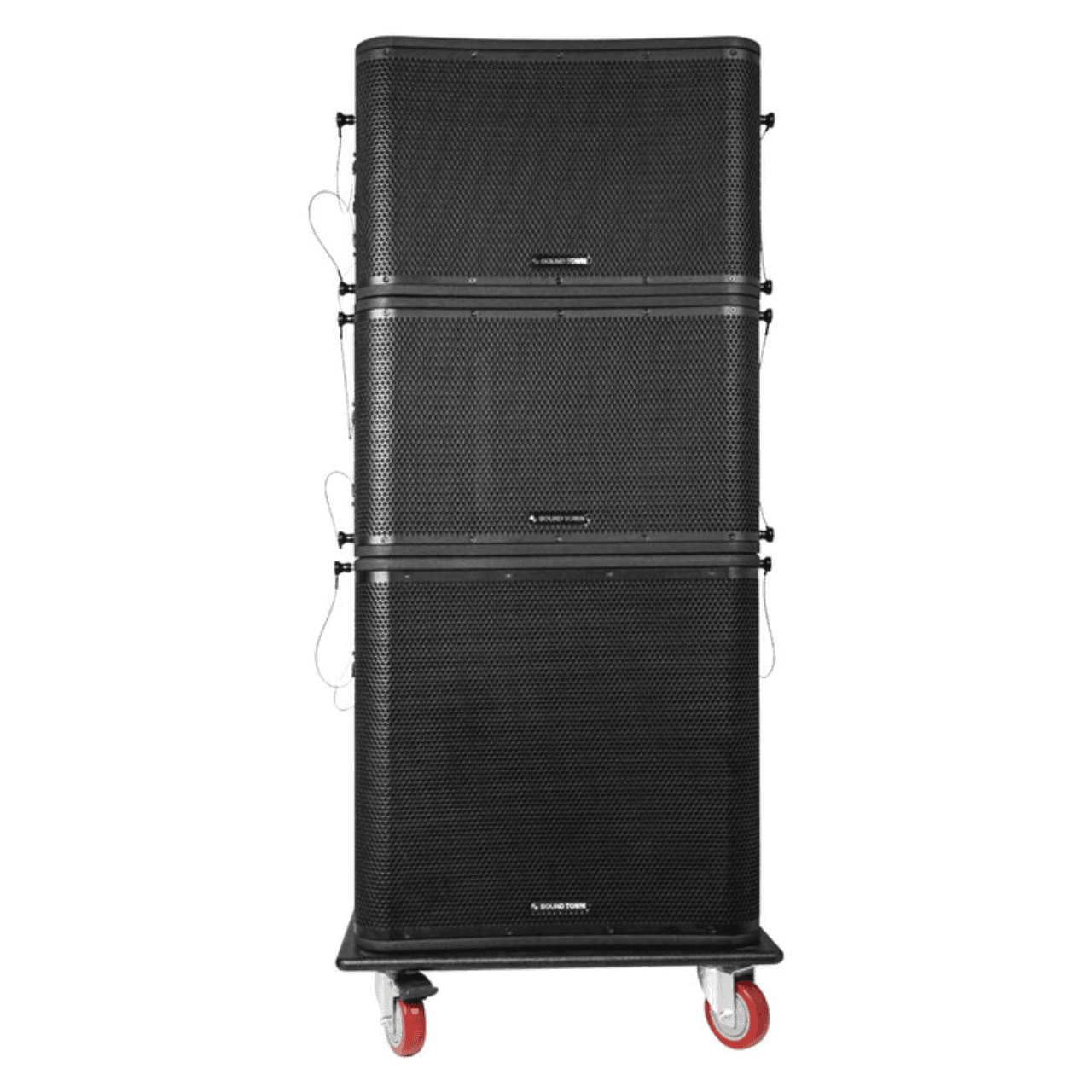

The ZS-V1812X2OC is equipped with multiple flying points and mounting options. Stack ZETHUS-112B speakers to the ZETHUS-VX118S subwoofer secured with rigging hardware or utilize flying setup with the ZETHUS-112FF flying frame or the STSDA-M54B speaker pole for standing setups (both sold separately).
Tour-Quality Build
Both the ZETHUS-112B and ZETHUS-VX118S are housed in a high-quality plywood enclosure, minimizing distortion even at high outputs, and providing the clean, crisp audio you can expect from tour-quality craftsmanship. Ideal for small to medium venues such as bars, clubs, restaurants, auditoriums, churches and more.
General Specification
| Model | ZETHUS-112B | ZETHUS-VX118S |
| Active / Passive | Passive | Passive |
| Frequency Range | 40 Hz – 20 kHz | 27 Hz – 180 Hz |
| Frequency Response | 45 Hz – 20 kHz | 32 Hz – 180 Hz |
| Sensitivity | 102 dB | 102 dB |
| SPL Max | 130 dB | 129 dB |
| Dispersion | 120º x 15º (H x V) | Omnidirectional |
| Configuration | 12″ passive full-range line array | 18″ passive line array subwoofer |
| Transducer | LF: 1 x 12″, HF: 2 x 1.4″ diaphragm | LF: 1 x 18“ woofer |
| Voice Coil | 3″ | 4″ |
| Magnet | 70 oz | 145 oz |
| Impedance | Full-range: 8Ω Bi-amp: LF: 8Ω, HF: 16Ω |
8Ω |
| Power Handling | 400W RMS / 800W Program / 1600W Peak | 800W RMS / 1600W Program / 3200W Peak |
| Enclosure Material | High-grade 100% birch plywood | High-grade 100% birch plywood |
| Mounting Hardware | ZETHUS-112FF, integrated line array hardware | Compact line array aluminum hardware |
| Finish | Texture coating | Texture coating |
| Grill & Rigging Component | Steel with anti-corrosion coat | Steel with anti-corrosion coat |
| Amplifier | — | — |
| Input | 4 Pin SPEAKON | 4 Pin SPEAKON |
| Output | 4 Pin SPEAKON | 4 Pin SPEAKON |
| Signal Processing | — | — |
| Control | — | — |
| Indicator | — | — |
| Voltage | 100V-240V (50-60 Hz) | 100V-240V (50-60 Hz) |
| Crossover Parts# | — | — |
| High Frequency Driver Parts# | — | — |
| Low Frequency Woofer Parts# | TVSPRO-12 | STLF-18AS |
