Martin Audio Blackline XP15

R29,995.00


15″ Powered Two-way Portable Loudspeaker

Availability: Out of stock

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Categories: Brand:

Product Description

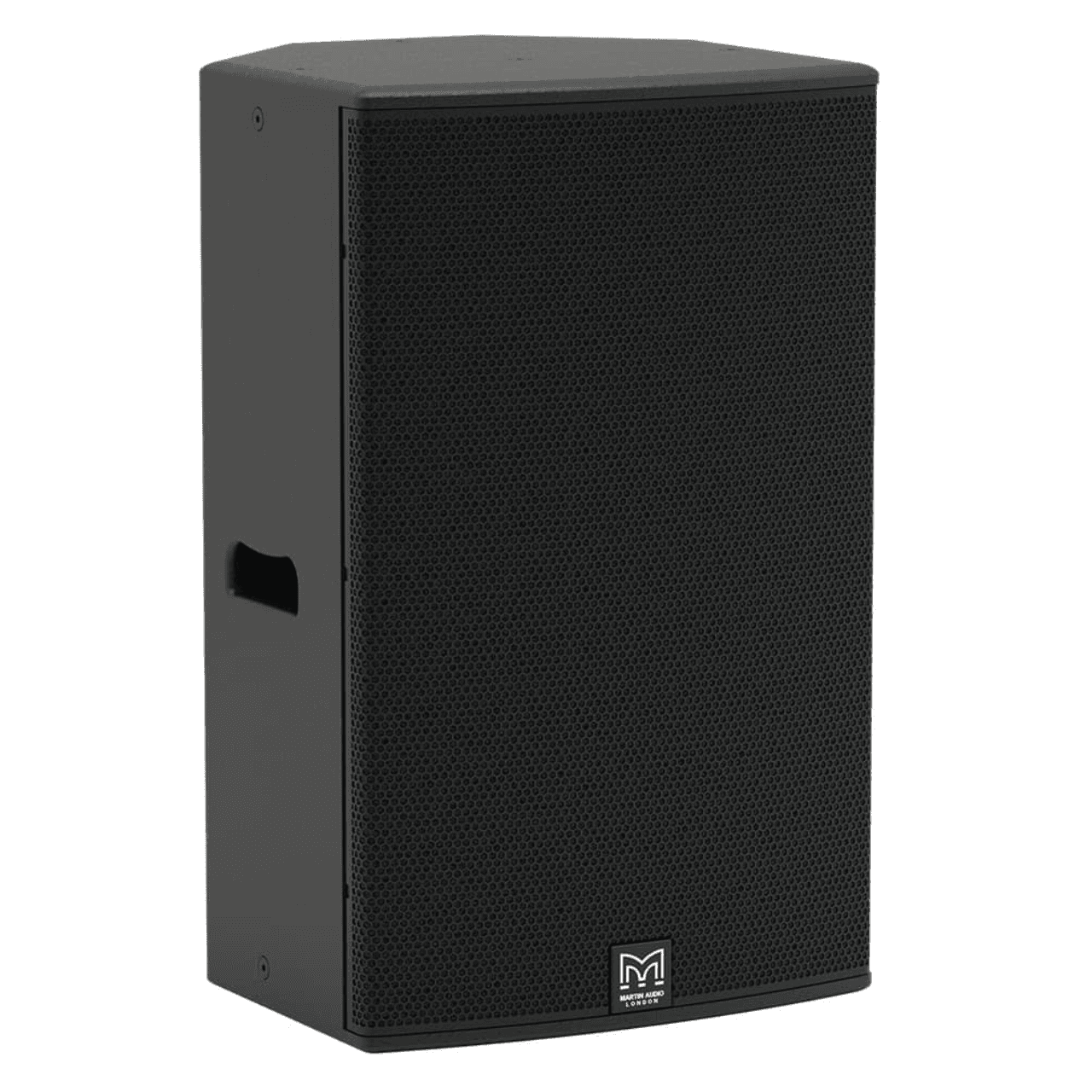

The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker.

Key Features

  • High output, self-powered, portable two-way system
  • 1300W of Class D amplification
  • Global power supply with PFC (Power Factor Correction)
  • Onboard DSP with rotary control interface
  • Multi-function display for metering, control and function selection, Three-channel mixer
  • Three-band channel EQ, plus HPF (Ch1/2)
  • Independent LF and HF peak and RMS limiters
  • Three speaker mode and voicing presets
  • Bluetooth® control and streaming option
  • Durable plywood enclosure
  • User-rotatable 80° x 50° HF horn
  • Vertical and horizontal mounting options
  • Symmetrical multi-angle enclosure for PA or stage monitor use
  • Screw-free, cloth-backed steel grille
  • Integral ergonomic handles
  • Mounting options include pole-mount and flying inserts

Applications

  • Portable Sound Reinforcement
  • Live Music Clubs
  • Nightclubs, Bars and Restaurants
  • Corporate AV
  • Hotels and Casinos
  • Mobile DJ’s
  • Weddings and Parties
  • HoW Installations
  • Rehearsal Studios

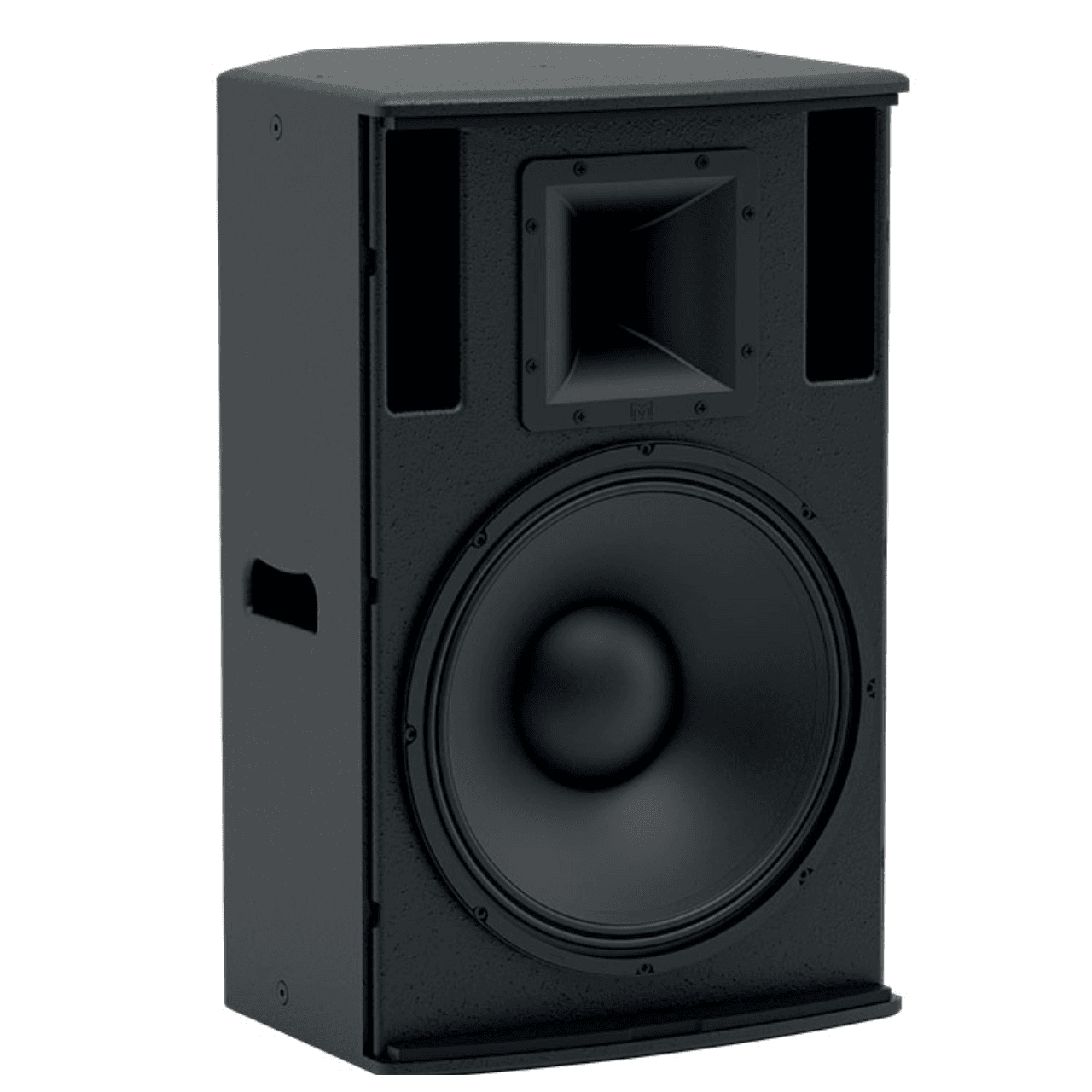

Featuring a 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.

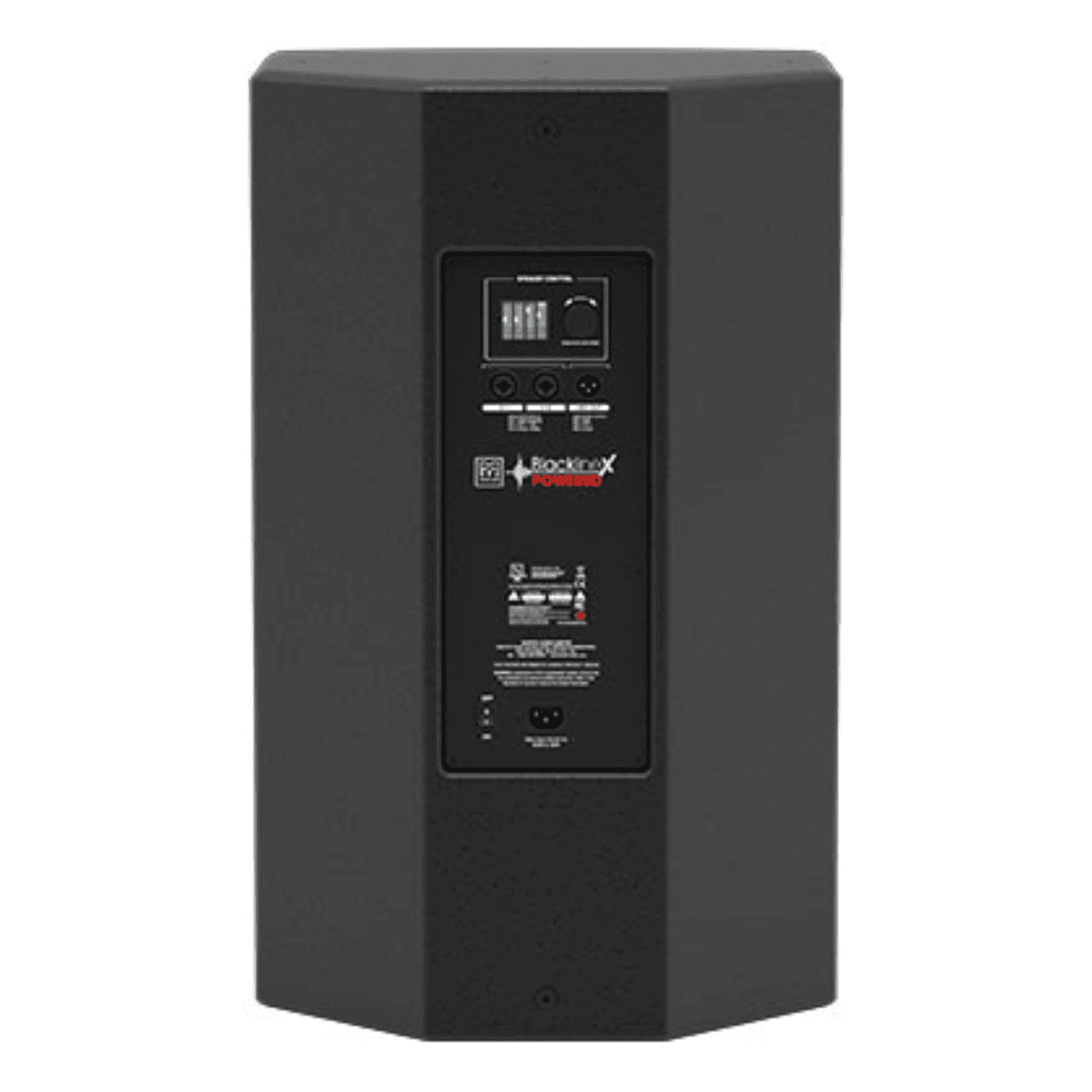

Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. Onboard DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use colour display on the rear panel. DSP features include crossover function, a three-channel mixer with three- band EQ on each input channel and a choice of three voicing presets and operating modes for flexible operation without external processing.

The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.

General Specifications

  • Type:  High output, self-powered two-way system
  • Frequency Response:  55Hz – 20kHz ±3dB -10dB @ 45Hz
  • Driver
    • LF:  15” (380mm)/3” (75mm) voice coil ferrite motor system
    • HF:  1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
  • Maximum SPL:  125dB continuous / 131dB peak
  • Dispersion (-6dB):  80° H x 50° V (user-rotatable)
  • Crossover:  2kHz active, 24dB/octave
  • Input Connectors:  2X female XLR/ 1⁄4” jack combo
  • Mic/Line Input Impedance:  8 kΩ balanced
  • 1/4″ Jack TS Input Impedance:  1 MΩ unbalanced
  • Mix Output Connector:  1X male XLR
  • Mix Output Impedance:  600Ω balanced
  • Input Channel EQ:  3 band on each channel plus HPF (Ch1/2)
  • Speaker EQ:  3 speaker mode/voicing presets
  • Protection:  LF and HF Peak and RMS limiting, amplifier thermal protection
  • Amplifier Type:  2 channel switch-mode, class D
  • Peak Output Power
    • 1300W total
    • 1000W LF, 300W HF
  • Average Efficiency:  89%
  • Cooling:  External convection cooled
  • Maximum Ambient Temperature:  35°C (95°F) for full output
  • Power Supply Type:  Switch-mode, fixed frequency with PFC
  • AC Input Operating Range:  100 – 240V ~ AC, 50 – 60Hz
  • Power Factor:  > 0.98
  • Nominal Power Consumption:  550W Max
  • Mains Connector:  3-pin IEC
  • Enclosure:  Multi-angle birch/poplar ply
  • Protective Grille:  Black perforated steel with scrim cloth backing
  • Fittings
    • 13X M8 inserts
    • Pole-mount socket
    • 2X pocket handle
  • Dimensions (WxDxH):  427mm X 407mm X 690mm / 16.8″ X 16.0″ X 27.2″
  • Weight:  26kgs / 57lbs
