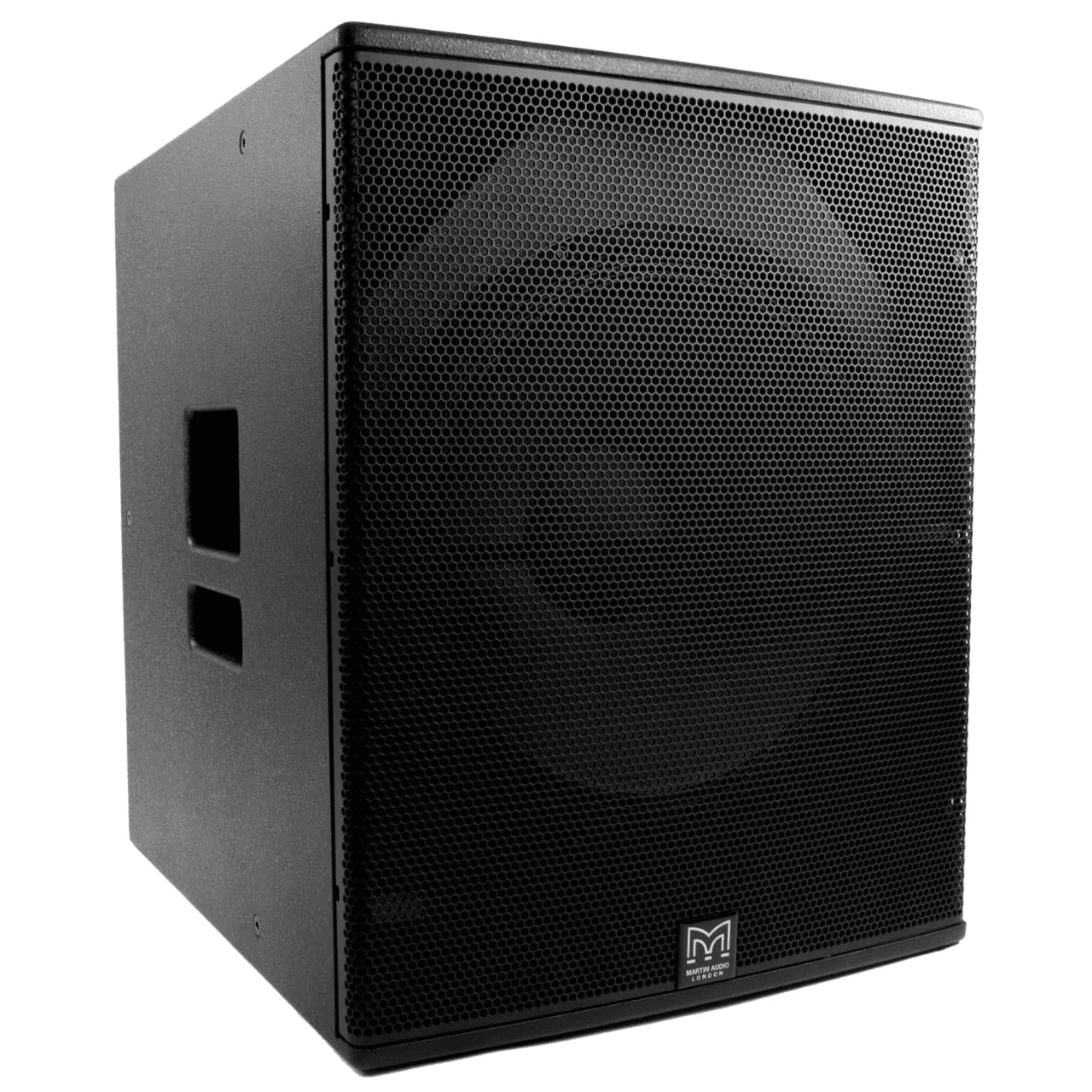

Martin Audio Blackline X118
R29,245.00
18″ Passive Portable Subwoofer
Availability: In stock
Product Description
The Blackline X118 is a compact, high performance subwoofer for use with BlacklineX Series full-range loudspeakers. It extends the low frequency operating range of the combined system to 42Hz and provides exceptional low frequency impact. It can be used singly, stacked or flown via integral M10 insets and features a long-excursion 18” (460mm)/4” (100 mm) voice coil driver in a compact reflex enclosure. Its four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.
Key Features
- Compact, direct-radiator subwoofer
- 1 x 18” (460mm) driver with 4” (100mm) voice coil
- Large ports for reduced air noise
- Perforated steel grille
- 35mm pole-mount socket
- 8Ω nominal impedance
- M10 flying inserts
Applications
- Portable sound reinforcement
- Live music clubs
- Bars and restaurants
- Nightclubs
- Corporate AV events and conferences
- Weddings and parties
- Secondary stages at festivals
- HoW, leisure centres and retail outlets
The X118 enclosure is constructed from plywood and finished in black textured paint. An impact-resistant perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount fitting in the top surface and two side handles for ease of handling. Rubber feet on the base of the enclosure resist movement and align with recesses in the top surface for stable stacking.
When used with BlacklineX Series full-range systems, crossover and EQ functions can be performed by the DX0.4 or DX0.6 system controller or by an iKON amplifier.
General Specifications
- Type: Compact, direct radiating subwoofer
- Frequency Response: 42Hz-150Hz ± 3dB, -10dB @ 36Hz
- Driver: 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
- Rated Power: 800W AES, 3200W peak
- Sensitivity: 101dB
- Maximum SPL: 130dB continuous, 136dB peak (half space)
- Nominal Impedance: 8Ω
- Dispersion (-6dB): Omnidirectional
- Crossover: 80-120Hz active
- Enclosure: Birch/poplar ply
- Protective Grille: Black perforated steel
- Connectors: 3X NL4 type
- Pin Connections (Input): 1+/1-
- Pin Connections (Link): A: 1+/- to 1+/-, B: 2+/- to 1+/-
- Fittings
- 16X M10 inserts
- Pole-mount socket
- 2X bar handles
- Provision for castors
- Dimensions (WxDxH): 530mm X 640mm X 669mm / 20.9″ X 25.2″ X 26.3″
- Weight: 42kgs / 92.6lbs
