Acoustics and Amplifier
JBL’s advanced waveguide and transducer technologies, coupled with highly efficient amplification, ensure uniform coverage across the entire listening area, even when you push the system to the limit.
The EON712’s woofer is redesigned for lower impedance and higher efficiency, an improved horn delivers a smooth off-axis beamwidth and JBL’s powerful 2414H compression driver features a premium neodymium magnet for balanced response in a lightweight footprint. The speaker is powered by 1,300 watts of ultra-efficient, discrete Class D amplification, for clean, clear sound. It all adds up to superior coverage, consistency and intelligibility at any volume.
Advanced DSP and Control
The EON712’s advanced DSP package provides comprehensive control over EQ, limiters, delay, dbx Automatic Feedback Suppression, ducking and other functions. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. Built-in Bluetooth 5.0 audio streaming and control take advantage of the newest protocol’s security features, low latency, broad range and improved audio fidelity.
System Versatility
EON712 loudspeakers can be used as main PA speakers or floor monitors. Top and rear suspension points enable flying speakers; rear suspension points serve as connections for fixed installations, using an optional universal yoke mount.
Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)
Rugged and Reliable
All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds every time it’s turned on.

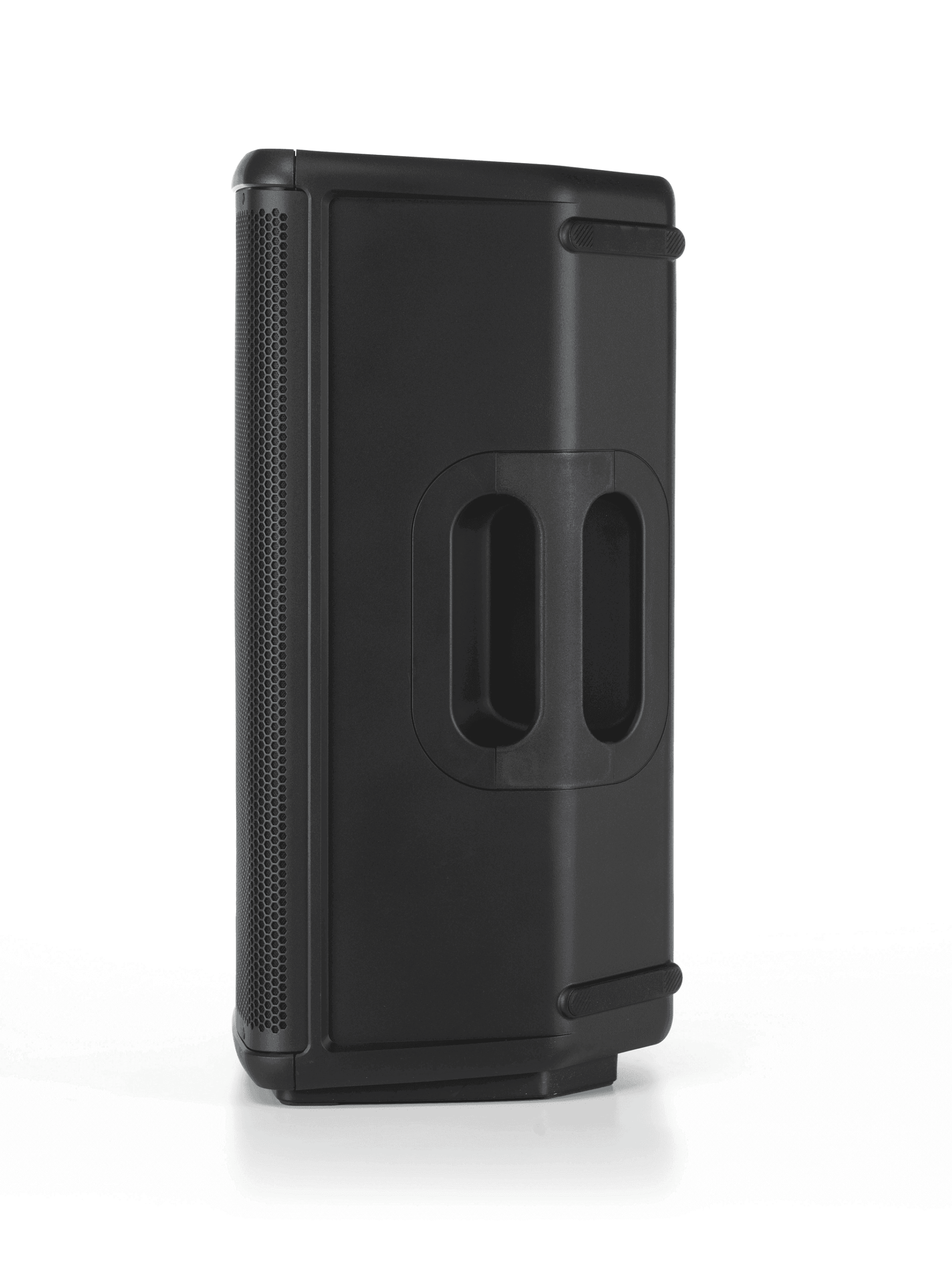

The EON712 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.
Like every JBL Professional product, the EON712 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.
System Type |
12IN Powered Loudspeaker |
Woofer Model |
712G |
Woofer Size |
12″ |
Woofer Magnet |
Ferrite |
Woofer Voice Coil |
2″ |
Tweeter Model |
2414H Compression Driver |
Tweeter Size |
1” |
Tweeter Magnet |
Neodymium |
Transducer Impedence |
LF 4ohm rated, HF 8ohm rated |
Max SPL |
127dB @1m/4Pi |
Freq Range -10 |
50Hz – 20kHz |
Freq Range -3 |
60Hz – 20kHz |
Hor Dispersion |
100° |
Vert Dispersion |
60° |
Power Rating |
1300W peak / 650 RMS |
AC power input |
100V-120V or 220V-240V |
Cooling |
Passive |
LED indicators |
1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs |
Input Impedance |
50k/100k un-balanced/balanced |
Input Gain |
-∞to +36db |
Crossover Frequency |
2 kHz |
I/O |
2 XLR Combo Jacks / BT
1 XLR M Thru |
Cabinet |
PP+10% Talc |
Grille |
16GA perforated steel with acoustically transparent black cloth backing |
Suspension / Mounting |
4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes |
Handles |
2, cable channel on bottom |
Net Weight |
14.6kg (32.19 lbs.) |
Gross Weight |
18.4kg (40.57 lbs.) |
Product Dims |
HxWxLÂ 670x381x328mm (26.38×15.0x12.91 in.) |
Shipping Dims |
HxWxLÂ 684x490x430mm (26.93×19.29×16.93 in.) |
