Icon Upod Nano

0 customer reviews

Check stock before ordering

R3,135.00

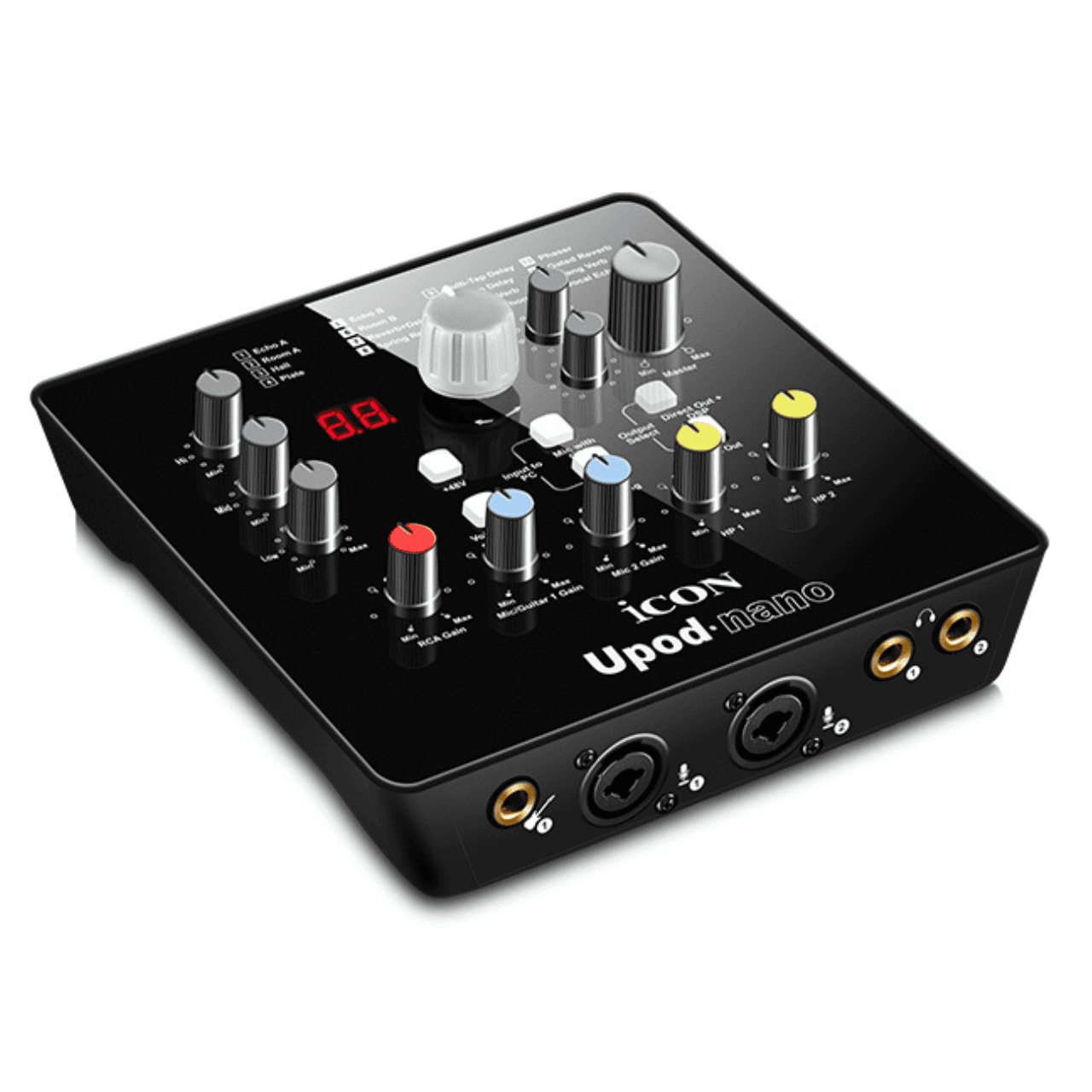

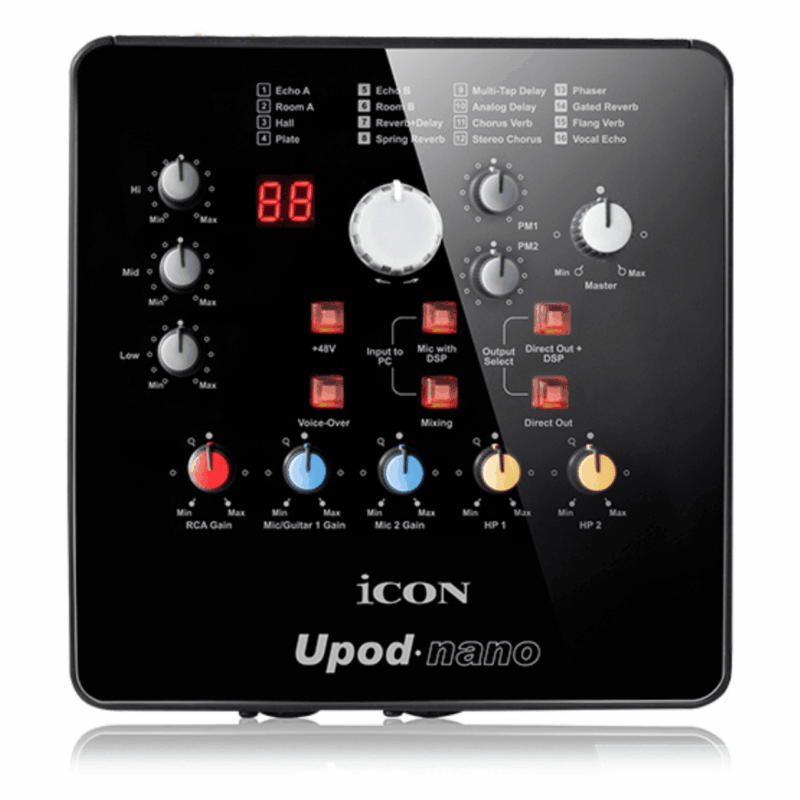

Icon: The UPod Nano is a USB Audio Interface

Availability: In stock

SKU: UPod Nano Categories: Audio Interfaces Studio Brand: Icon

Product Description

Key Features

16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface
2×2 analog I/O full duplex recording and playback
ICON innovative unique mic preamp with individual gain control.
+48V phantom power equipped.
Built-in ICON 16-DSP effect with control knob on the top panel.
2 DSP parameter adjustment knobs on the top panel.
2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector.
Built-in stereo RCA input with individual gain control
Allow to use as a stand-alone device with RCA input & DSP processing.
Attenuator function button equipped for music fade out automatically when mic signal present.
Buttons equipped for controlling mic signal (dry/wet) recording to PC.
Buttons equipped for controlling monitoring signal (dry/wet).
Master volume control on the top panel
2 headphone outputs on 1/4” TRS jacks with individual volume control
USB2.0 compatible and USB bus-powered
Plug and play and no driver installation is needed.
Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)
Full duplex, simultaneous record/playback

General Specifications

Mic Input
- Frequency Response: 22Hz to 22kHz (+/-0.2dB)
- Dynamic Range: 90dB, A-weighted
- Signal-to-Noise Ratio: -90dB, A-weighted
- THD+N: <0.0061% (-86dB)
- Crosstalk: -85dB@1kHz
- Input Impedance Mic in: 1.8K Ohms, typical
- Total Gain Range: +39dB
Inst Input
- Frequency Response: 22Hz to 20kHz (+/-0.2dB)
- Dynamic Range: 90dB, A-weighted
- Signal-to-Noise Ratio: -90dB, A-weighted
- THD+N: <0.0061% (-86dB)
- Crosstalk: -75dB @ 1kHz
- Input Impedance Inst in: 500K Ohms, typical
- Total Gain Range: +38dB
Line Inputs (RCA IN, Unbalanced)
- Frequency Response: 22Hz to 20kHz (+/-0.2dB)
- Dynamic Range: 90dB, A-weighted
- Signal-to-Noise Ratio: -90dB, A-weighted
- THD+N: <0.003% (-86dB)
- Crosstalk: -90dB@1kHz
- Input Impedance: 10K Ohms, typical
- Adjustable Gain: +8dB
Line Outputs 1/2 (Stereo, Unbalanced)
- Frequency Response: 22Hz to 20kHz (+/-0.2dB)
- Dynamic Range: 90dB, A-weighted
- Signal-to-Noise Ratio: -90dB, A-weighted
- THD+N: <0.003% (-86 dB)
- Crosstalk: -90dB@1kHz
- Nominal Output Level Unbalanced: +2dBV, typical
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load)
- Frequency Response: 22Hz to 20kHz (+/-0.2dB)
- Power into Ohms: 20 mW into 100 Ohms
- THD+N: <0.06% (-66dB)
- Signal-to-Noise Ratio: -90dB, A-weighted
- Max Output Level into 100 Ohms: +2.0dBV, typical
- Load Impedance: 32 to 600 Ohms
Dimensions (WxLxH): 160mm X 160mm X 50mm / 6.3” X 6.3” X 1.97”
Weight: 0.520kg / 1.15lbs
