Icon UMix 1010 Rack (ProDrive III)
Check stock before orderingSupply of this item is subject to availability at our supplier.
Product Description

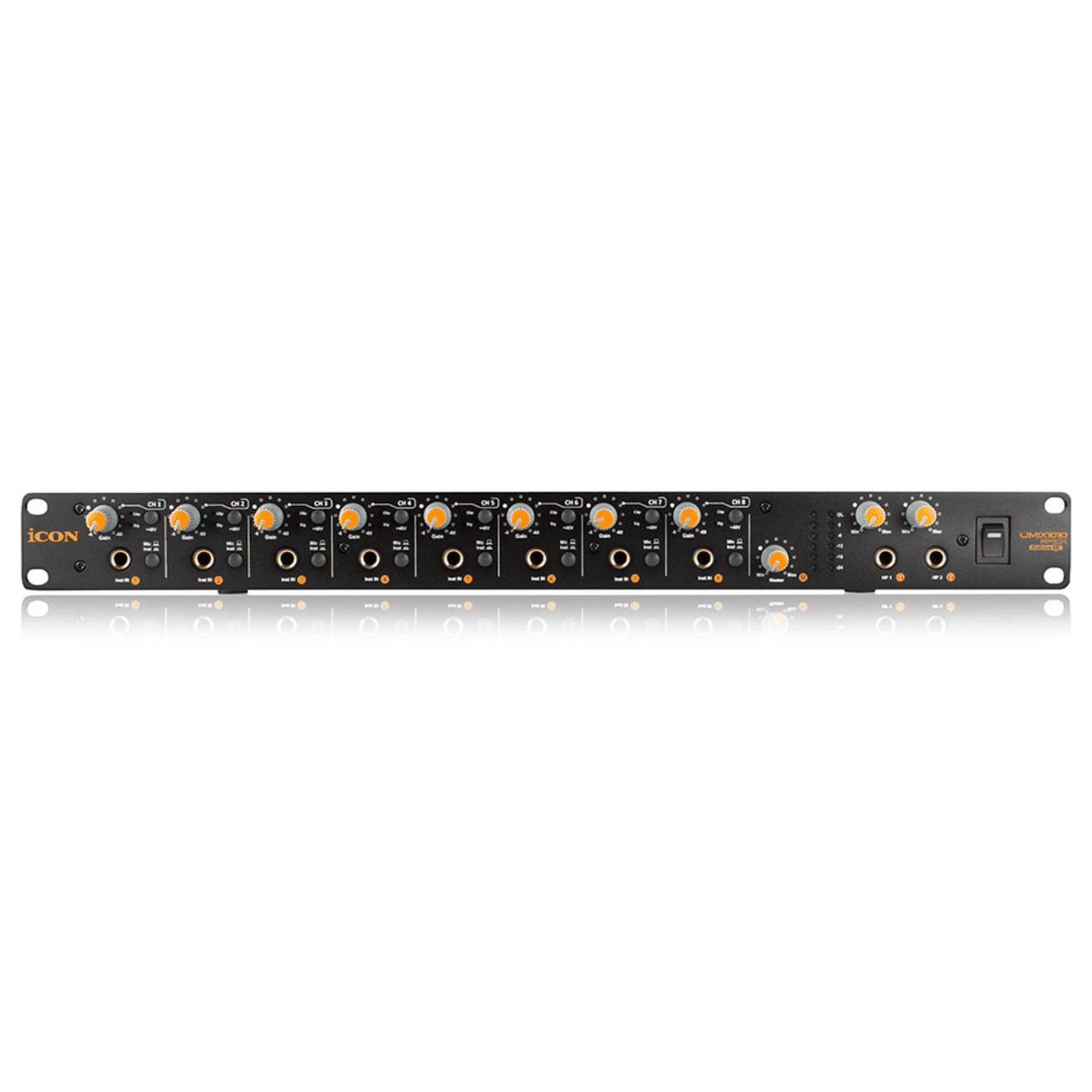

The UMix 1010 Rack (ProDrive III)
The UMix 1010 rack mountable USB 2.0 audio interface provides 10 Inputs and 10 Outputs of high quality 24-bit 96/192khz analog/digital conversion. Superior build quality is the iCON hallmark, as demonstrated by the punch and clarity of the 8 mic/instrument preamps, each with individual phantom power. Plus the UMix 1010 comes complete with ProDriver, our innovative plug-in host and virtual signal routing software. Run UMix 1010 in standalone mode or with your favorite DAW (Bitwig Studio 8-Track is also included). Pull up your guitar modeling plugins in ProDriver and play through them without running your DAW. Or use UMix 1010 as I/O for your DAW. Specifically designed for multitrack recording, UMix is at home in any setup. However you decide to use it, the Umix 1010 audio interface, is a powerful, yet flexible workhorse for your digital studio.
Key Features
- 24-Bit 96/192KHz 10-In/10-Out USB Recording Interface
- 8×8 analog I/O full duplex recording and playback
- 8 x MIC/Instrument preamps with individual gain control and phantom power switch
- 8 analog balanced inputs on 1/4” TRS jacks
- 8 analog balanced outputs on 1/4” TRS jacks
- S/PDIF I/O on RCA coaxial connectors
- 1 x 1 – 16 channel MIDI I/O
- 2 headphone output with assignable source and individual volume control
- Flexible channel routing via iCON ProDriver software provided with internal virtual routing for inputs and outputs
- Powerful ProDriver plugin hosting, signal routing and virtual mixer software included
- USB2.0 High Speed equipped
- Supports DirectSound, WDM and ASIO2.0
- Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64 bit)
- Full duplex, simultaneous record/playback
- Rugged aluminum construction
- Bitwig 8Track included
- Dotec audio plugins included
- Tracktion DAW Essentials Collection plugins included
- Kilohearts Toolbox plugins included
- Harrison 32c Vocal Intensity Processor plugin included
General Specifications
- Mic/Inst Inputs 1-8 (Balanced; at Minimum Gain)
- Frequency Response: 22Hz to 22kHz (+/-0.1dB)
- Dynamic Range: 114dB, A-weighted
- Signal-to-Noise Ratio: 114dB, A-weighte
- THD+N: 100dB
- Crosstalk: -100dB@1kHz
- Input Impedance Inst in: 390K Ohms, typical
- Input Impedance Inst in: 390K Ohms, typical
- Adjustable Gain: +53dB
- Total Gain Range: +56dB
- Line Outputs 1-8 (balanced)
- Frequency Response: 22Hz to 22kHz (+/-0.1dB)
- Dynamic Range: 114dB, A-weighted
- Signal-to-Noise Ratio: -114dB, A-weighted
- THD+N: -100dB
- Crosstalk: -100dB@1kHz
- Nominal Output Level Balanced: +4dBu
- Nominal Output Level Unbalanced: -10dBV
- Maximum Output Level Balanced: +10.2dBu, typical
- Maximum Output Level Unbalanced: +2.0dBV, typical
- Input Impedance: 10K Ohms, typical
- Line Outputs 1-8 (balanced)
- Frequency Response: 22Hz to 22kHz (+/-0.1dB)
- Dynamic Range: 114dB, A-weighted
- Signal-to-Noise Ratio: -114dB, A-weighted
- THD+N: -100dB
- Crosstalk: -100dB @ 1kHz
- Nominal Output Level Balanced: +4dBu
- Nominal Output Level Unbalanced: -10dBV
- Maximum Output Level Balanced: +10.2dBu, typical
- Maximum Output Level Unbalanced: +2.0dBV, typical
- Output Impedance: 150 Ohm
- Load Impedance: 600 Ohm minimum
- Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load)
- Frequency Response: 22Hz to 22kHz (+/-1dB)
- Power into Ohms: 90 mW into 100 Ohms
- THD+N: <0.06% (-66dB)
- Signal-to-Noise Ratio: -90dB, A-weighted
- Max Output Level into 100 Ohms: +2.0dBV, typical
- Output Impedance: 75 Ohm
- Load Impedance: 32 to 600 Ohms
- Dimensions (WxLxH): 230mm X 480mm X 44mm / 9.06″ X 18.9″ X 1.73″
- Weight: 2.883kg / 6.36lbs
