Icon SX-8A (Pair)
Check stock before ordering
R7,885.00

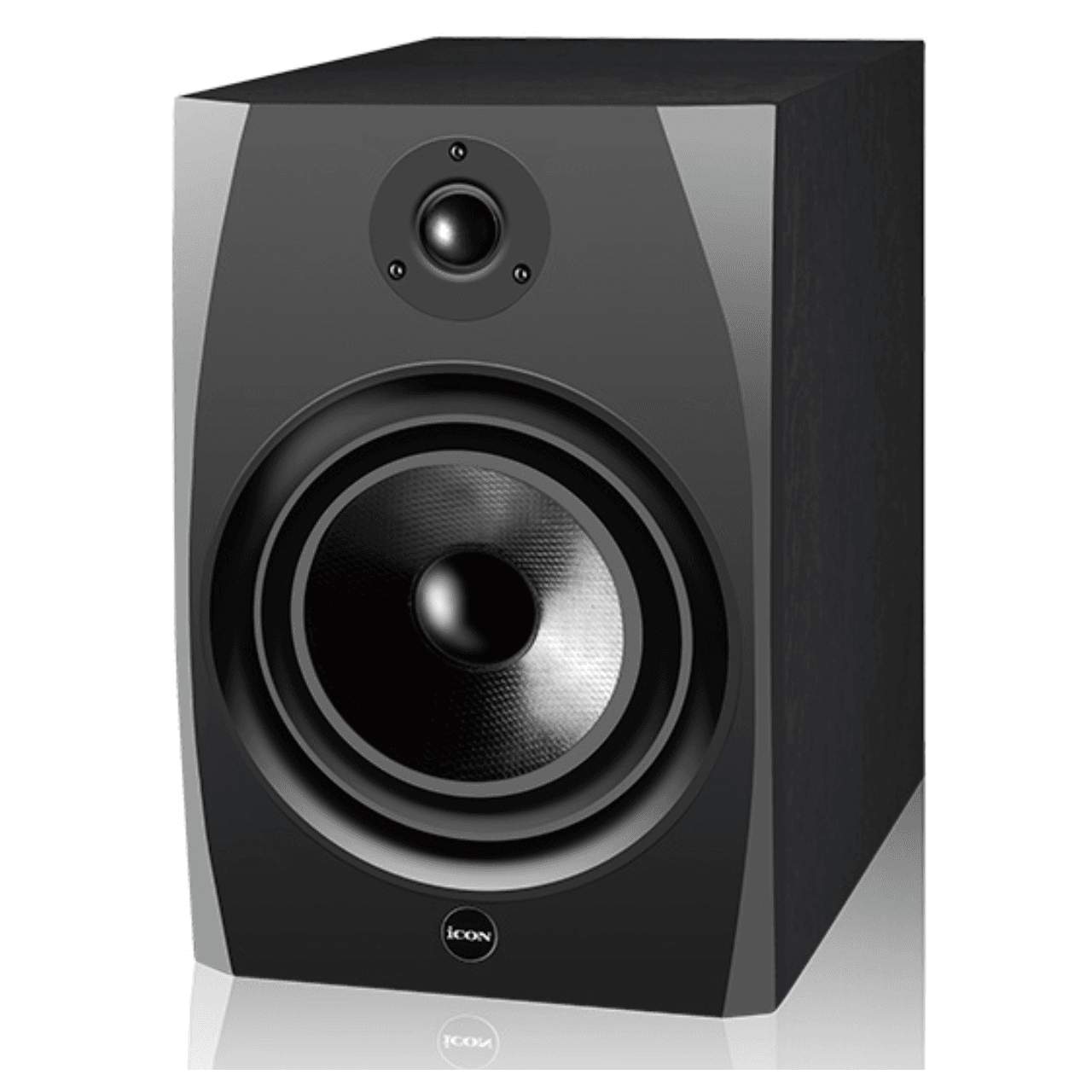

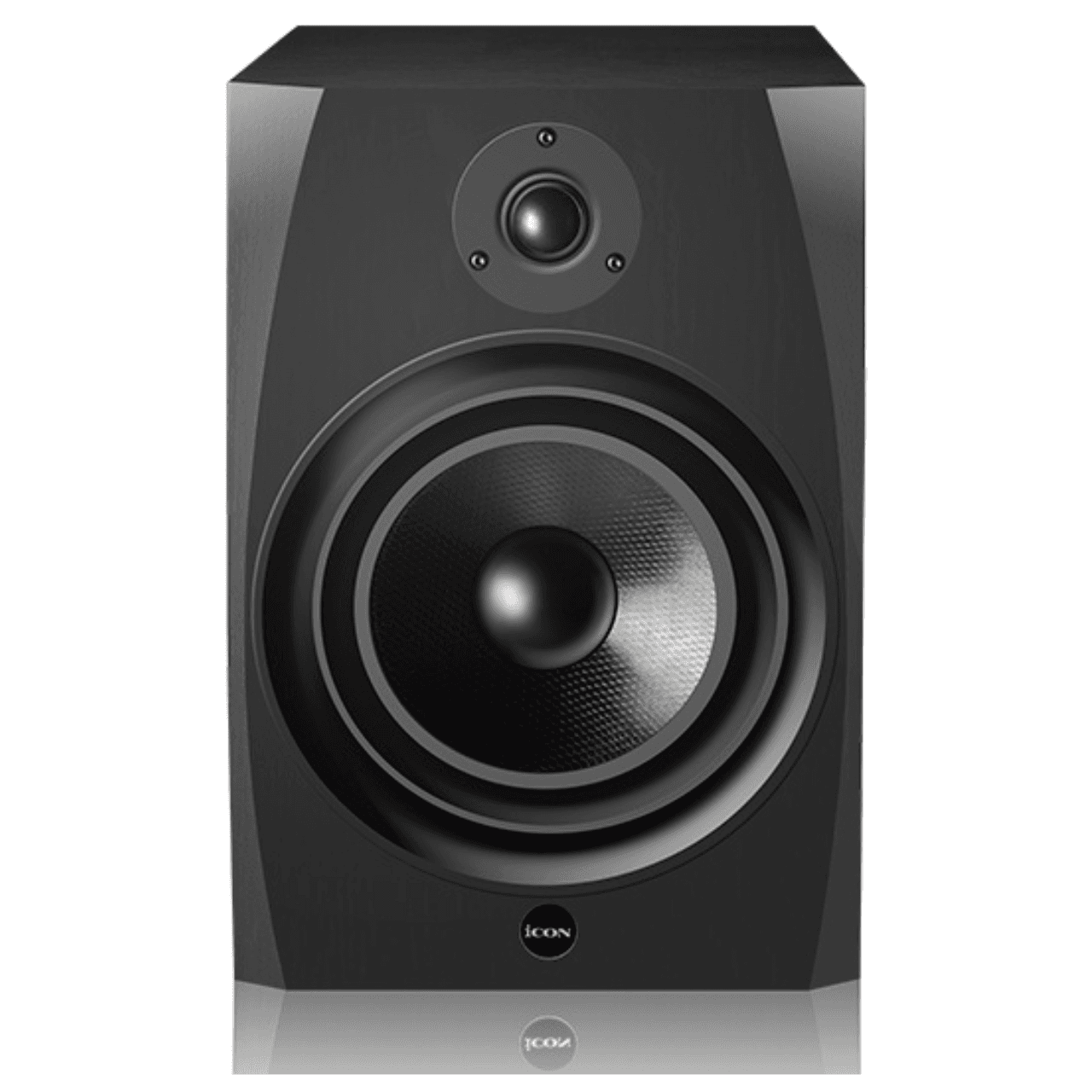

Icon: The SX-8A is a Two-Way Active Studio Reference Speaker with a 8″ Copolymer Butyl Surround Woofer
Availability: In stock
Product Description
The SX-8A
The ICON SX-8A series active studio monitor system provide a smooth response that is accurate and pleasant to listen to.
Key Features
- Two-way active studio reference monitor with ported tuned enclosure providing extremely accurate monitoring for recording studio, post-production and multi-media applications.
- Compact and powerful with very precise sound reproduction.
- 1” silk dome tweeter with neodymium magnet, plus heat sink and ferrofluid cooling provide smooth and sweet high frequency response.
- 8” copolymer butyl surround woofer provides tight and controlled low frequency response.
- Build-in Bi-Amp power module for low and high frequency drivers HF: 60W / LF: 120W
- Active crossover uses a multi-pole design for linear response from bottom to top.
- XLR balanced input as well as unbalanced RCA input make connecting to most -10 dBV or +4dB signal source quick and easy.
- A/V shielded for multimedia applications providing clean operation near computer CRT monitors.
- Solid MDF construction
- “Vasorb TM” monitor rubber feet included
General Specifications
- System: Two-way active nearfield monitor
- Frequency Response (+/-3dB): 35 Hz – 21 kHz
- Bass Principle: Bass reflex
- Tuning Frequency: 35 Hz
- Tweeter: 1″ wide dispersion silk dome
- Woofer: 8.5″ PPB cone with aluminum short circuiting ring and rigid aluminum basket
- Magnetically shielded/compensated: Shielded and Compensated
- Cross Over Frequency: 2.5 kHz
- Cross Over Slope: 24 dB/oct (LP and HP)
- Input level for 85dB SPL @ 500-2000 Hz avg @ 1m: -15 dBu RMS @ 0 dB level setting
- Input Connectors: Balanced XLR connector
- Input Connectors: Unbalanced RCA connectors
- Power Consumption: Idle: 10W / Max: 180W (per unit)
- Amplifier Power: Tweeter: 60W / Woofer: 120W
- Internal Cabinet Volume: 18.0 liters
- Dimensions (WxDxH): 250mm X 340mm X 370mm / 9.8″ X 13.4″ X 14.6″
- Weight: 13kg / 28.6lb
