HK Audio Linear 7 115 FA

Name: HK Audio Linear 7 115 FA
Brand: HK Audio
SKU: Linear 7 115 FA
Availability: InStock

0 customer reviews

Check stock before ordering

View details

R44,995.00

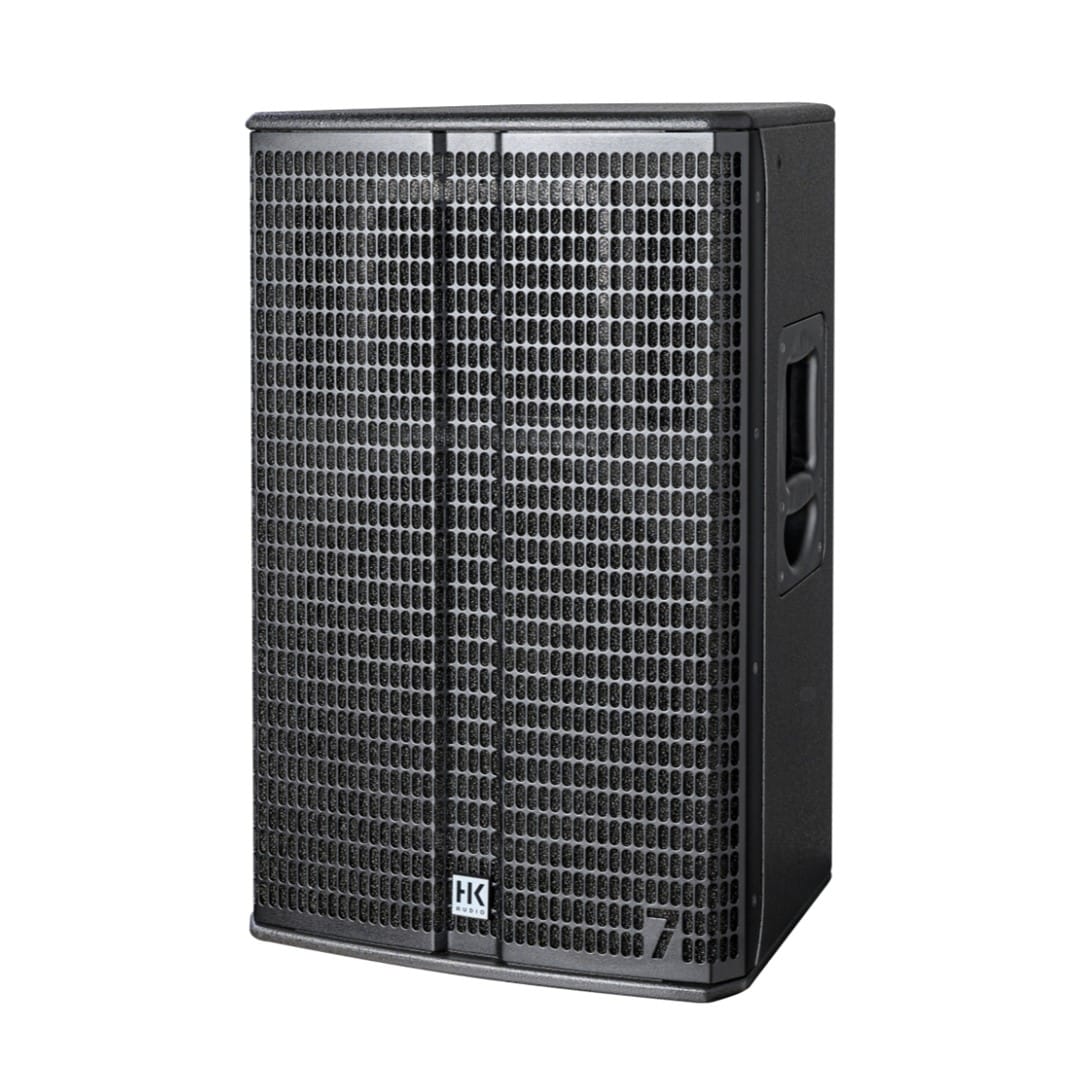

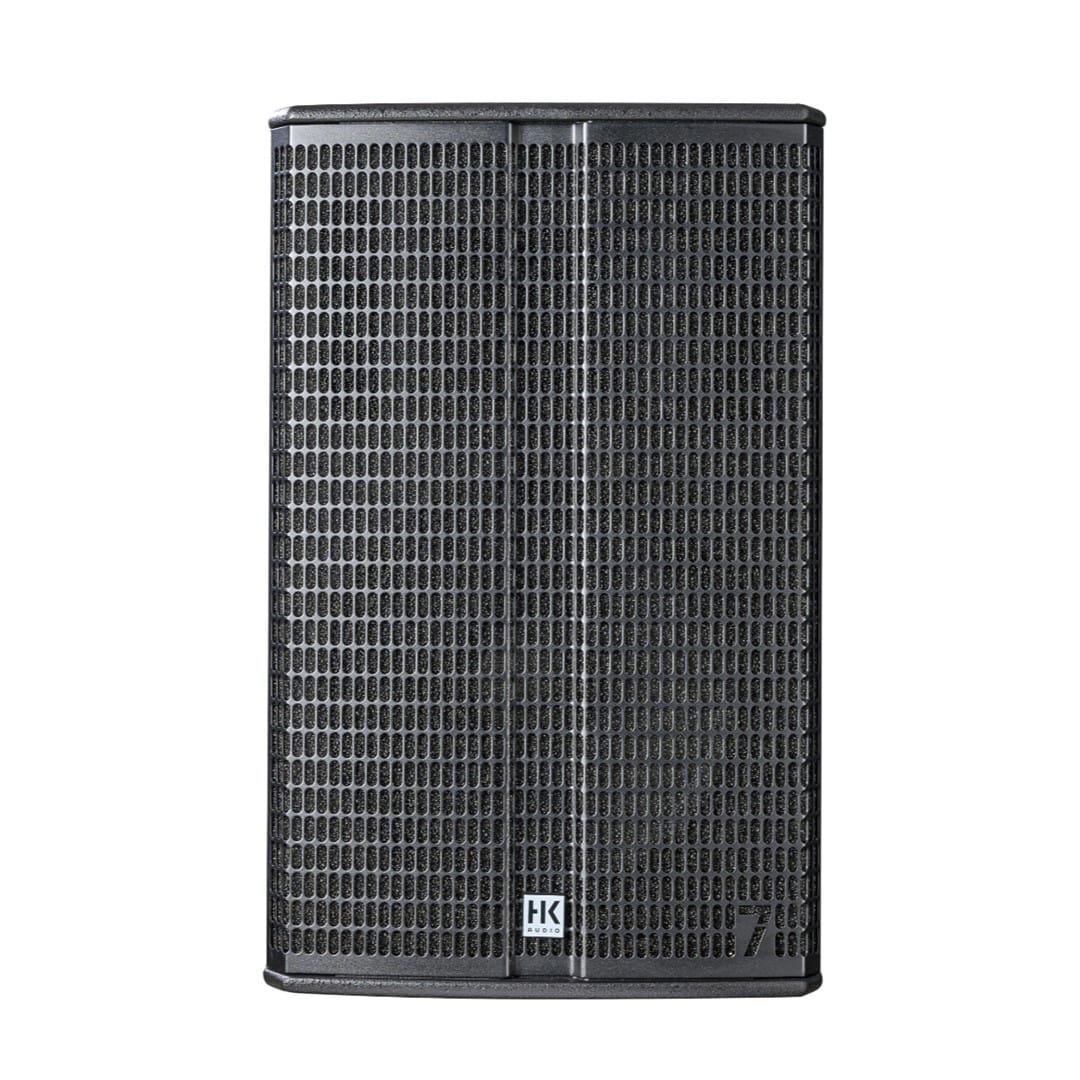

HK Audio Linear 7 115 FA Active Speaker 2000 W

Availability: In stock

Add to quote

SKU: Linear 7 115 FA Categories: Active Speakers Speakers Brand: HK Audio

Product Description

The LINEAR 7 115 FA active and network-compatible full-range speaker delivers more sound pressure in the low-frequency range thanks to its larger cabinet volume. With the Bass Boost preset optimised for each speaker, the low-frequency range can be boosted as required.

General Specifications

Max. SPL @ 10% THD	129 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD	134 dB half space
Frequency response +/-3 dB	57 Hz – 19 kHz
Frequency response -10 dB	54 Hz – 20 kHz
Power amp output (peak power)	2000 W
Amp type	Class D – biamped
Low-/mid speaker	1x 15″, 3″ voice coil
HF driver	1″, 1.7″ voice coil
Horn directivity	60° x 40° CD horn, rotatable
Active crossover frequency	1.5 kHz FIR X-over with 60 dB/oct.
Maximum input level	+20 dBu

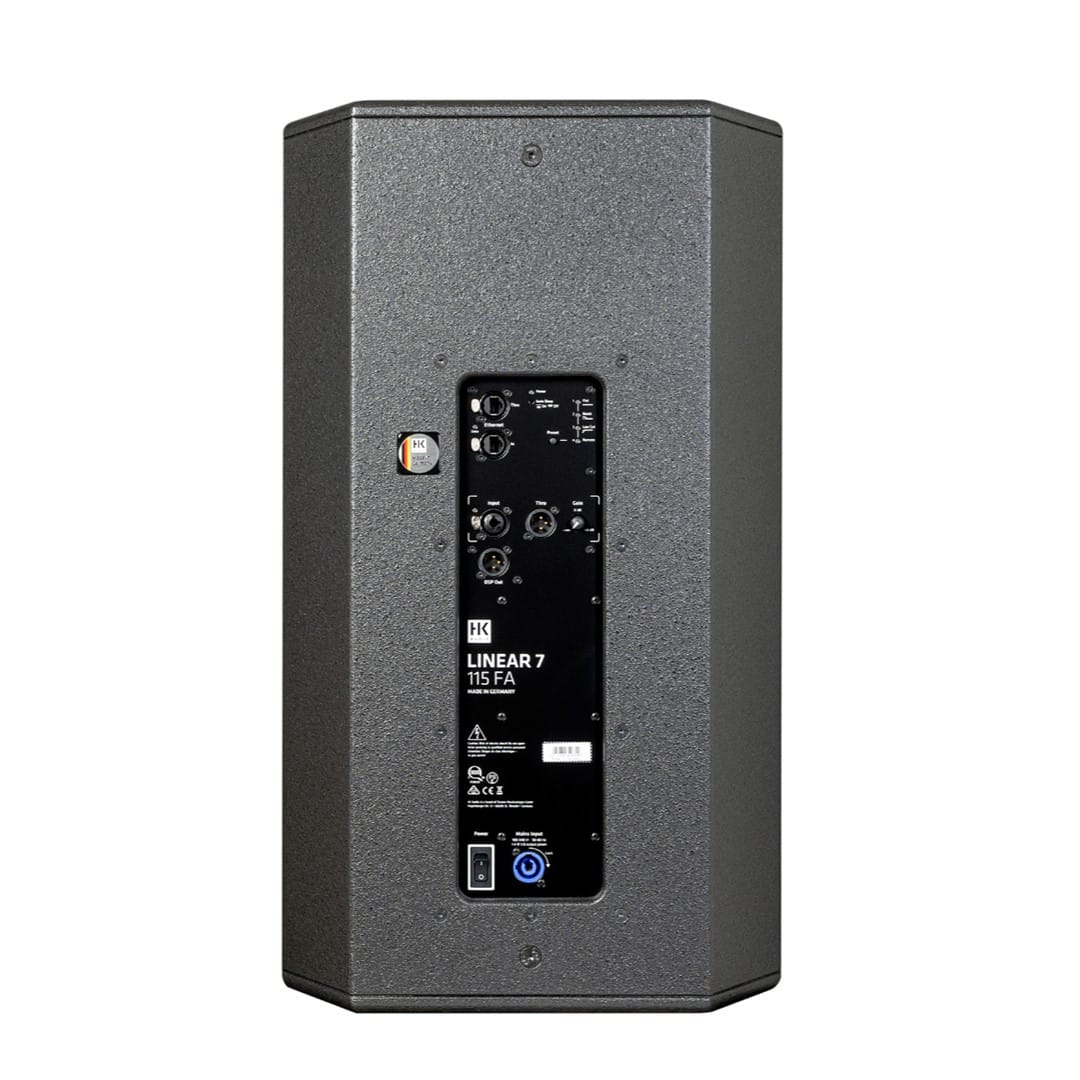

Analog inputs	1x XLR combo balanced
Analog thru	1x XLR balanced
DSP Out	1x XLR
Network port	Ethercon RJ45, 1x In, 1x Thru
Filter presets	Flat, Boost, Low Cut, Remote
Remote software	DSP CONTROL (Windows, Mac OS)
DSP functions	Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate	96 kHz
System latency	Less than 2.6 ms
Mains connector	1x Powercon NAC3 In, 100–240 V
Power consuption	1 A / 100–240 V nominal according to EN 62368-1
Clustering angle	60°

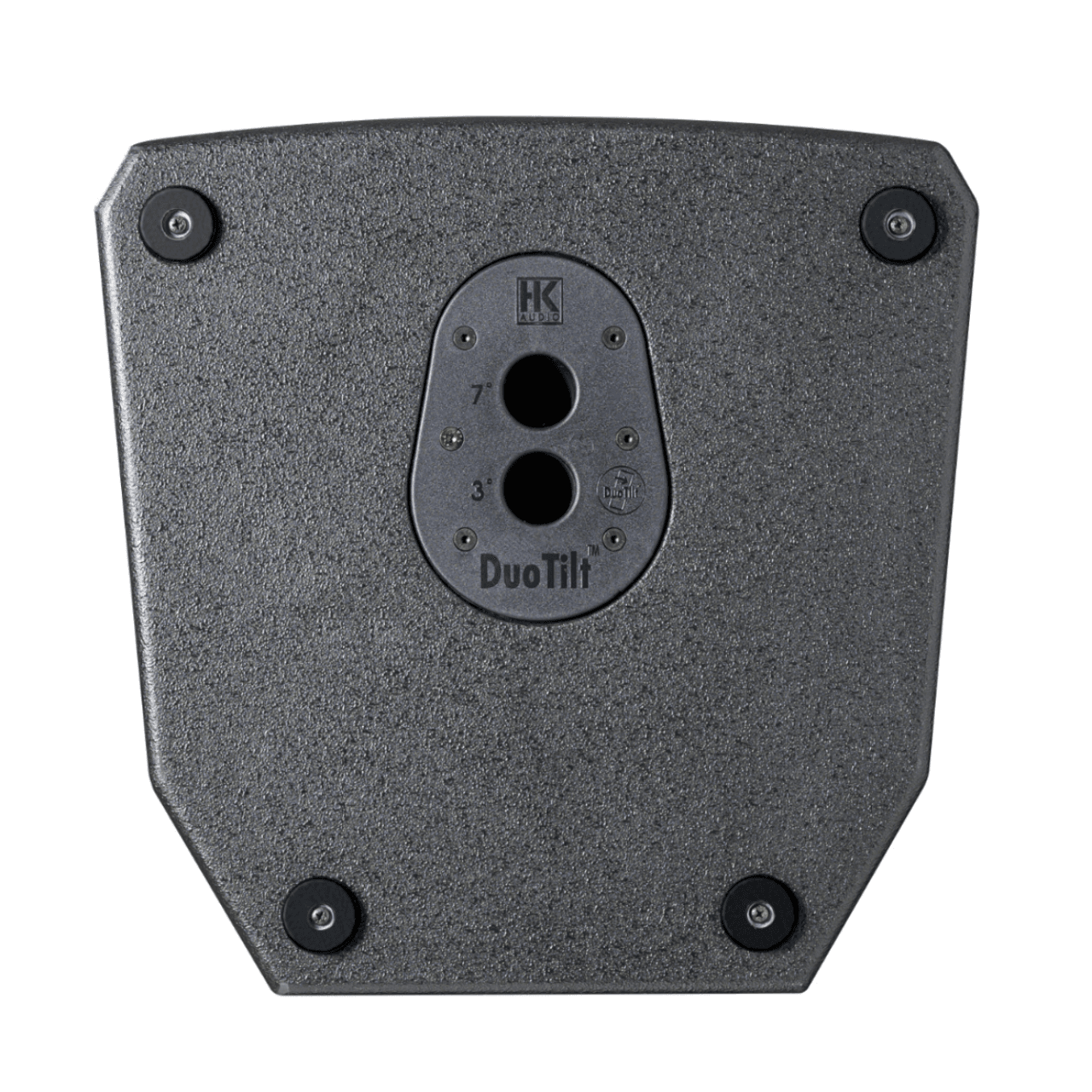

Pole mount	DuoTilt 3°/7°
Rigging points	4x M8 (AP-8)

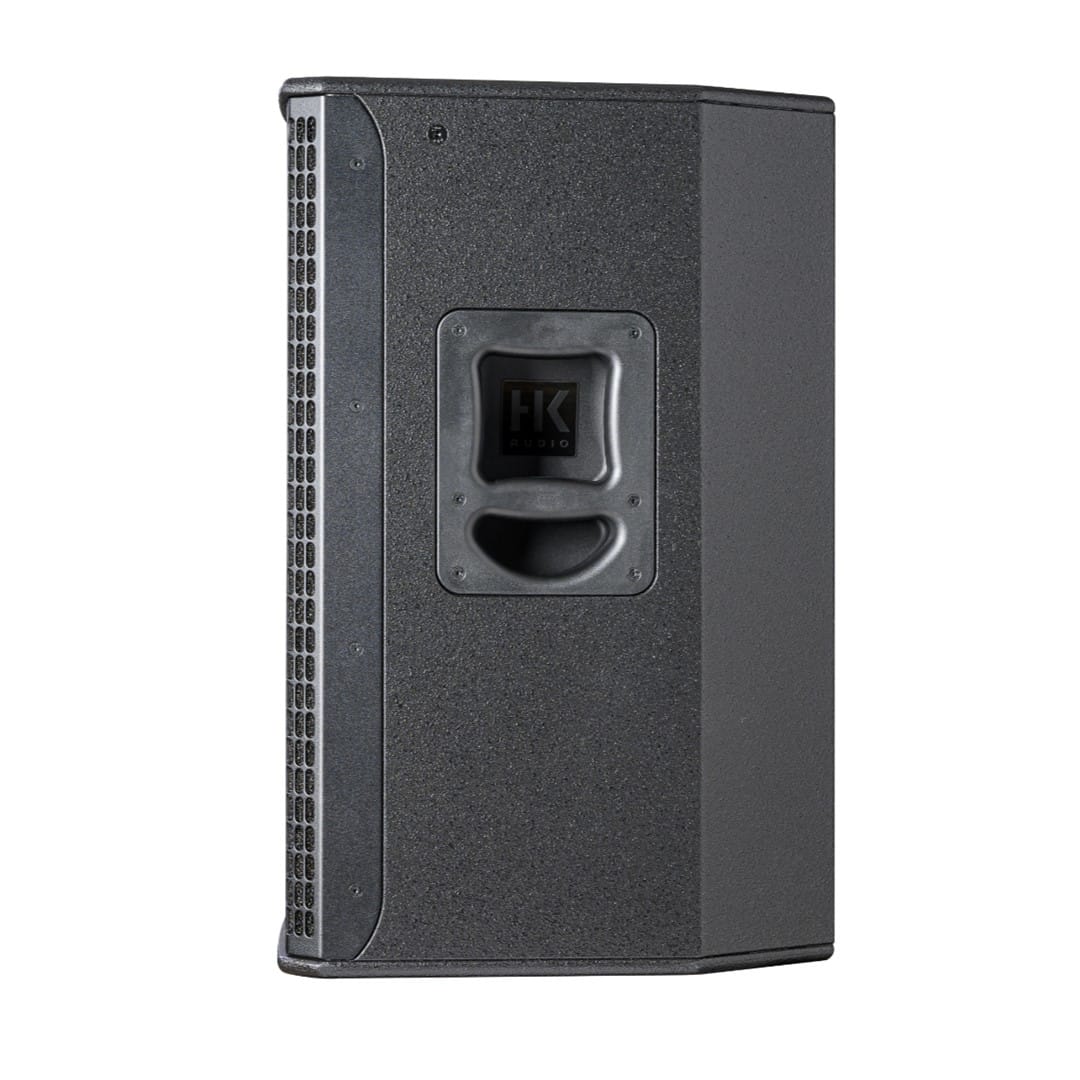

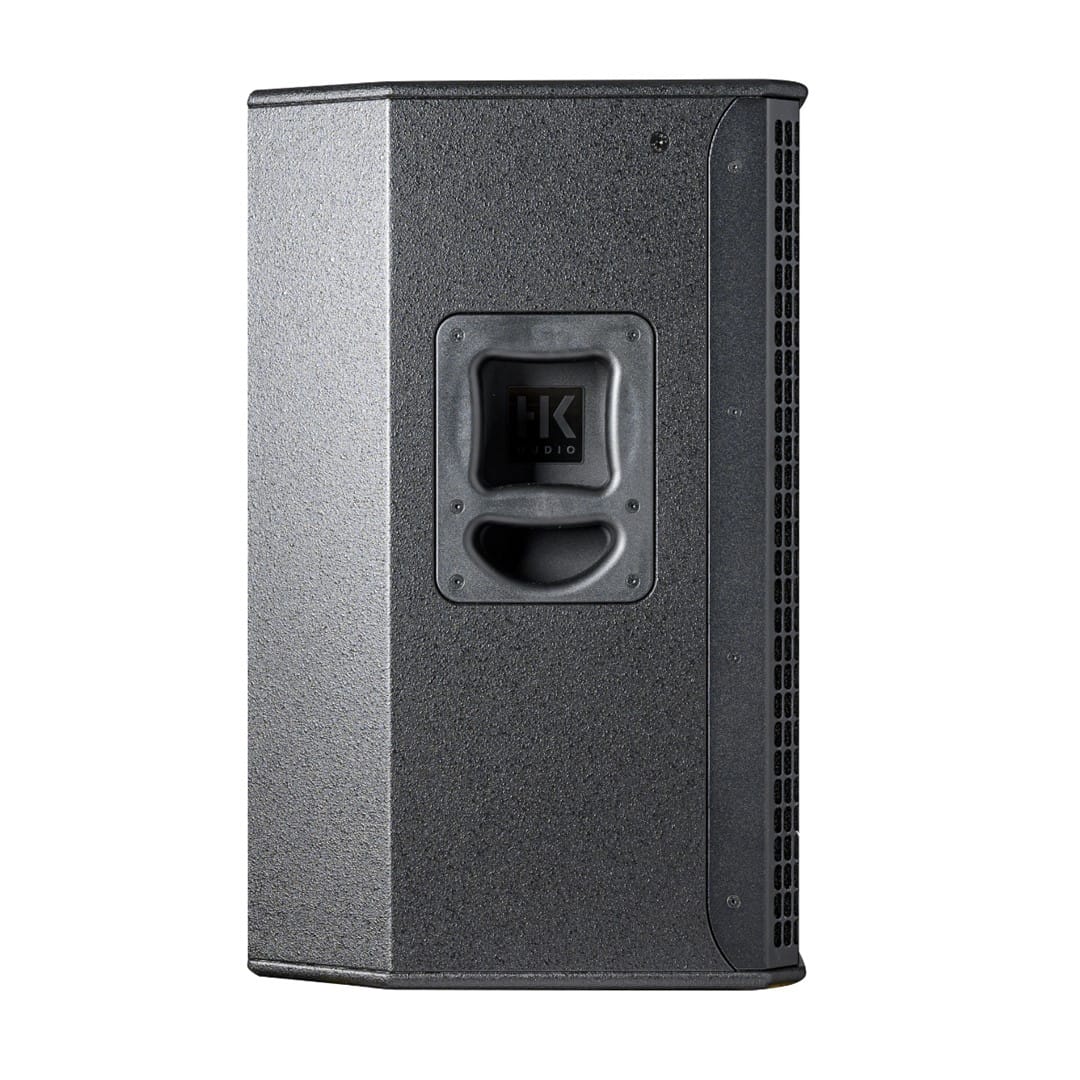

Carrying handles	2x MultiGrip
Housing	Hybrid (birch multiplex/MDF)
Finish	Black acrylic enamel
Front grille	2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)	45 x 71 x 45 cm 17-23/32 x 27-61/64 x 17-23/32″
Weight	32 kg / 70.5 lbs
