HK Audio Linear 7 110 XA
Check stock before ordering
R32,495.00
HK Audio Linear 7 110 XA Active Speaker 2000 W
Availability: In stock
Product Description

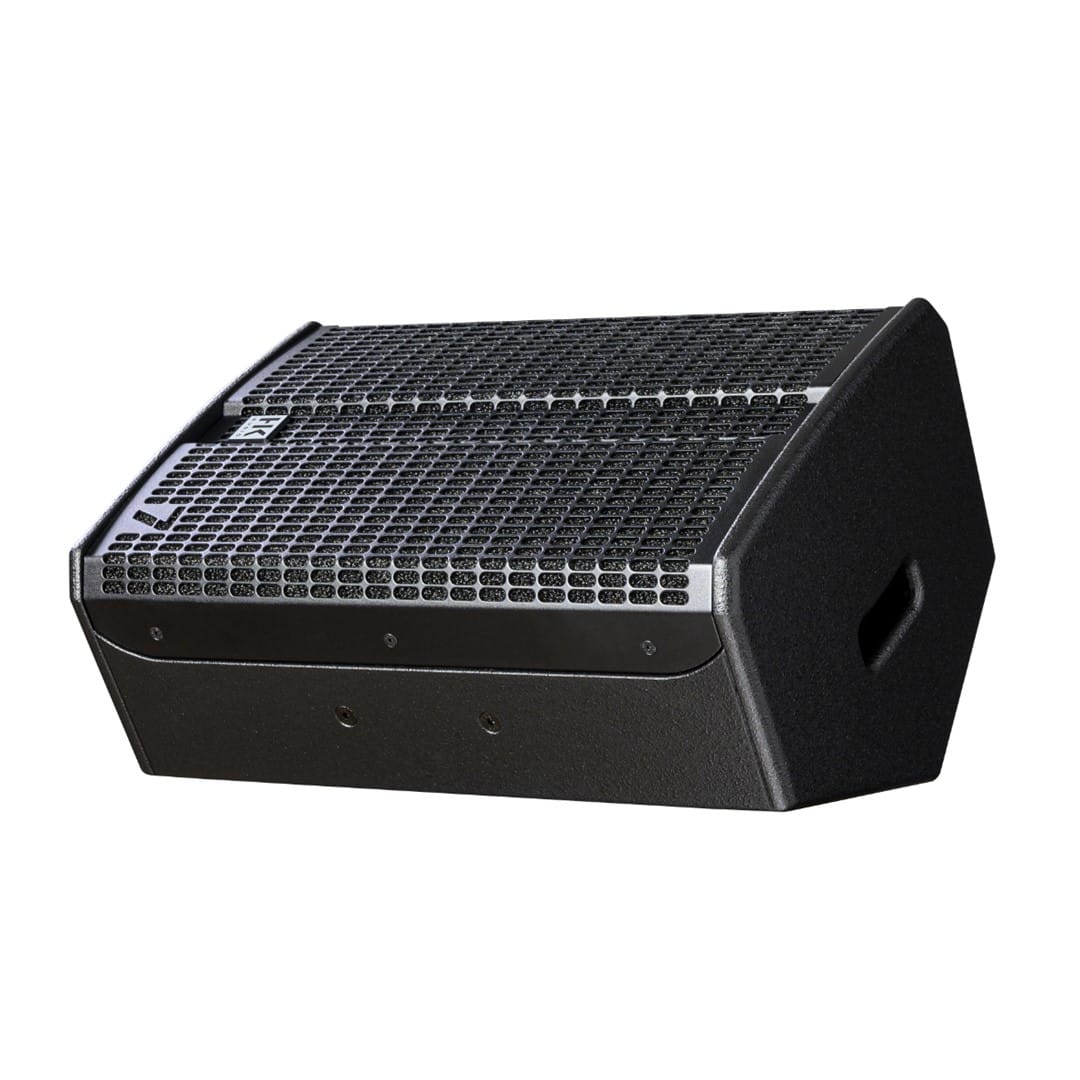

Thanks to its cabinet shape with an integrated 30° slant, the LINEAR 7 110 XA active and network-compatible multifunctional speaker is also suitable for use as a transverse stage monitor. It offers a preset optimised for use as a monitor, which compensates for the overemphasis of the low frequencies caused by contact with the ground in transverse operation.
General Specifications
| Max. SPL @ 10% THD | 126 dB half space (70 Hz – 12 kHz averaged) |
| Max. SPL peak @ 10 % THD | 129 dB half space |
| Frequency response +/-3 dB | 70 Hz – 19 kHz |
| Frequency response -10 dB | 65 Hz – 20 kHz |
| Power amp output (peak power) | 2000 W |
| Amp type | Class D – biamped |
| Low-/mid speaker | 1x 10″, 2.5″ voice coil |
| HF driver | 1″, 1.4″ voice coil |
| Horn directivity | 80° x 60° CD horn, rotatable |
| Active crossover frequency | 2 kHz FIR X-over with 60 dB/oct. |
| Maximum input level | +20 dBu |
| Analog inputs | 1x XLR combo balanced |
| Analog thru | 1x XLR balanced |
| DSP Out | 1x XLR |
| Network port | Ethercon RJ45, 1x In, 1x Thru |
| Filter presets | Flat, Monitor, Low Cut, Remote |
| Remote software | DSP CONTROL (Windows, Mac OS) |
| DSP functions | Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute |
| Sample rate | 96 kHz |
| System latency | Less than 2.6 ms |
| Mains connector | 1x Powercon NAC3 In, 100–240 V |
| Power consuption | 1 A / 100–240 V nominal according to EN 62368-1 |
| Angels up (Monitor angle) | 30° |

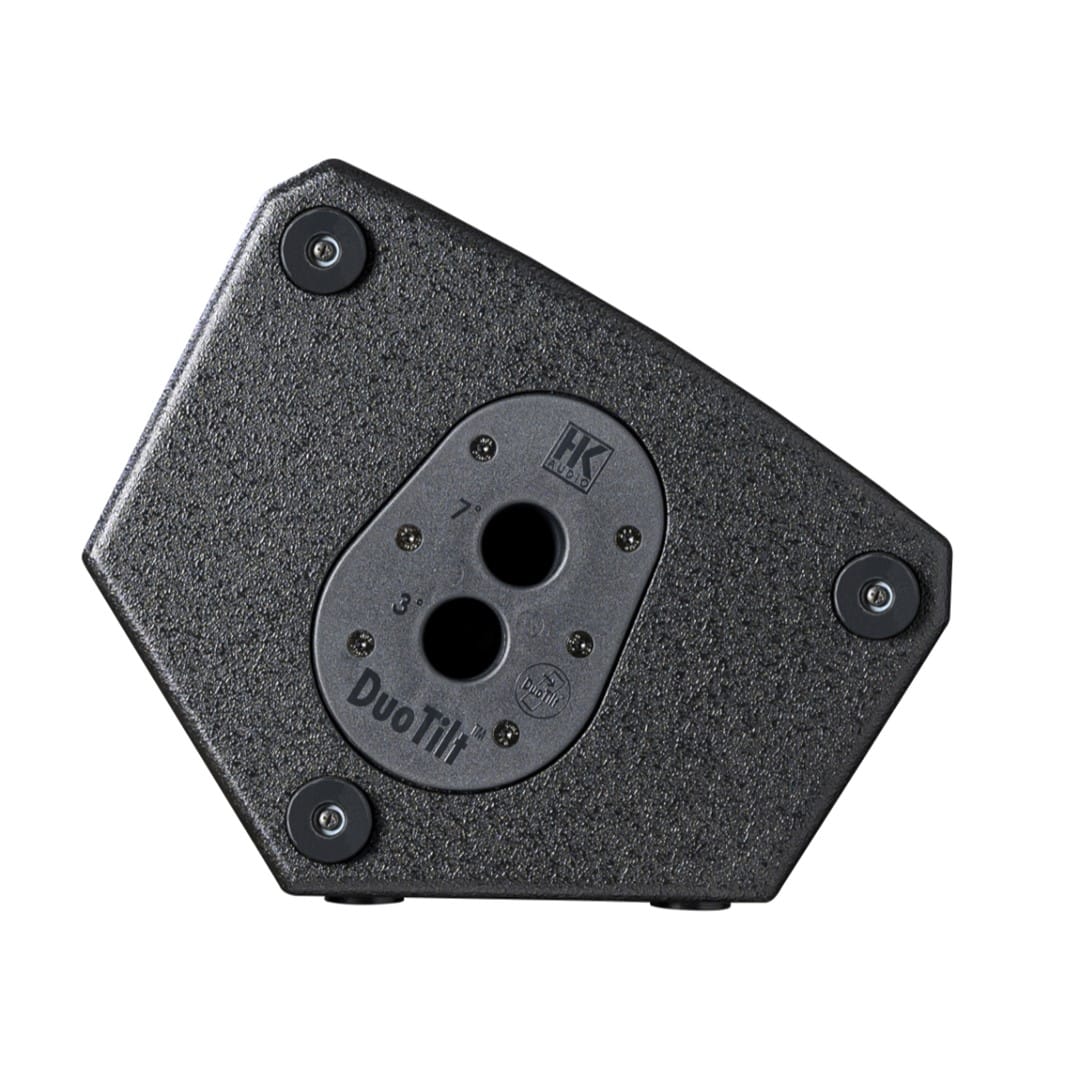

| Pole mount | DuoTilt 3°/7° |
| Rigging points | 5x M8 (AP-8) |
| Carrying handles | 2x SingleGrip |
| Housing | Hybrid (birch multiplex/MDF) |
| Finish | Black acrylic enamel |
| Front grille | 2 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 36 x 54 x 31 cm 14-11/64 x 21-1/4 x 12-13/64″ |
| Weight | 17 kg / 37.5 lbs |
