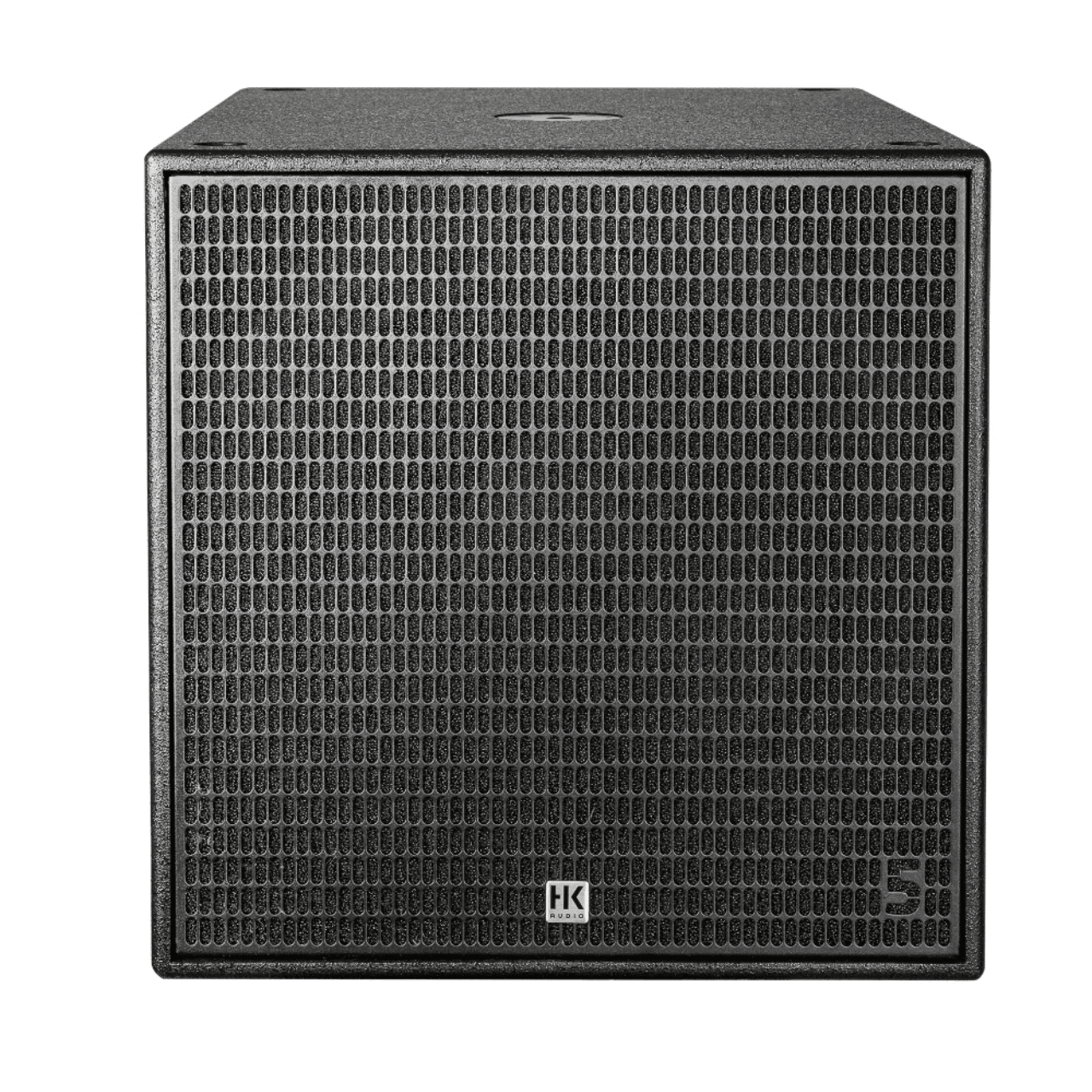

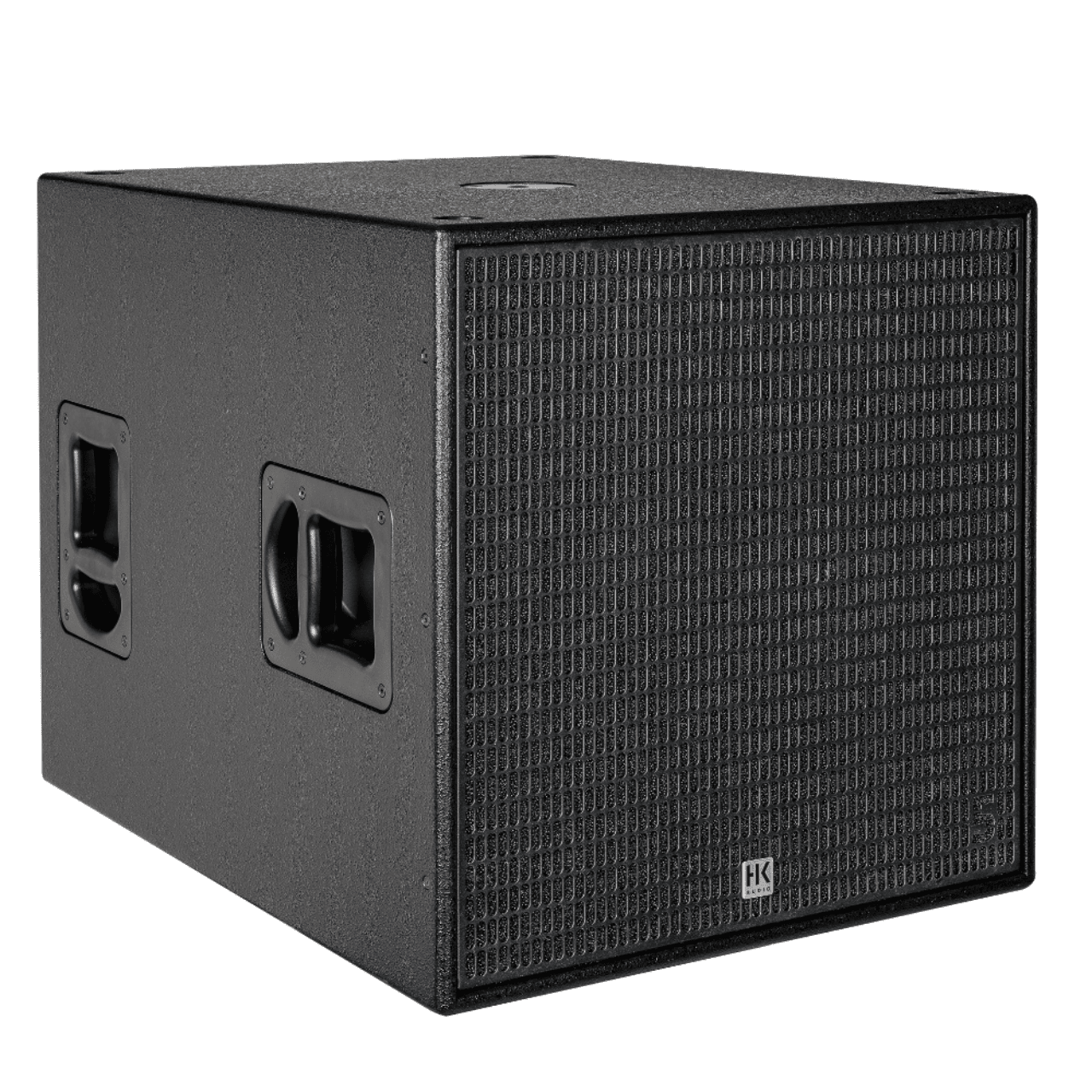

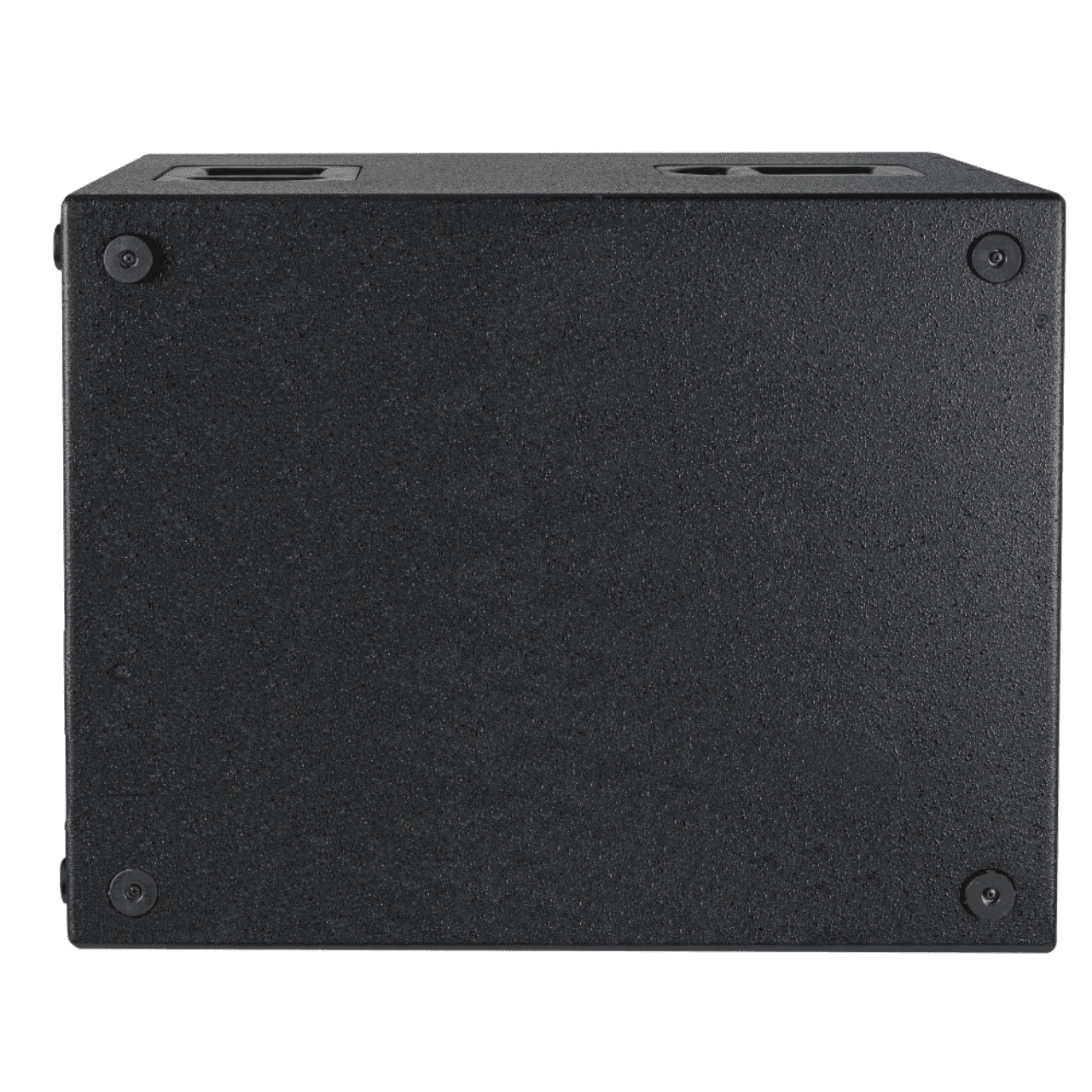

HK Audio Linear 5 MK II 118 Sub HPA

0 customer reviews
Check stock before ordering
View details

R74,995.00


HK Audio Linear 5 MK II118 Sub HPA, the most powerful subwoofer in the LINEAR 5 MK II series with significantly more energy in the low-end range.

Availability: In stock

Add to wishlist
Add to quote
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: LINEAR 5 MKII 118 Sub HPA Categories: Brand:

Product Description

The standard bass-reflex subwoofers form the solid foundation of the new LINEAR 5 MK II systems with their uncompromising performance and dry, defined bass down to the lowest of the lows. Cardioid settings that can be simply selected via a preset give the user an enormously expanded range of options for system configuration and access to the professional class. 2.1 setups are simplified thanks to the stereo preamplifiers.

The LINEAR 5 MK II 118 Sub HPA, with its high-performance 18-inch woofer and the most powerful amplifier within the series, delivers very precise and powerful bass reproduction. Despite its compact dimensions, it delivers outstanding low-end performance. The internal DSP is fully remote controllable via the network using the free DSP CONTROL software. The integrated cardioid presets offer flexibility in many applications and save time when setting up.

Key Features

  • Powerful subwoofer with intense bass reproduction in a very compact size
  • Advanced high-performance DSP with FIR filtering and built-in cardioid presets selectable directly at the speaker
  • Precise and comprehensive sound tuning with HK Audio DSP CONTROL software for Mac and PC
  • DSP-Out for integration of non-DSP speakers, also in combination with LINEAR models.
  • SMART CONNECTION with PowerCon and EtherCon, each with link
  • Protection of the electronics with RCS Rain Cover Set included in the scope of delivery
  • Robust, moisture-resistant and durable birch multiplex cabinet

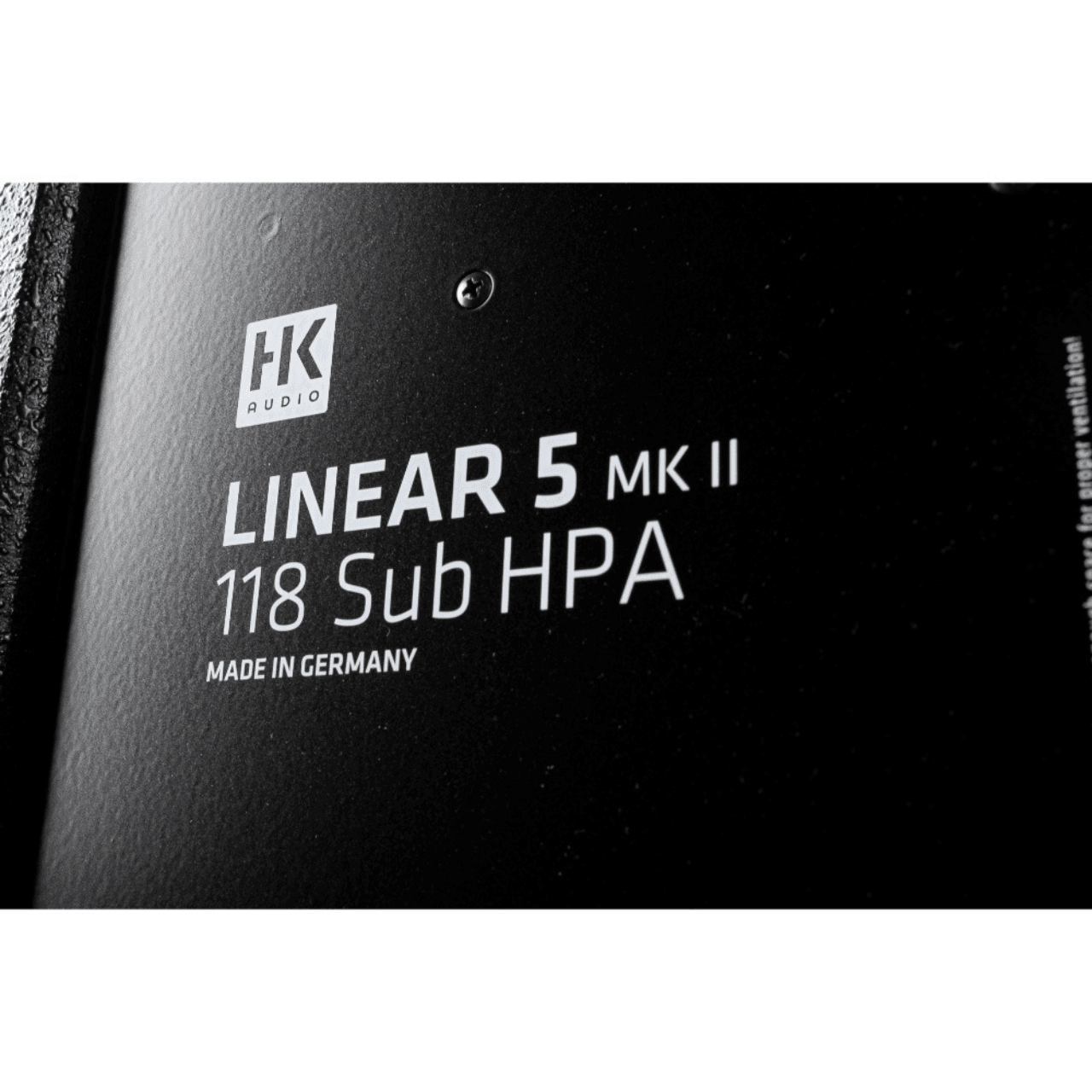

  • Made in St. Wendel, Germany

Cardioid – Problem Solver For Professionals In Any Situation

Professional sound technicians respond to stringent sound insulation requirements, uncontrolled bass dispersion on and behind the stage and a high feedback risk in the lower frequency range with Cardioid technology for the subwoofers. This technical trick is now easily achieved without measurement technology: simply set up, select a preset, and you’re done!

The Cardioid setup attenuates the bass sound pressure of the physically spherically radiating subwoofers behind the subwoofers by up to 34 dB. There is a slight increase in sound pressure of approx. 2 dB in the front sound dispersion. This results in a directional, cardioid radiation pattern.

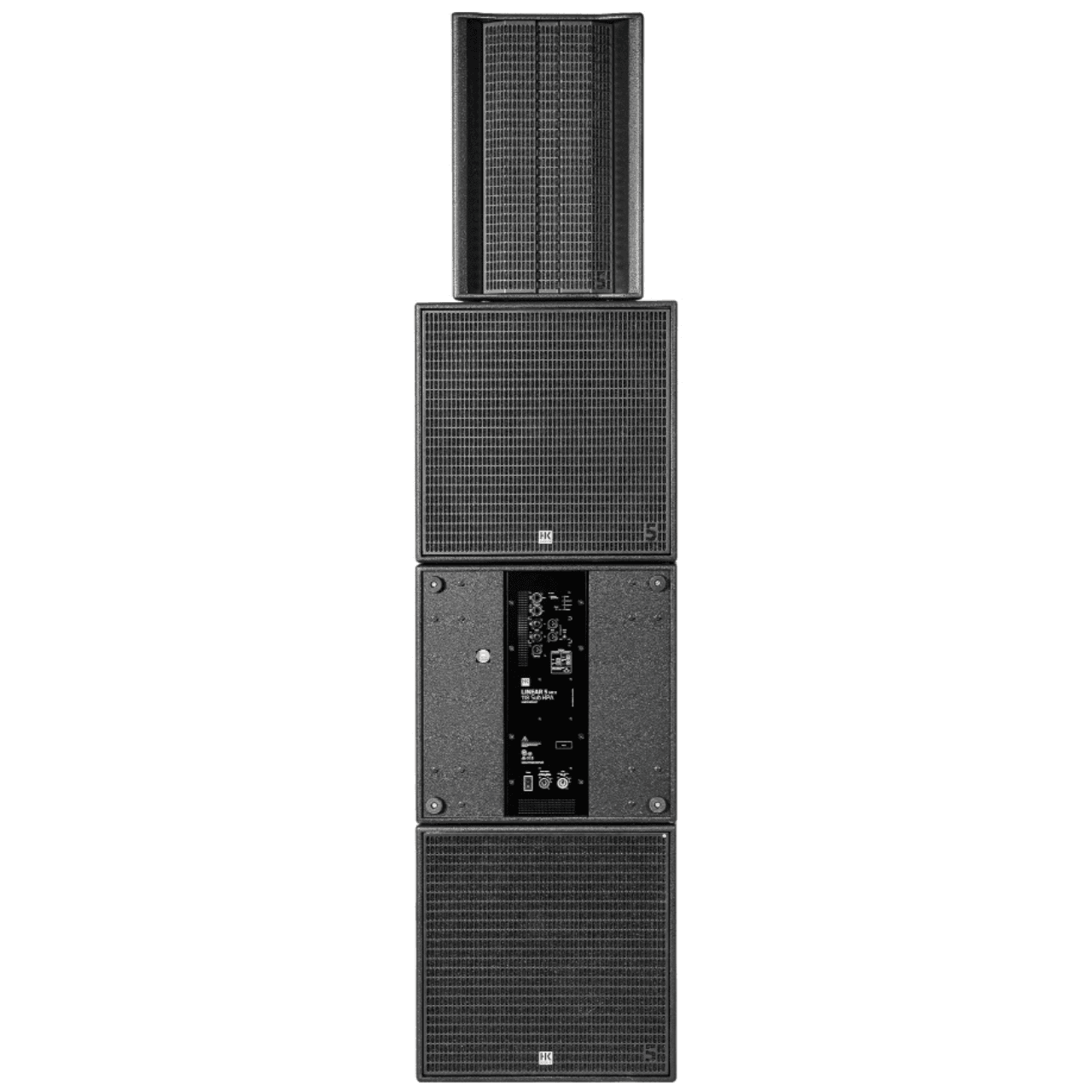

Cardioid sound reinforcement technology can be used with the LINEAR 5 MK II 115 Sub A and 118 Sub A with vertically stacked subwoofers and also with horizontal setups. This is a huge advantage on low stages. For larger vertical cardioid stacks with up to three subwoofers, the powerful LINEAR 5 MK II 118 Sub HPA offers 1:1 and 2:1 cardioid presets.

Robust Housings Optimized For All Application Scenarios

The acoustic properties and stability of wood cannot be achieved with any other material in loudspeaker construction. That is why nearly all LINEAR 5 MK II components are built into wooden cabinets made of MDF and birch multiplex. The LINEAR 5 MK II 118 Sub A and the LINEAR 5 MK II 118 Sub HPA are completely made of birch multiplex. Despite the robust material, LINEAR 5 MK II is extremely compact and comparatively light. MultiGrip handles ensure easy handling and, together with the optional tilt brackets, provide a secure hold in flight for the mid/high units.

For use as compact, powerful and low-feedback stage monitors, the housings of the LINEAR 5 MK II XA mid/high units are equipped with a 31° monitor slope and offer a safe and firm stand even when lying crosswise. The rotatable horns allow the dispersion angles to be optimally adjusted to the desired setup. The enclosures of the LINEAR 5 MK II FA full-range mid/high units provide more pressure and volume in the bass range.

Smaller, Lighter, Louder

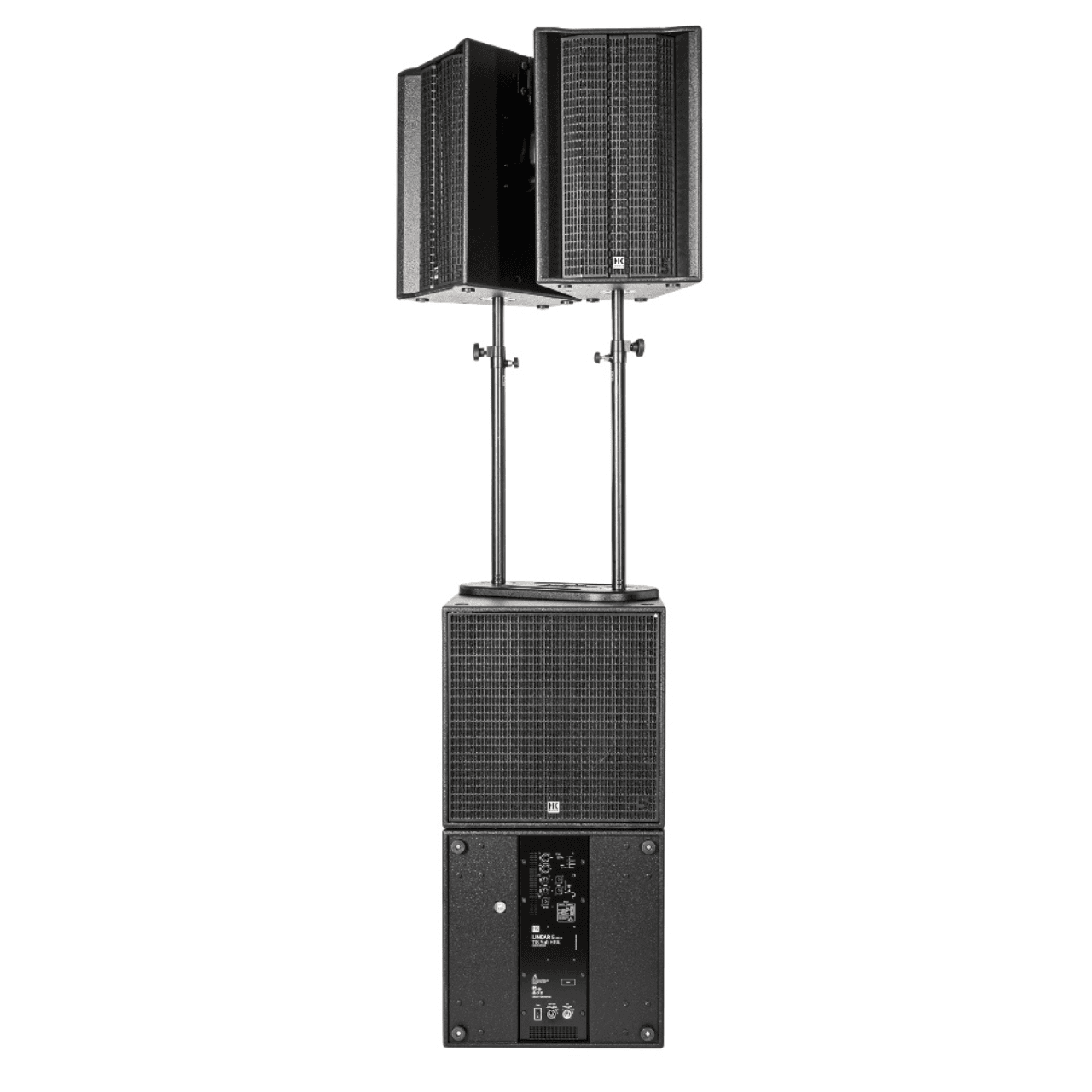

LINEAR 5 MK II is smaller, lighter and louder than the LINEAR 5 series. With up to 3 kg less weight at the same sound pressure level, the LINEAR 5 MK II 112 XA is the loudest and lightest mid/high unit in its speaker class. LINEAR 5 MK II 308 LTA and HK Audio 118 Sub HPA work together to deliver long throws and powerful bass in compact dimensions.

General Specifications

  • Model:  Linear 5 MK II 118 Sub HPA
  • Max SPL 10% THD:  130 dB half space (36 Hz – 100 Hz averaged)
  • Max SPL Peak  @ 10 % THD:  131 dB half space
  • Frequency Response +/-3 dB:  36 Hz – X-over
  • Frequency Response  -10 dB:  33 Hz – X-over
  • Power Amp Output (rms/peak):  1500 / 3000 W
  • Amplifier:  Class D
  • LF Driver:  1X 18″, 4″ voice coil
  • Maximum Input Level:  +20 dBu

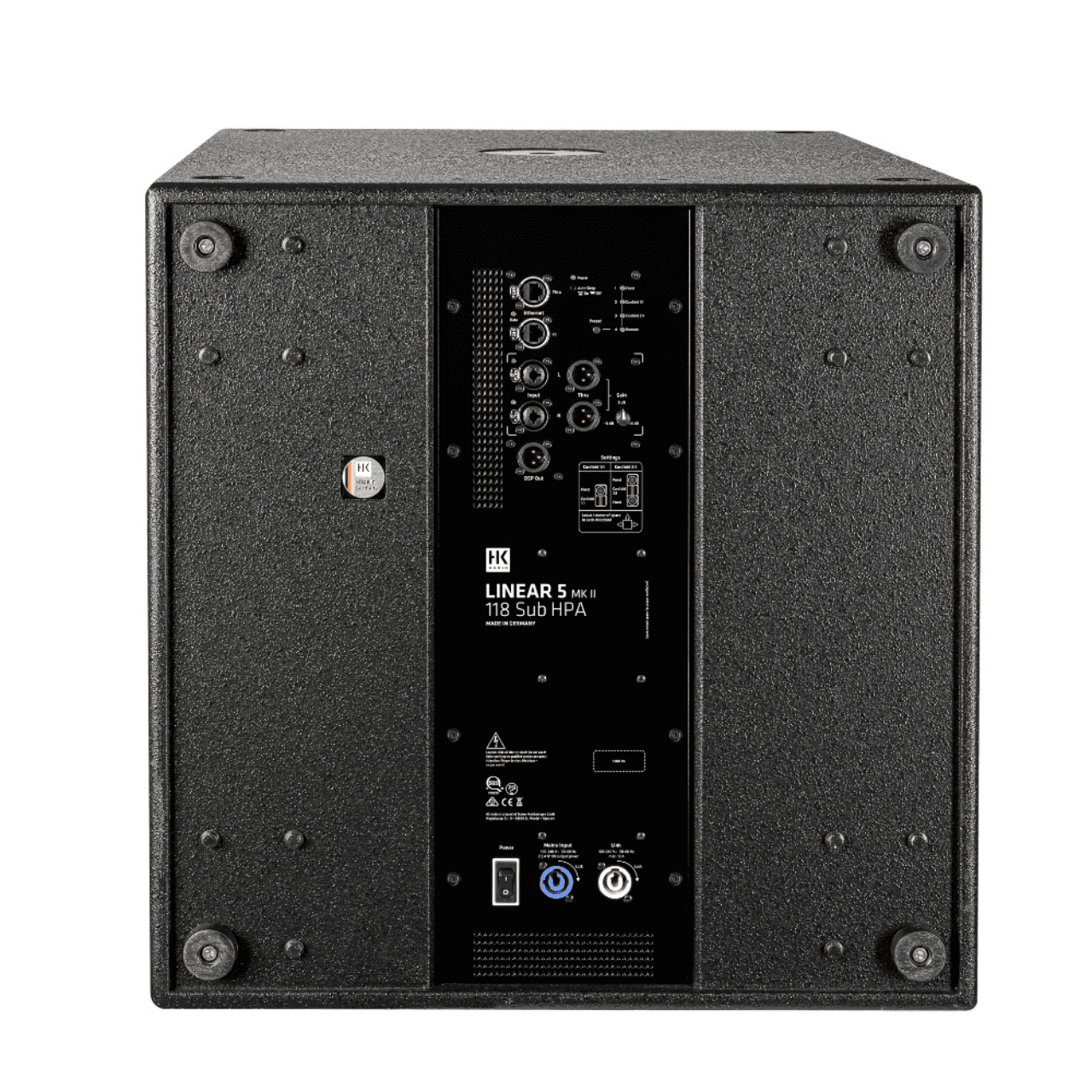

  • Analog Inputs:  2X XLR Combo balanced
  • Analog Thru:  2X XLR balanced
  • DSP Out:  1x XLR balanced
  • Network Port:  Ethercon RJ45, 1X In , 1X Thru
  • Filter Presets
    • Front
    • Cardioid 1:1 vertical
    • Cardioid 2:1 vertical
    • Remote
  • Remote Software: DSP CONTROL (Windows, Mac OS)
  • DSP Functions
    • Fully parametric 10-band EQ with variable filter characteristics
    • Low-Pass Filter
    • Polarity
    • Level
    • Delay
    • Limiter
    • Mute
  • Sample Rate:  48 kHz
  • System Latency:  <= 2.6 ms
  • Mains Connector:  1X Powercon NAC3 In, 1X Powercon NAC3 Thru, 100–240 V
  • Power Consumption:  2.5 A / 100–240 V nominal according to EN 62368-1

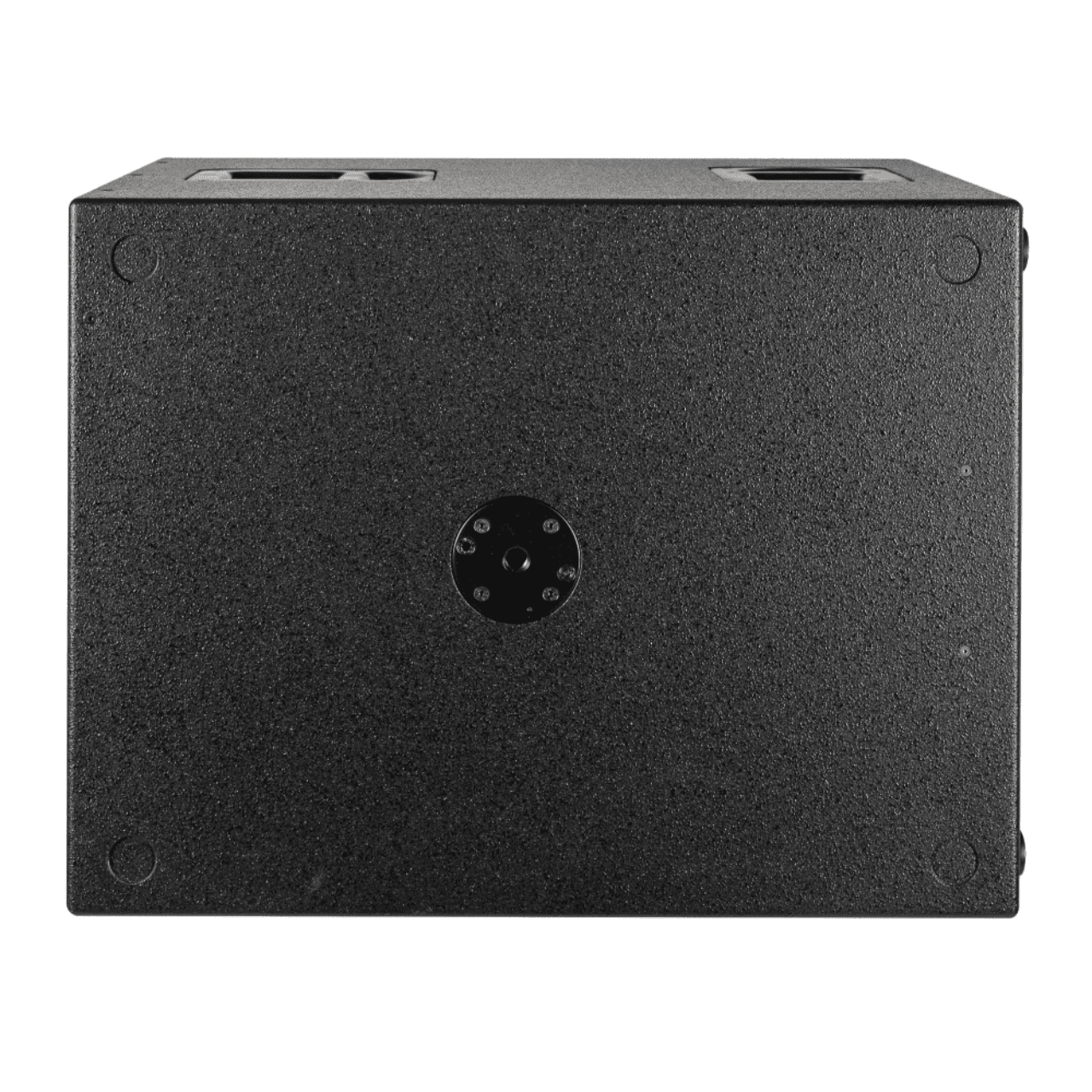

  • Pole Mount:  1X M20

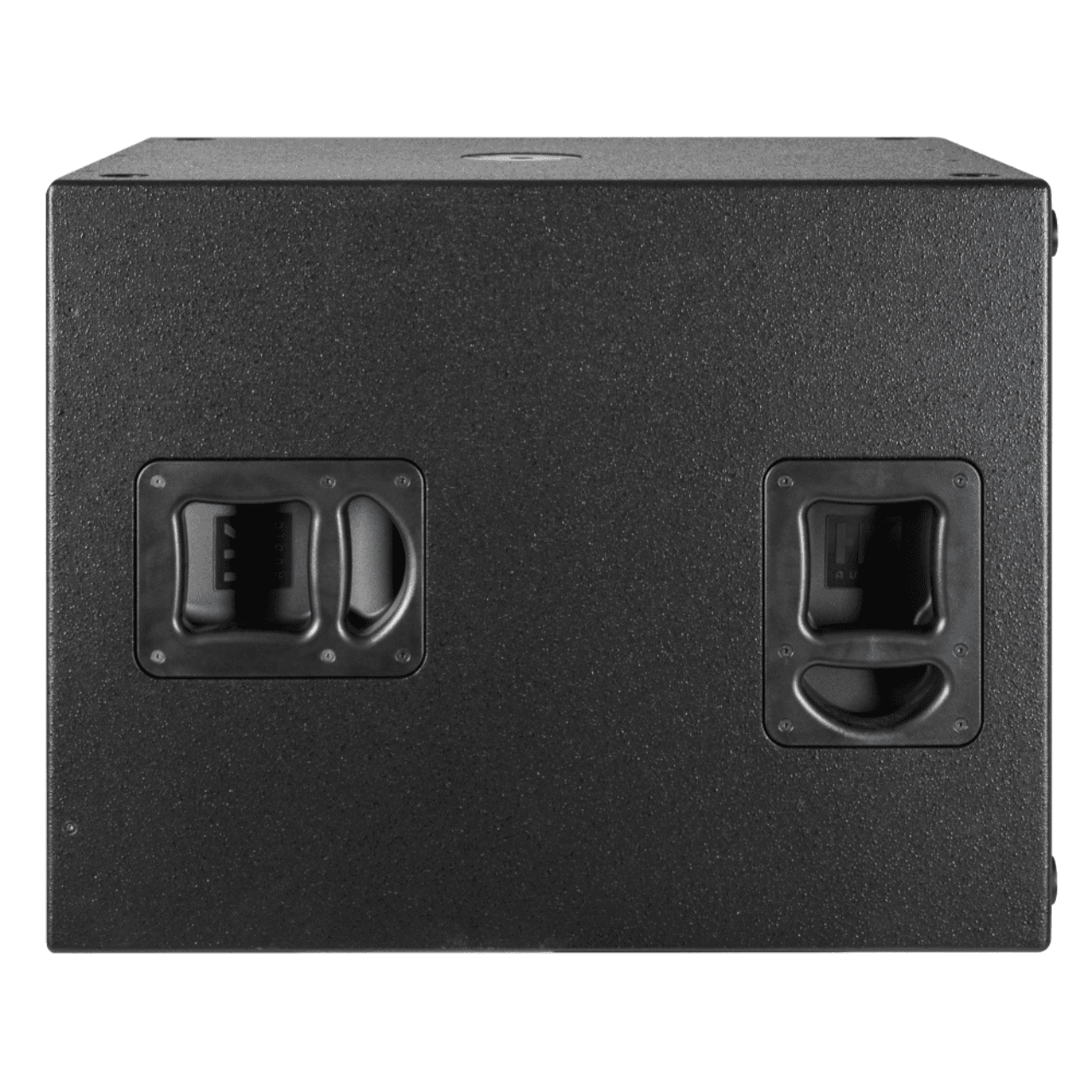

  • Carrying Handles:  4X HK Audio MultiGrip
  • Housing:  Birch multiplex
  • Finish:  Black acrylic enamel
  • Front Grille:  2 mm metal grille backed with black acoustic foam
  • Dimensions (WxHxD):  61cm X 61cm X 79cm
  • Weight:  53.4 kg / 117.2 lbs.
