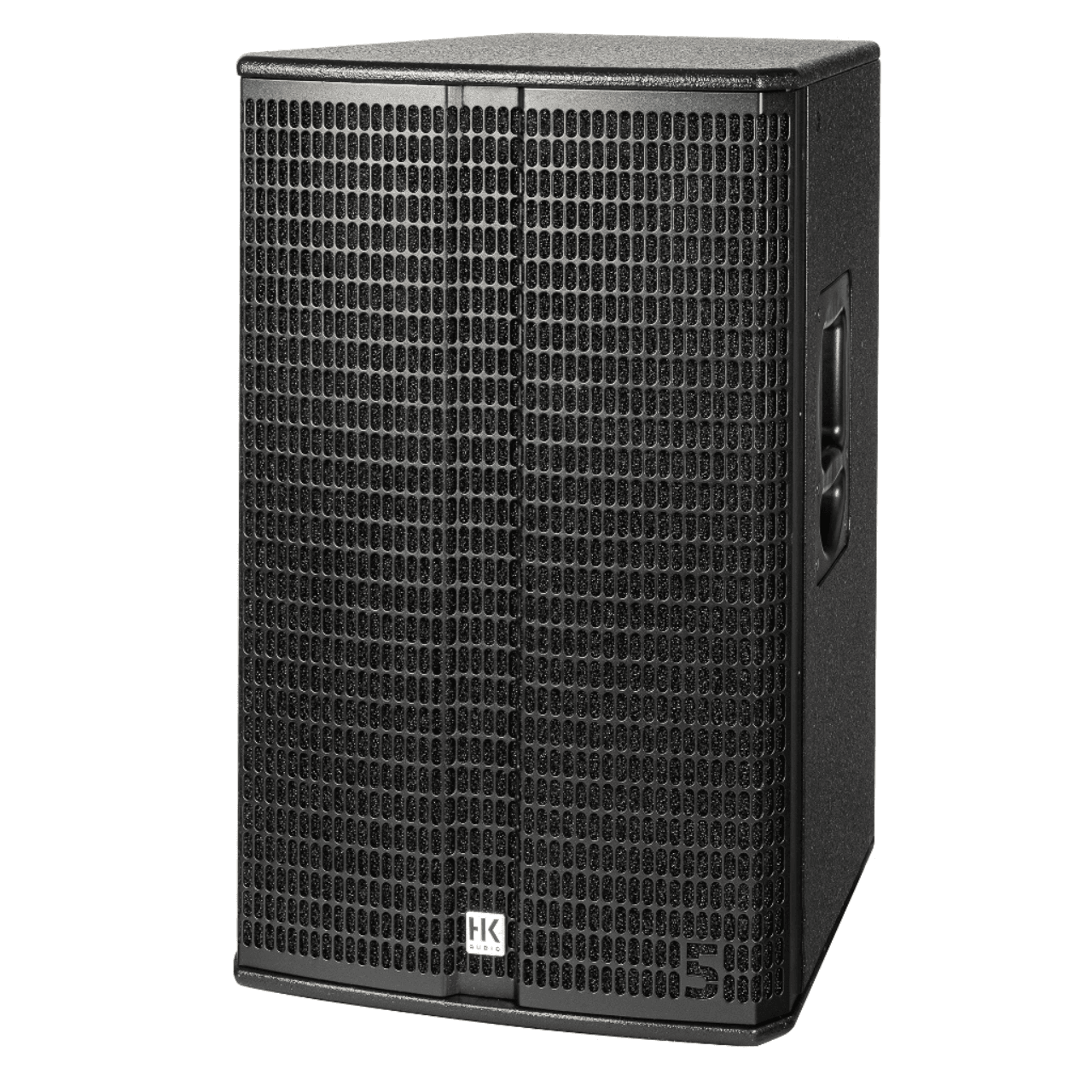

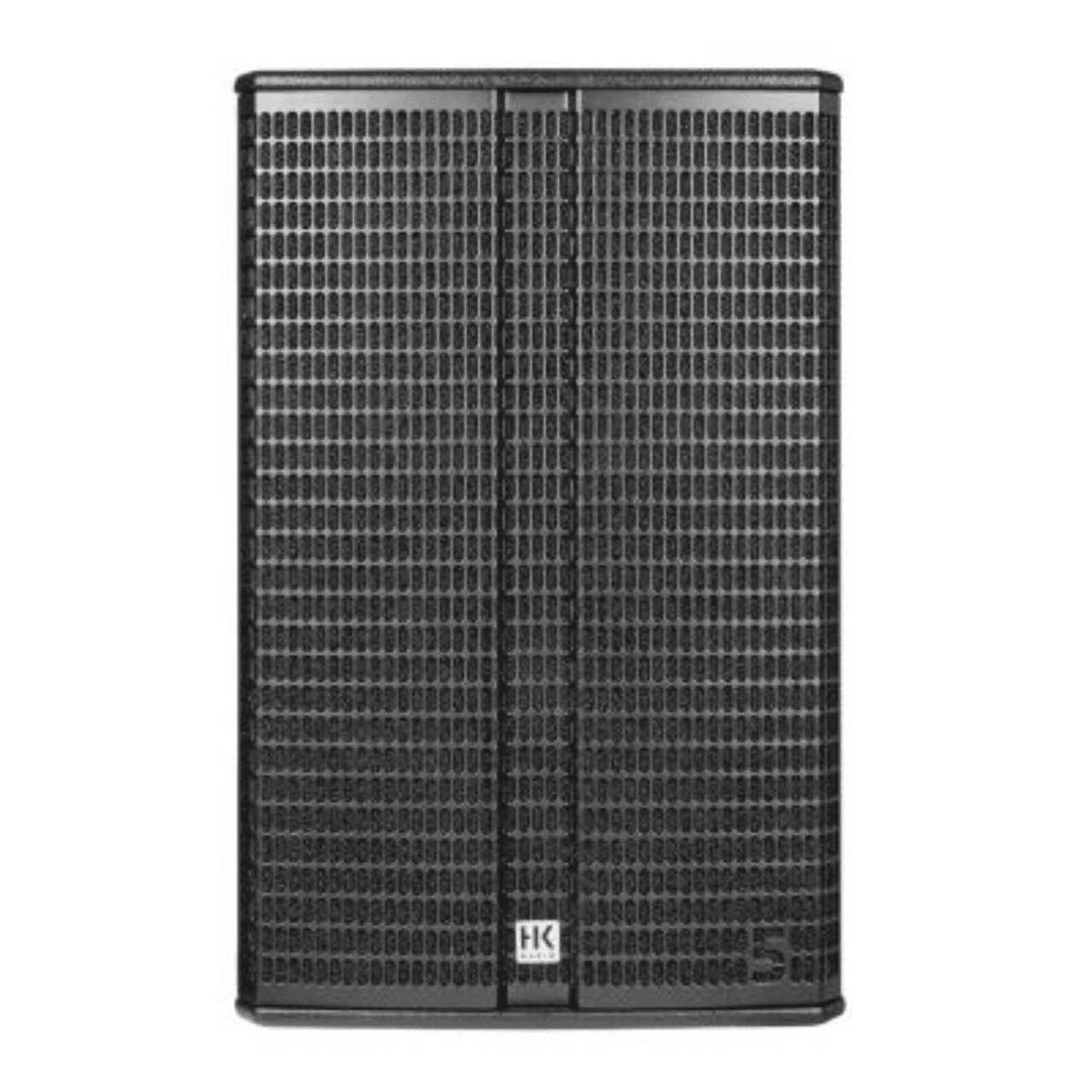

HK Audio Linear 5 MK II 115 FA
Check stock before ordering
R33,745.00
HK Audio Linear 5 MK II 115 FA Speaker 1200 W
Availability: In stock
Product Description
Full-range mid/high unit with the most powerful bass response of the series.
General Specifications
| Max. SPL @ 10 % THD | 130 dB half space (70 Hz – 12 kHz averaged) |
| Max. SPL Peak @ 10 % THD | 138 dB half space |
| Frequency response +/-3 dB | 57 Hz – 12 kHz |
| Frequency response -10 dB | 54 Hz – 19 kHz |
| Power amp output (RMS/Peak) | 600 / 1,200 W |
| Amplifier type | Class D – bi-amped |
| Low/mid speaker | 1 x 15″, 3″ voice coil |
| HF driver | 1″, 1.7″ voice coil |
| Horn characteristics | 60° x 40° CD horn, rotatable |
| Active x-over frequency | 1.6 kHz FIR X-over with 72 dB/oct. |
| Maximum input level | 20 dBu |
| Analogue inputs | 1 x XLR combo balanced |
| Analogue Thru | 1 x XLR balanced |
| DSP Out | 1 x XLR balanced |
| Network port | EtherCON RJ45, 1 x In |
| Filter presets | Flat, Boost, Low Cut, Remote |
| Remote software | DSP CONTROL (Windows, Mac OS) |
| DSP functions | Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute |
| Sample rate | 48 kHz |
| System latency | Less than 2 ms |
| Mains connection | 1x IEC connector with V-Lock securing system, 100-240 V |
| Power consumption | 1 A / 100–240 V nominal according to EN 62368-1 |

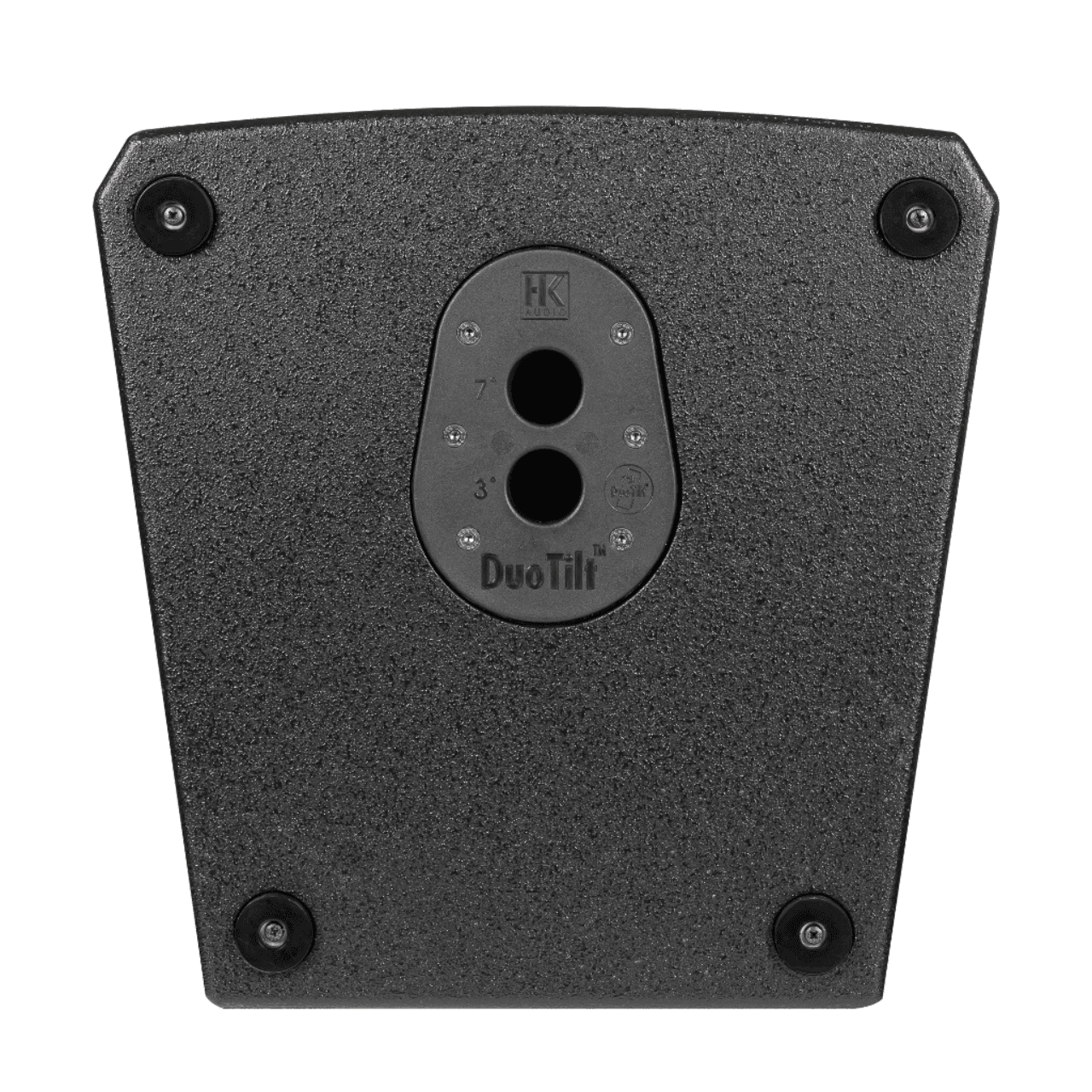

| Pole mount | DuoTilt 3°/7° |
| Rigging points | 3x M8 (AP-8) |
| Carrying handles | 2 x MultiGrip |
| Housing | Hybrid (birch multiplex/MDF) |
| Surface | Black acrylic enamel |
| Front grille | 2 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 44.8 x 70.7 x 44.75 cm 17-2/3 x 27-4/5 x 17-2/3″ |
| Weight | 30.2 kg / 66.47 lbs |
