Hartke HD508

R15,920.00


4 x 8″ Bass Combo Hartke HyDrive paper and aluminium cone drivers

Availability: Out of stock

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Product Description

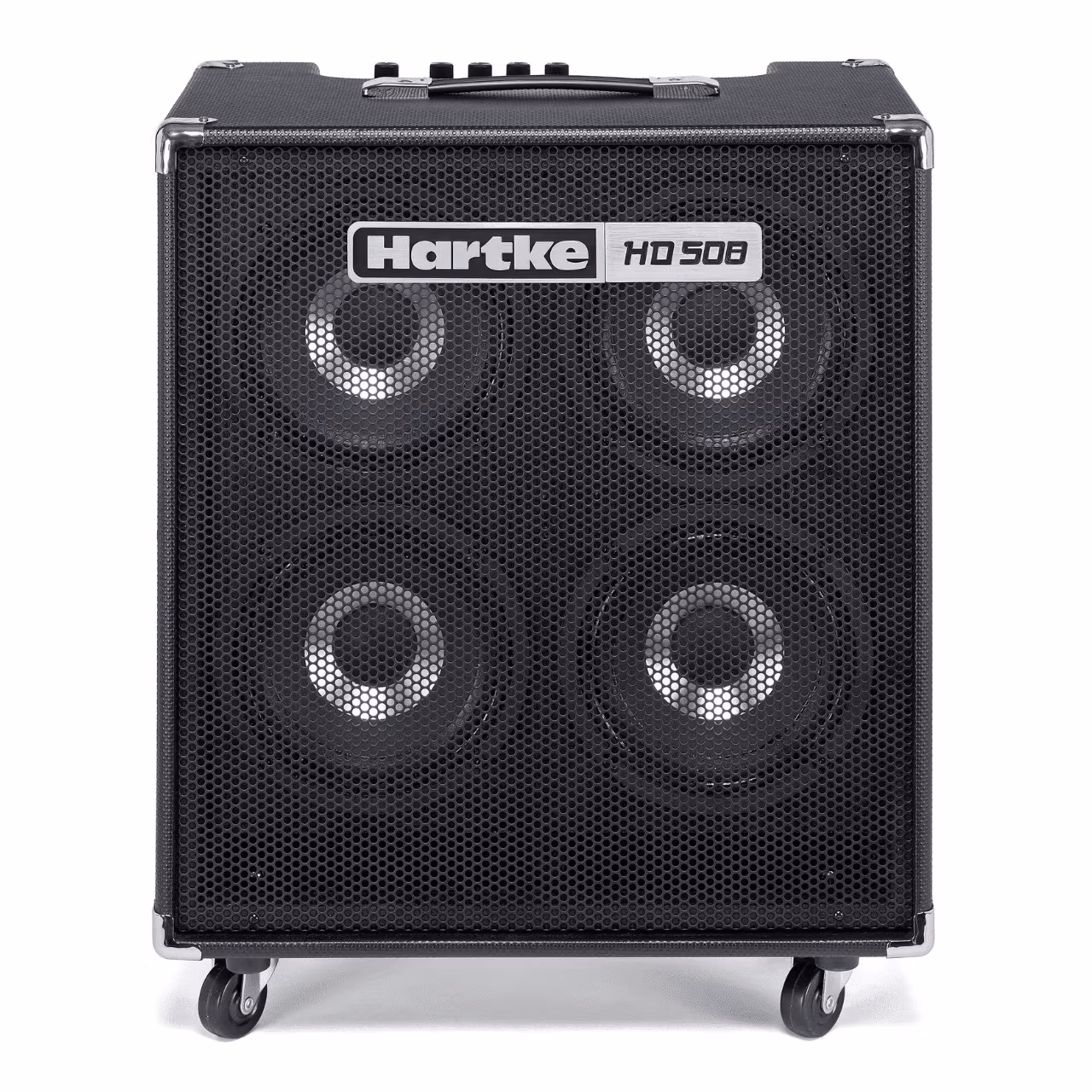

Hartke HD508

Packing four 8″ Hartke patented HyDrive speakers and a 500-watt Class D amplifier into a sleek cabinet that weighs only 49 pounds, the HD508 brings exceptional bass tone to any rehearsal, stage or studio.

Key Features

  • Lightweight Class D combo amplifier that weighs 49lb
  • 500 watts of power
  • Four 8″ HyDrive paper/aluminum hybrid cone drivers

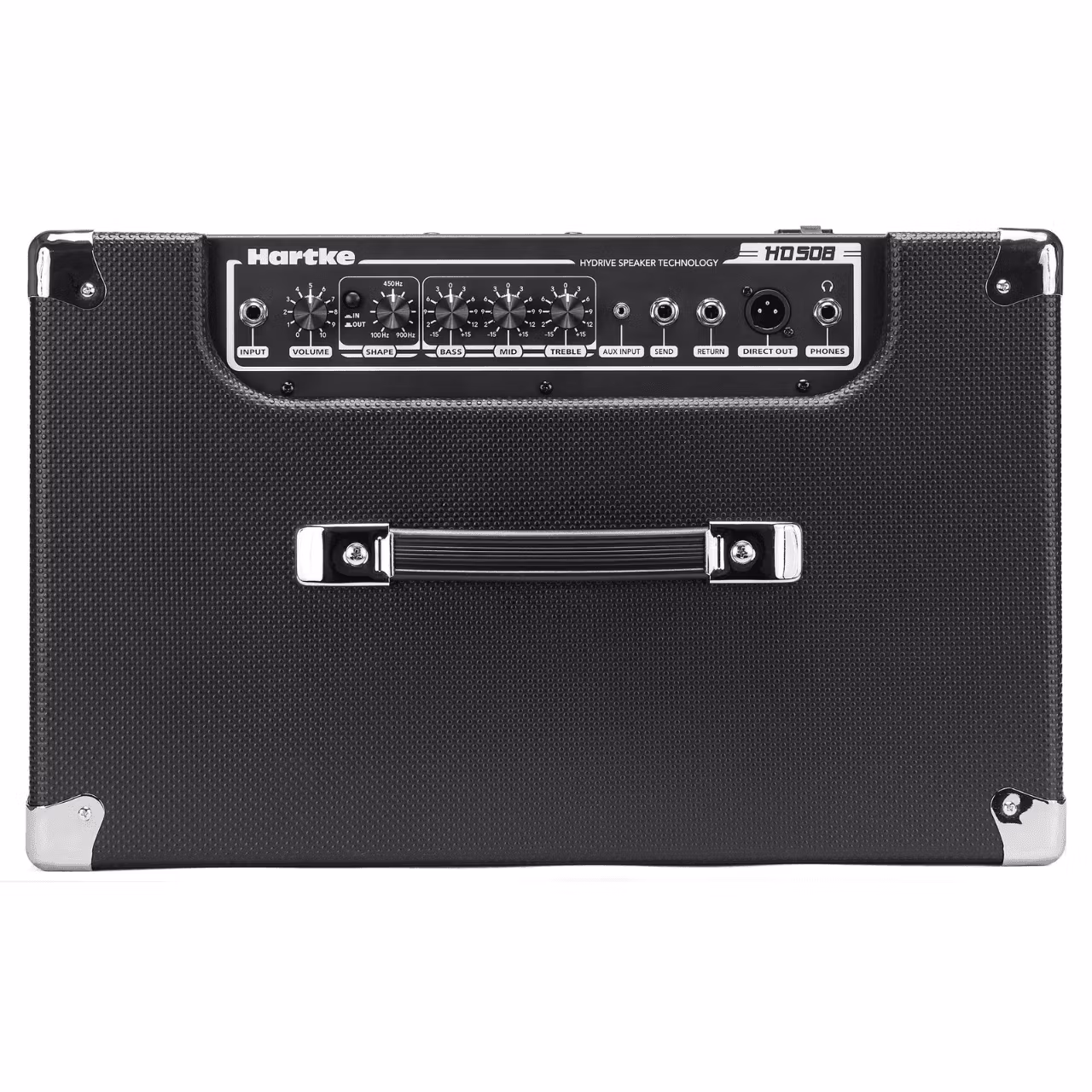

  • Top-mounted control panel
  • Hartke’s Shape EQ knob with variable filter
  • 3-band (Bass, Mid, Treble) EQ
  • XLR direct output
  • 1/8″ stereo Aux input
  • 1⁄4″ headphone output
  • 1⁄4″ bass input
  • Effects loop
  • Perforated steel grille
  • Molded strap carry handle
  • Two metal side carry handles
  • Four removable casters included

The HyDrive Design

HyDrive speakers feature carefully crafted paper/aluminum hybrid cone drivers. The hybrid makeup delivers an exceptional blend of warmth and attack that can’t be attained by traditional all-paper bass speakers. And specific to the HD508, packing four 8″ HyDrive speakers into a single cabinet creates a combined cone area that is larger, as well as able to reproduce a wider audio range, than that of a single 15″ speaker.

Power and Portability

In addition to the impeccable sound of the HyDrive speakers, the HD508 offers tremendous power in a highly portable design. Its lightweight Class D amplifier produces an earth-shattering 500 watts of power capable of filling any rehearsal room, recording studio or performance venue. And with a total weight of only 49 pounds, the HD508 is easy to transport with its molded strap handle, metal side handles, or removable casters.

Shape Your Tone

The HD508 includes a selectable Shape circuit that allows you to dial in a specialized EQ curve designed to improve tone by selectively boosting and cutting across the frequency range. In addition, a 3-band EQ provides further customization options.

General Specifications

  • Rated Output Power:  500 watts Peak / 250 watts RMS
  • Rated Input Level:  77.46mv rms (@1kHz)
  • Total Harmonic Distortion:  0.54% (@1dB below rated output, 1kHz typical)
  • Signal-to-Noise Ratio:  1W/49.3dBu (1Wrms @1kHz)
  • Signal Gain Speaker Output:  37.1Vrms
  • Signal Gain to Direct Output:  4.2Vrms
  • Bass Control:  70Hz
  • Midrange Control:  700Hz
  • Treble Control:  5kHz
  • Shape Control:  100Hz – 900Hz
  • Dimensions:  506mm X 305mm X 560mm / 20″ X 12″ X 22″
  • Weight:  22.2kg / 49lb
