FBT – J5AW ACTIVE SPEAKER
OUT OF STOCK
R8,265.00
5in White
Availability: Out of stock
Product Description

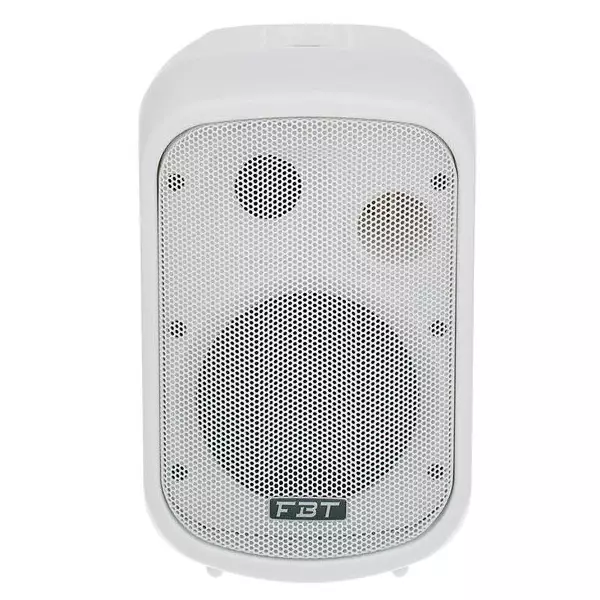

The FBT J5A series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction.
Available in black or white finish the FBT J5A series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. The asymmetrical shape of the FBT J5A cabinet also allows use as a powered floor stage monitor.
The FBT J5A is of two way design incorporating an 5″ low frequency woofer and 1″ HF custom compression driver coupled to a 90°H x 90°V horn. The active internal crossover is at a fixed frequency of 3.5kHz. With a frequency range of 80Hz – 20kHz the FBT J5A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 117dB. A front face steel grille protects the speaker from external damage.

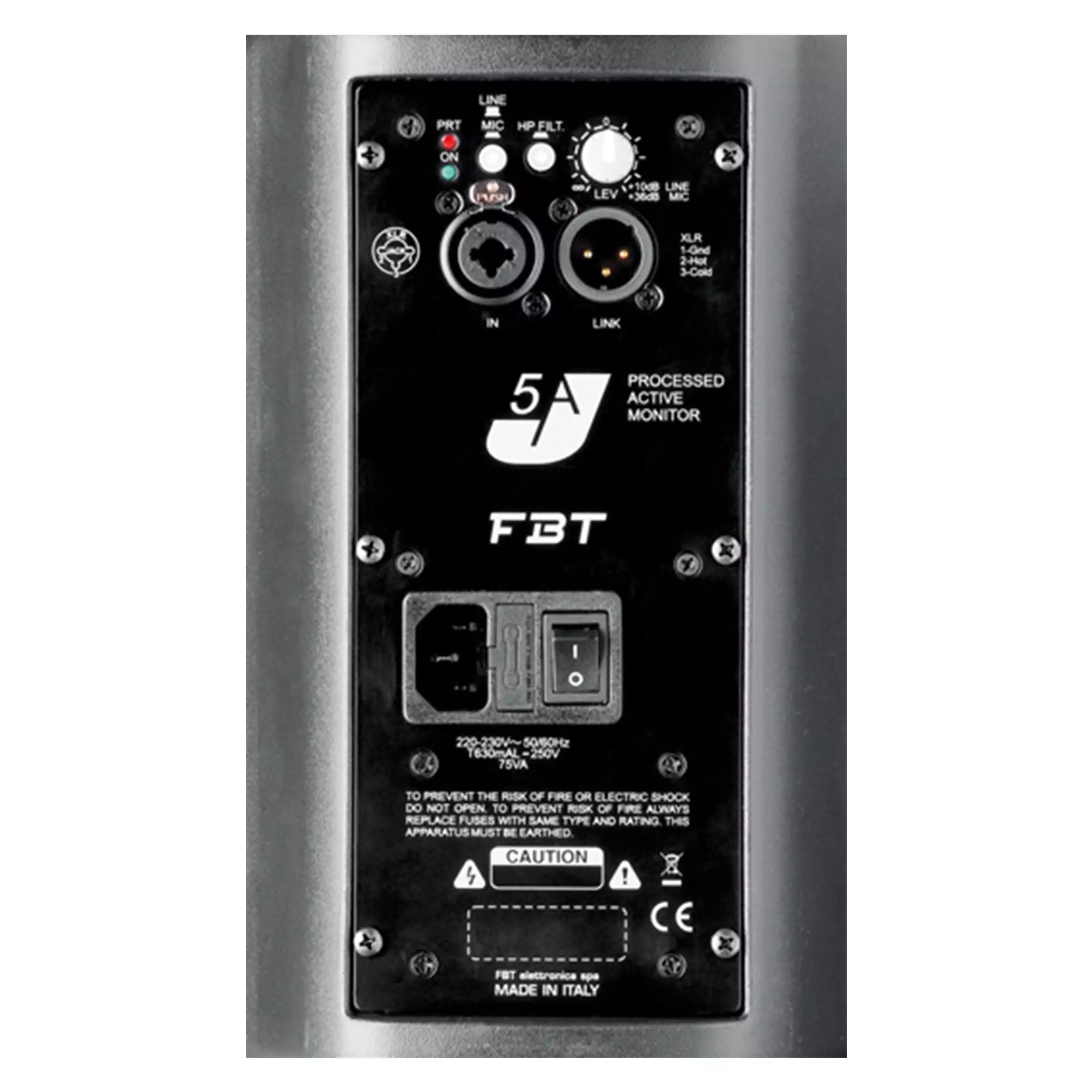

The bi-amplified FBT J5A active speaker feature a 80W RMS low frequency amp and a 40W RMS high frequency amp. The control panel features a level control, HP filter switch, mic/line selector, led power on, protection led indicator, a balanced Neutrik input combo-jack, balanced XLR link out.
The two M6 fly points built into the cabinet along with the optional mounting brackets allow the FBT J5A speaker to be surface mounted on walls or ceilings. A standard 1,38″ speaker stand socket allows the FBTJ5Ato be mounted on speaker stand.
Configuration: 2 Way
Built-in amplifier LF/HF: 80/40w RMS
Built-in amplifier peak LF/HF: 160/80w
Frequency response: 80Hz – 20 kHz
Low Frequency woofer: 5″ with 1″ VC
High Frequency driver: 1″ Dome Tweeter
Maximum SPL cont/peak: 113 / 117 dB
Dispersion: 90 x 90 (HxV)
Input impedance: 22 Kohm
Crossover Frequency: 3.5kHz
AC Power requirements: 75VA
Input connector: XLR/Jack Combo socket with link out
Power cord: 5m IEC
Net Dimension (WxHxD): 170 x 275 x 180mm
Net Weight: 3.4kg
Transport Dimension (WxHxD): 240 x 345 x 235mm
Transport Weight: 4.2kg
