Product Description

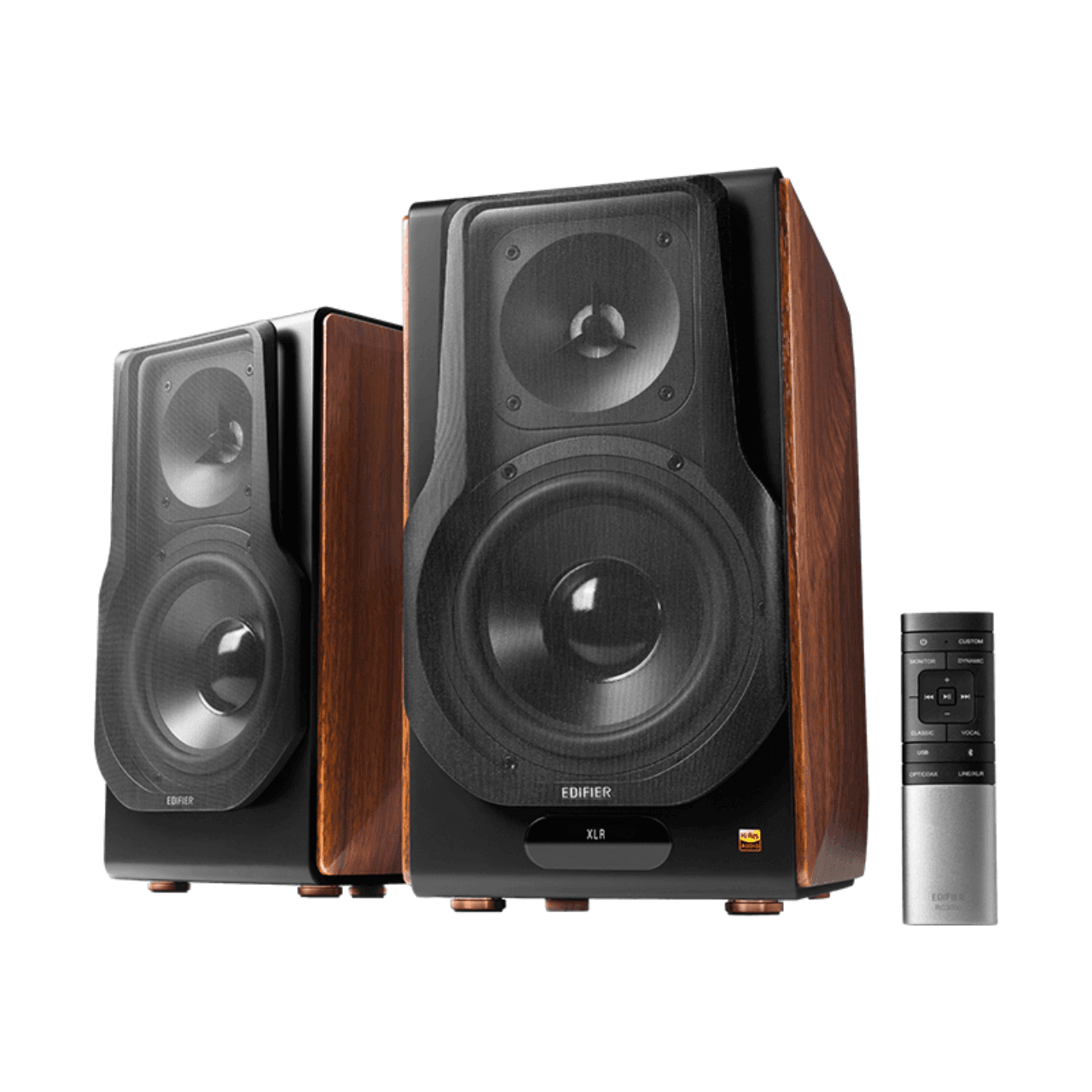

S3000MKll, as the successor of S3000 Pro, is EDIFIER’s flagship 2.0 reference speaker system, which inherited classic speaker design methodology from top-ranking models and also cutting-edge technologies. Together with advanced hardware and software design, the product can satisfy audiophiles’ infinite pursuit of high-quality sound performance.
Key Features
- 256W (RMS) total output power
- Planar magnetic tweeters and 6.5″ long-throw aluminium diaphragm mid-low drivers with aluminium baskets
- XMOS XU216 for full digital signal processing and supporting the resolution up to 24bit/192kHz
- Dual active speakers with proprietary 5.8GHz wireless connection
- Hi-Res Audio certified and Qualcomm® aptX™ HD supported
- Bluetooth V5.0, Balanced XLR, Optical, Coaxial, Line In and USB inputs
- Multiple preset audio effects
- Easy control with knobs, IR remote control, and EDIFIER ConneX mobile app
Hi-Fi Acoustic Architecture
The speaker system is composed of two active speakers that are wirelessly connected. The acoustic architecture of each speaker consists of one horn-loaded planar magnetic tweeter (107mm x 107mm) and one 6.5″ long-throw aluminium diaphragm mid-low driver with an aluminium basket. Driven by dual 175W stereo PurePath™ Ultra-HD Class-D TI amplifiers, the speaker system can deliver 256W (RMS) total output power. With the professional audio processing circuit, the frequency response covers the range from 38Hz to 40kHz with the SNR (signal-to-noise ratio) higher than 85dB(A).
High-Quality Sound Performance
We adopt top-line high-performance chipsets from Texas Instruments and XMOS XU216 for end-to-end digital audio processing. All the core modules support high-resolution audio signals no less than 24bit/96kHz. The redundant design of the circuit brings powerful signal processing ability, ultra-low distortion across the audio band, and superior audio quality.
* ADC (Analogue-to-Digital Converter): Up to 24bit/192kHz
* DSP (Digital Signal Processor): Up to 24bit/192kHz
* DIX (Digital Interface Transceiver): Up to 24bit/216kHz
* DAC (Digital-to-Analogue Converter): Up to 32bit/384kHz
* XMOS XU216: Up to 2,000 MIPS computational horsepower and 24bit/192kHz
Hi-Res Audio Certified
All the digital interfaces support the processing of 24bit/192kHz digital audio signals. The analogue audio front end from Texas Instruments features the special configuration to work at 24bit/96kHz, guaranteeing the bit-perfect audio conversion. The overall performance exceeds the requirements of Hi-Res Audio certification.
* USB: 44.1kHz, 48kHz, 96kHz, 192kHz
* OPT: 44.1kHz, 48kHz, 96kHz, 192kHz
* COAX: 44.1kHz, 48kHz, 96kHz, 192kHz
Wirelessly Connected Speakers
The two active speakers are connected via a proprietary 5.8GHz connection. The wide bandwidth and low latency connection guarantee the smooth transmission of digital signals up to 24bit/96kHz and real-time signal synchronization between the two active speakers.
Bluetooth Connection
The Bluetooth SoC features Qualcomm aptX™ HD technology, supporting audio signals with a sampling depth of up to 24 bits and a sample rate of up to 48kHz.
Works with EDIFIER ConneX APP
Download the mobile app and enjoy more functions.
* Playback control
* Sound effects switch and customization
* User manual
General Specifications
- Total Output Power (RMS): Treble 8W x 2, Mid-low 120W x 2
- Driver Units
- Treble: 107mm x 107mm
- Mid-low: 6.5-inch (179mm)
- Frequency Response: 38Hz – 40kHz
- Signal-to-Noise Ratio: ≥ 85dB (A)
- Audio Inputs: Balanced XLR, Optical, Coaxial, USB Type-B receptacle, Line In, Bluetooth
- Bluetooth Version: V5.0
- Input Sensitivity
- USB: 400 ± 50mFFs
- OPT: 400 ± 50mFFs
- COAX: 400 ± 50mFFs
- Bluetooth: 450 ± 50mFFs
- XLR: 1000 ± 50mV
- Line In: 600 ± 50mV
- Dimensions (WxDxH): 222mm x 268mm x 360mm (per speaker)
- Net Weight: 20kg
