DSPPA DSP5311
R510.00

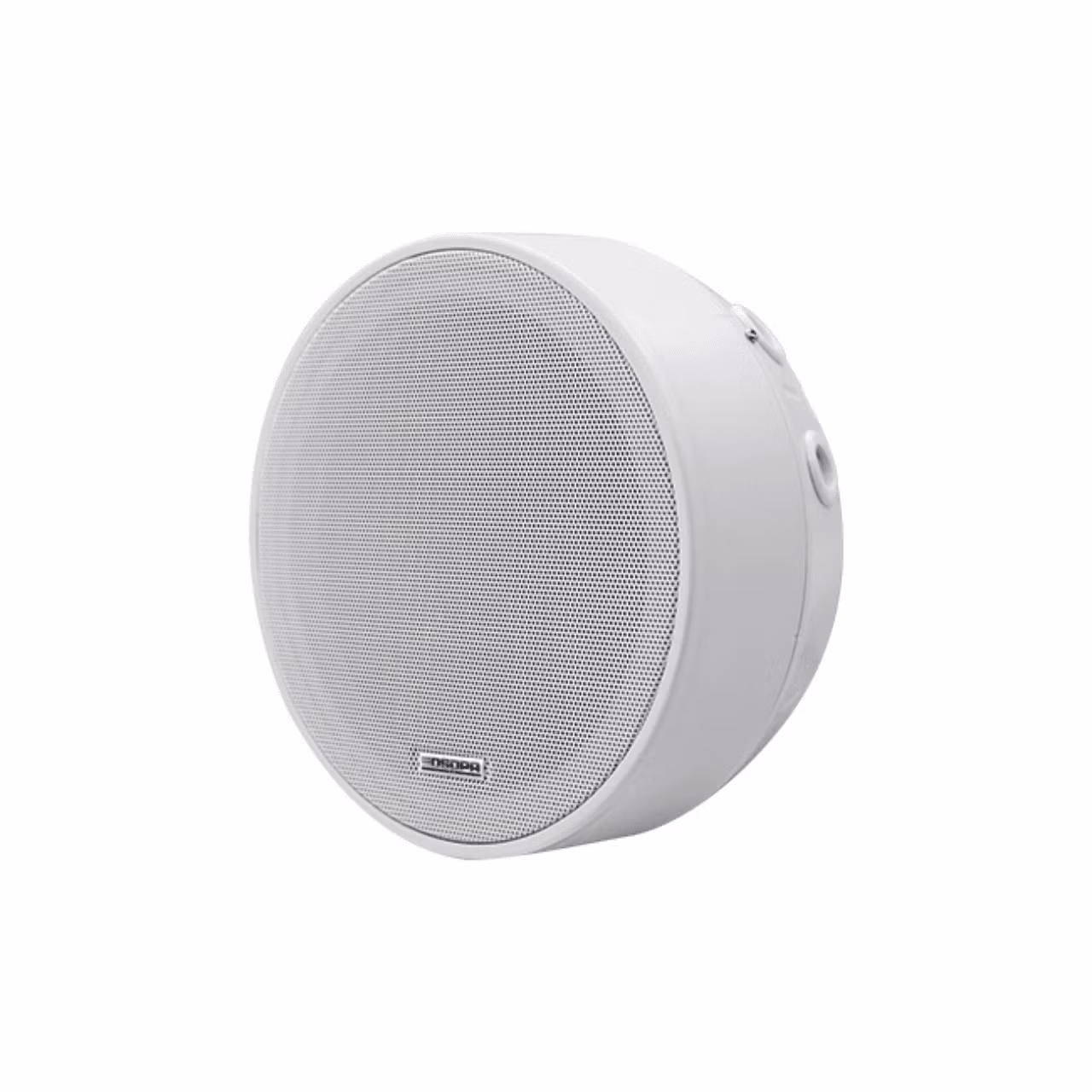

The DSP5311 is a surface mount ceiling speaker with a 70v/100v transformer built in.
Availability: In stock
Product Description

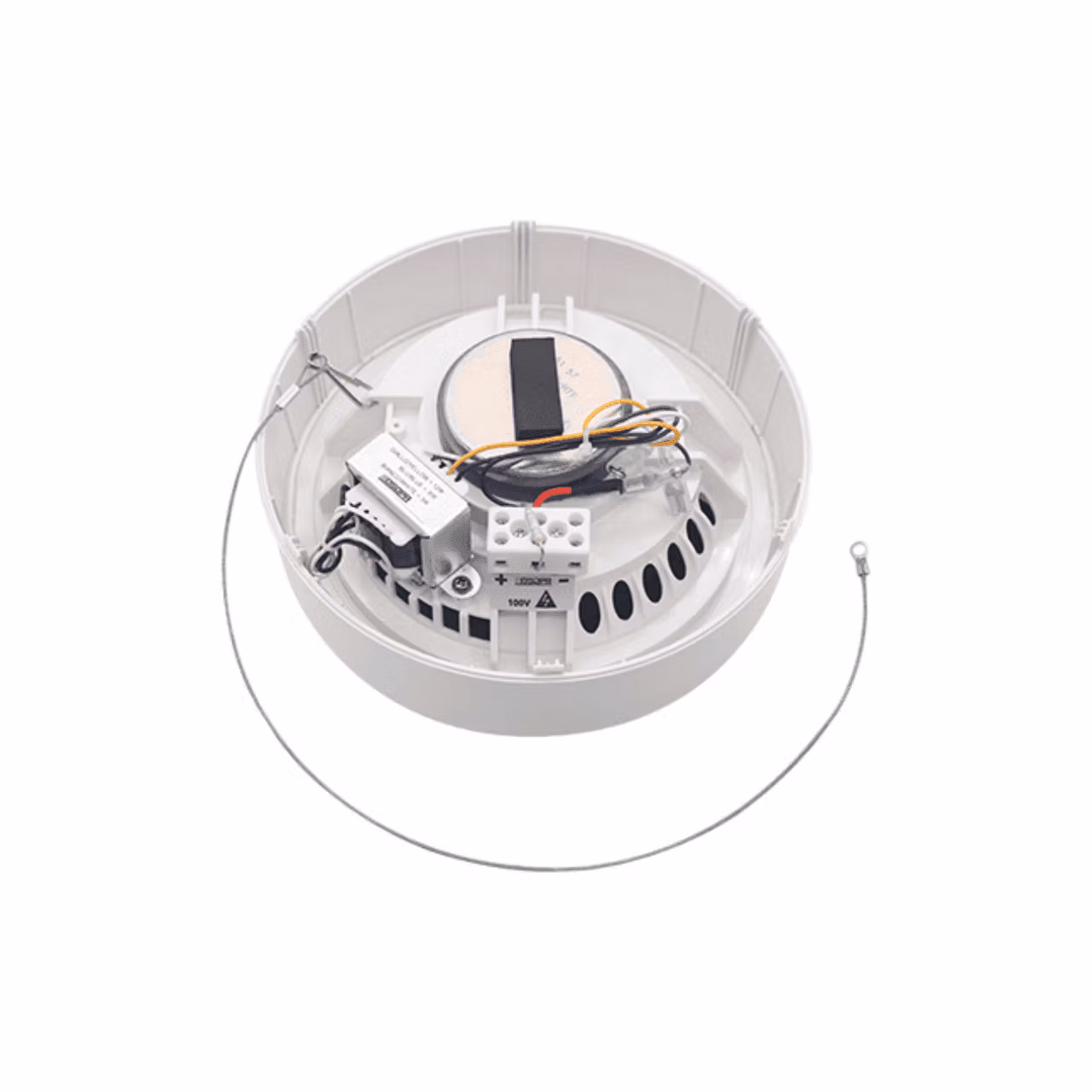

The DSP5311 is a surface mount ceiling speaker with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The built-in 6.5” speaker driver is designed with wide frequency response 110-18,000Hz, the multiple terminals 2.5W, 6W can be applied to different occasions and vary in area sizes and background noises; It is made of high-quality engineering plastic, long-term durability, never out of shape and fading; No roof cutout direct mounting on ceiling by 4 screws; Driver surround excellent damping, long life, with clear and sonorous sound.
It is an ideal choice for these places, such as schools, gymnasiums, square halls, parks, parking lots, railway stations, airports, villa communities, malls, and supermarkets, etc.
Features
- Built-in 100v/70v transformer, 3W-6W with multiple terminals
- Narrow edge design, 6.5” speaker unit, aluminum grille
- Max. SPL: 100dB±2dB, Freq. Resp.:110Hz ~ 18kHz
- Direct mounting by 4 screws
- Ideal for school, office, hotel & airport background music system
General Specifications
- Model: DSP5311
- Driver Unit: 6.5”x1
- Rated Power: 6W
- Line Voltage: 70V/100V
- Sensitivity（1M, 1W): 92dB±2dB
- Max. SPL (1M): 100dB±2dB
- Frequency Range (-10 dB): 140Hz~16kHz
- Dimensions (LxWxH): 203.5*203.5*94mm
- Net Weight: 1.0kg
