DigiTech Bass Whammy

0 customer reviews
Check stock before ordering
View details

R5,295.00

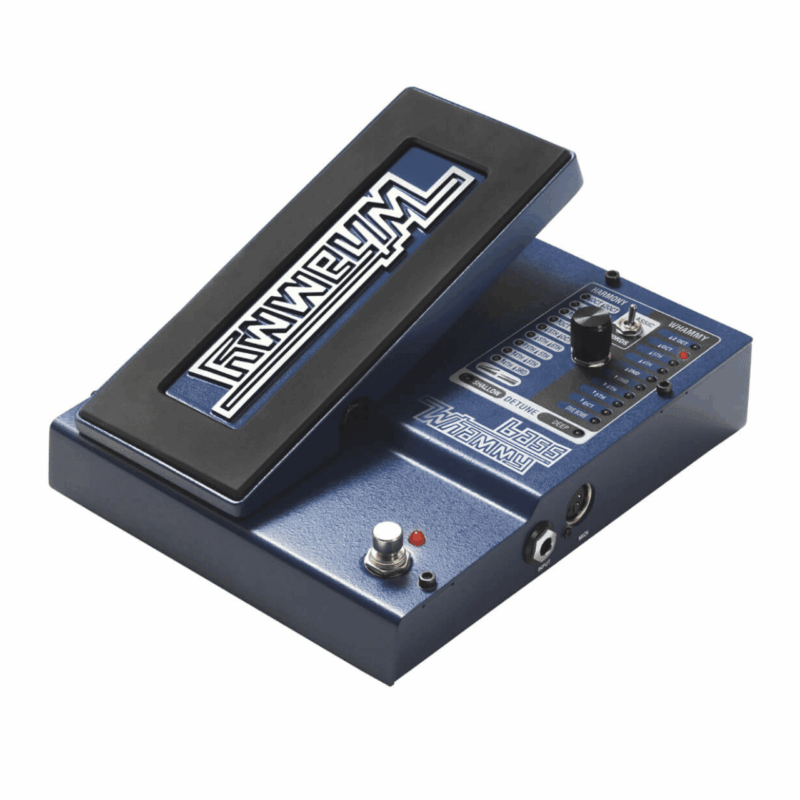

DigiTech:  Bass Whammy Pitch Shifting Effect Pedal For Bass Guitar

Availability: In stock

Add to wishlist
Add to quote
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: BASS WHAMMY-V Categories: Brand:

Product Description

Legendary Pitch Shift Effect Pedal For Bass Guitar

The next generation Bass Whammy uses the most advanced pitch detection and polyphonic note tracking technology to create the world’s best pitch shifting effect pedal optimized for bass. The Bass Whammy maintains the classic settings from the original with many modern upgrades. With two different tracking modes, Classic and Chord, Classic provides super accurate note tracking for single note bass lines while chords uses an advanced polyphonic algorithm for smooth chordal shifting. The Bass Whammy is true bypass, MIDI controllable, and uses a 9V DC power supply to easily integrate into your existing pedalboard.

Key Features

  • Updated original Bass Whammy settings and more
  • Classic and Chords (polyphonic) tracking modes
  • Optimized for bass frequencies

Classic/Chords Switch

Toggle between single not and chordal Whammy modes, providing rock solid pitch shifting effects.

Classic and Chords (polyphonic) Tracking Modes For Added Musical Flexibility

Expression Pedal

This pedal is used to control the pitch bending amount of the selected Harmony, Whammy, or Detune effect. Rocking it forward (toe down) increases the amount of pitch bending while rocking it back (toe up) decreases the amount of pitch bending.

Harmony LEDS

One of these LEDs will light when a Harmony effect is selected. Harmony effects have dry signal added to the effect signal.

Classic/Chords Switch

This switch toggles between the classic Whammy algorithm (Classic) and modern chordal algorithm (Chords). The Classic setting is ideal for single note play while the Chords setting is best suited for bending of full chords.

Selector Knob

This knob is used to select one of the Whammy, Harmony, or Detune effects.

Whammy LEDS

One of these LEDs will light when a Whammy effect is selected. Whammy effects do not have dry signal added to the effect signal.

Detune LEDS

One of these LEDs will light when a Detune effect is selected. The expression Pedal controls the amount of Detune signal mixed with the dry signal.

What’s In The Box

  • 1X Bass Whammy
  • 1X Power Supply
  • 1X Safety Instructions & Compliance Sheet
  • 1X Warranty Registration Info Card
  • 1X DigiTech Sticker
  • 1X Quick Start Guide

General Specifications

  • Sample Rate:  44.1 kHz
  • Frequency Response:  20Hz – 20kHz
  • Signal-to-Noise Ratio:  > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
  • THD:  0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
  • A/D Conversion:  24 bit
  • D/A Conversion:  24 bit
  • Power Consumption:  2.4 Watts (< 265 mA @ 9 VDC)
  • Power Requirements:  9 VDC External Adapter
  • True Bypass:  Yes. True Bypass circuitry preserves your tone when the pedal is not in use.
  • Output Type:  1/4″ Unbalanced TS
  • Max Output Level:  +10 dBu
  • Output Impedance:  1kΩ
  • Instrument Input Type:  1/4″ Unbalanced TS
  • Max Input Level:  +5 dBu
  • Input Impedance:  1MΩ
  • MIDI Input:  5-Pin Din
  • Dimensions (WxLxH):  165mm X 197mm X 64mm / 6.5″ X 7.75″ X 2.5″
  • Weight:  1.63kg / 3.6lbs
