D-Tech UHF103EHH
R1,625.00
UHF103E-HH PLL SINGLE CHANNEL Wireless Hand Held Microphone System
Availability: Out of stock
Product Description
Reliable UHF technology
With a range of up to 100 meters, the radio signal penetrates walls and people. A stable radio link is maintained.
Wireless microphone
The 400g lightweight microphone with heart-shaped directional characteristic delivers superb audio quality while reducing unwanted background noise. Its small LCD shows the most important information, as well as the selected group, the set channel, the battery indicator as well as the stored transmission frequency.
User Notice
The frequency range of 654 to 928 MHz
Features:Â
- True diversity system, up to 11 UHF / UHF-103 systems can be used simultaneously
- Regulated noise reduction, adjustable operating range, carrier frequency range: 614-865 MHz, stability: +/- 0.005%, dynamic range: 100dB
- Signal-to-noise ratio: <-110dB, frequency range: 50Hz to 20kHz, range: up to 100m
- Dynamic handheld microphone with cardioid directional characteristic, illuminated LCD, infrared interface for synchronization with UHF-103 receiver, weight: 540g (without batteries)

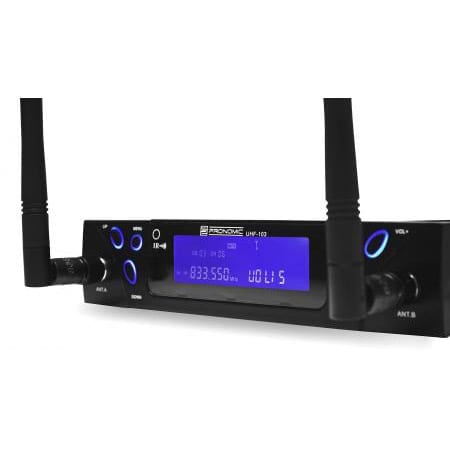

- Receiver with unbalanced 6.3 mm jack output and balanced XLR output,
- 205mm W x 130mm D x 45mm H
- weight: approx. 540g
Specifications:
Overall System
Carrier Frequency Range: UHF 654-928MHz
Stability: ±0.005%(at 25℃)
Ambient Temperature: 10℃±50℃
Normal Deviation: ±20 KHz
Max Deviation: ±50 KHz
S/N Ratio:Â <105dB
T.H.D:Â <0.3%
Squelch:Â Tone control and noise lock dual squelch
Frequency Response:Â 30Hz-20KHz
Operating Range: 100m(approximately 300 feet under typical conditions)
Audio Output Level:Â +/- 30khz deviation with 400Hz tone
Power Requirements:Â Â 12v DC 1000mA supplied by external power supply
Wireless Microphone Hand Held (UH-103E)
Cartridge:Â Dynamic (Handheld)
Antenna:Â Built-in
RF Output:Â <10mW
Spurious Emissions:Â <45dBc
Normal Deviation: ±20 KHz
Maximum Deviation: ±75 KHz
RF Transmitter Output:Â 30mW max
Battery:Â two 1.5V AA battery or 1.2V AA rechargeable battery
Battery Life:Â +/- 8 hours (Alkaline)
Dimensions:Â 230mm x 50mm Diamater
Weight:Â 250g without batteries
Housing:Â Â Moulded Metal Alloy
