CMX 60W Commercial Sound Bundle

0 customer reviews

Check stock before ordering

R0.00

CMX | CMX 60W Commercial Sound Bundle

Availability: Out of stock

Add to wishlist

SKU: CMX+60W-BUND Categories: Bundles Commercial Sound Bundles Brand: CMX

Product Description

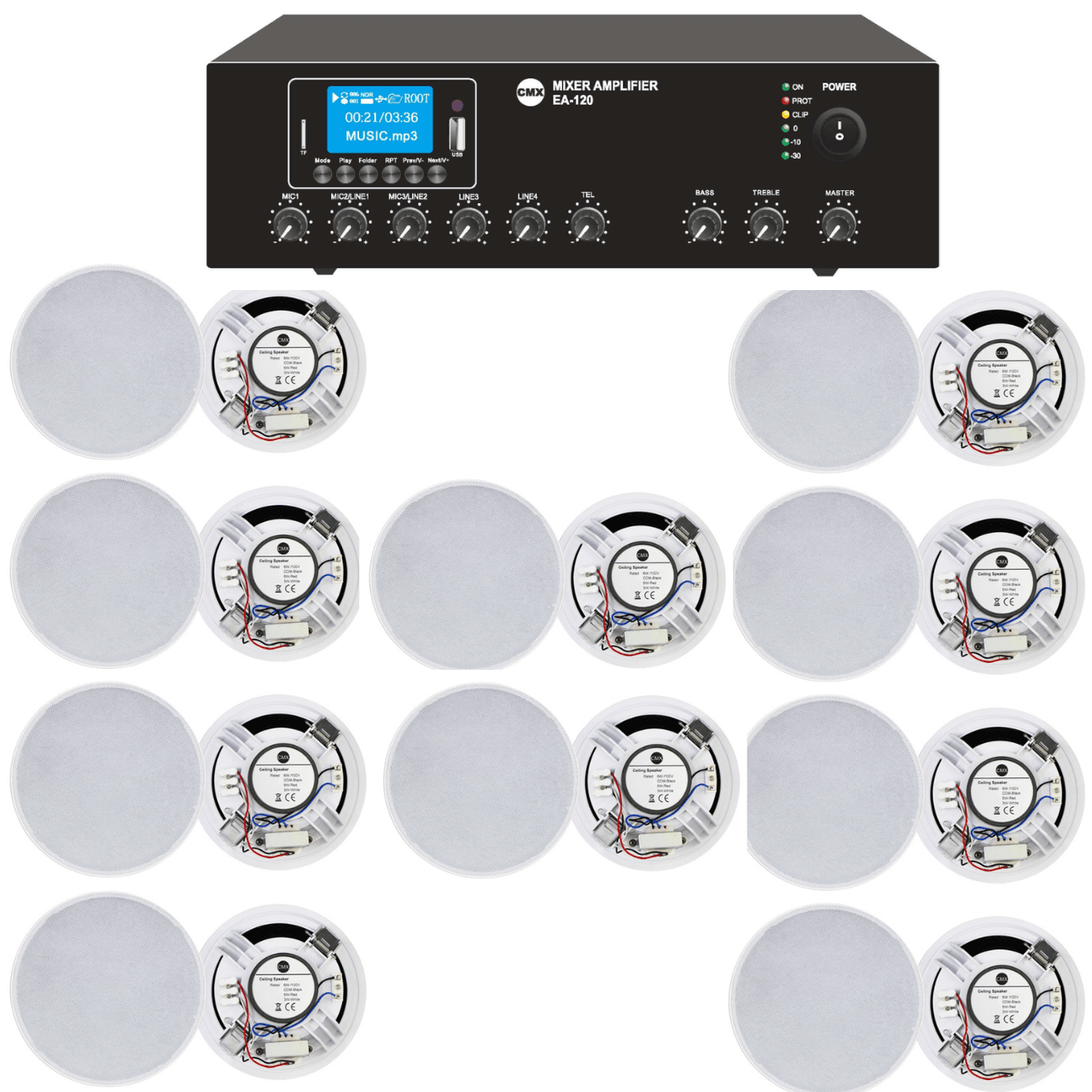

The CMX 60W Commercial Sound Bundle includes:

1x 60W Mixer Amplifier with USB/SD/FM/Bluetooth (EA-60)
10x 6.5″ Frameless Ceiling Speaker, 6-3W, ABS

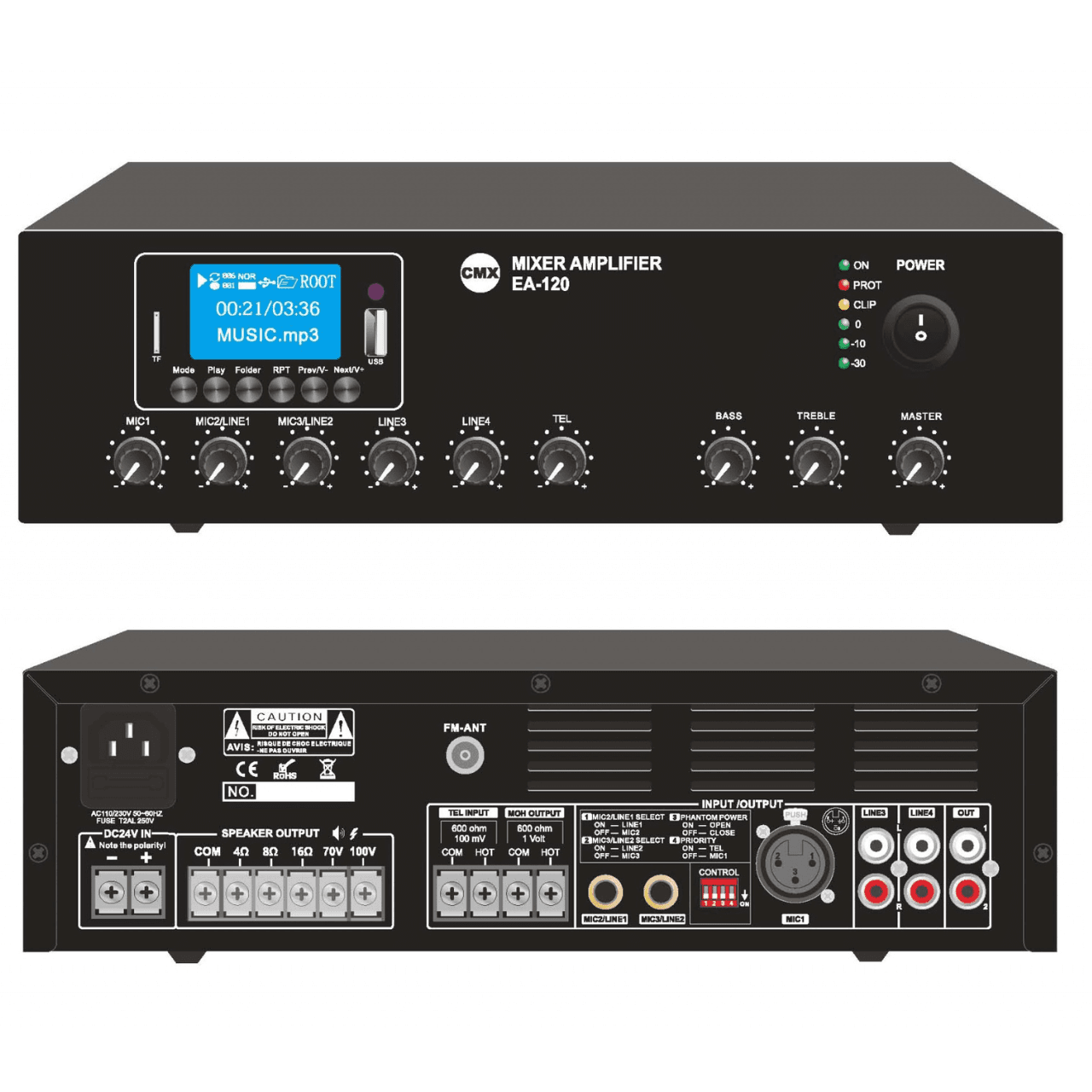

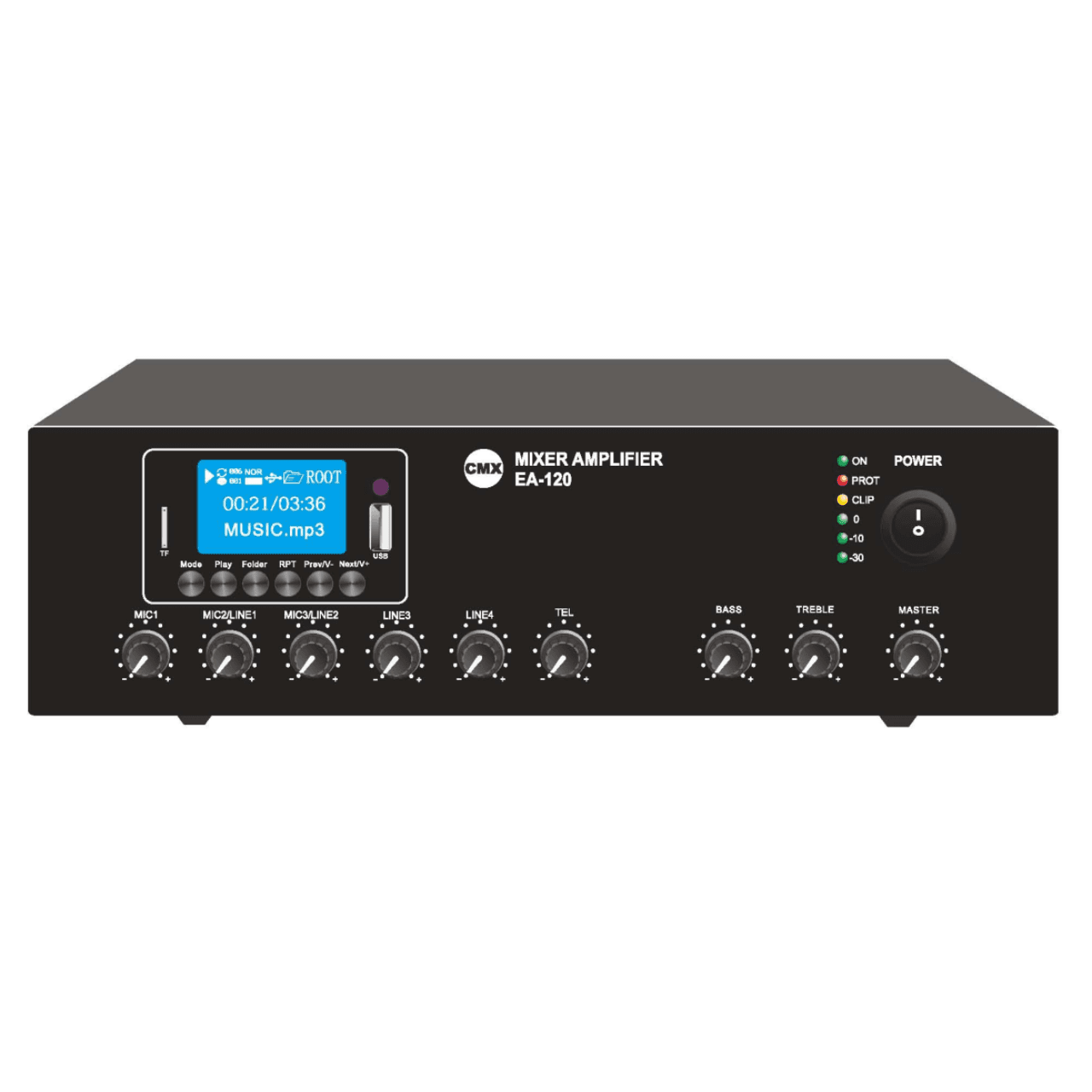

60W Mixer Amplifier with USB/SD/FM/Bluetooth (EA-60) – 5516.55

Key Features

Compact mini-size public address amplifier
Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth
Rated power output at 30W, 60W to 120W
Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
LED indicators for power, clip, protect and signal
Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VO X priority on/off
Mic/line 2-3 switchable input unbalanced 6.3mm jack
Line 1-2 input of RCA input and one RCA line output
Telephone input with secondary priority and MOH (Music on Hold)
Volume control for Mic1-3, line1-2, TEL, bass/treble and master
Complete amplifier protection includes short-circuit, clip, overload and high-temp
230V AC & 24V DC both power supply system

General Specifications

Model: EA-60
Description: Mixer Amplifier with USB/SD/FM/Blue Tooth
Rated Power Output: 60W
Speaker Outputs: 100V or 70V & 4 Ohm-8 Ohm-16 Ohm

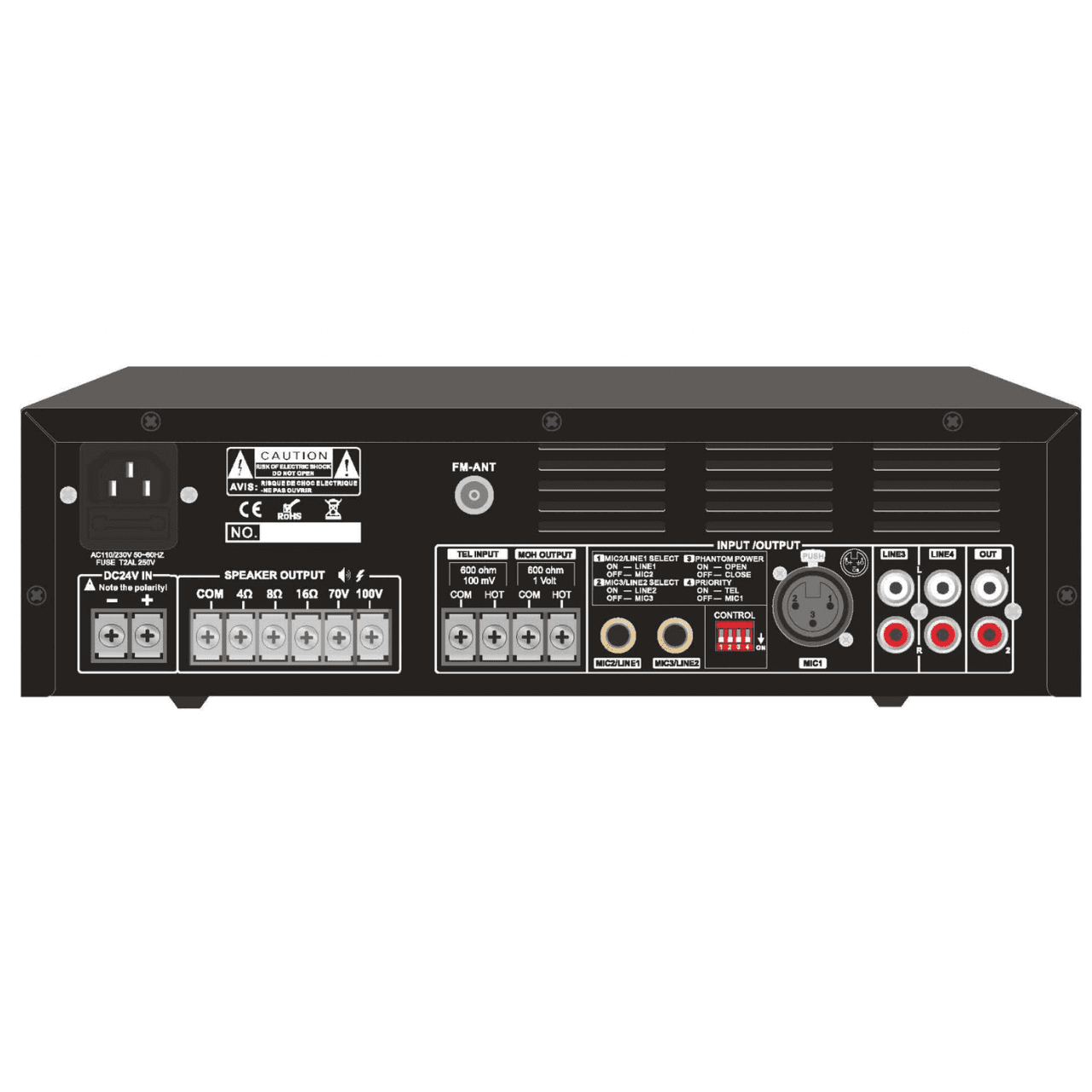

Connectors
- Mic1 input by balanced XLR with phantom power & VOX highest priority
- Mic/line switchable input 2-3 unbalanced 6.3mm jack
- Telephone input with secondary priority and MOH (Music on Hold)
- Line1-2 inputs by RCA; Line output by RCA
Input: MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
Line Output: 0.775(0dBV)
Frequency Response: 60Hz-15kHz(±3dB)
S/N Ratio: Line ≥ 85dB, Mic≥ 72dB
THD: Less than 0.5%
Protection: Short-circuit, clip, overload and high temp protection
Power Consumption: 60W
Power Supply: 230V AC & 24V DC; 50-60Hz
Dimensions: 320mm x 210mm x 90mm
Weight: 4.1kg

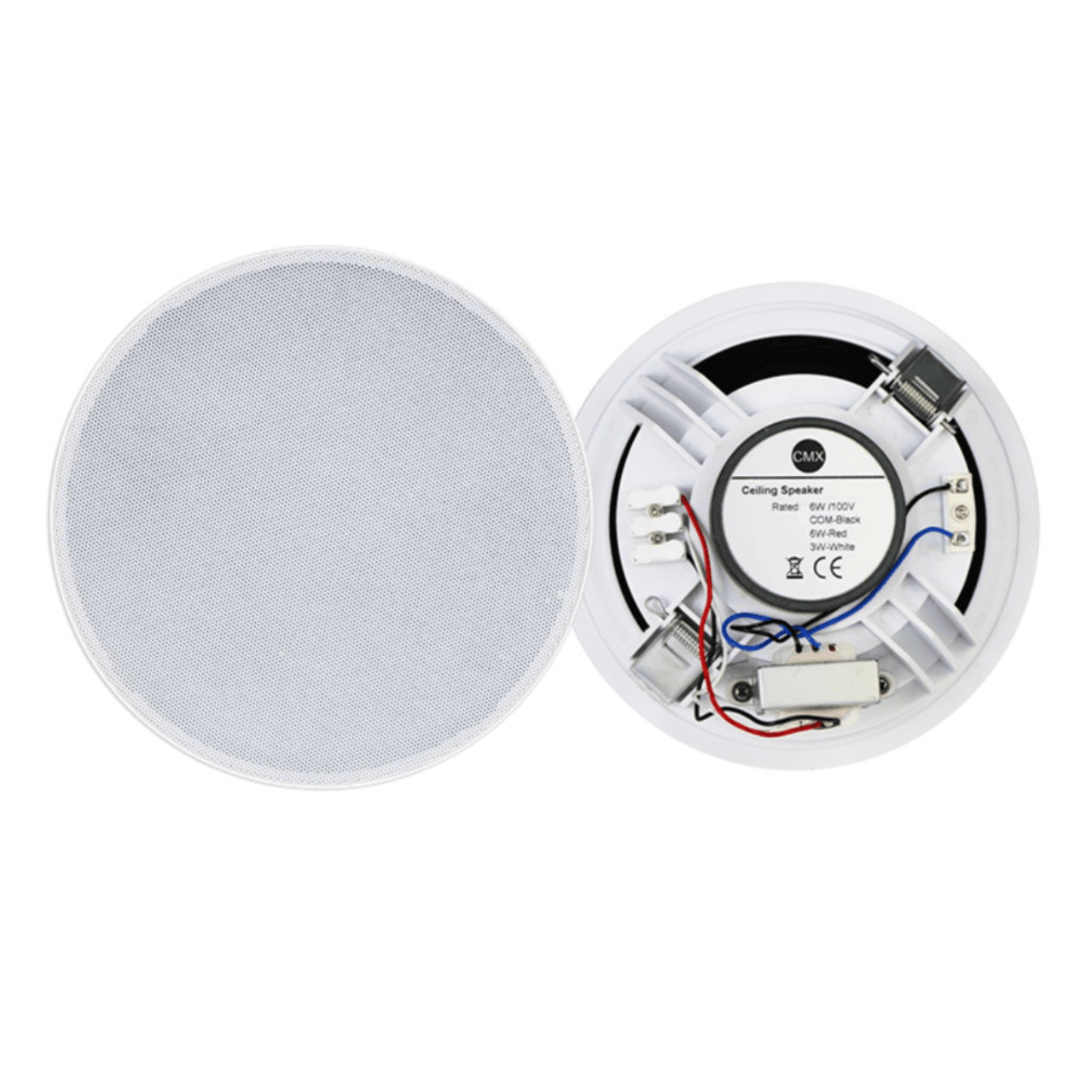

6.5″ Frameless Ceiling Speaker, 6-3W, ABS

Key Features

Commercial ceiling speaker with 100V transformer
Frameless fashion new design
100V power taps 6-3W
6.5″ full-range paper driver unit
ABS enclosure and metal grille in white
In-ceiling quick installation by spring clip

General Specifications

Model: CSK-66H
Description: 6.5” Ceiling Speaker
Power Taps: 6-3W
Frequency Response: 100-15KHz
SPL(@1W/m): 93±3dB
Speaker Unit: 6.5” full-range paper cone
Cutout Size: Ø 165mm
Dimension: Ø 188×76mm
Material: ABS enclosure and metal grille in white
Weight: 0.7kg
