CITRONIC – CSX-18 MUSIC MIXER USB/MP3/BT WITH DSP AND RECORDER

18 Channel
In stock at supplier
View details

R9,180.00


18 Channel

Availability: In stock

Add to wishlist
Add to quote
SKU: 170.885CT Categories: Brand:

Product Description

Fully featured live mixing console with 14 mono mic/line inputs on XLR/jack and 2 stereo line jack inputs. All channels have gain, 3-band EQ, switchable pre/post aux output, FX send, pan, PFL switch and 60mm channel faders. Phantom power is switchable to all XLR inputs for condenser microphones and active DI boxes. Internal effects take the form of a 16-program 24-bit DSP engine with independent level fader and AFL switch for monitoring. An inbuilt media player can accept a USB memory stick for playback of stored audio tracks and can also record the mix output for documenting rehearsals or performances. B/T wireless compatibility enables pairing with a smart phone or tablet for remote playback. Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from master faders to left & right balanced XLR outputs. A 2-track RCA line input has a level control for mixing in a playback source. 2-track RCA output can be connected on to recording equipment or as an additional output feed if required. Low noise and clean audio path with enough features and routing options for live performances, conferences and theatre productions.

Power supply: 100-240Vac, 50/60Hz (IEC)

DSP effects processor: 24-bit sigma-delta, 64/128 times over-sampling, 40kHz

Output connections: Main L+R balanced XLR, Monitor L+R 6.3mm jack

THD : +N<0.01% (Channel to mix out)Power consumption: max.30WFuse: T3AL @ 230V / T6AL @ 115VInput level: +24dBu (mic/line), +20dBu (stereo line) max.Phantom power: +48V globally switched to XLR inputsEQ: high: 12kHz ±15dB (shelving)EQ: mid: 2.5kHz ±15dB (band pass)EQ: low: 80Hz ±15dB (shelving)2-track: L+R RCA, 4k Ohm, -2dBuEQ master bands: 63, 160 , 500, 1k, 2.5k, 6.3k, 16k (all in Hz)Output level: +26dBu (XLR), +20dBu (TRS jack) max.Output : master: XLR balanced, ?75 Ohm, +4 dBu, Max.+22 dBuREC : outputL+R RCA, <75 Ohm, -2dBuHeadphone impedance: 30-600 OhmsFrequency response: 20Hz - 30kHz (-0.5dB)Channel: crosstalk>82dB

CMRR>75dB: (Mic @ 1kHz)

Noise : rms : 22Hz-22kHzEIN -122dBu, Residual output ?-90dBu, Main/Aux mix ?-82dBu

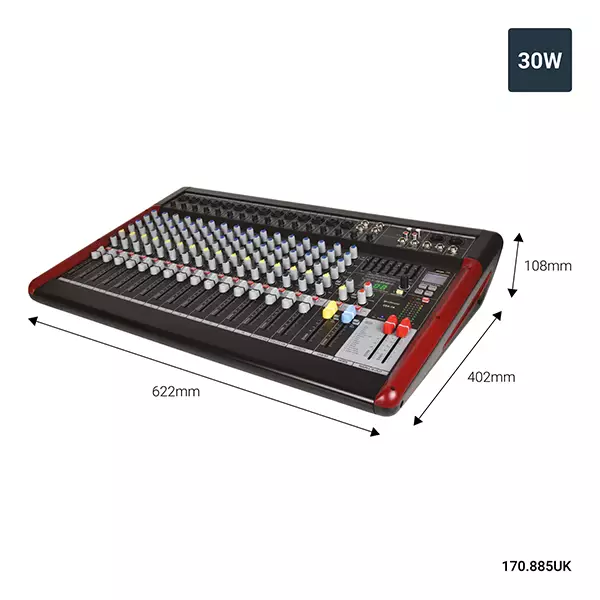

Dimensions: 622 x 402 x 108mm

Weight: 6.3kg
