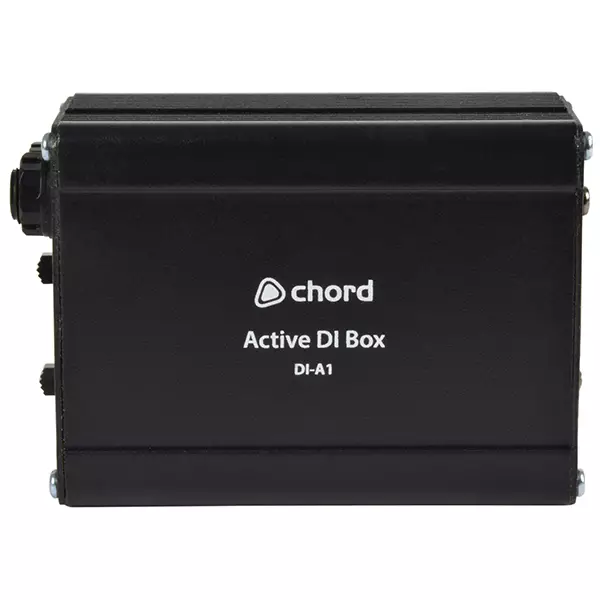

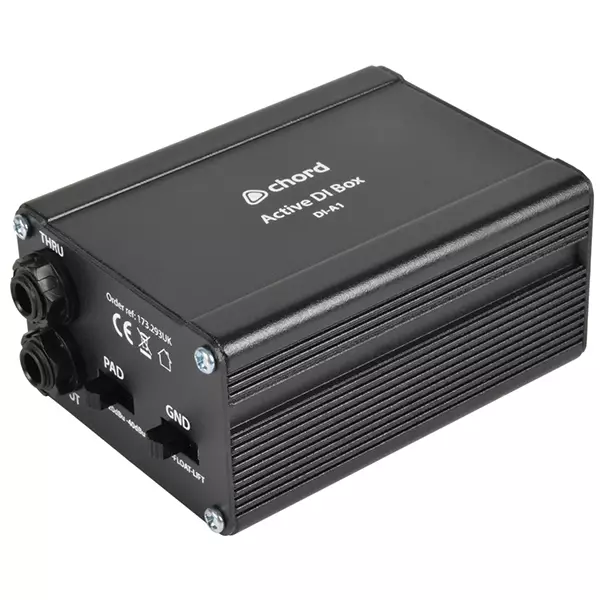

CHORD – DI-A1 ACTIVE DI BOX WITH NOISE FILTER

Name: CHORD - DI-A1 ACTIVE DI BOX WITH NOISE FILTER
Brand: Chord
SKU: 173.293CD
Availability: InStock

In stock at supplier

View details

R645.00

Active

Availability: In stock

Add to quote

SKU: 173.293CD Categories: All Products Gadgets TV Video Hifi TV Video Hifi Z10 Brand: Chord

Product Description

Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.

Power supply: 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power

Input: 6.3mm jack (unbalanced)

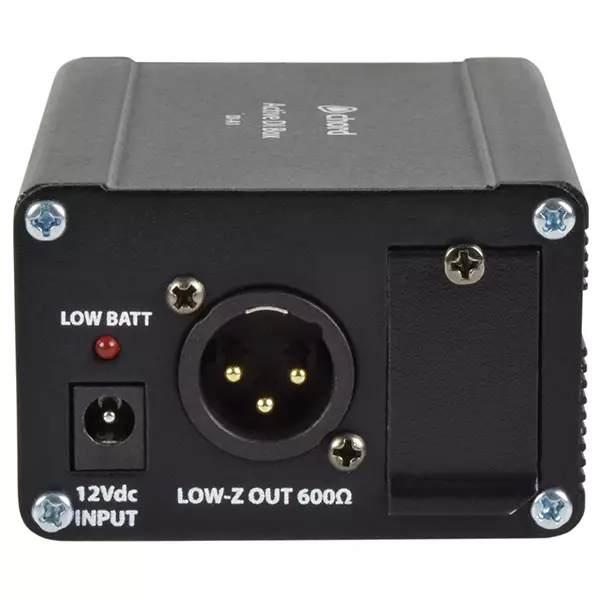

Outputs: XLRM (balanced), 6.3mm jack through (unbalanced)

Input impedance: >100k Ohms

Output impedance: 600 Ohms

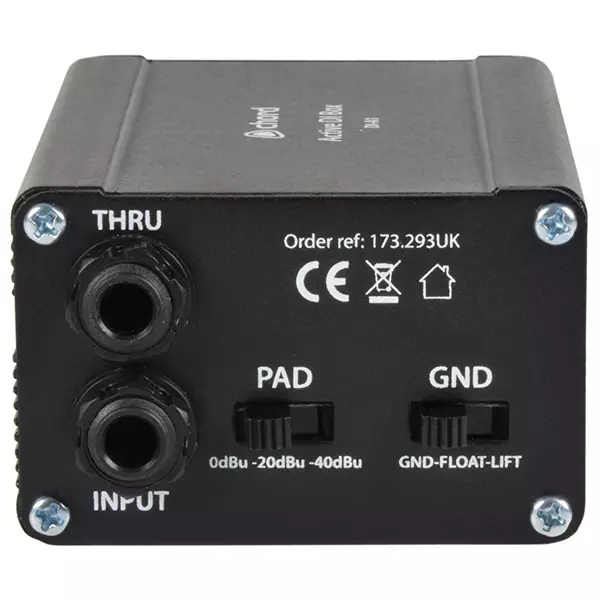

Controls: 0/-20/-40dBu pad & Ground-Float-Lift switch

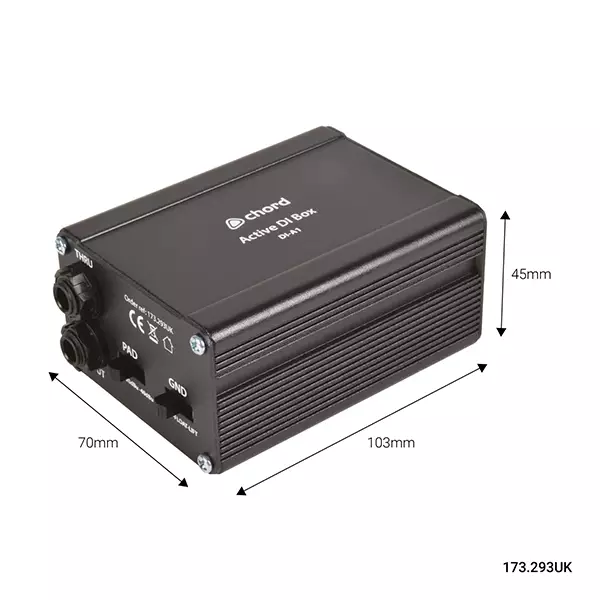

Dimensions: 103 x 70 x 45mm

Weight: 243g
