ChamSys MagicQ MQ500M Stadium Console Wing

0 customer reviews
OUT OF STOCK
View details

R0.00


ChamSys MagicQ MQ500M Stadium Console Wing

Availability: Out of stock

Add to wishlist
Add to quote
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: CHAM-MQ500M STADW Category: Brand:

Product Description

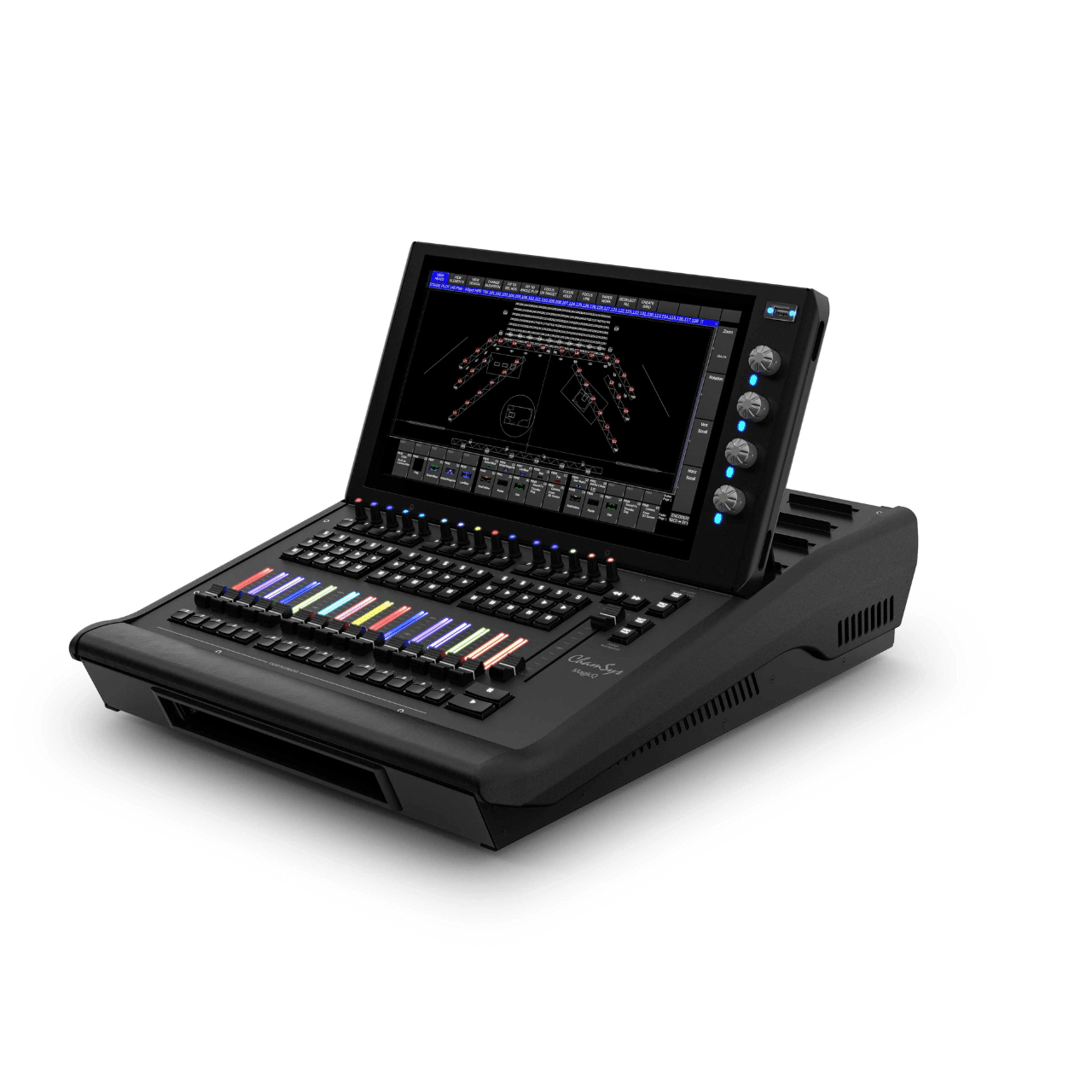

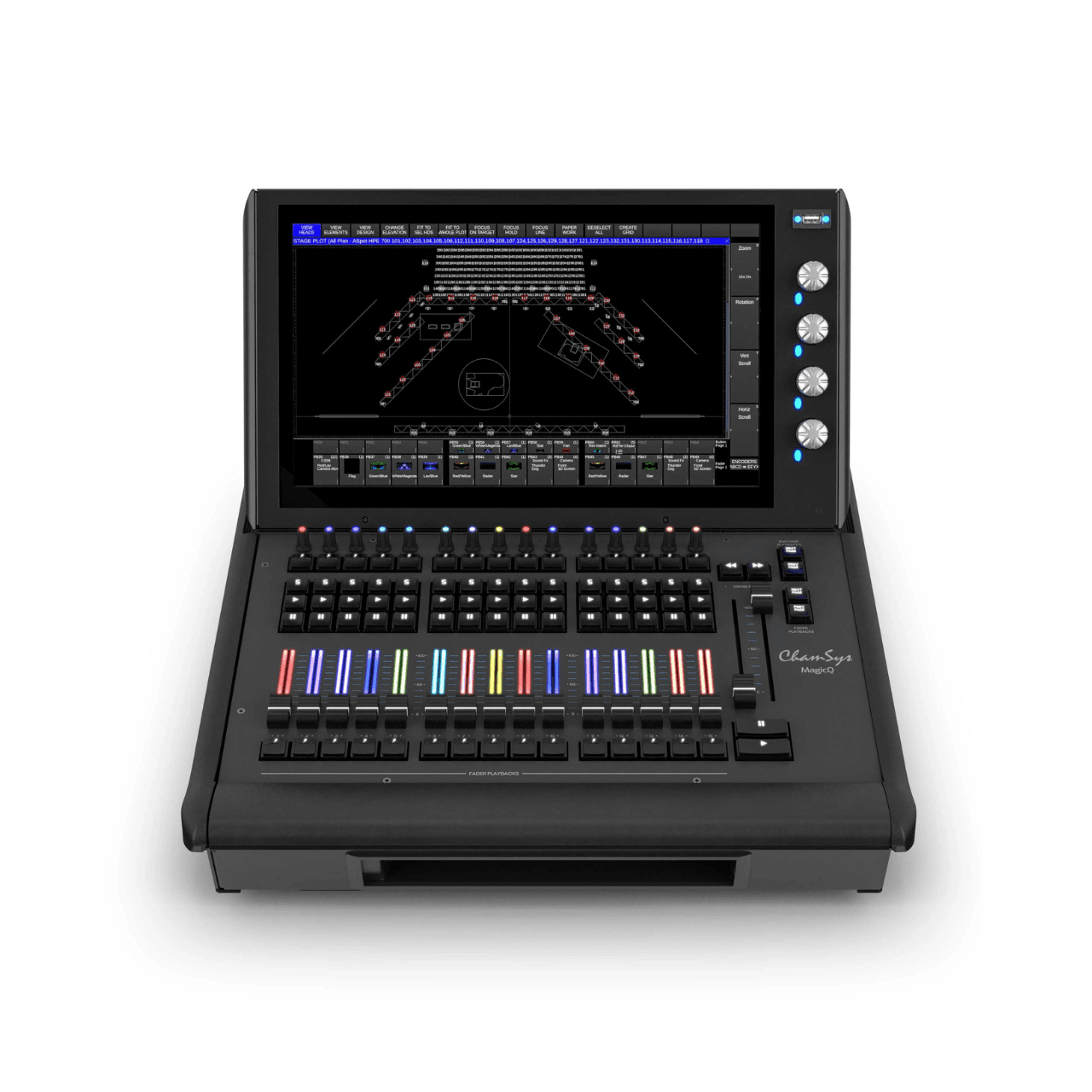

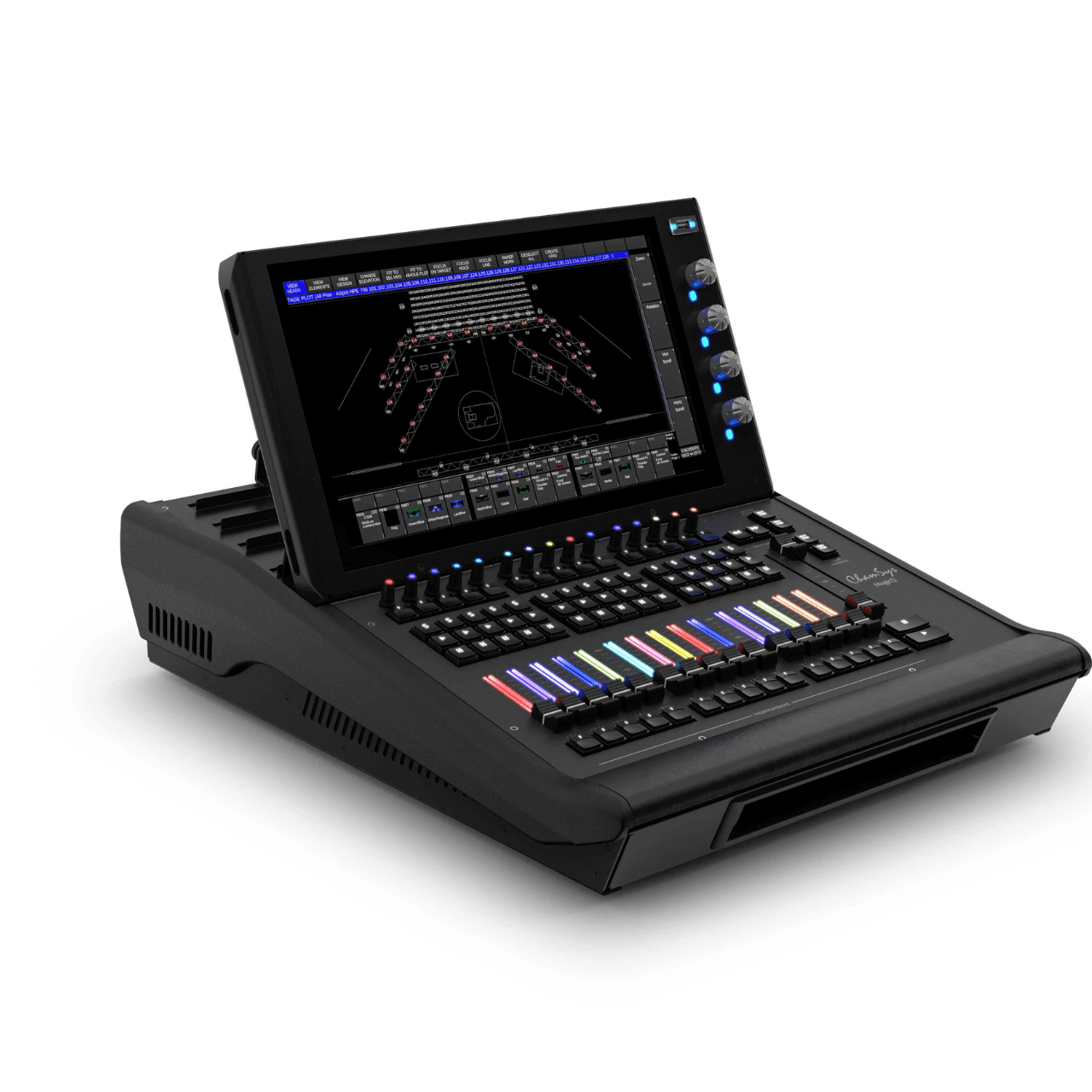

MagicQ MQ500M Stadium Wing is designed to operate with the MagicQ MQ500M Stadium console at the highest level of show control. MQ500M Stadium Wing features 30 playbacks in total: 15 motorised faders and 15 encoder playbacks all with RGB illumination. The wing also incorporates a full HD multitouch display, 4 DMX outputs, and in-built UPS.

Key Features

  • Compatible with MagicQ MQ500M Stadium console
  • 15 fully motorised fader playbacks
  • 15 encoder playback with RGB indicators
  • RGB illumination of playbacks
  • Backlit buttons
  • 15″ Multi touch HD display
  • Dual motorised 100mm crossfaders ideal for Theatre
  • 4 assignable DMX ports

Motorisation

Thanks to its motorised function, the playback section can be used for multiple purposes with shortcut buttons to change the function. With 15 motorised faders and 15 playback encoders per bank, and up to six banks, a total of 180 playbacks can be accessed at the touch of a button.

In keeping with its versatile design, MagicQ MQ500M supports many different fader modes enabling the playback section to be used in a wide variety of applications.

The programmer modes give access to intensities for each patched fixture, to intensities of groups of fixtures or to individual channels of a fixture. The selected modes enable instant access to the intensities or channels of the currently selected fixtures.

The master modes provide instant master control of individual fixtures or groups of fixtures without having to pre-program masters – ideal for those live moments when lights are flaring in cameras or key lights need modifying.

The dual 100mm crossfade faders are fully motorised and together with the prominently placed large GO and BACK buttons provide the ultimate theatre control experience.

Playback Encoders

Playback encoders take live operation to new heights. A multi array of different functions can be assigned to the layback encoders with full legending directly above on the display presenting the current function to the user.

The playback encoders can be set to controlling intensity, LTP channels, FX size, FX speed, rate and time.

Playback encoders can control cue stacks of their own, or be tied to the fader playback below, or even control a whole bank of playbacks, or a whole page of playbacks.

Illumination & Customisation

The MQ500M Stadium Wing lights the way with backlit keys, illuminated fader tracks and encoders, and glowing pockets. Together with the new updated graphics this takes MagicQ to a whole new level of customisation giving Lighting Designers freedom to visibly configure the console for their needs.

Each playback fader track & playback encoder top has full RGB illumination enabling its function to be clearly indicated. Users can select standard functions or customise each Cue Stack individually – for example to separate the main cues from bump cues.

MQ500 Upgrades

An affordable front panel upgrade enables existing Stadium Wing customers to boost their control with motorised faders, playback encoders and illumination.

ChamSys and their distributors carry out a quick and simple procedure to fit an additional power supply and replace the front panel. A new operating system disc gives increased show and media capacity and enables use of up to 256 universes.

The existing chassis, displays and rear panel are retained so customers can continue to use their existing flight cases.

In a similar way, the existing Stadium Wing can also be upgraded with a new front panel to give motorised faders, playback encoders and illumination.

General Specifications

  • Motorised Playbacks: 15
  • Encoder Playbacks: 15
  • Total no of Playbacks: 30 (15+15)
  • Dual Motorised Cross Faders: Yes
  • Execute Encoders: 4
  • Backlit Keys: Yes
  • Direct DMX Outputs: 4
  • Illuminated Playback/Encoders with RGB control: Yes
  • Inbuilt 15″ HD Multi-Touch Display: 1
  • High Power USB Port: 1
  • Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
  • Front Storage Pocket: 1
  • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
  • Max Number of DMX Channels: 131,072
  • Max Number of Fixtures Supported: 131,072
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (each different content)
  • Dimensions (WxDxH): 417mm x 587mm x 85mm / 18.5″ x 23″ x 3.3″
  • Weight: 19kg / 41.9lbs
  • Accessories Included: 1x dual colour desk light, 1x dust cover, 1x Neutrik powerCON TRUE1 power cable, 1x Neutrik USB A-B connection cable, 1x Standard USB A-B connection cable, 1x HDMI to HDMI connection cable, 1x HDMI to DVI connection cable
  • The MQ500M Stadium Wing uses a 12v Sealed Lead Acid Battery. The manufacturer battery Safety sheet can be found here

*Note that the MQ500M Stadium Wing is designed to work with the MQ500M Stadium console only. It will not connect to any other MagicQ products or to the MagicQ PC Stadium software.
