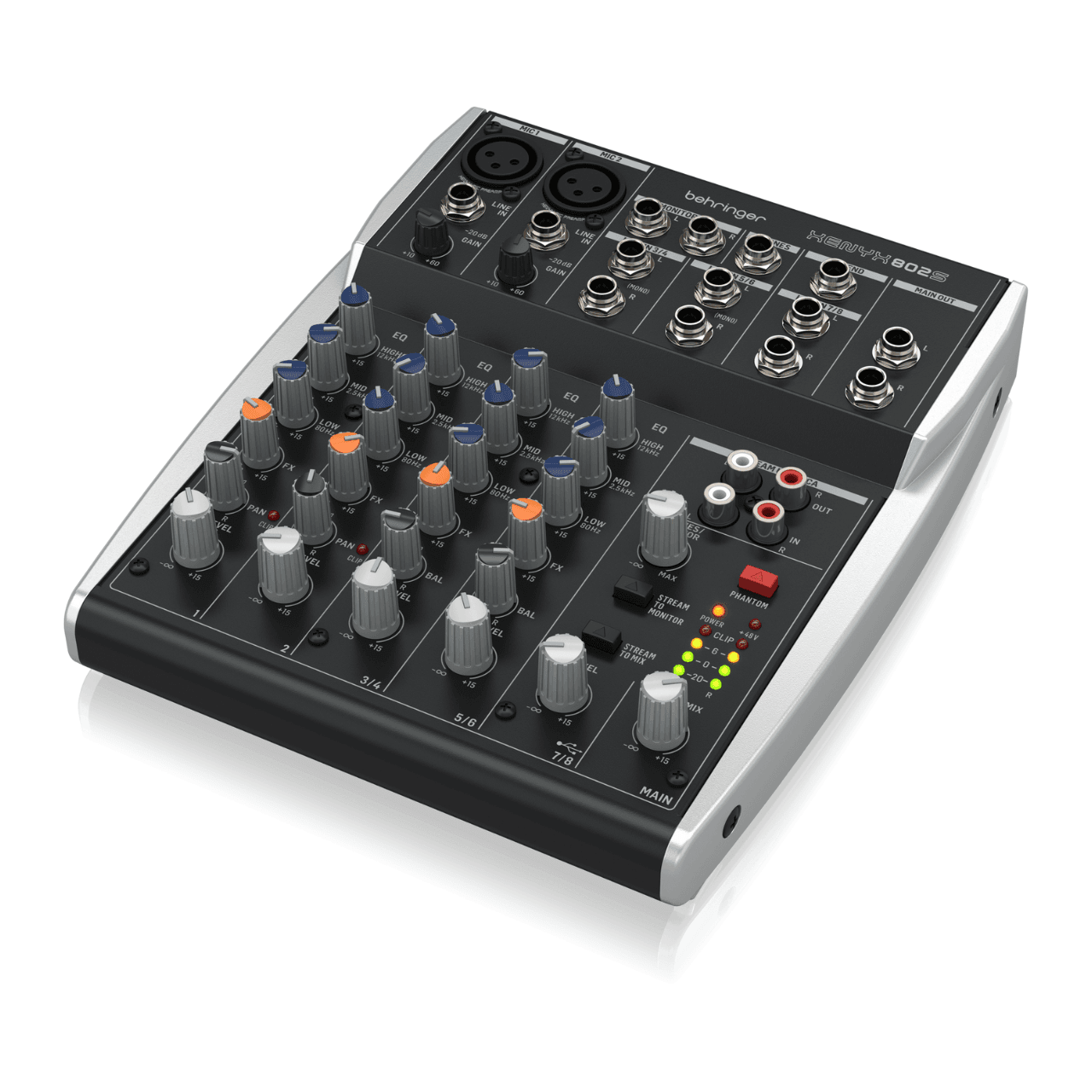

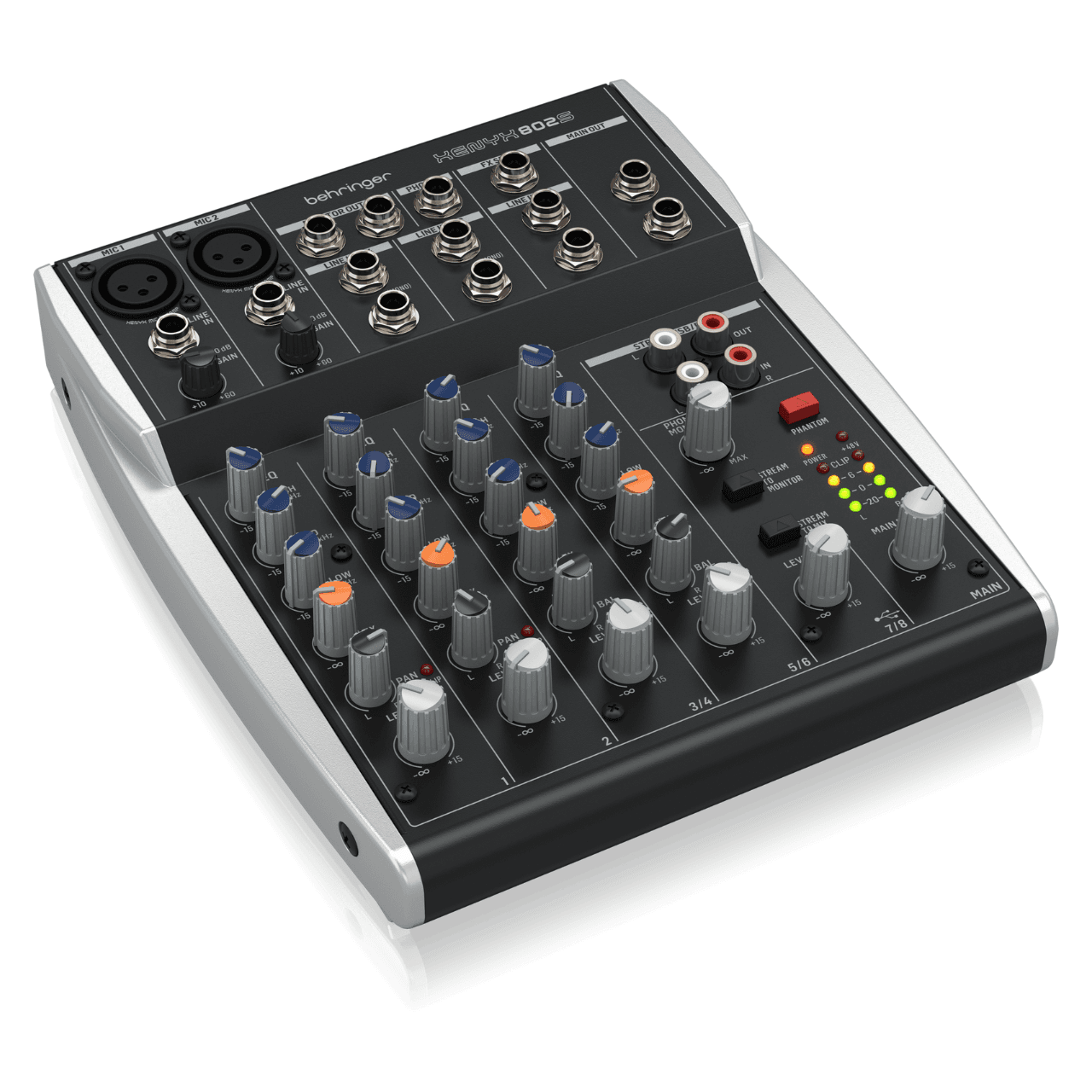

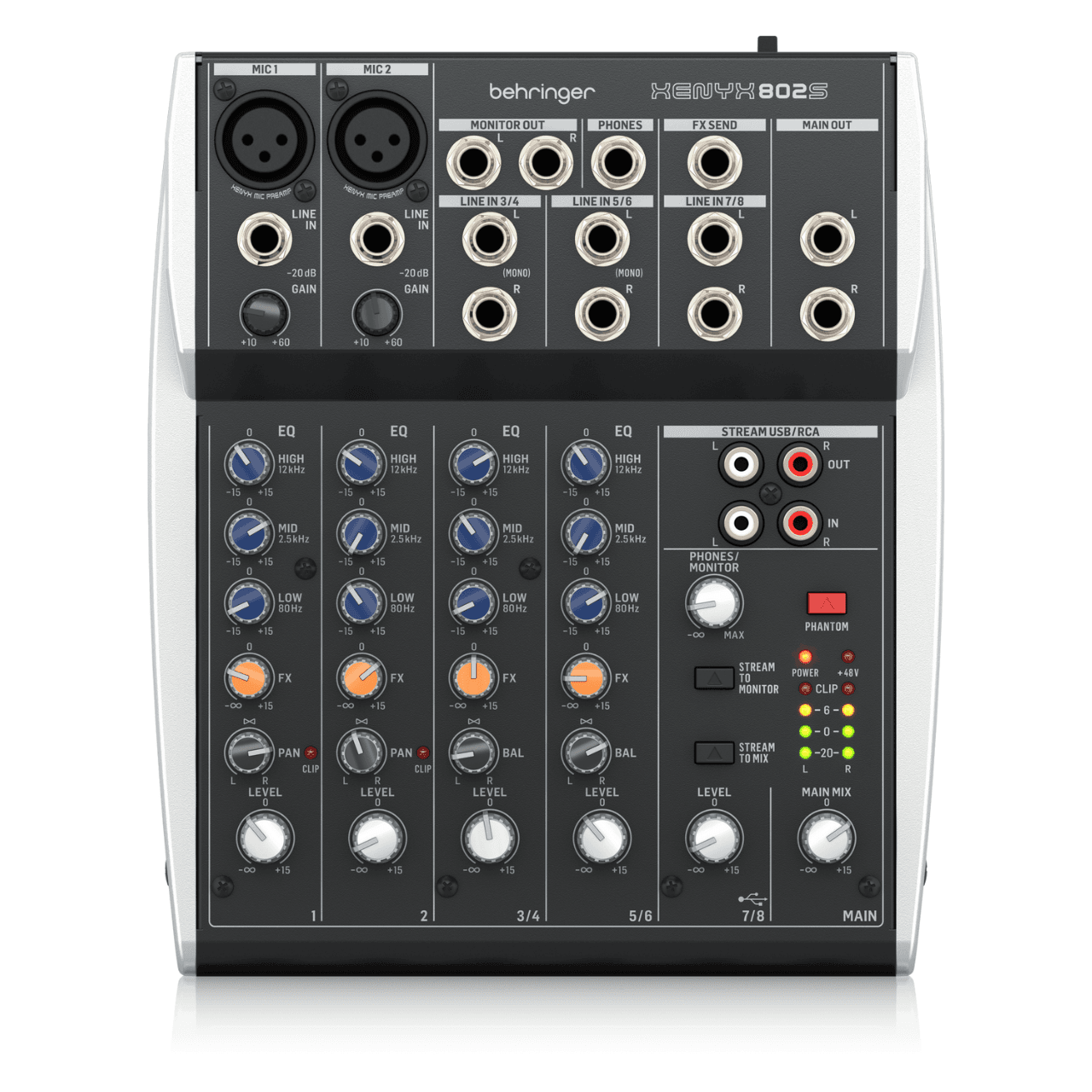

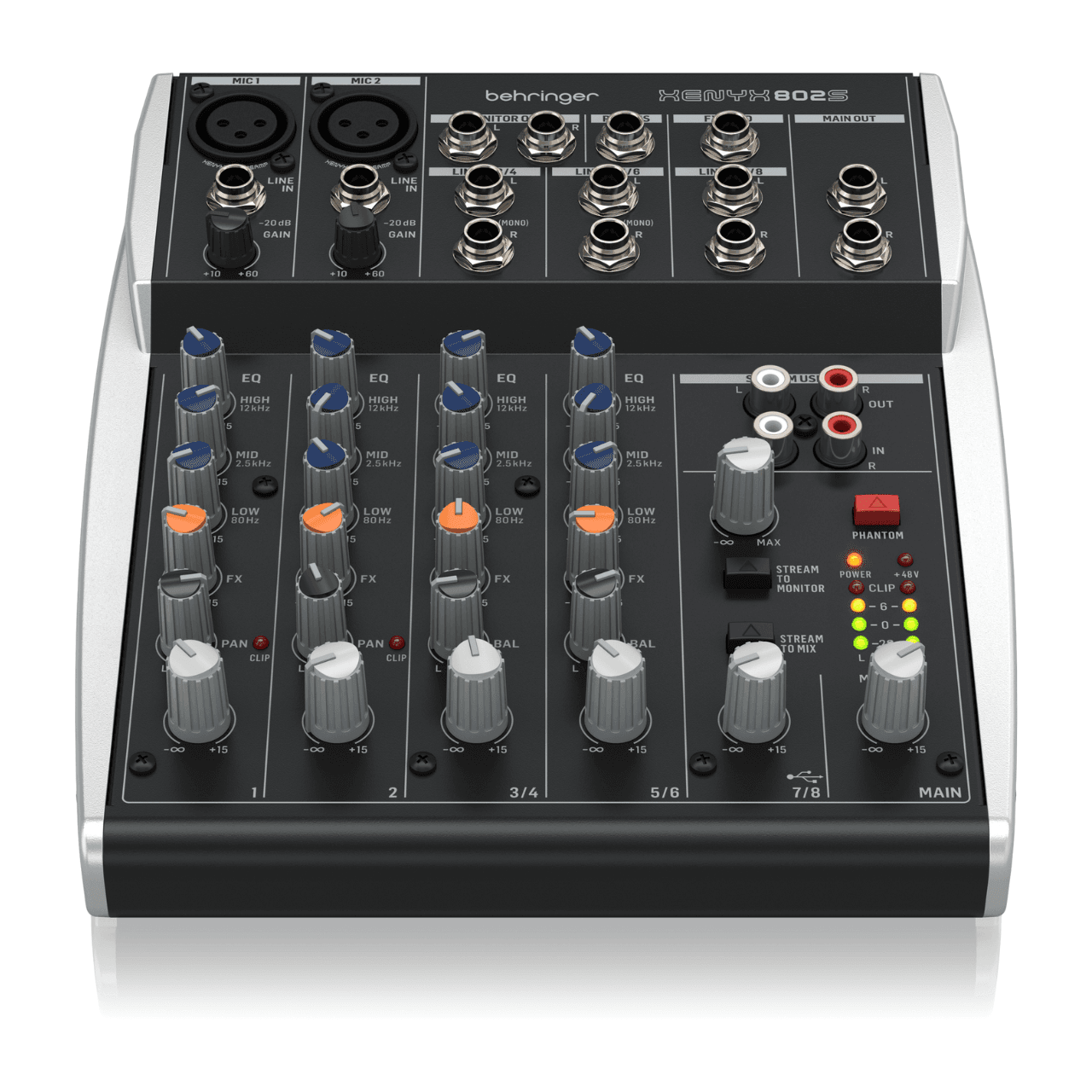

Behringer XENYX 802S
R2,200.00
Behringer |Premium Analog 8-Input Mixer with USB Streaming Interface
Availability: In stock
Product Description
The compact XENYX 802S mixer’s 8 inputs allow you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting and recording. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamps featuring 48V Phantom Power for high-end studio microphones.
Key Features
- Ultra-low noise analogue mixer for streaming, podcasting and recording
- 2 Award winning XENYX microphone preamps for warm and musical sound
- Stereo USB audio interface to connect to your computer or mobile device
- Direct mixing of PC/gaming sounds into the streaming output
- Analog mixing and equalization for pure sound
- Versatile sub mixer for network enabled audio devices
- Stereo channel 7/8 automatically switches between TRS input and USB playback
- 3-band EQs for warm and musical sound
- FX send control per channel for external FX processor or monitoring mix
- High-quality monitoring, phones and streaming outputs
- Stereo RCA inputs assignable to main mix or monitor/phones outputs
Great for Any Setup
The new XENYX “S” series can be connected to computers or mobile devices via USB making it super easy to integrate digital sources with analog equipment. Two mono and 2 stereo channels with EQ, plus another stereo channel, a stereo RCA streaming input and a stereo USB input allow you to blend a total of 12 crystal-clear audio signals for monitoring via headphones or on high-quality TRS outputs. Hence, the 802S can also be used as a versatile sub-mixer for combining network-enabled audio devices with several other audio signals.
Control Made Easy
The 802S features a 3-band EQ on Mono and Stereo inputs and allows for precise sound shaping for any input source. An integrated FX send control per channel lets you plug in any external FX processor of your choice, such as the Behringer FX2000, for amazing audio effects flexibility. When nothing is plugged into the stereo line inputs 7/8, then the Level 7/8 control can be used to adjust the USB input level conveniently.
Amazing Gear at an Affordable Price
The XENYX 802S is a great partner for any professional microphone, upgrading your streaming, podcasting or recording setup with a decent microphone input, while simultaneously providing simple, super-convenient control at your fingertips.
Get the XENYX 802S from your local Behringer dealer today!
General Specifications
Mono Inputs
- Microphone Input: Balanced XLR, discrete input circuit
- Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted
- Frequency response Gain +10 dB: 10 Hz to 150 kHz
- Frequency response Gain +60 dB: 20 Hz to 70 kHz
- Gain range: +10 dB to +60 dB
- Max input level @ +10 dB Gain: +12 dBu
- Input Impedance: 2 kΩ balanced
- Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%
- Mono Line Inputs: 1/4″ TRS connector balanced
- Impedance: 22 kΩ balanced, 10 kΩ unbalanced
- Gain range: -10 dB to +40 dB
- Max input level @ 0 dB Gain: +21 dBu
Stereo Inputs
- Stereo Line: 1/4″ TRS connector balanced
- Frequency response: 20 Hz to 200 kHz
- Impedance: 22 kΩ balanced, 10 kΩ unbalanced
- Max input level @ 0 dB Gain: +21 dBu
- STREAM Inputs (Analog): RCA connector unbalanced
- Impedance: 10 kΩ unbalanced
- Max input level: 10 dBu
Equalizer
- Low: 80 Hz/±15 dB
- Mid: 2.5 kHz/±15 dB
- High: 12 kHz/±15 dB
Main, Monitor & FX Send Outputs
- Type: 1/4″ TRS connector impedance-balanced
- Impedance: 120 Ω
- Max output level: 21 dBu
Phones Out
- Type: 1/4″ TRS connector unbalanced
- Impedance: 23 Ω
- Max output level: 19 dBu/150 Ω
STREAM Out (Analog)
- Type: RCA connector unbalanced
- Impedance: 1 kΩ unbalanced
- Max output level: 10 dBu
Main Mix Noise
- Main Mix @ -∞: -109 dBu A-weighted
- Channel @ -∞: -109 dBu A-weighted
USB
- Type: Type-B connector
- USB Audio Data: 48 kHz 16 bit
- UAC2 Class Compliant: stereo in/out
Power Supply
- Power Consumption: 12 W
- Adaptor Input: 100 – 240 V~, 50/60 Hz, 0.5 A
- Adaptor Output: 18 V DC 1.0 A
