AVLINK – HDNK2 HDMI OVER CAT5/6 EXTENDER
R2,130.00
100m Range extender
Availability: Out of stock
Product Description

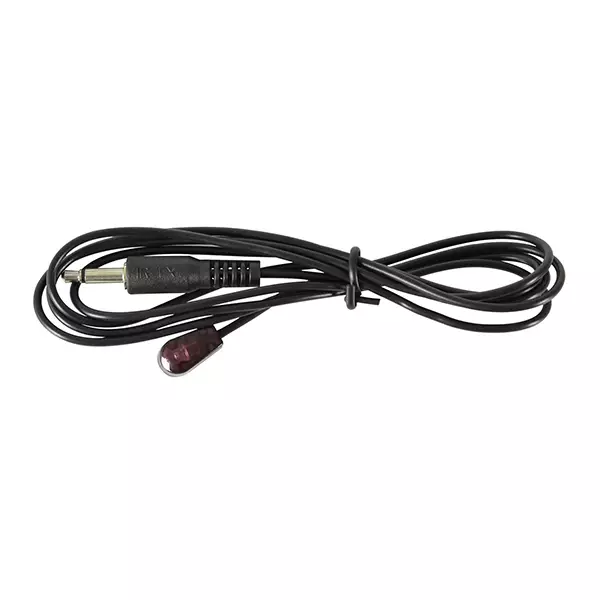

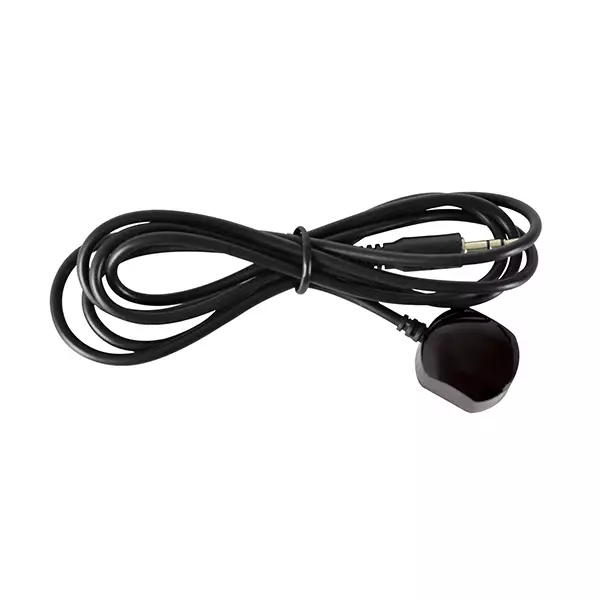

An extender kit that allows 4K and FHD HDMI signals to be sent between devices at distances of up to 100m using a single shielded network cable. The Extender kit works using a single cat5e or cat6 (recommended) cable instead of HDMI cable to transmit high-definition signals over a long distance, vastly reducing your costs but without reducing your picture quality. The built in IR function enables simple control of transmission devices remotely and an audio extraction function allows connection to headphones, speakers and amplifiers using a 3.5mm audio cable (not supplied).
HDMI version: 1.4a
Max. range: 100m
Video format: Up to 3840 x 2160 @ 60Hz
Audio format: Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max. cable length: HDMI (input & output) ?15m AWG26 standard cable
Max. bandwidth: 350MHz
Max. baud rate: 3×3.4Gbps
Max. working current: 350mA (TX) and 200mA (RX)
Power supply: 5Vdc, 1000mA
Dimensions: 82x45x18mm (each unit)
Weight: 120g (each unit)
