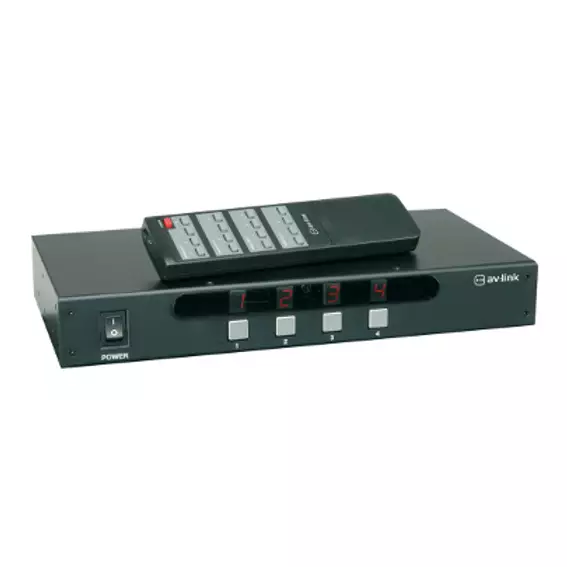

AVLINK – AVLINK – AD-AV44 4:4 A/V MATRIX SWITCHER WITH IR REMOTE CONTROL
R4,760.00
4 input 4 outputs
Availability: Out of stock
Product Description
A composite video/stereo audio matrix router which is the ideal solution for the most complex AV installations allowing any input to be sent to any output. All 4 inputs and outputs have colour coded RCA phono sockets, red (right audio), white (left audio), yellow (video). Up to 8 pieces of equipment can be connected to this unit at the same time.
Power supply: 12Vdc, 660mA
Audio input: 4 x stereo RCA, 40k Ohms
Audio output: 4 x stereo RCA, 100k Ohms
Channel separation: >50dB
Distortion : audio: <0.6dB
Distortion : video: <1.2dB
Remote : battery: 3Vdc (2 x AA)
Signal to noise ratio: >50dB
Video input: 4 x RCA, 75 Ohms
Video output: 4 x RCA, 75 Ohms
Dimensions: 47 x 305 x 162mm
Weight: 1.34kg
