Audio Technica ATW-3211

R11,615.00


Audio-Technica’s fourth-generation 3000 Series wireless system

Availability: Out of stock

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Category:

Product Description

Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica’s fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum.

With a class-leading 60 MHz tuning range – more than twice that offered by the previous versions – the new 3000 Series systems are available in 6 frequency bands – DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590–650 MHz), FG1 (650–700 MHz), GH2 (795 – 806 MHz) and HH2 (821 – 865 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

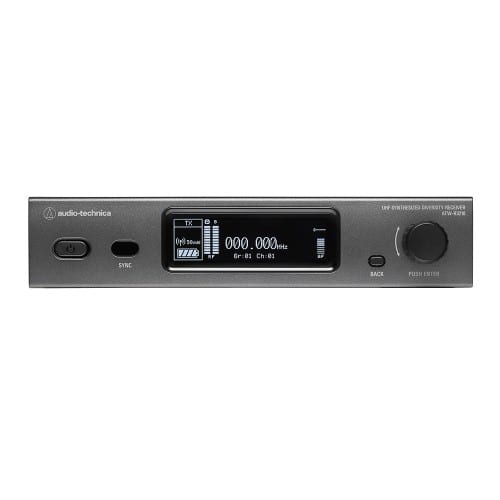

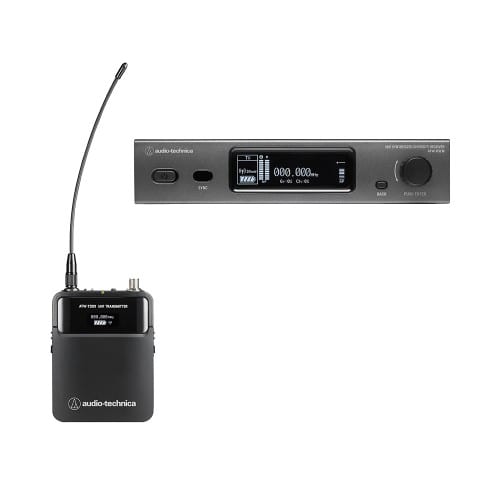

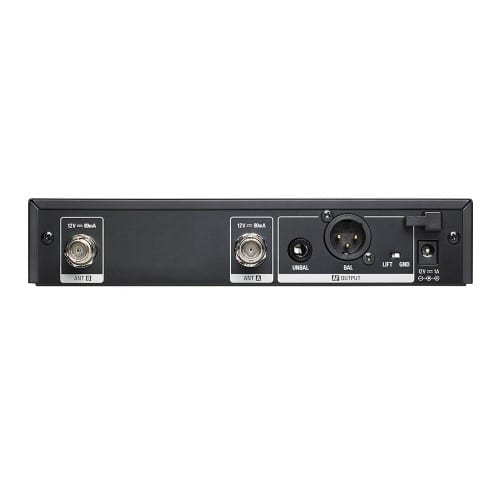

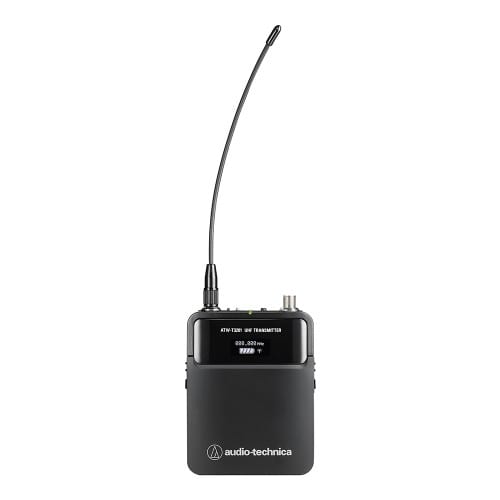

This system configuration features an ATW-R3210 receiver along with an ATW-T3201 body-pack transmitter. The ATW-T3201 is equipped with Audio-Technica’s new cH-style screw-down 4-pin connector for secure connection to Audio-Technica’s cH-style lavalier and headworn microphones, or cables. The transmitter features rugged, metal housings and is powered by two AA batteries. Charging terminals on the transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. Antenna power is available for powered antennas and other in-line RF devices. A ground-lift switch helps eliminate audible hum caused by ground loops. The system features balanced and unbalanced audio output jacks.



Features:

  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in 6 frequency bands: DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590-650 MHz), FG1 (650-700 MHz), GH2 (795 – 806 MHz) and HH2 (821 – 865 MHz).
  • Unique multifunction button on the body-pack transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
  • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
  • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible

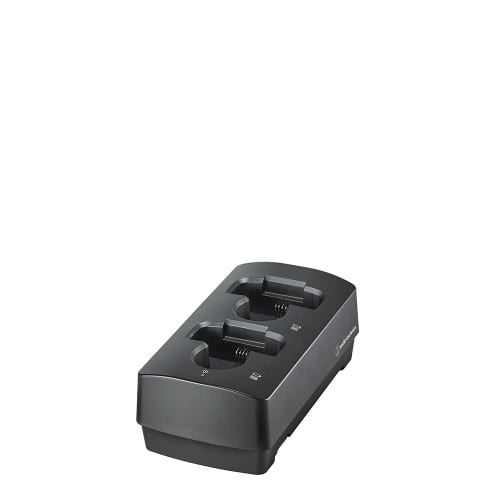

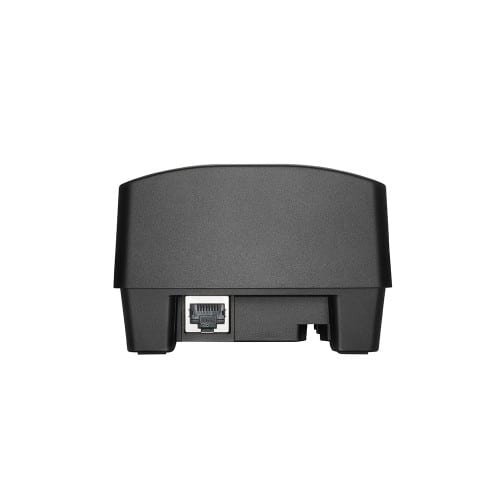

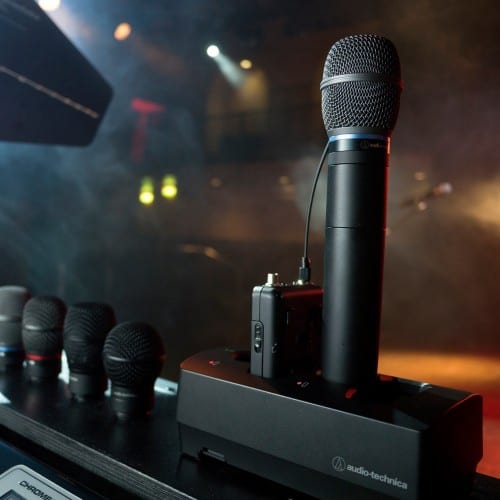

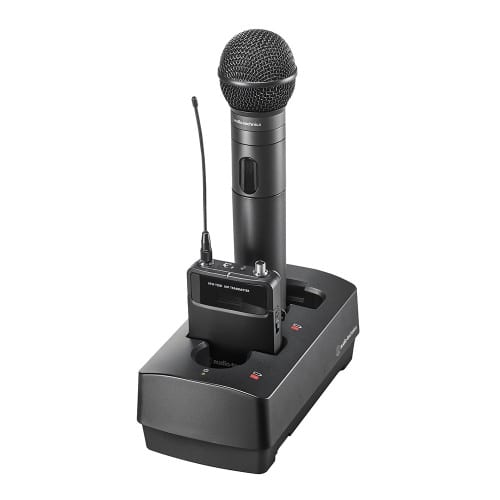

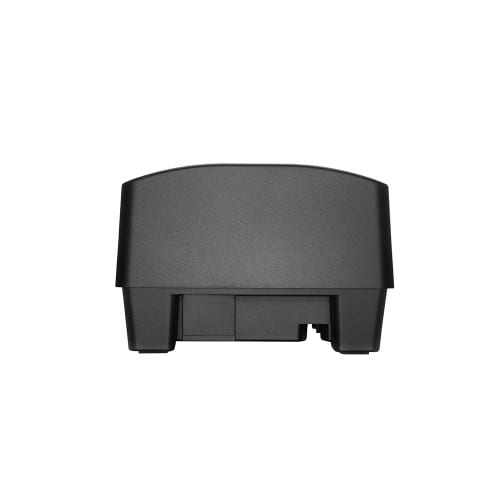

  • Charging terminals on transmitter work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks



Overall System
Operating Frequencies Band DE2: 470.125 to 529.975 MHz
Band EE1: 530.000 to 589.975 MHz
Band EF1: 590.000 to 649.975 MHz
Band FG1: 650.000 to 699.875 MHz
Band GH2: 794.100 to 805.900 MHz
Band HH2: 821.100 to 831.900 MHz and 863.100 to 864.900 MHz
Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
Minimum Frequency Step 25 kHz
Modulation Mode FM
Maximum Deviation ATW-T3201: ±38 kHz (THD:10%)

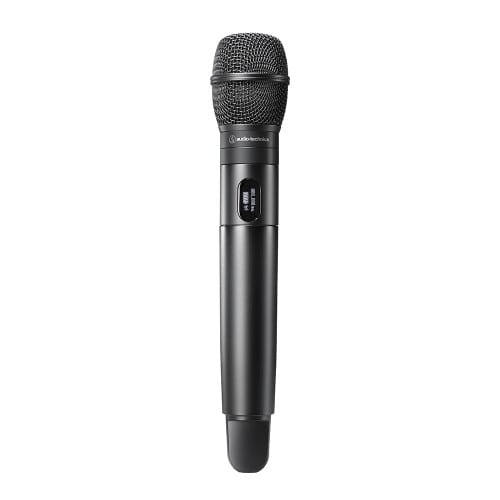

ATW-T3202: ±36 kHz (THD:10%)
Simultaneous Use 40 Channels per band*
For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent
Frequency Response ATW-T3201: 31 Hz to 15500 Hz
ATW-T3202: 25 Hz to 16700 Hz
Operating Range 100 m
Dynamic Range ATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion <1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range -5 ºC to +45 ºC
Receiver
Receiving System True Diversity
Sensitivity 20 dBuV at 60 dBA S/N ratio (50Ω termination)
Maximum Output Level XLR / Balanced: +14 dBV
6.3 mm (¼””) / Unbalanced: +8 dBV
Antenna Input BNC-type, 50 Ω
Power Output 12 V DC, 160 mA (combined)
Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
Weight 1100 g, without accessories
Accessories Included Two Flexible UHF antennas
AC adapter (country dependent)
Rack Mount Adaptors
Belt Pack
RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 Ω
Spurious Emissions Following Federal and National Regulations
Input Connections 4-Pin screw down cH-Style Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V
Battery Type Two 1.5V AA, not included
Battery Life High: 8.0 hours / Low: 9.0 hours (alkaline)
High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
Depending on battery type, usage and environmental conditions.
Dimensions 64 mm x 82 mm x 23 mm (W x H x D)
Net Weight 102 g
