Audio Technica ATW-11DE3

0 customer reviews
Check stock before ordering
View details

R4,315.00

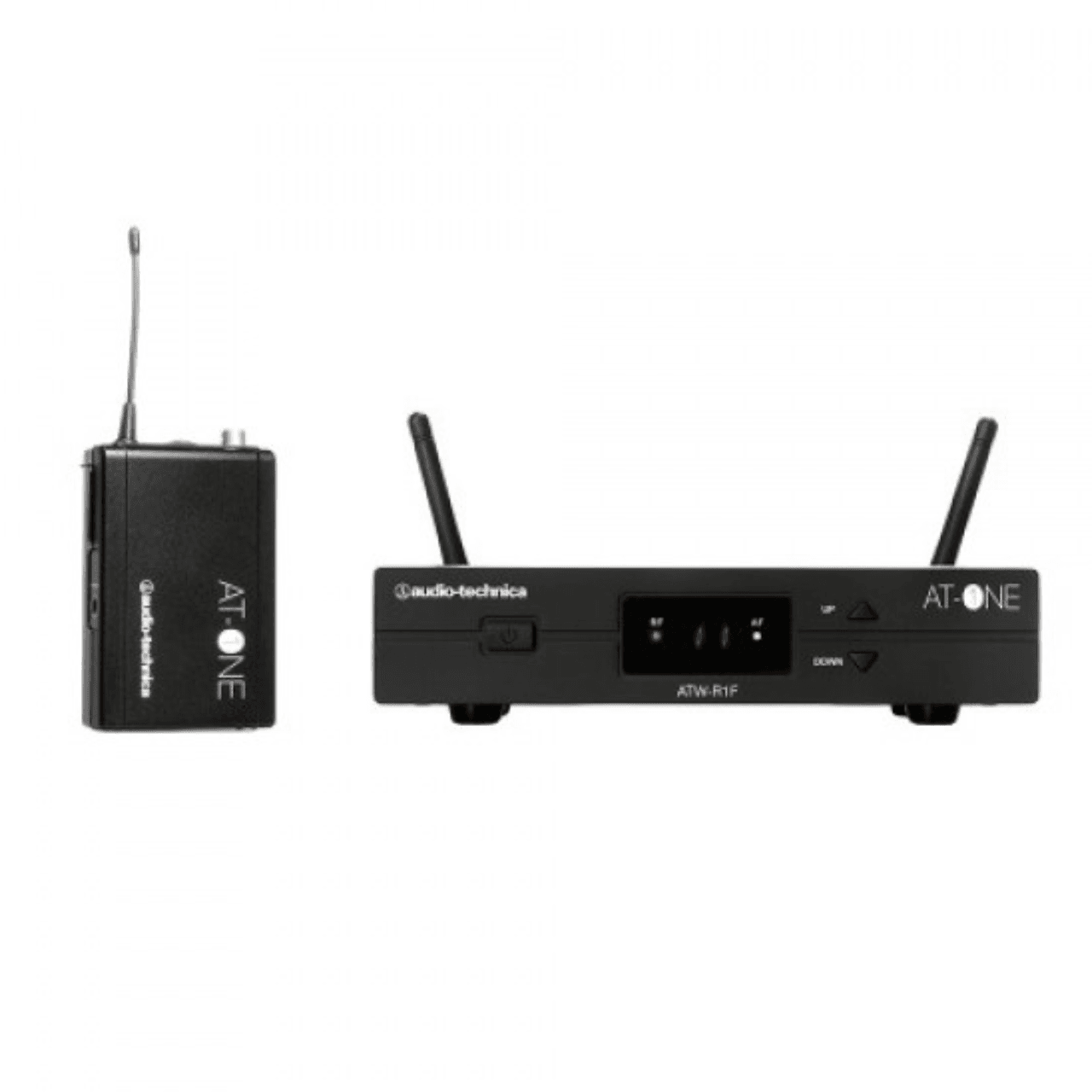

Audio Technica | ATW-11DE3 AT-One Beltpack System

Availability: In stock

Add to wishlist
Add to quote
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: ATW-11DE3 Categories:

Product Description

AT-One, Audio-Technica’s entry-level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.

AT-One is designed with simplicity and ease of use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry-level price. The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe-wide license-free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.

Available in three configurations, AT-One can be purchased with a belt pack or handheld transmitter. The ATW-11 comes equipped with a sturdy, discreetly designed belt pack, providing 10mW RF output power, a damping switch and a battery life of 10 hours.

Key Features

  • Designed for quick and easy use
  • Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
  • The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
  • Users can choose up to 4 channels in a group
  • The ATW-11 system is equipped with a discreet and robust pocket transmitter
  • RF transmission power 10mW
  • The bodypack transmitter has a 4-pin HRS connector, which is able to connect to all Audio-Technica wireless microphones
  • Up to 10 hours of battery life with 2 x 1.5V AA batteries
  • RF Indicator light
  • Robust construction from high-quality components
  • Delivered in a transport case with a rack mount kit and detachable antennas

General Specifications

  • Operating Frequencies: DE3 Band: 482 – 512 MHz
  • Number Of Channels: 2 x 4 frequencies
  • Frequency Stability: +/- 0.005%, Phase lock loop frequency control
  • Modulation Mode: FM
  • Frequency Response: 60 Hz – 16 kHz
  • Operating Range: 60m, typical

Receiver

  • Receiving System: Antenna switching diversity
  • Image Rejection: 55dB minimum
  • Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)
  • Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)
  • Total Harmonic Distortion: <1% – 20 kHz deviation @ 1 kHz
  • Audio Output Unbalanced: -2dBV
  • Audio Output Balanced: 4dBV
  • Output Connectors (Microphone) Balanced: XLRM-type
  • Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack
  • Maximum Output Level: Mic / Line (0 / -20dB)
  • Antenna Input: BNC type, 50 – BIAS voltage 12V DC 100mA each
  • Dimensions (WxDxH): 200mm x 122mm x 42mm
  • Weight 418 g without accessories
  • Accessories Included AC Adapter, Antennas, Rack mount adapter, protective carrying case

Belt Pack

  • RF Power Output 10 mW
  • Spurious Emissions Following national regulations
  • Input Connections
    • Pin 1: GND
    • Pin 2: INST
    • Pin 3: Mic
    • Pin 4: DC Bias +10V
  • Battery Type: Two 1.5V AA alkaline (not included)
  • Battery Life: 10 hours – depending on battery type and use pattern
  • Dimensions (WxDxH): 66mm x 22mm x 98
