Audio Technica AT-XP3 DJ Cartridge

0 customer reviews
Check stock before ordering
View details

R1,115.00


Replacement cartridge AT-XP3 for DJs

Availability: In stock

Add to wishlist
Add to quote
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: AT-XP3 Categories: Brand:

Product Description

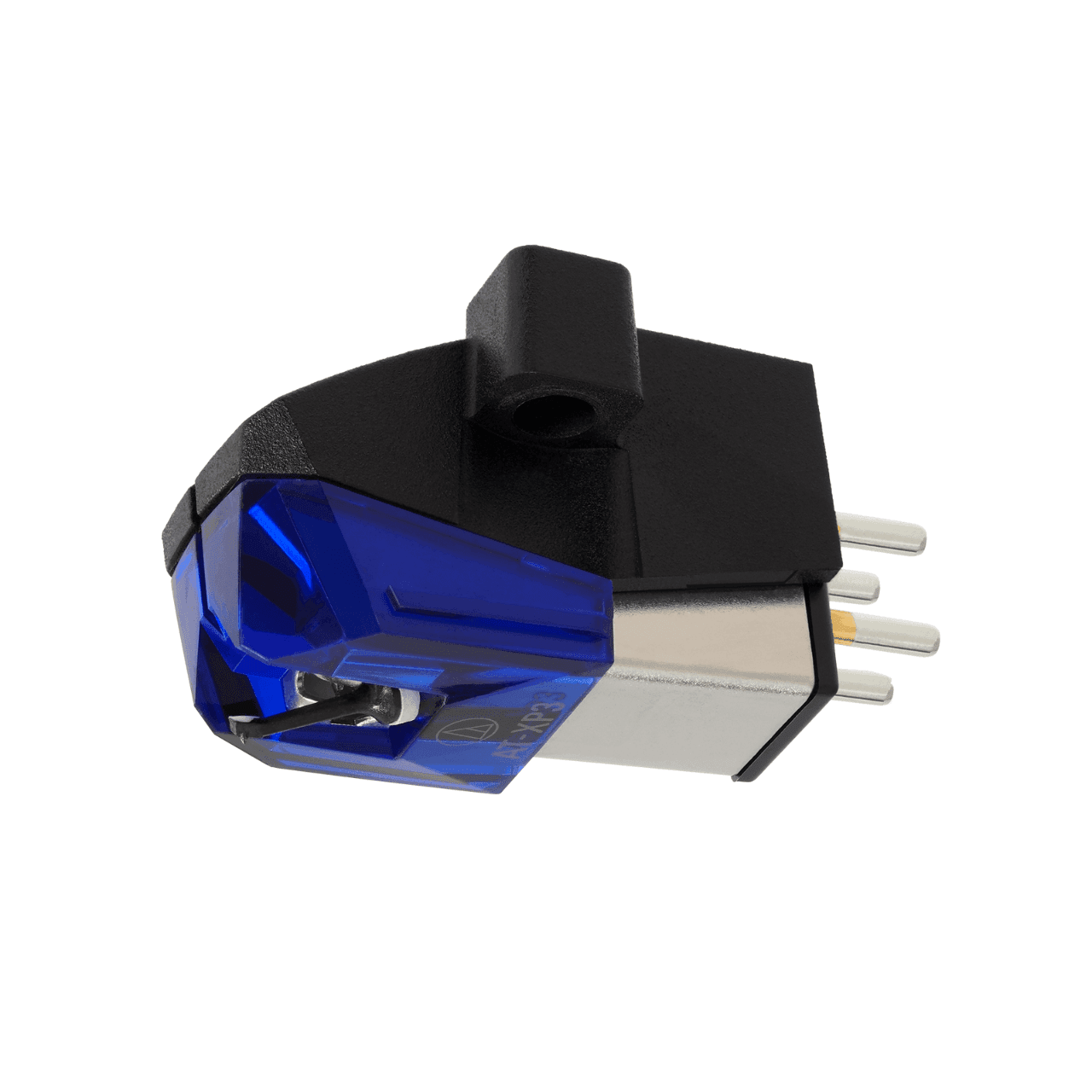

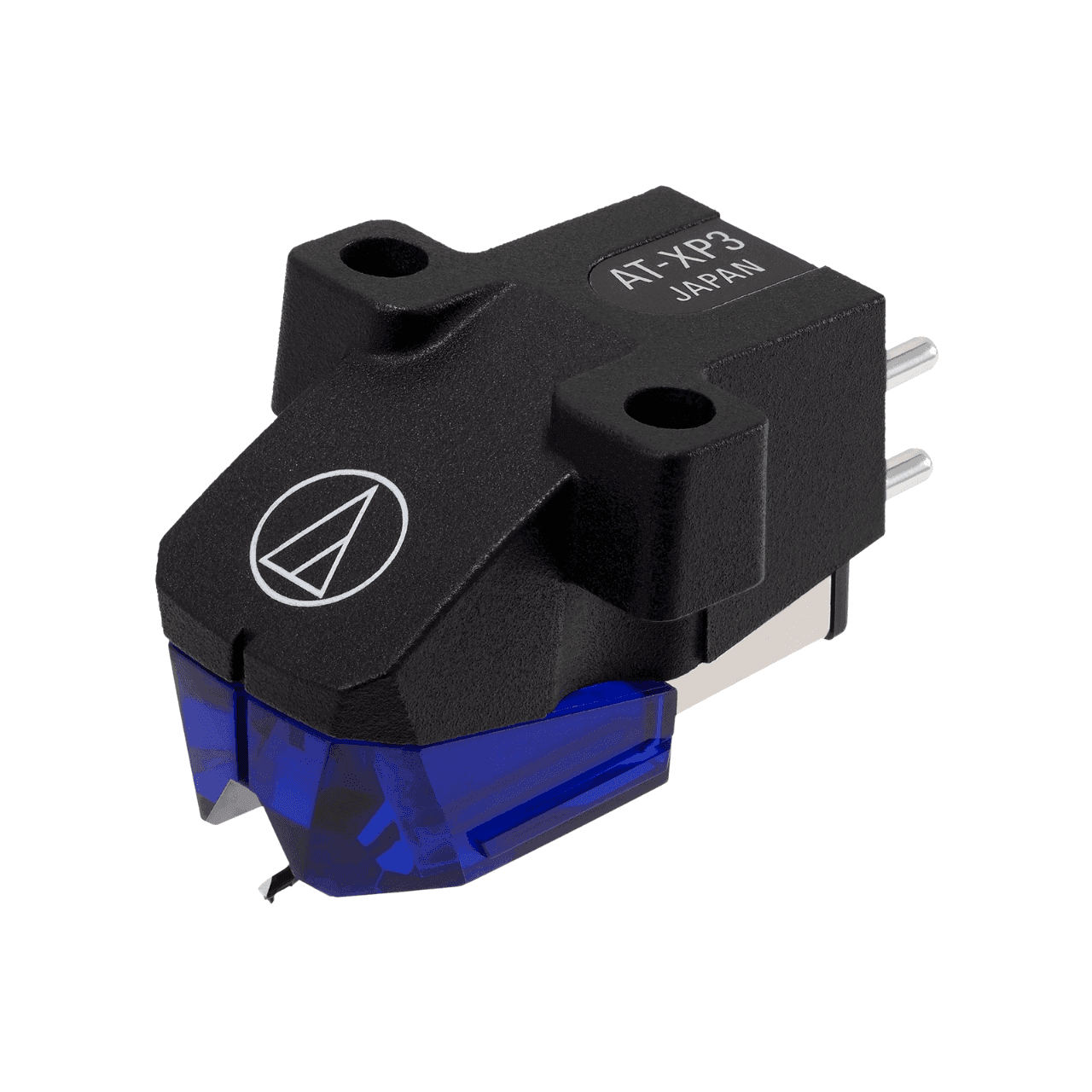

AT-XP3

The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Key Features

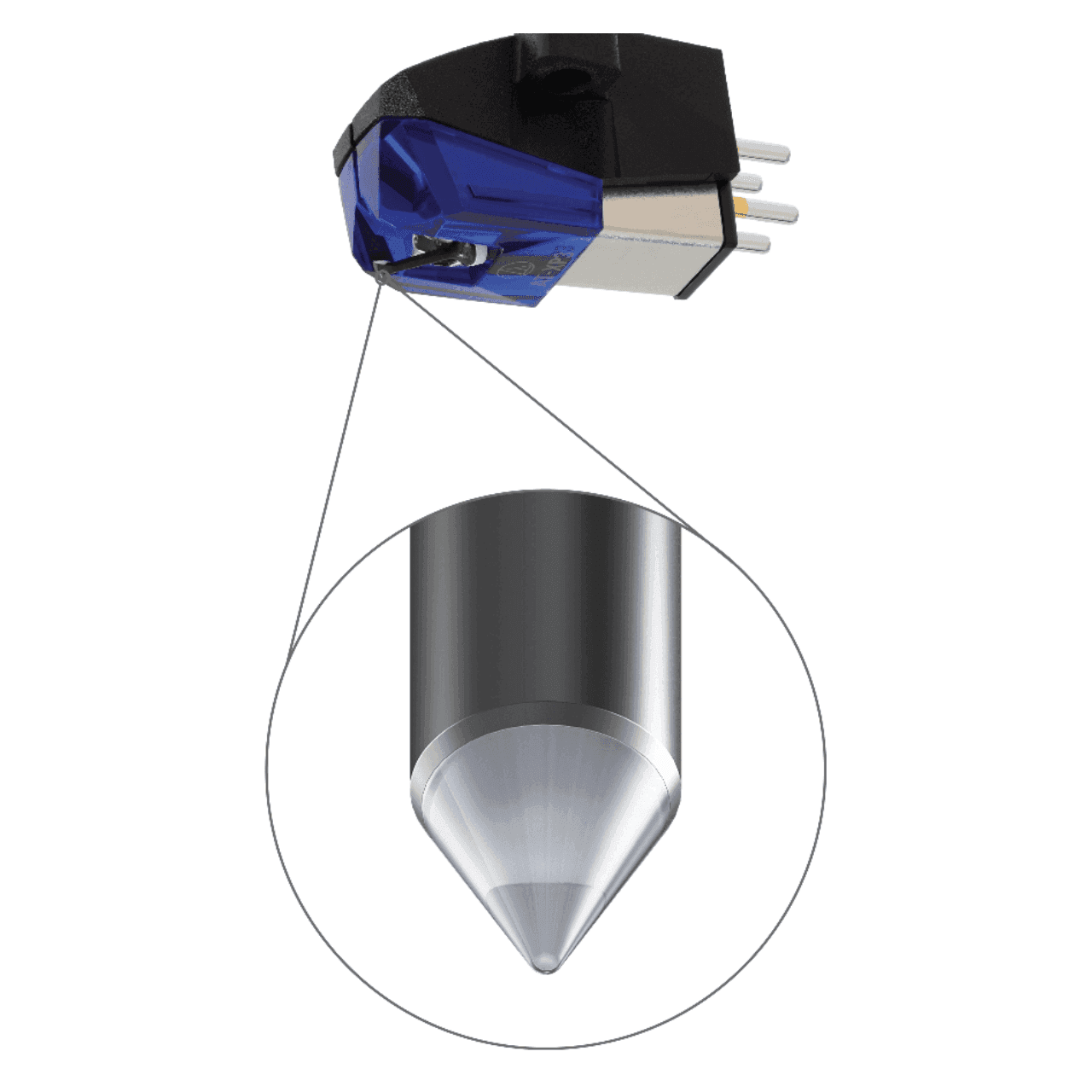

  • 0.6 mil conical bonded stylus tip
  • Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
  • 5.5 mV high-level output
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound
  • AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application

General Specifications

  • Frequency Response:  20-18,000 Hz
  • Channel Separation:  20 (dB at 1 kHz)
  • Vertical Tracking Angle:  20°
  • Vertical Tracking Force:  2.0-4.0 g (3.0 g standard)
  • Stylus Construction:  Bonded round shank
  • Recommended Load Impedance:  47,000 ohms
  • Coil Impedance:  6.7 k ohms (1 kHz)
  • Coil Inductance:  550 mH (1 kHz)
  • Output Voltage:  5.5 mV (1 kHz, 5 cm/sec.)
  • Output Channel Balance:  2.0 dB (1 kHz)
  • Stylus Shape: 0.6 mil conical
  • Cantilever:  Carbon fiber-reinforced ABS
  • Static Compliance:  20 x 10 – 6 cm / dyne
  • Dynamic Compliance:  6.0 x 10 – 6 cm / dyne (100 Hz)
  • Mounting:  Half-inch
  • Cartridge Weight:  6.2g
  • Dimensions (WxDxH):  17.8mm X 28.3mm X 17.2mm

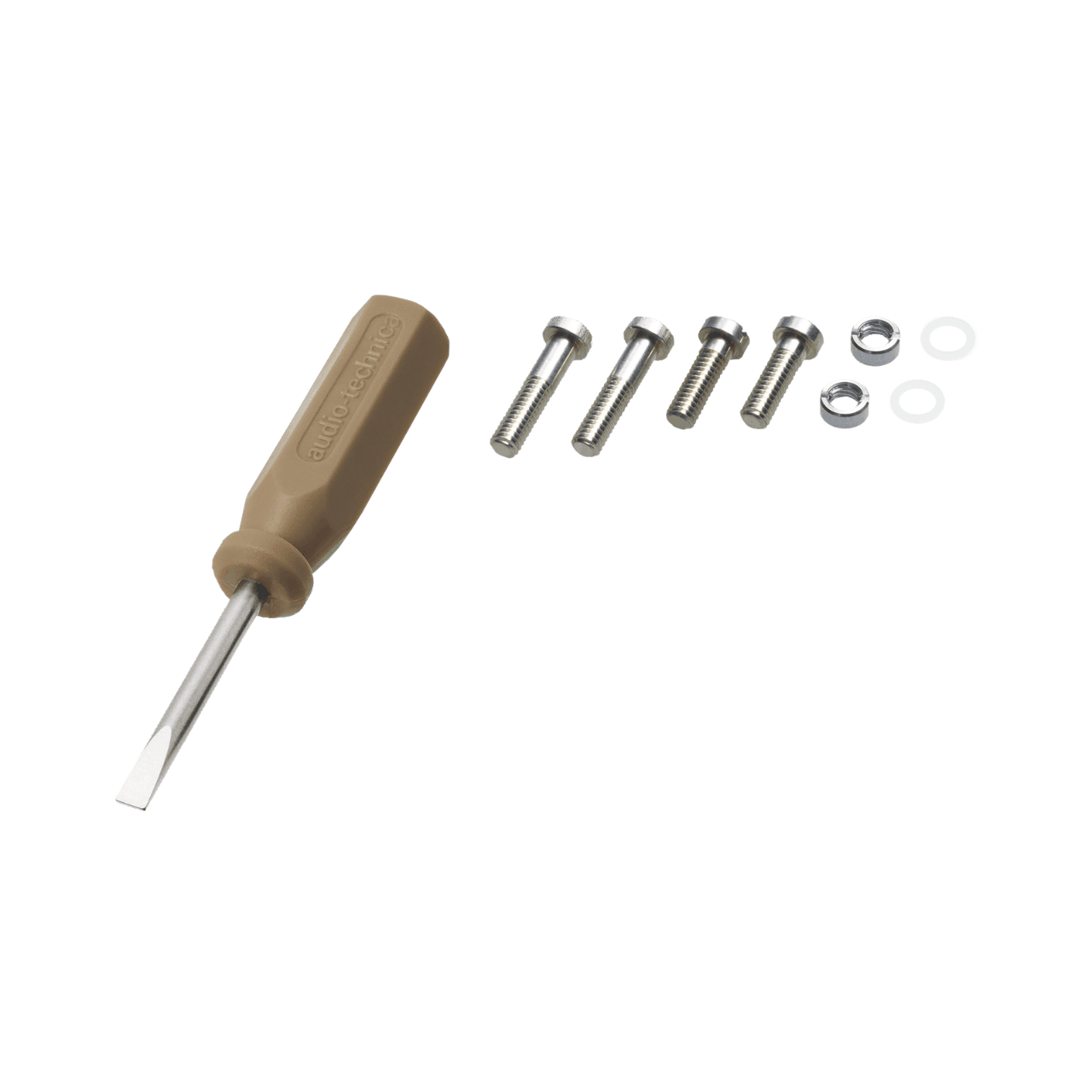

  • Accessories Included:  Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
  • Model:  AT-XP3
  • Mounting Feature:  Half-inch mount
  • Recommended Load Capacitance:  100 to 200 pF
  • Replacement Stylus:  ATN-XP3
  • Stylus Size:  0.6 mil
  • Weight:  6.2 g (0.22 oz)
