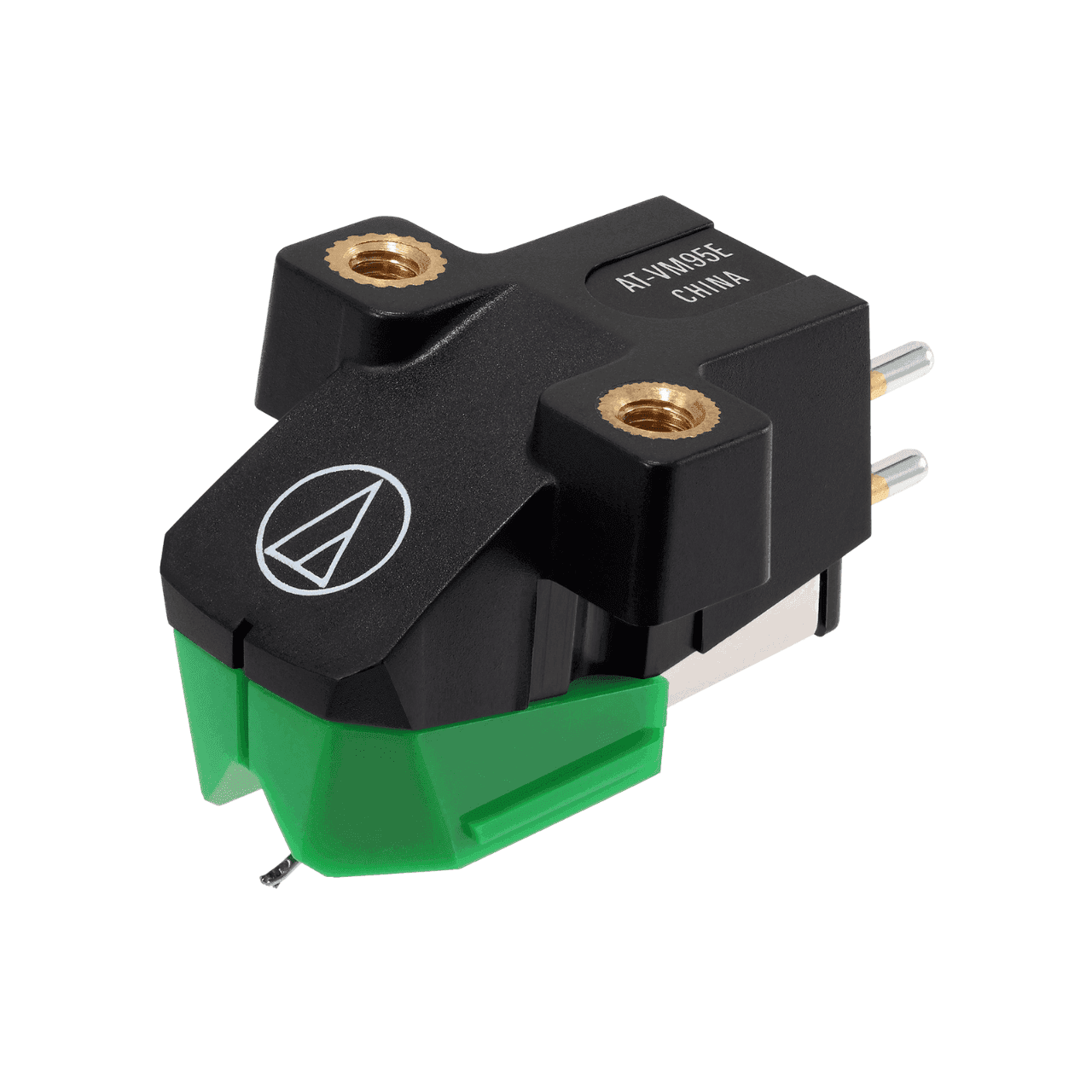

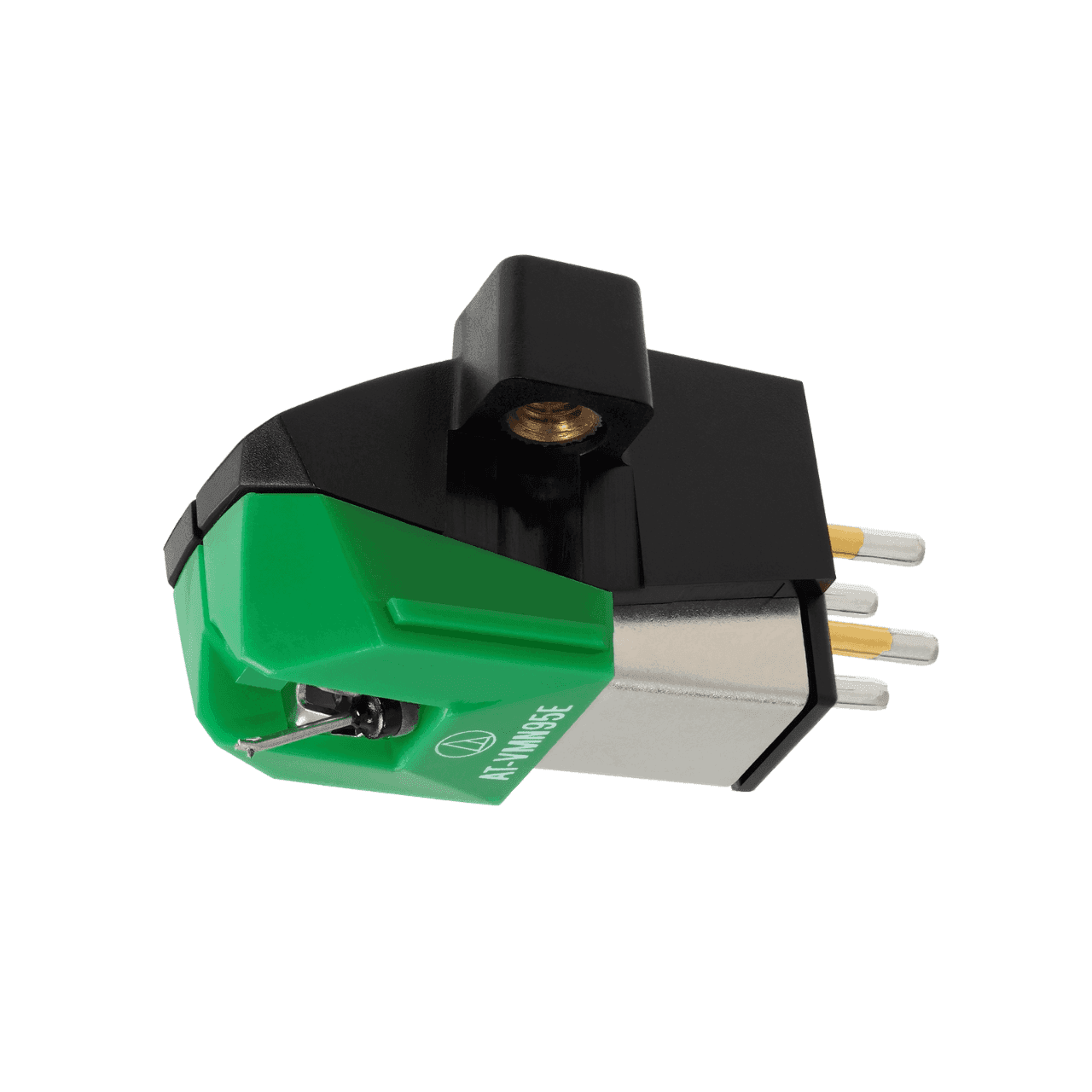

Audio Technica AT-VM95E Dual Moving Magnet Cartridge
Check stock before ordering
R1,115.00
Audio Technica AT-VM95E Dual Moving Magnet Cartridge with Elliptical Stylus
Availability: In stock
Product Description
AT-VM95C

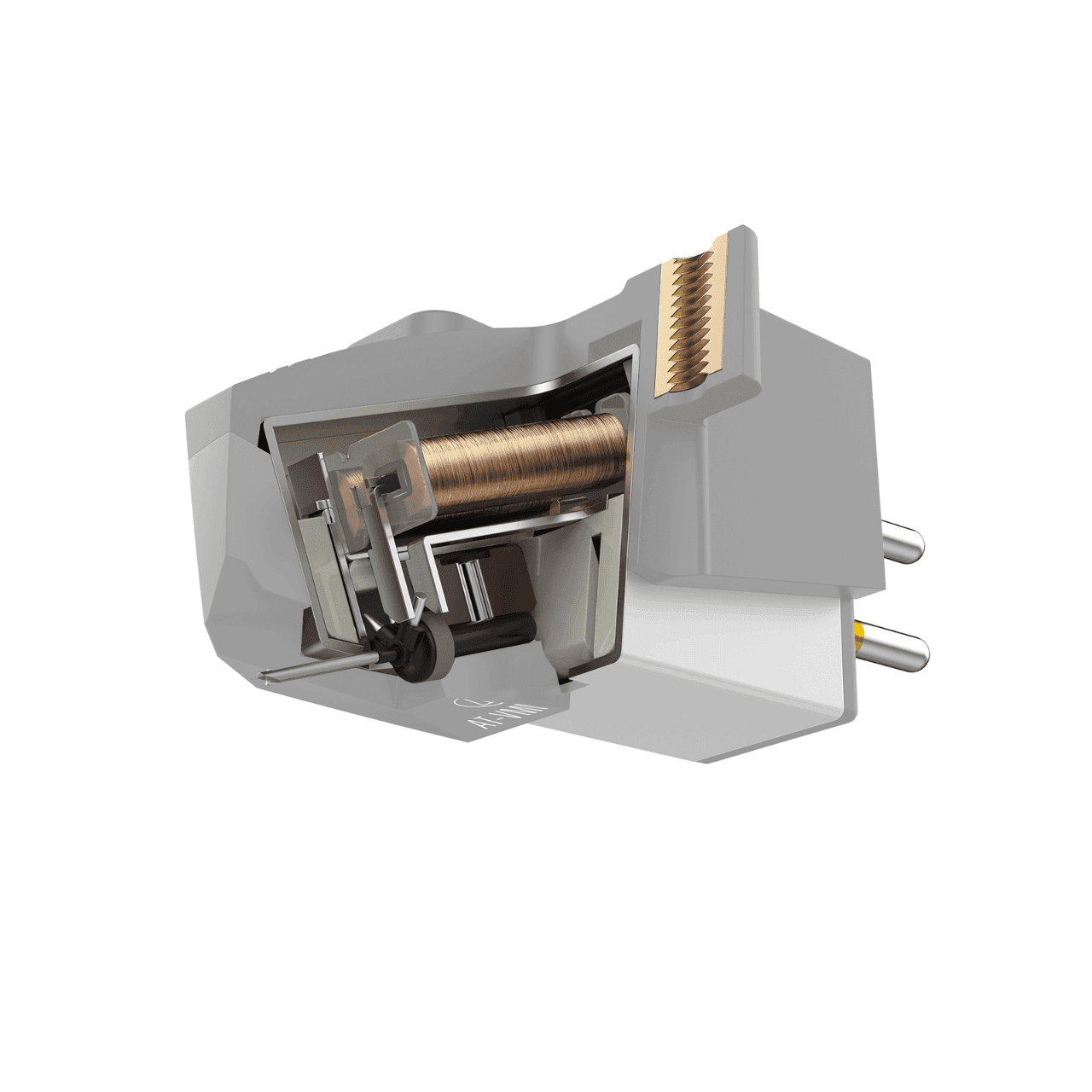

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
General Specifications
- Frequency Response: 20 – 22,000 Hz
- Channel Separation: 20 dB (1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 kΩ (1 kHz)
- DC Resistance: 485 Ω
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance: 2.0 dB (1 kHz)

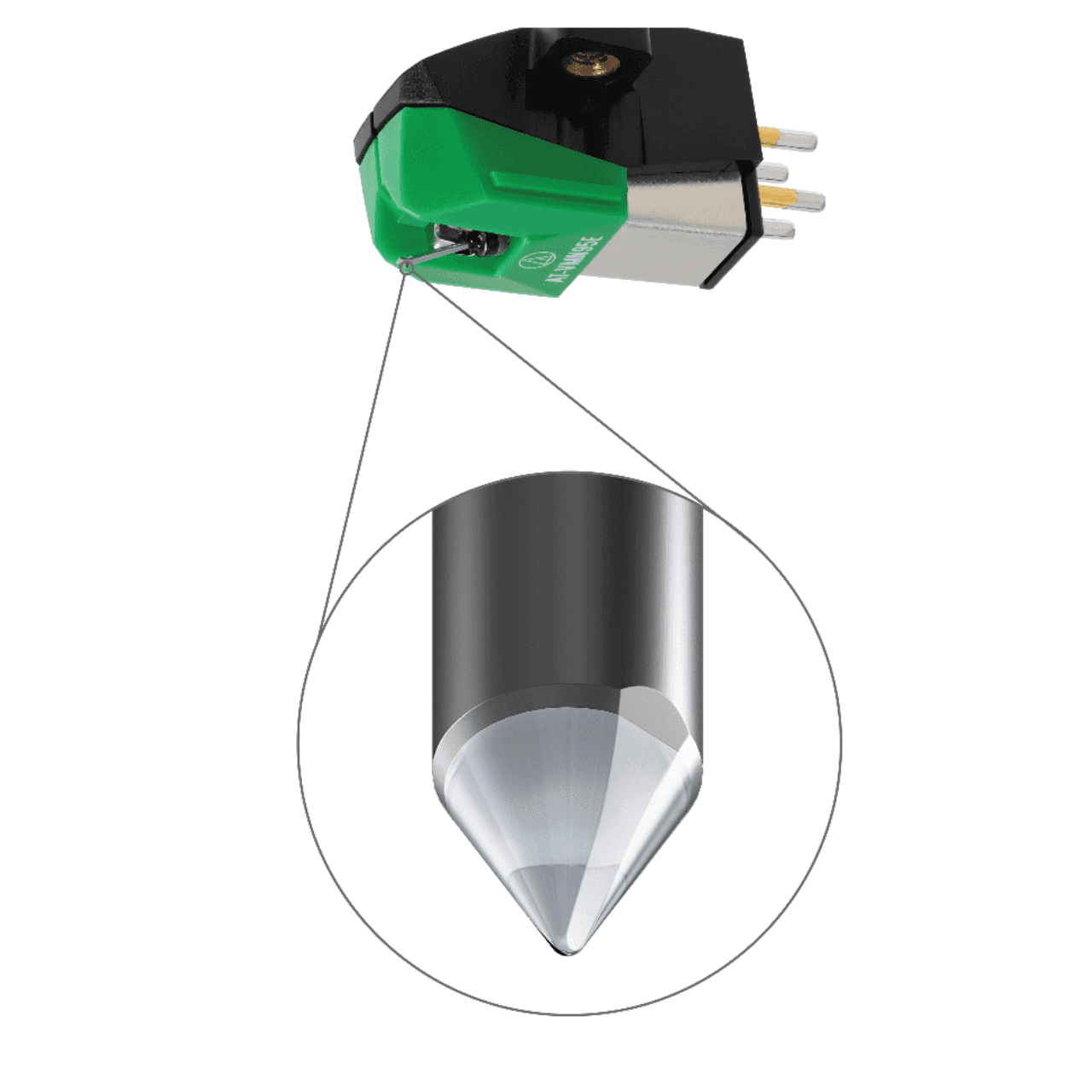

- Stylus Shape: Elliptical
- Cantilever: Aluminium Pipe
- Static Compliance: 17 x 10 – 6 cm / dyne
- Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
- Mounting: 1/2” centre
- Cartridge Weight: 6.1g
- Dimensions (WxDxH): 18.9mm X 28.3mm X 17.2mm

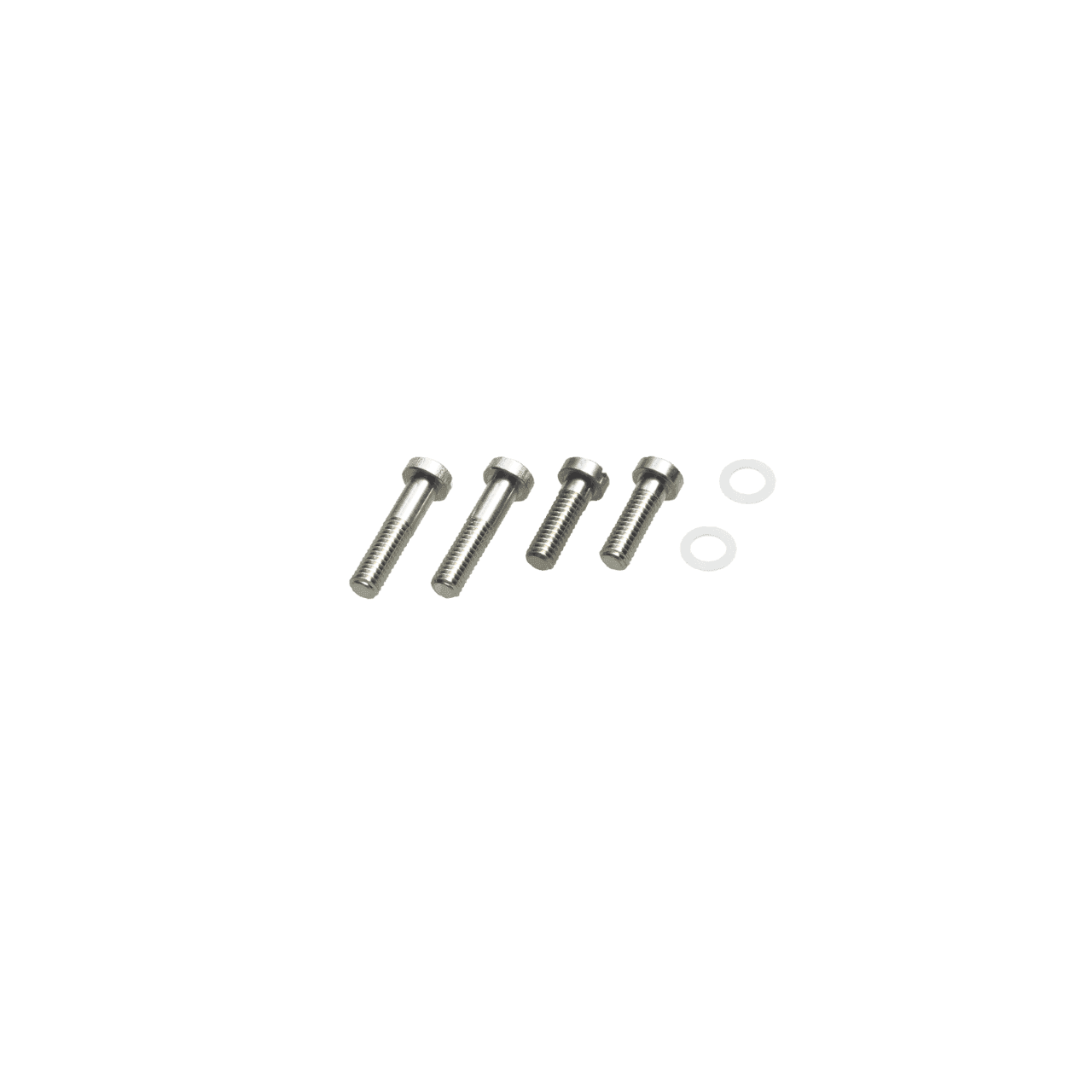

- Accessories Included: Two 11 mm installation screws; Two 8 mm installation screws; Two washers
- Model: AT-VM95E
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: AT-VMN95E
- Stylus Size: 0.3 x 0.7 mil
- Type: VM Stereo Dual Magnet
- Wire Used for Coil: T.P. Copper
