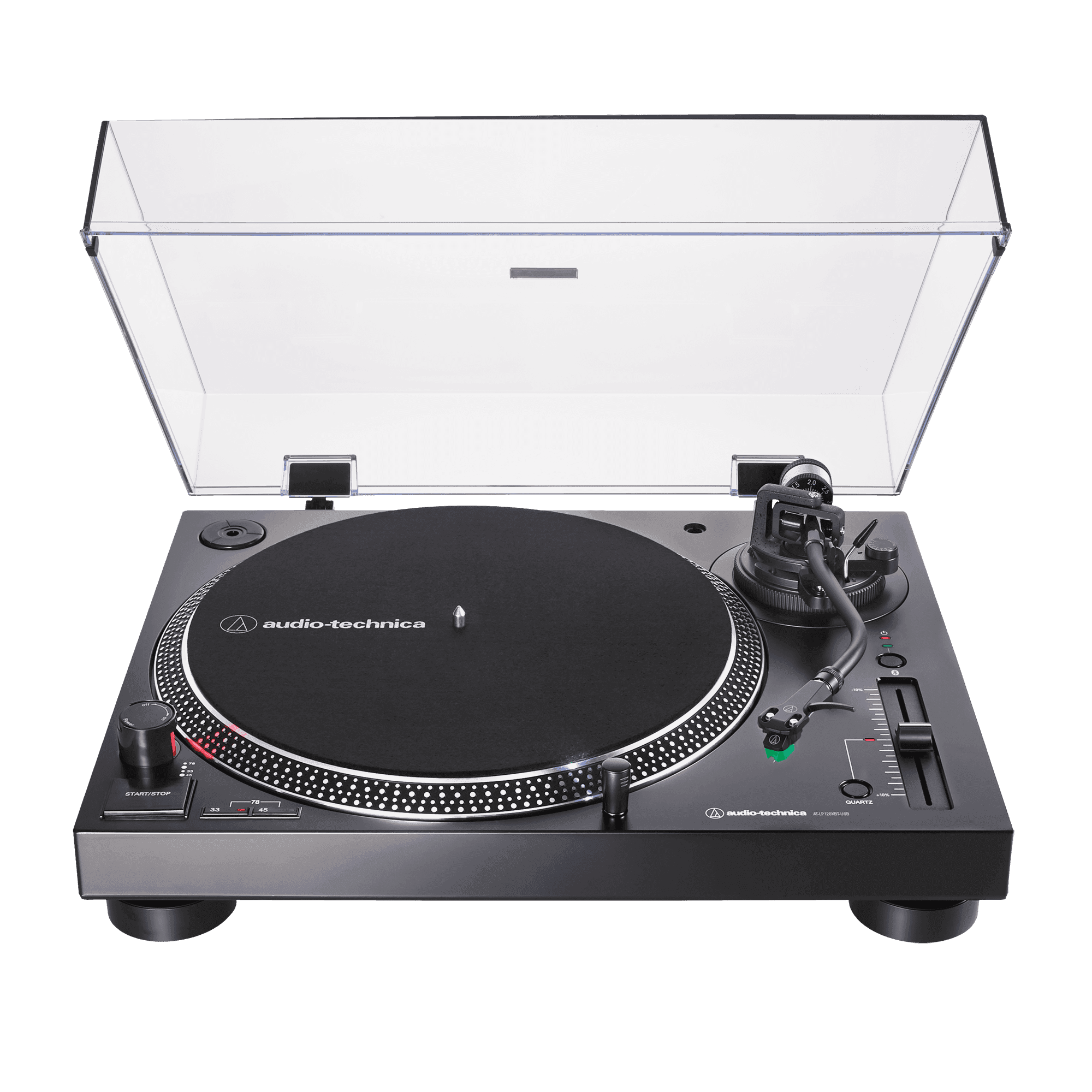

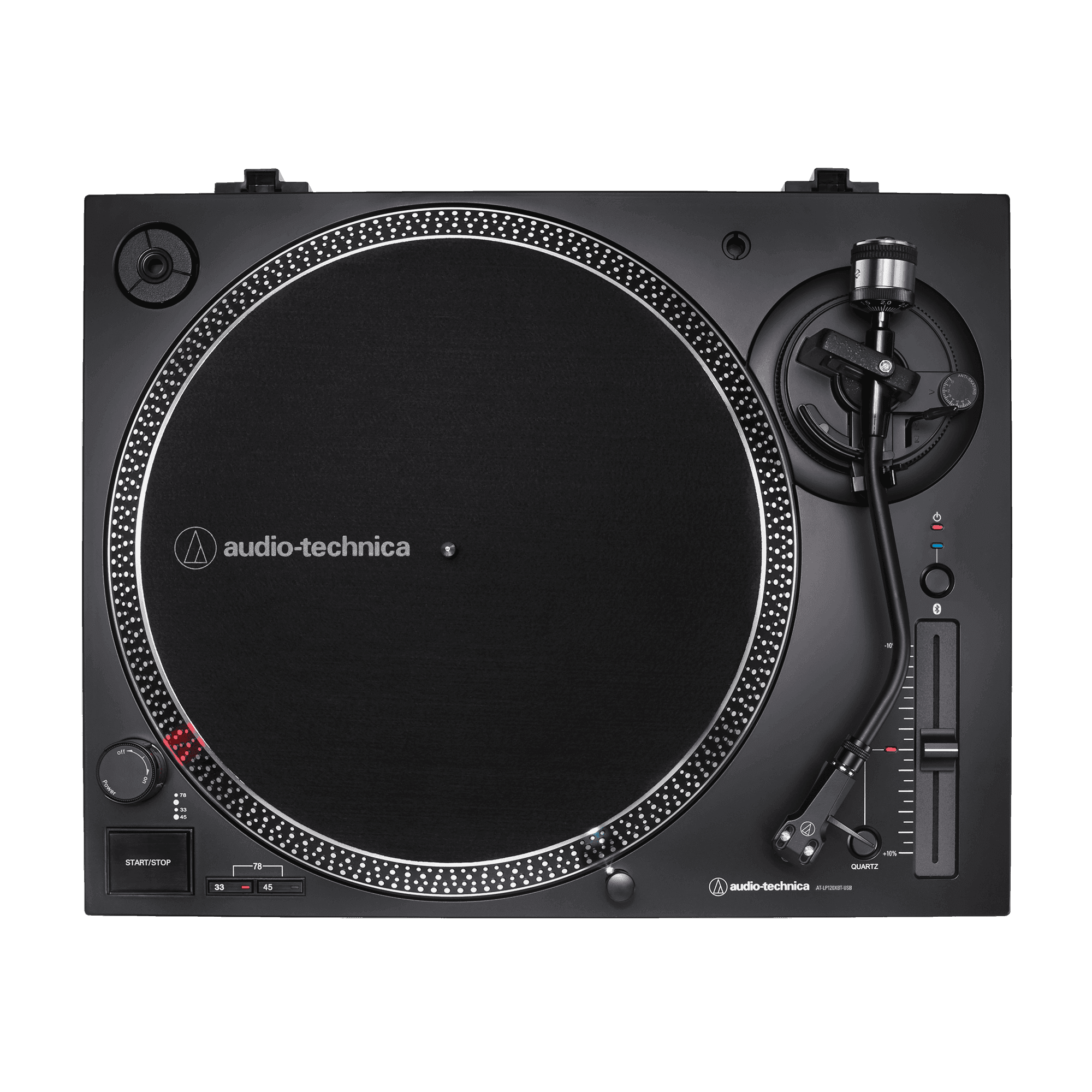

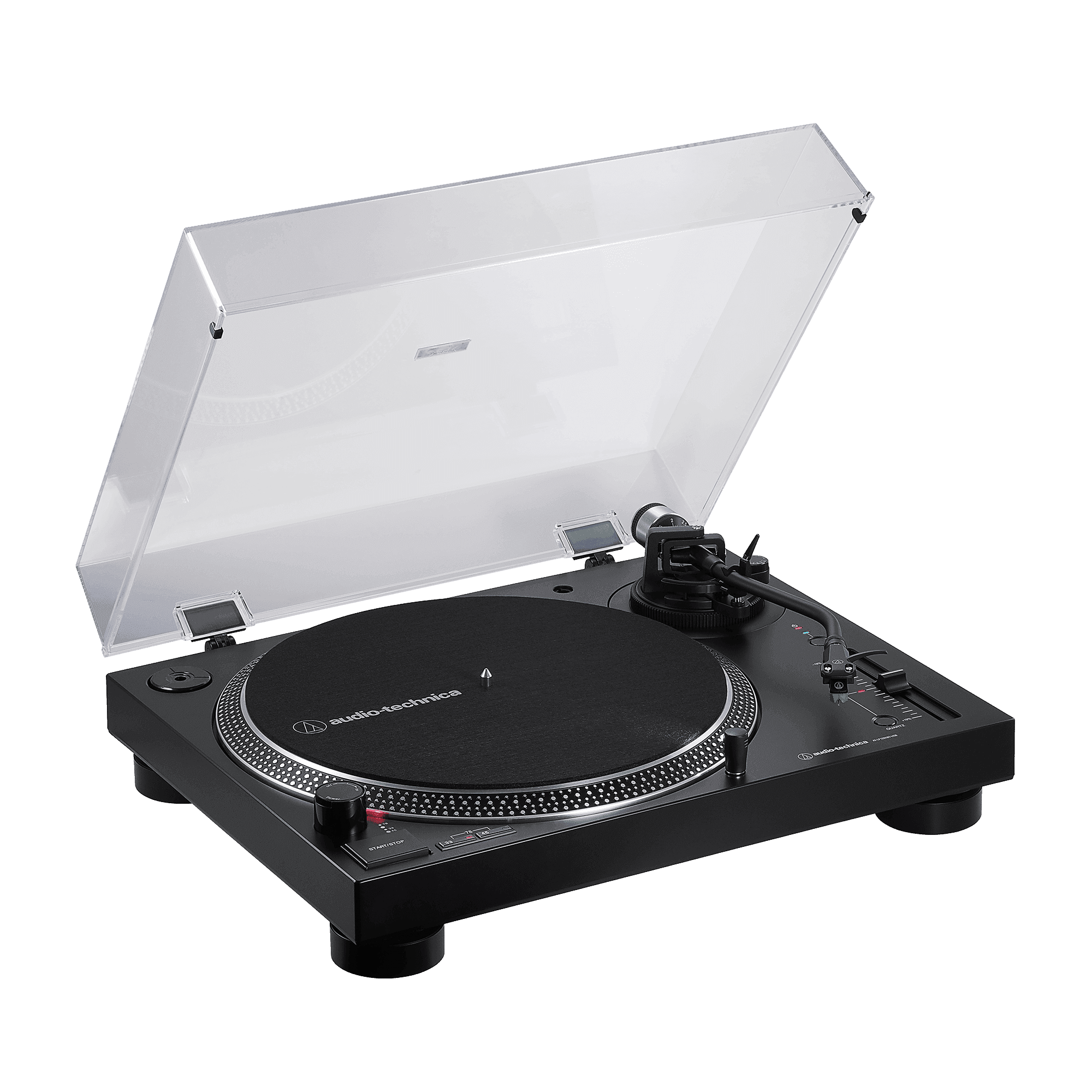

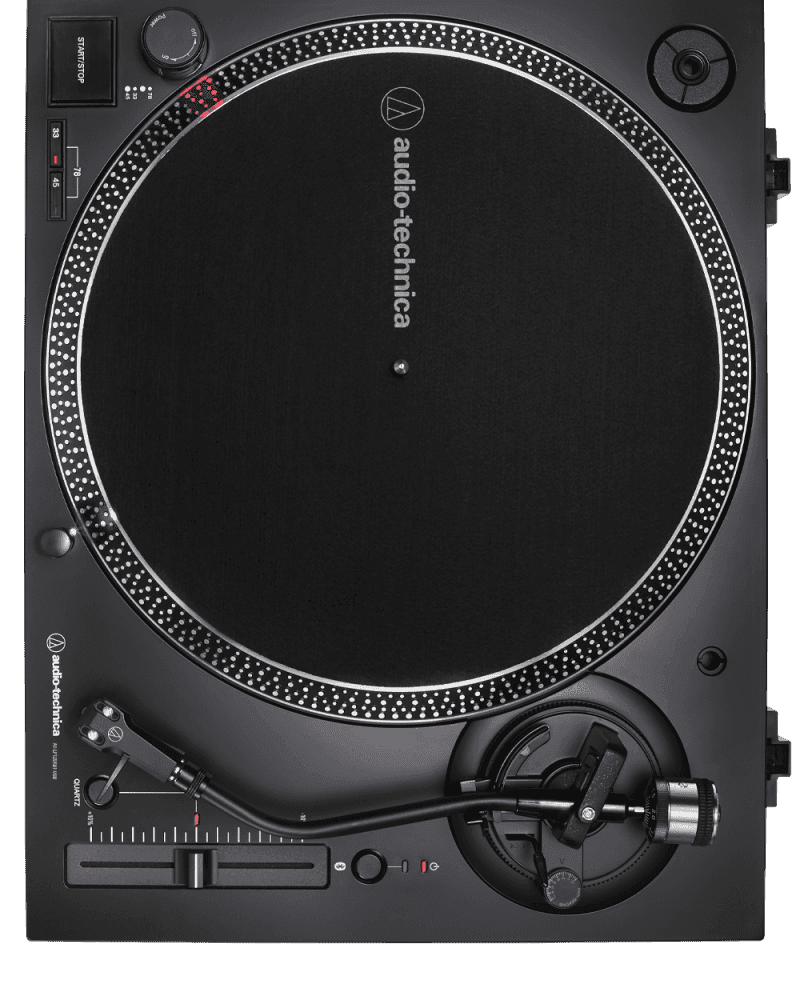

This fully manual turntable is modeled after the AT-LP120XUSB, but adds the convenience of Bluetooth® wireless connectivity to the existing analog and USB outputs.
Featuring a specially designed DC servo direct-drive motor and adjustable dynamic anti-skate control, the AT-LP120XBT-USB plays 33-1/3, 45, and 78 RPM records and outputs the high-fidelity audio to the device of your choice. Use the included RCA output cable along with the built-in selectable phono preamp to connect to your home stereo or powered speakers. Use the USB cable to connect to your computer and then download the free Mac- and PC-compatible Audacity recording software, or software of your choice, to start converting your records to digital audio files. Or use the Bluetooth wireless technology to pair the turntable with wireless speakers, headphones or other devices, including those that support the high-quality Qualcomm® aptX™ audio codec.

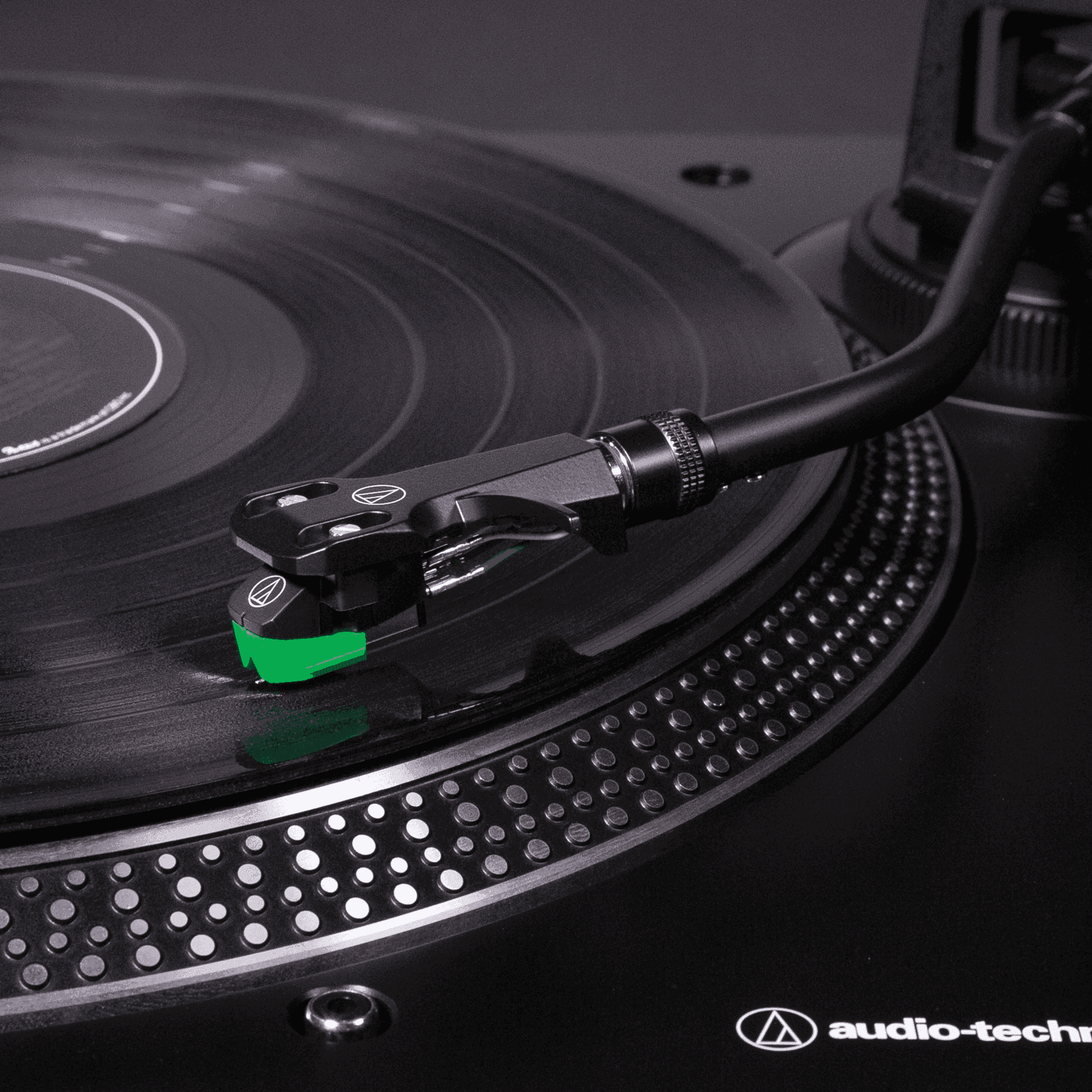

The turntable also features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½”- mount headshell with an AT-VM95E Dual Moving Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E. The cartridge comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
Additional professional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-10% adjustment range; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.
Connect to wireless speakers and headphones, computers, home stereos, and more. The AT-LP120XBT-USB features Bluetooth wireless technology, a USB cable, and a dual RCA output cable to give you a wide variety of listening options.
With its professional features and controls, the AT-LP120XBT-USB lets you shape your high-fidelity listening experience.
| Turntable | |
|---|---|
| Type | 3-speed, fully manual operation |
| Motor | DC servo motor |
| Drive Method | Direct drive |
| Speeds | 33-1/3 RPM, 45 RPM, 78 RPM |
| Turntable Platter | Die-cast aluminum |
| Starting Torque | >1.0 kgf.cm |
| Braking System | Electronic brake |
| Wow and Flutter | <0.2% (WTD) @ 3 kHz (JIS) |
| Signal-to-Noise Ratio | >50 dB |
| Output Level | Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized |
| USB Function | A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 2.0 Compliant Windows 7 or above, or MAC OS X or above |
| Power Supply Requirements | 100 to 240 V, 50/60 Hz, 1.5A Max |
| Power Consumption | 2.75 W |
| Dimensions | 452.0 mm (17.80″) W x 352.0 mm (13.86″) D x 141.6 mm (5.57″) H |
| Weight | 8 kg (17.6 lbs.), without dust cover |
| Accessories Included | AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2′) USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light |
| Tonearm Type | Balanced S-shaped tonearm with detachable headshell |
| Effective Arm Length | 230.5 mm |
| Overhang | 16 mm |
| Tracking Error Angle | Less than 3 degrees |
| Applicable Cartridge Weight | 3.5-8.5 g |
| Anti-skating Range | 0-4 g |
| Replacement Stylus | AT-VMN95E |
| Communication System | Bluetooth Version 5.0 |
| Maximum Communication Range | Line of sight – approx. 10 m (33′) |
| Compatible Bluetooth Profile | A2DP |
| Support Codec | SBC, Qualcomm® aptX™ audio |
