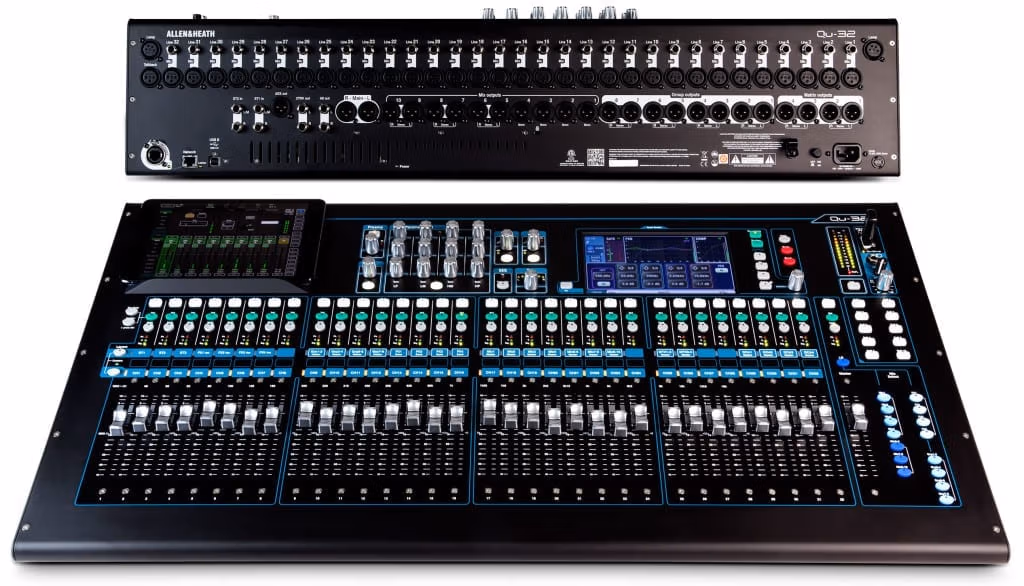

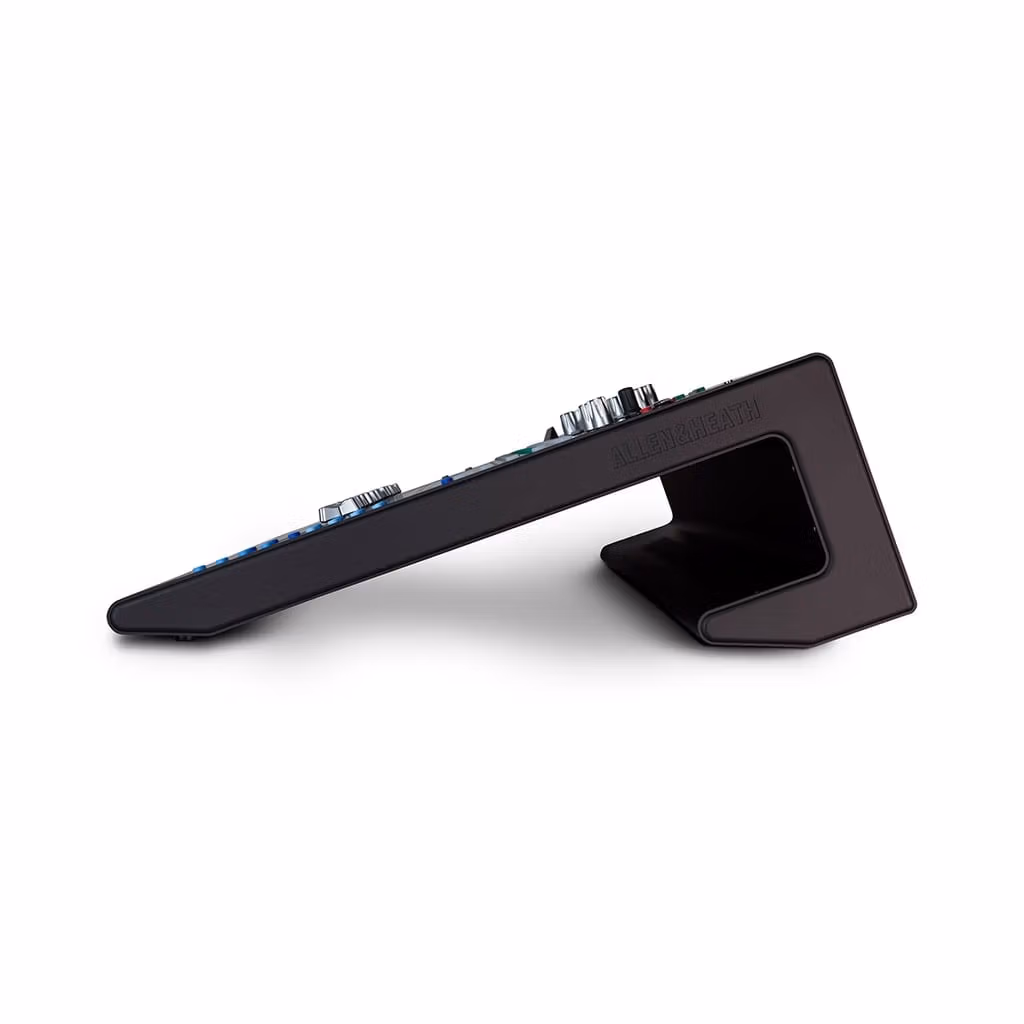

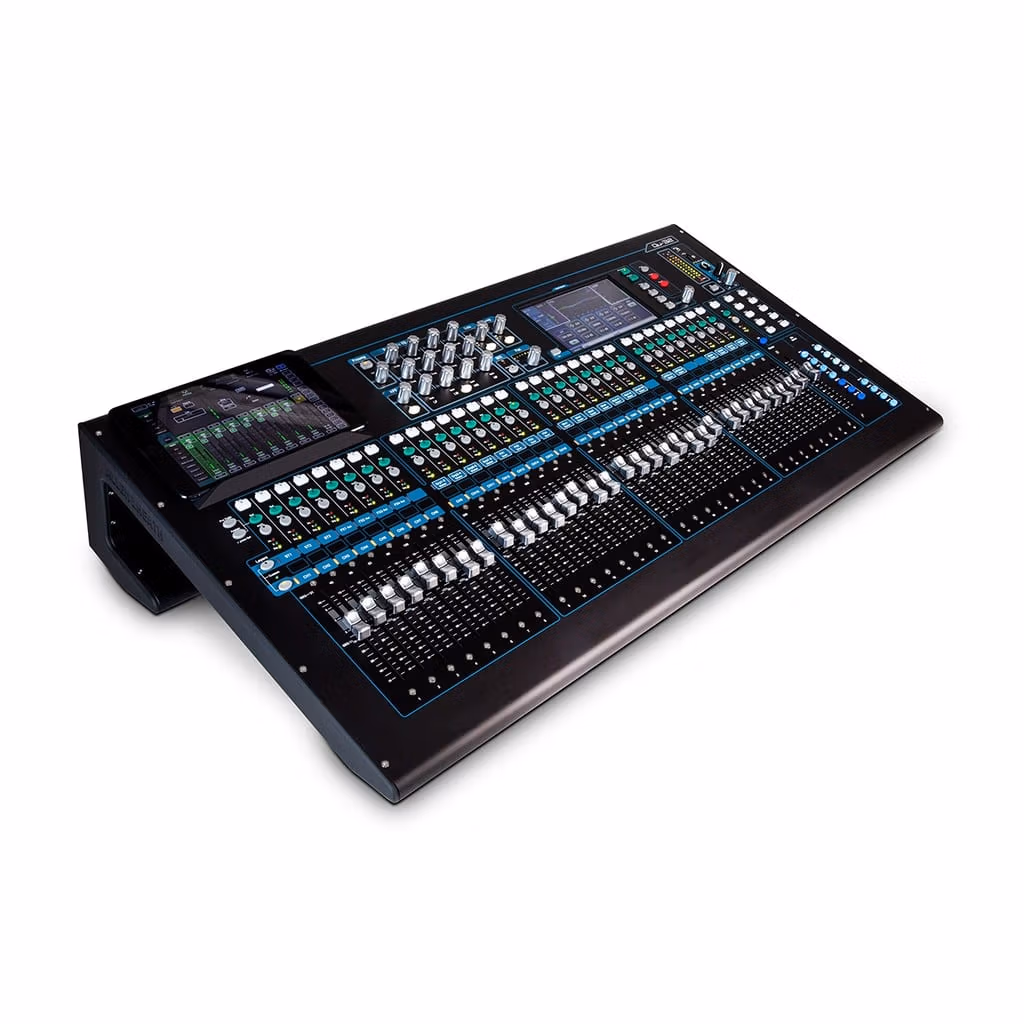

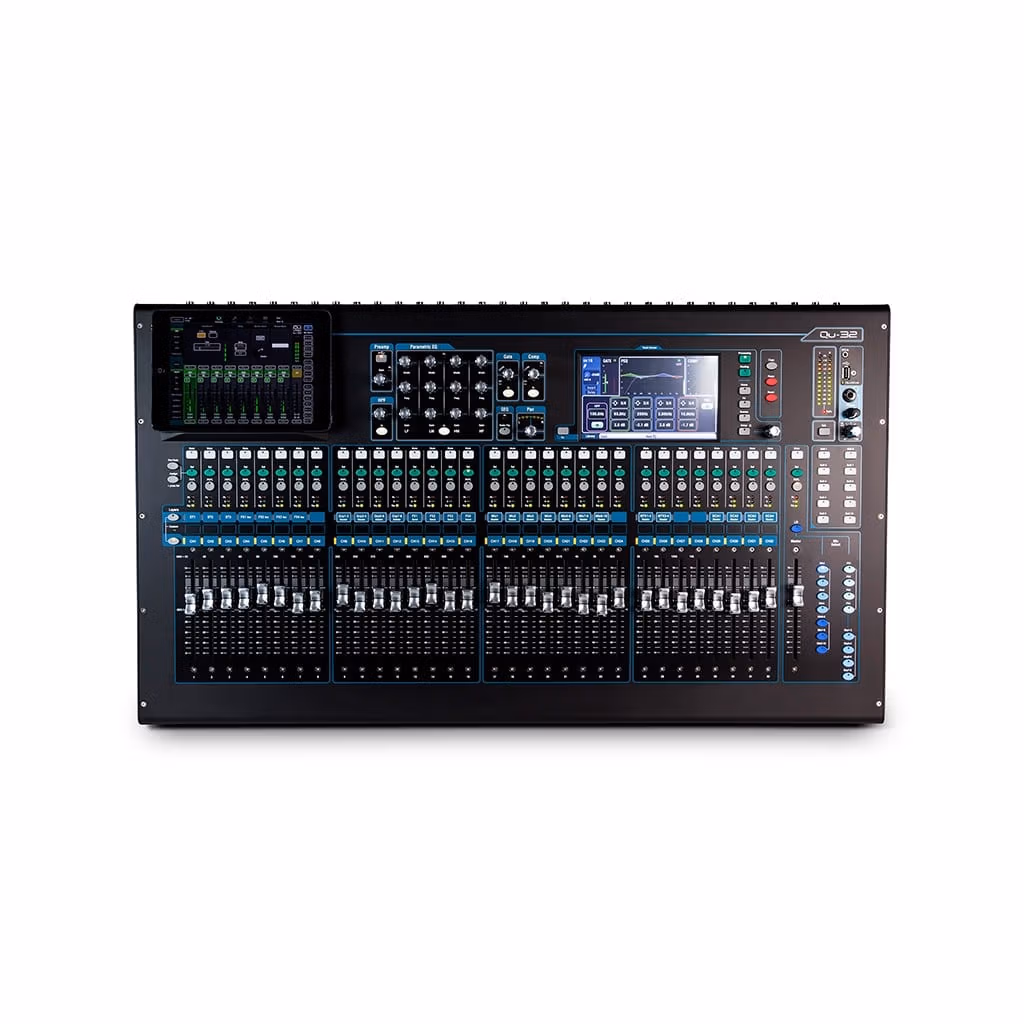

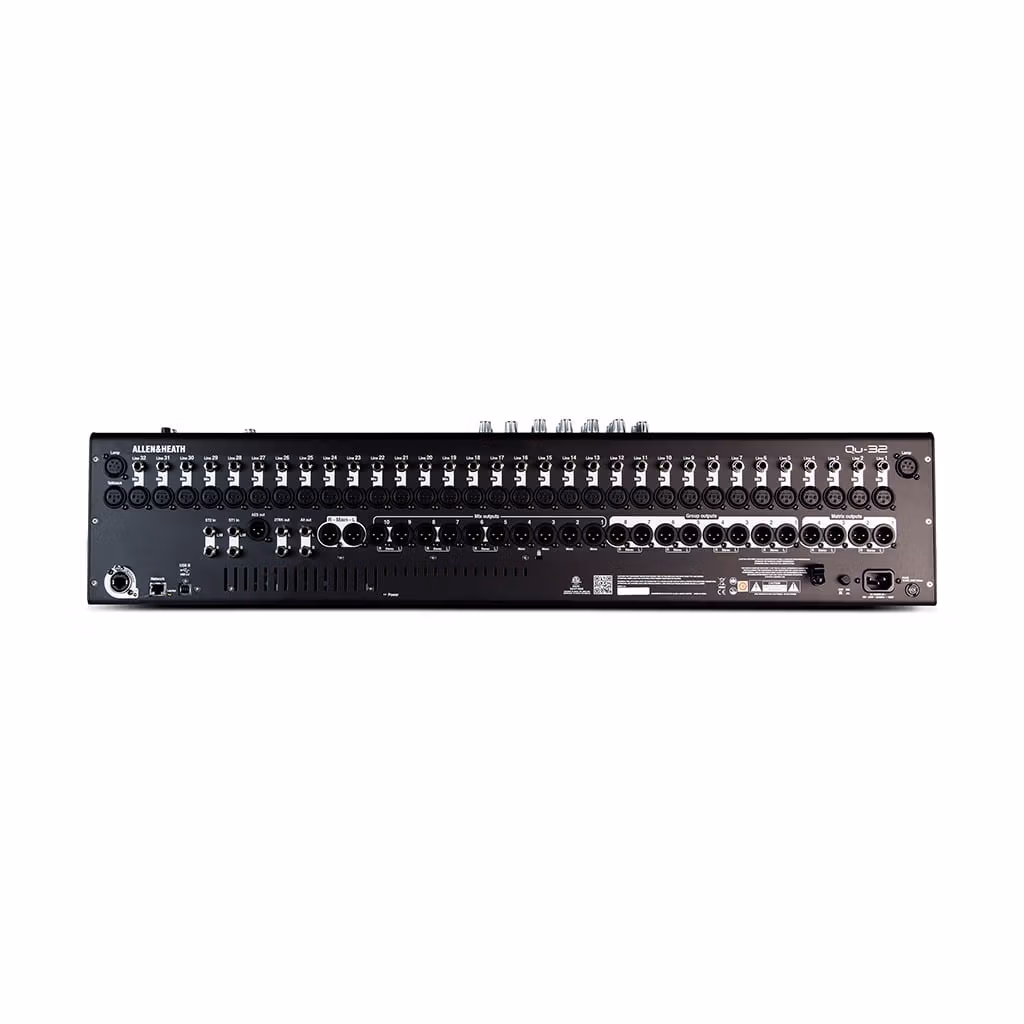

Allen & Heath QU-32C

R70,495.00


32-channel Digital Console with 33 Motorized Faders, Instant Recall, Parametric EQ, Touchscreen Control, 5 Cores of ARM DSP Processing, 4 Onboard FX Engines, and Integrated Multitrack USB Recorder

Availability: In stock

Or split into 4x interest-free payments Learn more
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: ALLE-QU 32C Categories: Brand:

Product Description

Whether you’re recording in the studio or mixing front of house, your mixer is the core of your operation. If it fights you, your work suffers. Many digital consoles are inscrutable on the surface, forcing you to descend into menu purgatory just to perform a simple function. The Allen & Heath Qu-32 Chrome Edition is designed with a clean, logical layout, so you can get to what you need, fast. Featuring audiophile sound quality, touchscreen control, 32 AnalogiQ preamps integrated with DSP, instant recall, 33 motorized faders, high-efficiency ARM core processing, studio-grade effects, an integrated multitrack USB recorder, and truckloads more, the Allen & Heath Qu-32 Chrome Edition will drastically improve both your workflow and your end product.

Allen & Heath Qu-32 Chrome Edition Digital Console Features:

  • 32 AnalogiQ total-recall preamps integrated with DSP for optimum transparency and gain accuracy
  • Ergonomic layout and workflow is comfortable, fluid, and intuitive
  • Color touchscreen and dedicated data encoder give you quick and easy access to all settings
  • Key processing tools are presented clearly on the SuperStrip, with 1 function per physical control
  • 33 automated, motorized ALPS faders (32 arranged over two layers) speed up and enhance your mixing
  • 4 groups give you subgrouping flexibility to LR for level masters and/or processing
  • Instant recall lets you save and recall scenes (snapshots) at the press of a button
  • Onboard studio-grade dynamics and FX algorithms derived A&H’s iLive pro touring series
  • Built-in interface streams multitrack audio to/from your Mac (OSX class-compliant)
  • Plug-and-play with any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools
  • Qu-Drive delivers 18 channels of 24-bit/48kHz recording/playback to/from your USB hard drive
  • 5 dedicated cores of high efficiency ARM processing provide state-of-the-art processing
  • Optional Qu-Pad app frees you to tweak monitors and PA from your iPad, onstage or around the venue
  • Fully compatible with A&H’s ME Personal Mixing System
  • dSNAKE port lets you connect to a remote AR2412 or AR84 Stagebox via Cat 5e digital snake
  • Matrix adds 2 further stereo outputs equipped with full processing to the console’s extensive I/O
  • 18-gauge, cold-rolled Zintec steel frame delivers strength, rigidity, and distinctive looks
Feature Summary

– 32 Mono Mic/Line Inputs (TRS + XLR)

– Recallable AnaLOGIQTM Preamps

– 3 Stereo Inputs (TRS)

– 24 Mix Outputs (XLR)

– 4 Stereo Groups (switchable to Mix mode)

– Up to 11 Monitor Mixes (4 mono + 7 stereo)

– 2 Stereo Matrix Outs

– 4 FX Engines

– 4 dedicated FX Sends / Returns

– 4 Mute Groups

– 4 DCA Groups

– AES Digital Out

– 32×32 USB Audio Interface

– dSNAKETM Remote Audio Port

– 33 Motor Faders

– 7” Touchscreen

– 10 Soft Keys

– Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs

– Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs

– Automatic Mic Mixer

– Channel Ducker on all inputs

– ProFactory Mic Presets

– RackFX Library

– Built-in Signal Generator

– RTA with Peak Band indication

– Spectrogram to aid feedback elimination and room acoustics

– Automatic Mic Mixer

– Qu-Drive Direct Multitrack Recording / Playback on USB drives

– DAW MIDI Control

– Qu-Pad iPad App

– Qu-You iPhone / Android personal monitoring app

– Qu-Control customisable iOS app for simple wireless control

– Compatible with ME Personal Mixing System

– High contrast metallic finish controls, matching premium GLD Chrome series
