ADASTRA – RX45 ADVANCED AUDIO MATRIX USB/BT/DAB+

USB/BT/DAB+
In stock at supplier
View details

R15,300.00


USB/BT/DAB+

Availability: In stock

Add to wishlist
Add to quote
SKU: 953.046AD Categories: Brand:

Product Description

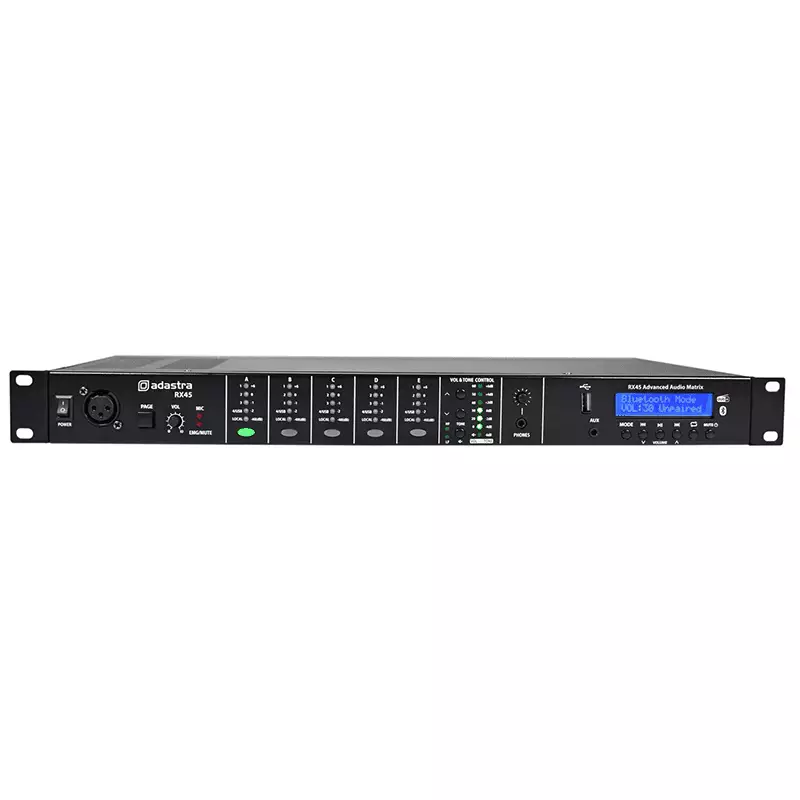

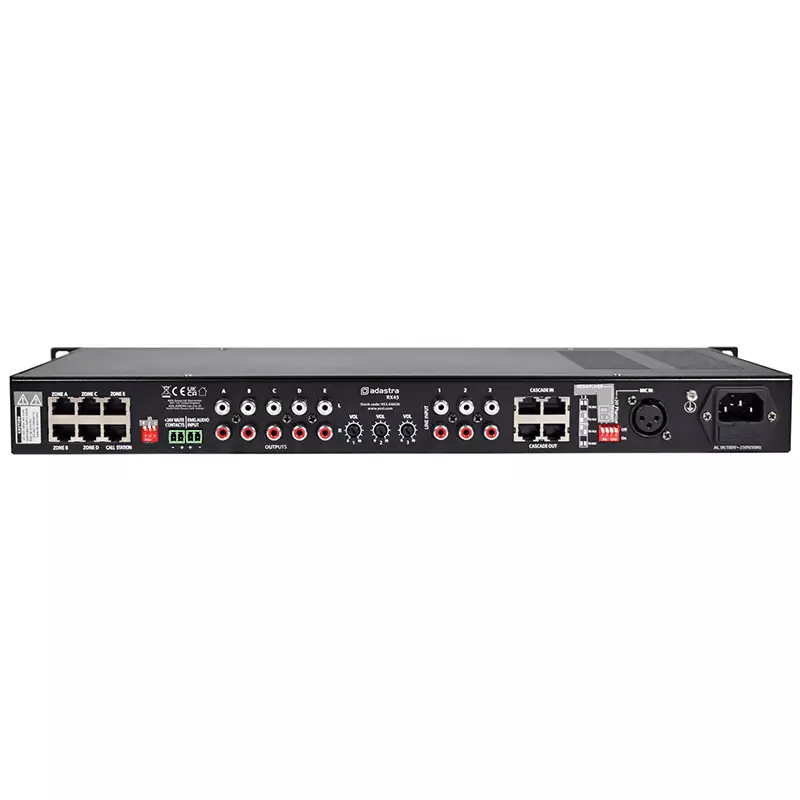

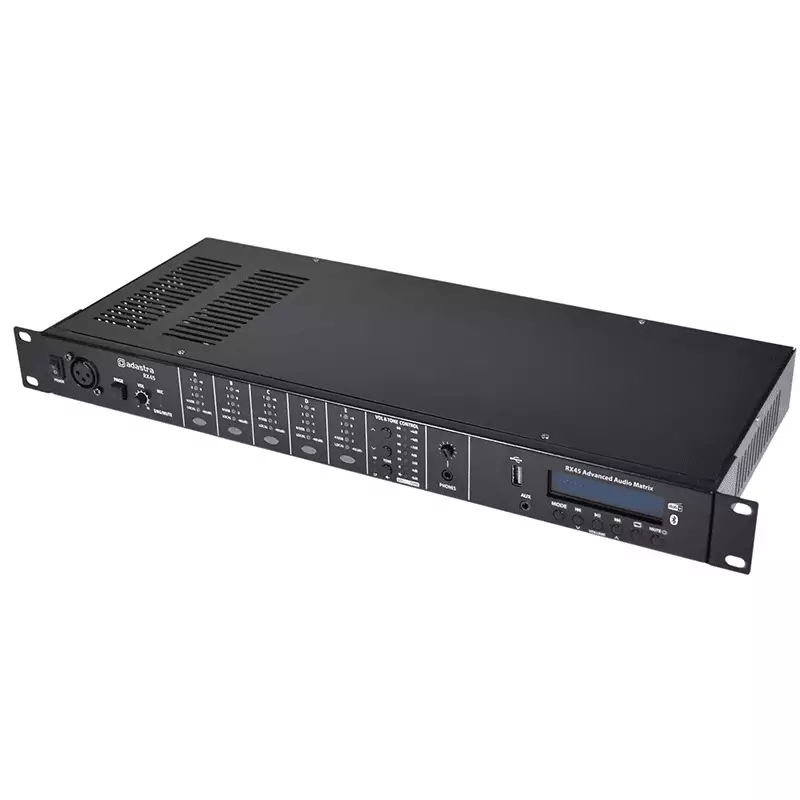

RX45 is a 1U rack-mountable audio matrix feeding 4 selectable inputs to 5 stereo outputs. An inbuilt audio player section features playback from USB media, DAB+ tuner or Bluetooth. Each zone output has a push button and LED ladder on the front panel for selecting the input source and adjusting level and tone settings in the master section. Connecting optional TR86 wall plates via CAT5 cable enables remote source and level selection for any zone. The output for the selected zone may be monitored through a headphones output on the front panel. The RX45 system is expandable using multiple RX45 units cascaded together via dual CAT5 links, with DIP switches to assign one of 8 different IDs to each connected RX45 unit, providing up to 40 distinct zones. Additional DIP switches can be set to link the audio player from one unit to one or more connected slaves.

Power supply: 100-250Vac, 50/60Hz (IEC lead included)

Fuse: T1AL

Audio source: USB/DAB+/Bluetooth audio player

Bluetooth version: 5.0

Inputs: Paging mic. (XLR), 3 x stereo line (RCA) + call station (RJ45)

Microphone : input sensitivity: -41dBV

Line input : sensitivity: -12.5dBV

Call station input : sensitivity: +4dBV

Emergency control: 24V mute contacts and emergency audio input

EMG input: sensitivity: -10dBV

Signal to noise ratio : mic: 65dB

Signal to noise ratio : line: 73dB

Outputs: 5 x stereo zones (RCA)

Output impedance : line: 600 ohms

THD +N: <0.1% @ 1kHz

Monitor outputs: Stereo 3.5mm headphone jack (selected channel)

Phantom power: +24V switchable for paging mic.

Remote control connection: 8P8C (RJ45)

Link connection: 2 x 8P8C (RJ45)

Frequency response : ±3dB20Hz : – 20kHz

Attenuation: -30dB (paging)

Dimensions: 44 x 190 x 483mm

Weight: 2.608kg
