Adastra – ML622 1U MIC/LINE RACK MIXERS
R5,520.00
6 Mic 2 AUX
Availability: In stock
Product Description

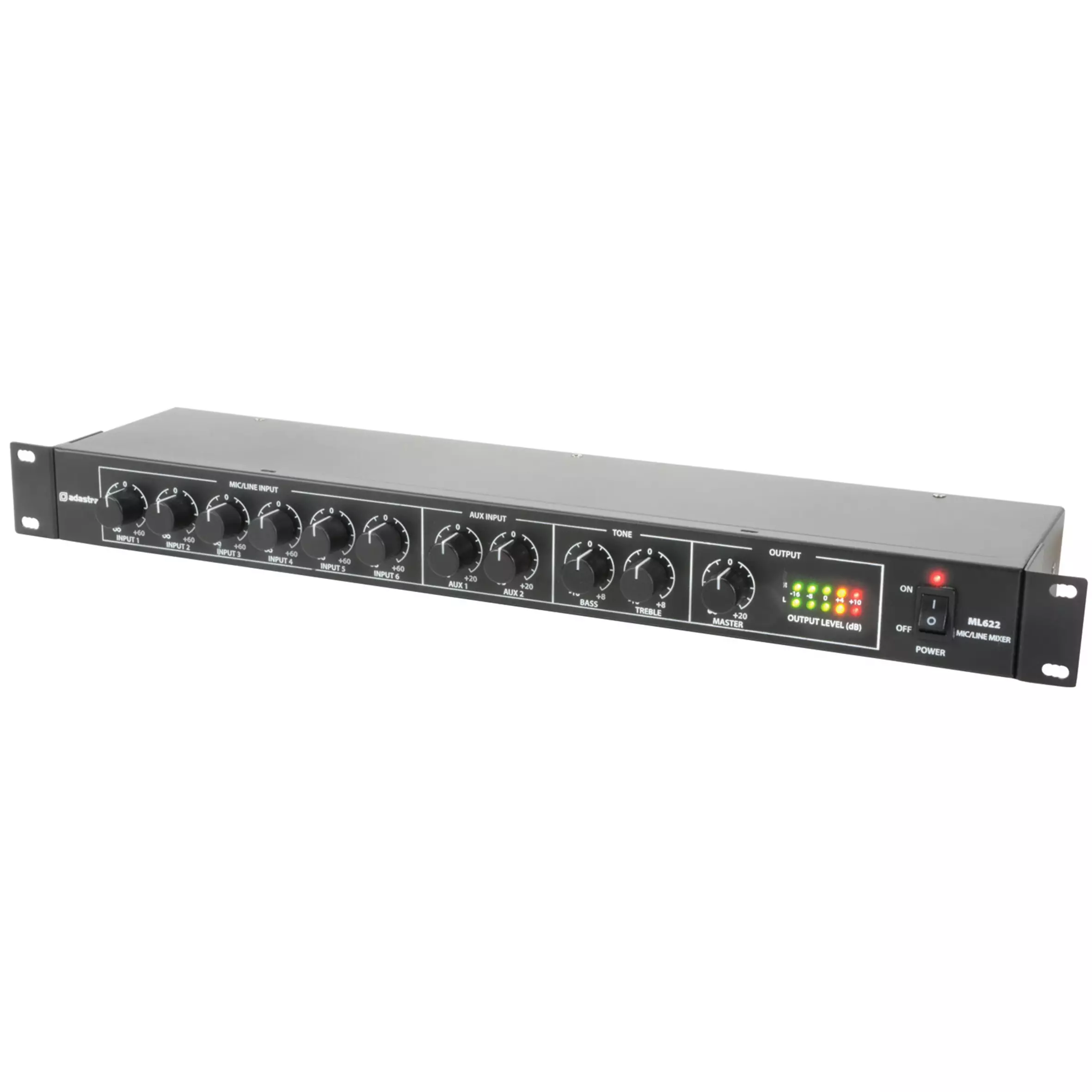

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.
Power supply: 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
Fuse: T1AL 250V (mains) or F500mA (24Vdc)
Inputs : mic/line: 6 x balanced XLR
Inputs : aux: 2 x L+R RCA

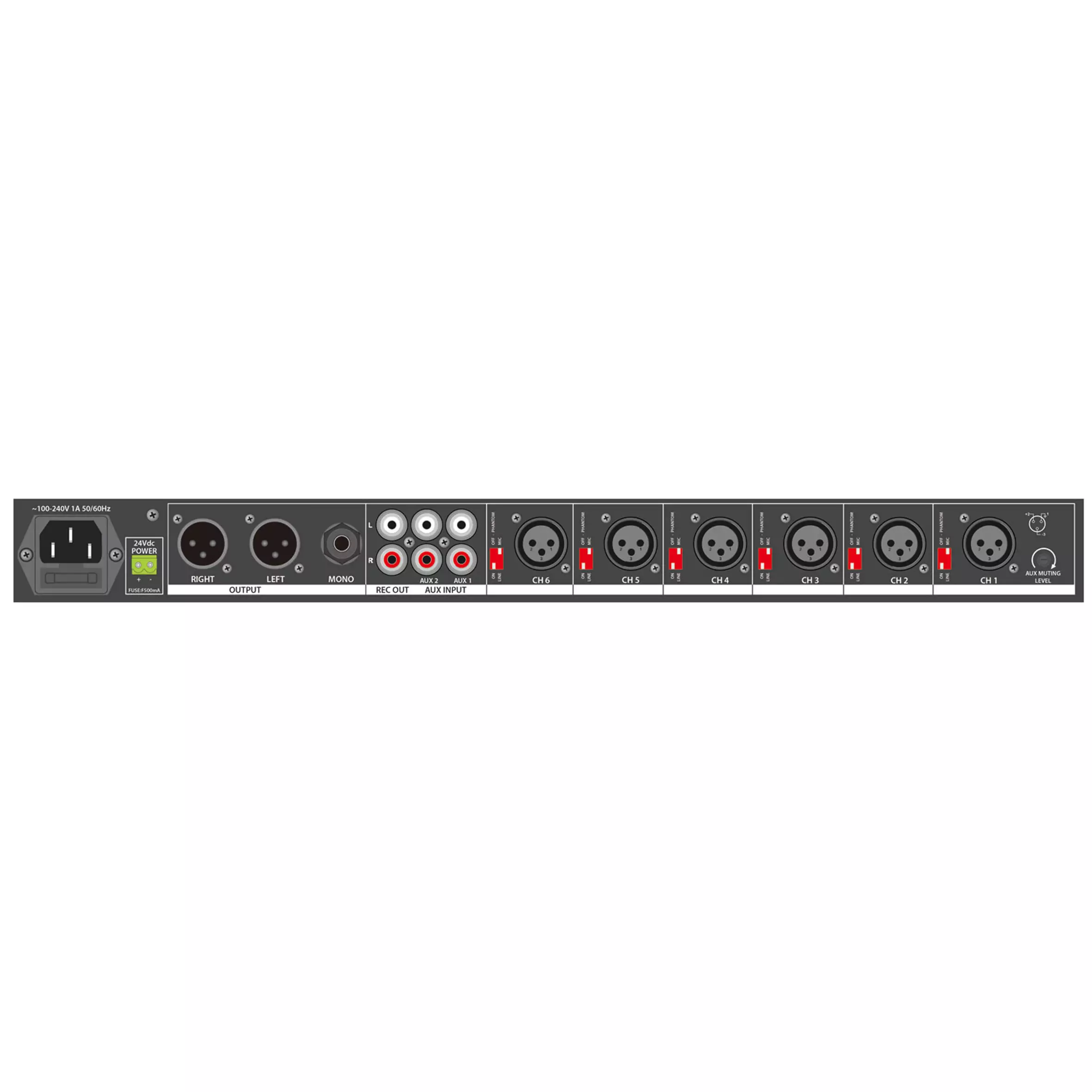

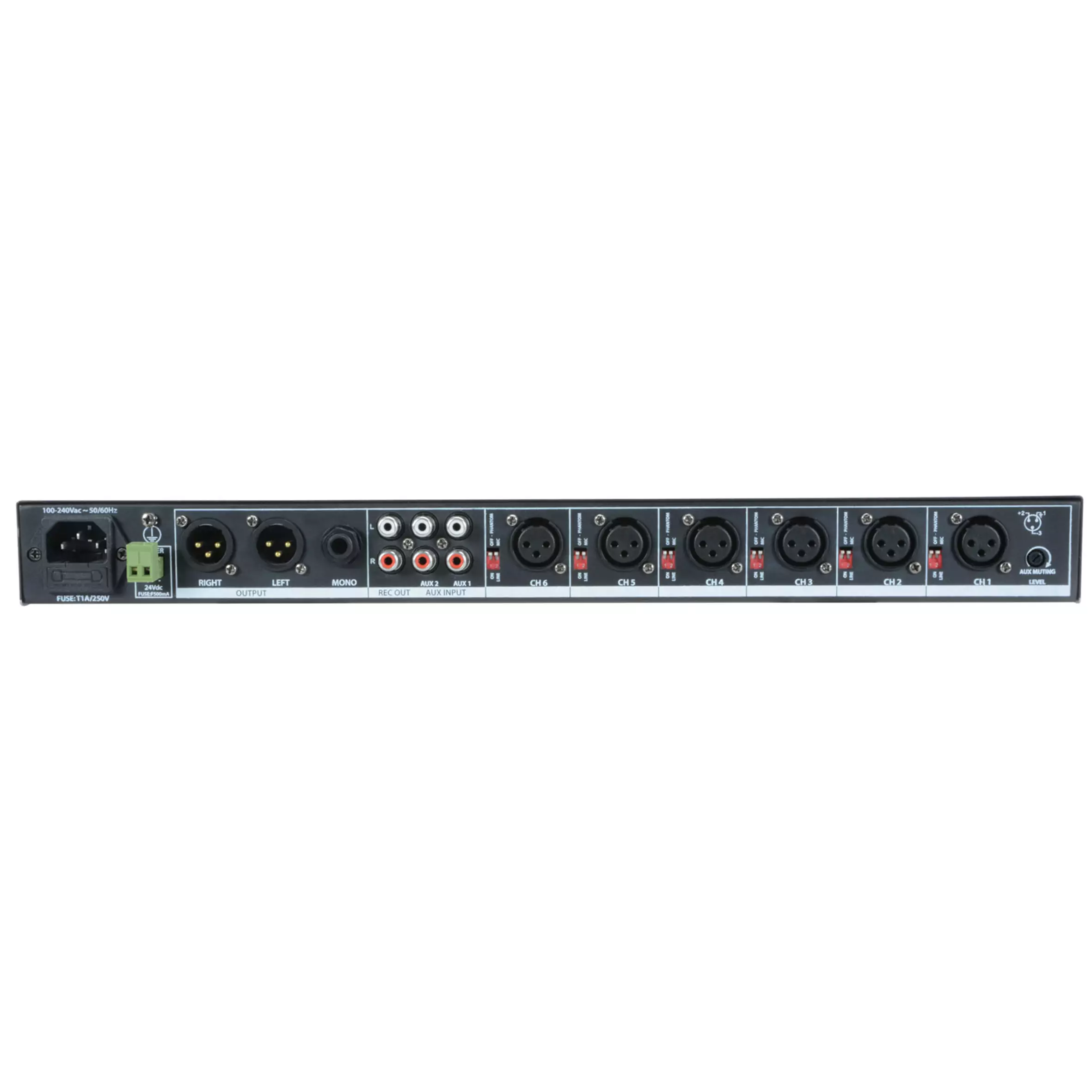

Outputs: L+R XLR, mono 6.3mm jack, L+R RCA (REC)

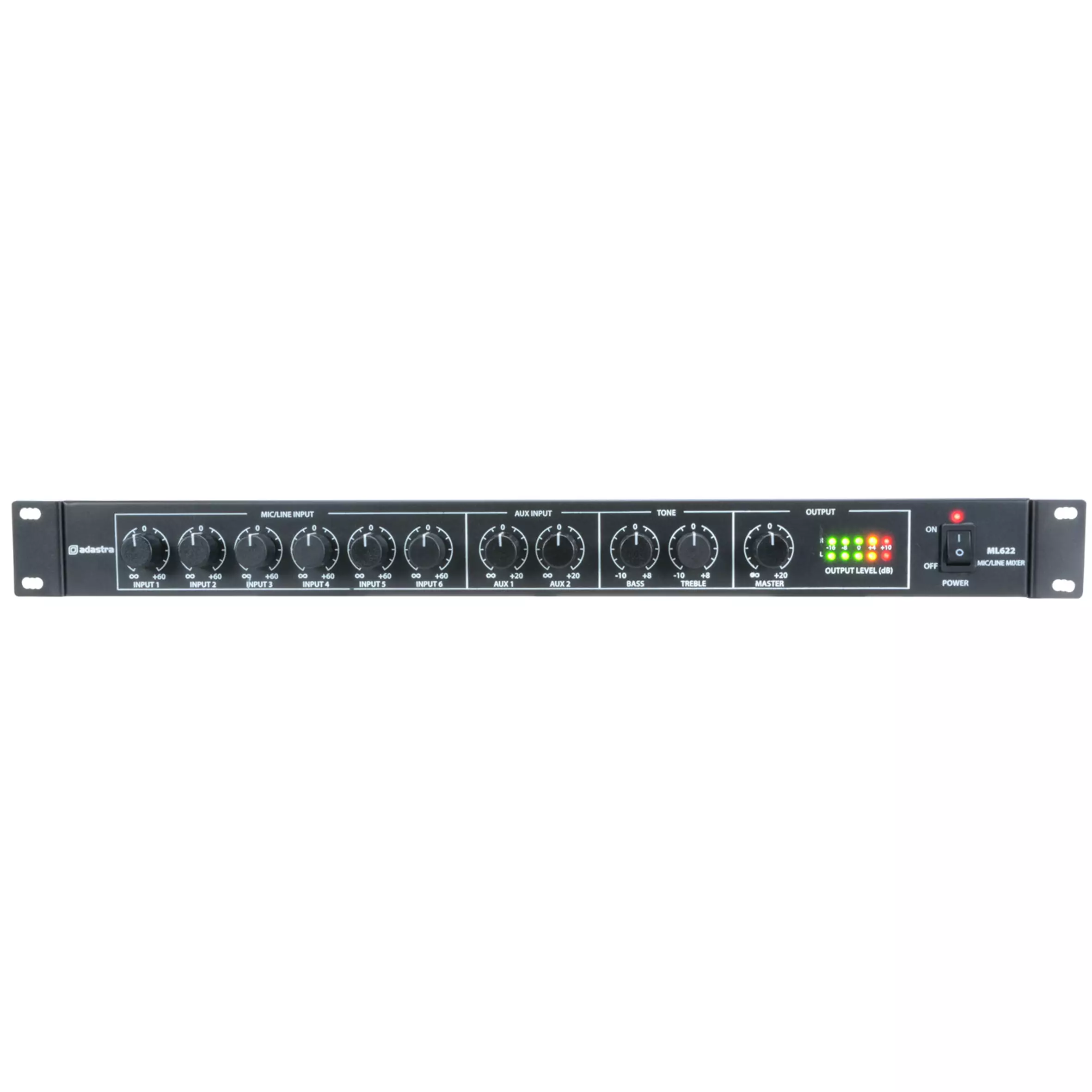

Controls: 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
Input impedance: 3.3k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic: 20Hz – 18kHz
Frequency response : line: 14Hz – 20kHz
Frequency response : aux: 10Hz – 23kHz
Input sensitivity : mic: -45dBV
Input sensitivity : aux/line: -10dBV
Signal to noise ratio : mic: 55dB
Signal to noise ratio : aux/line: 60dB
THD: 0.05%
Dimensions: 482 x 130 x 44mm
Weight: 1.43kg
Phantom power: +20Vdc (switchable)
