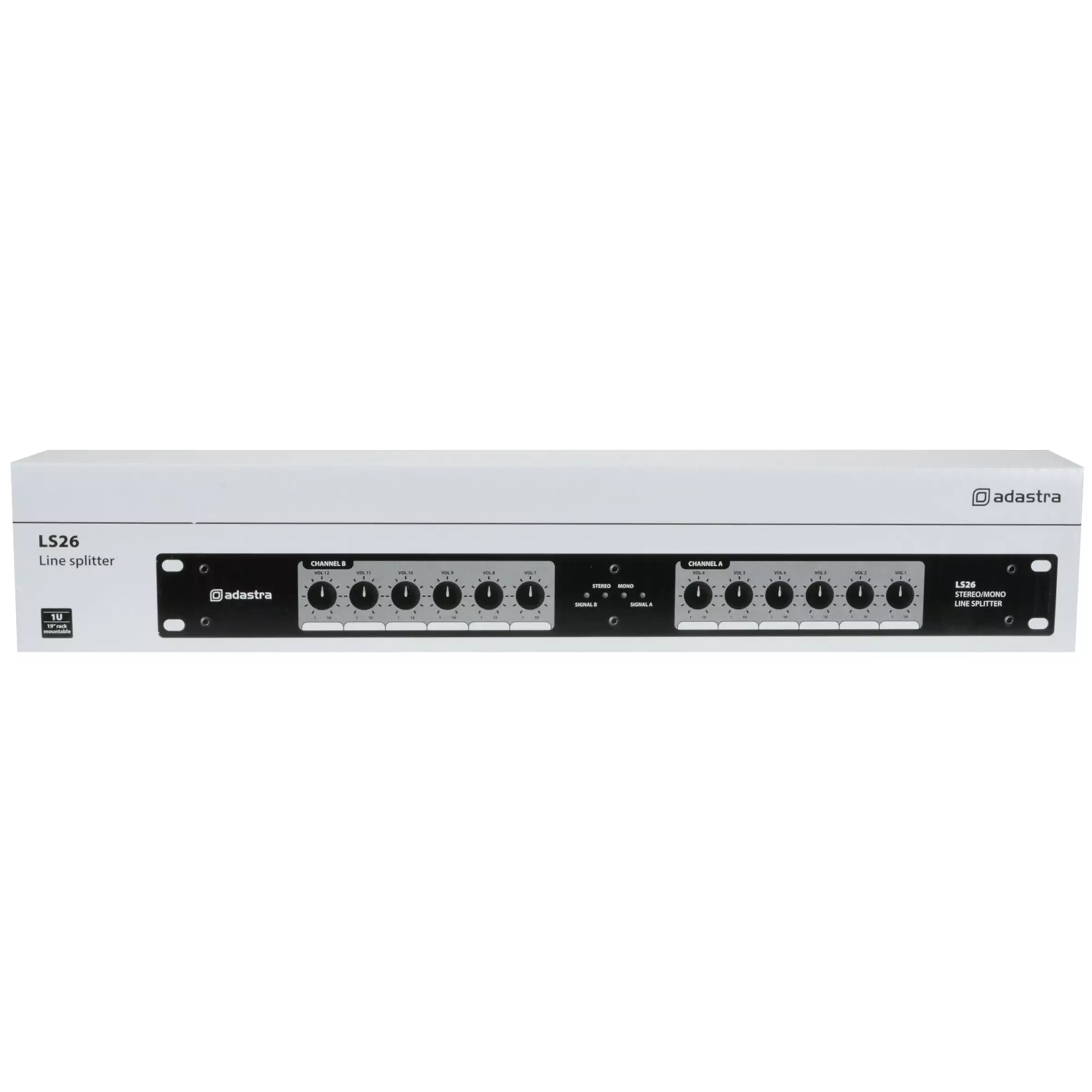

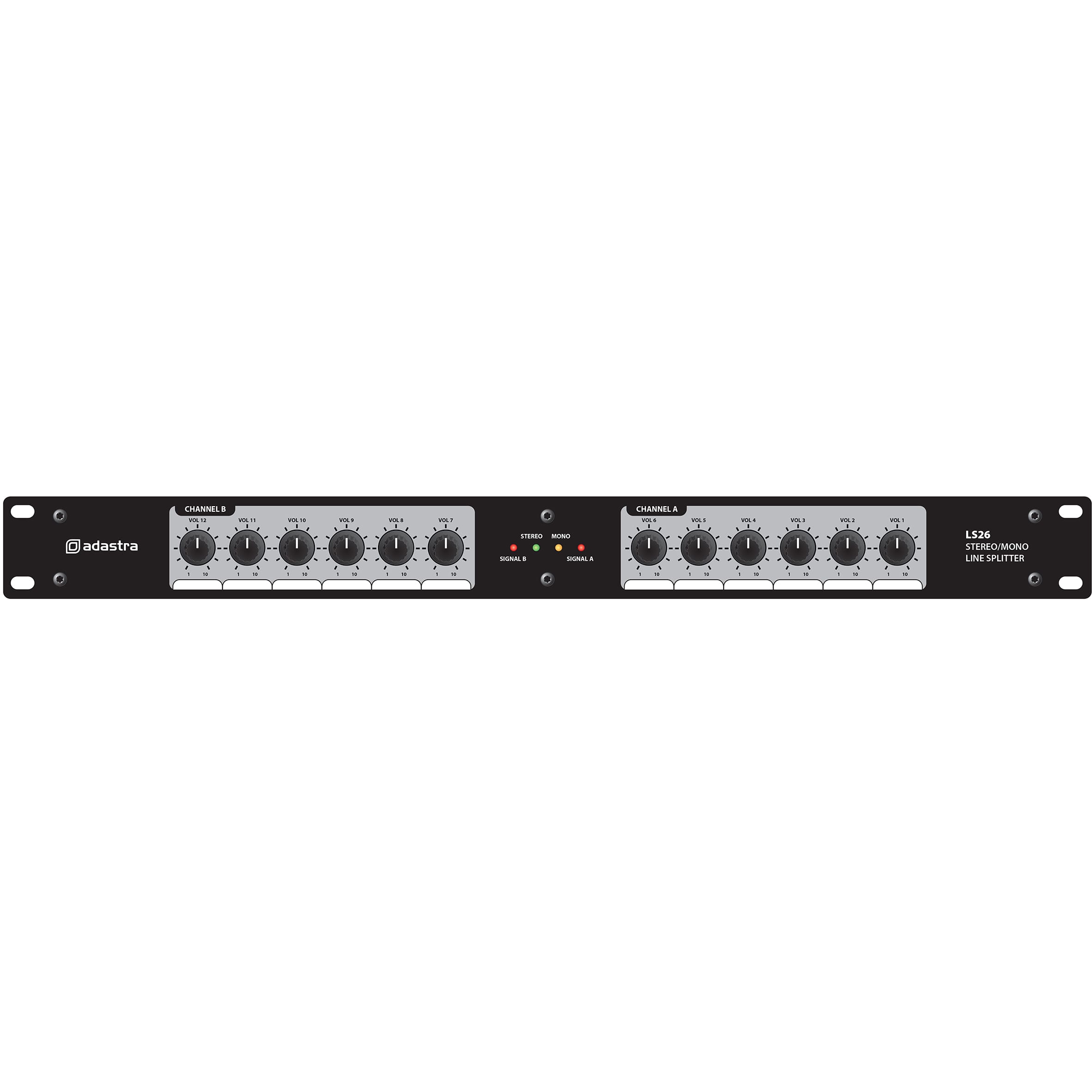

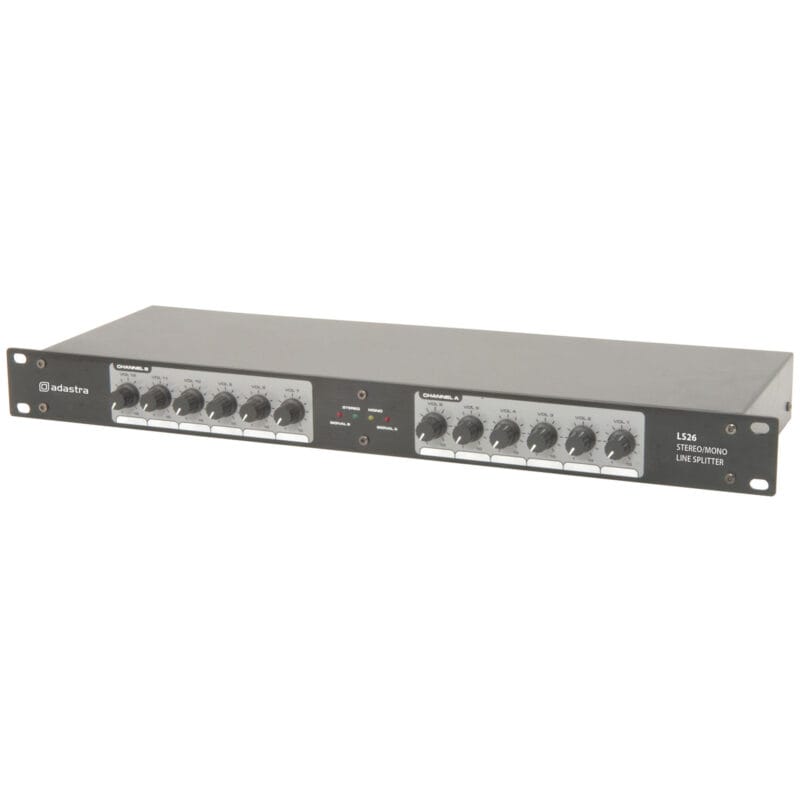

Adastra – LS26 LINE SPLITTER

Line splitter
In stock at supplier
View details

R3,215.00


Line splitter

Availability: In stock

Add to wishlist
Add to quote
SKU: 953.022 Categories: Brand:

Product Description

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.

Power supply: 115/230Vac, 50/60Hz (IEC)

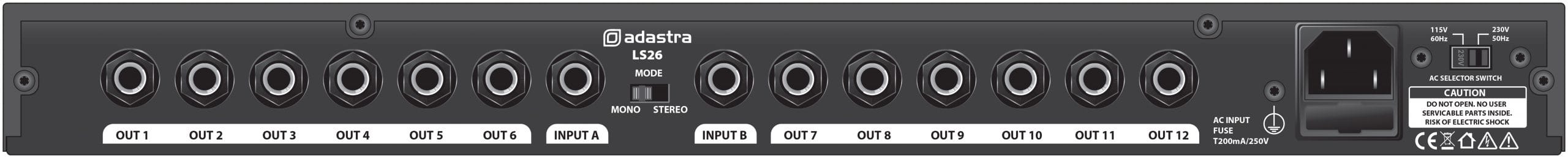

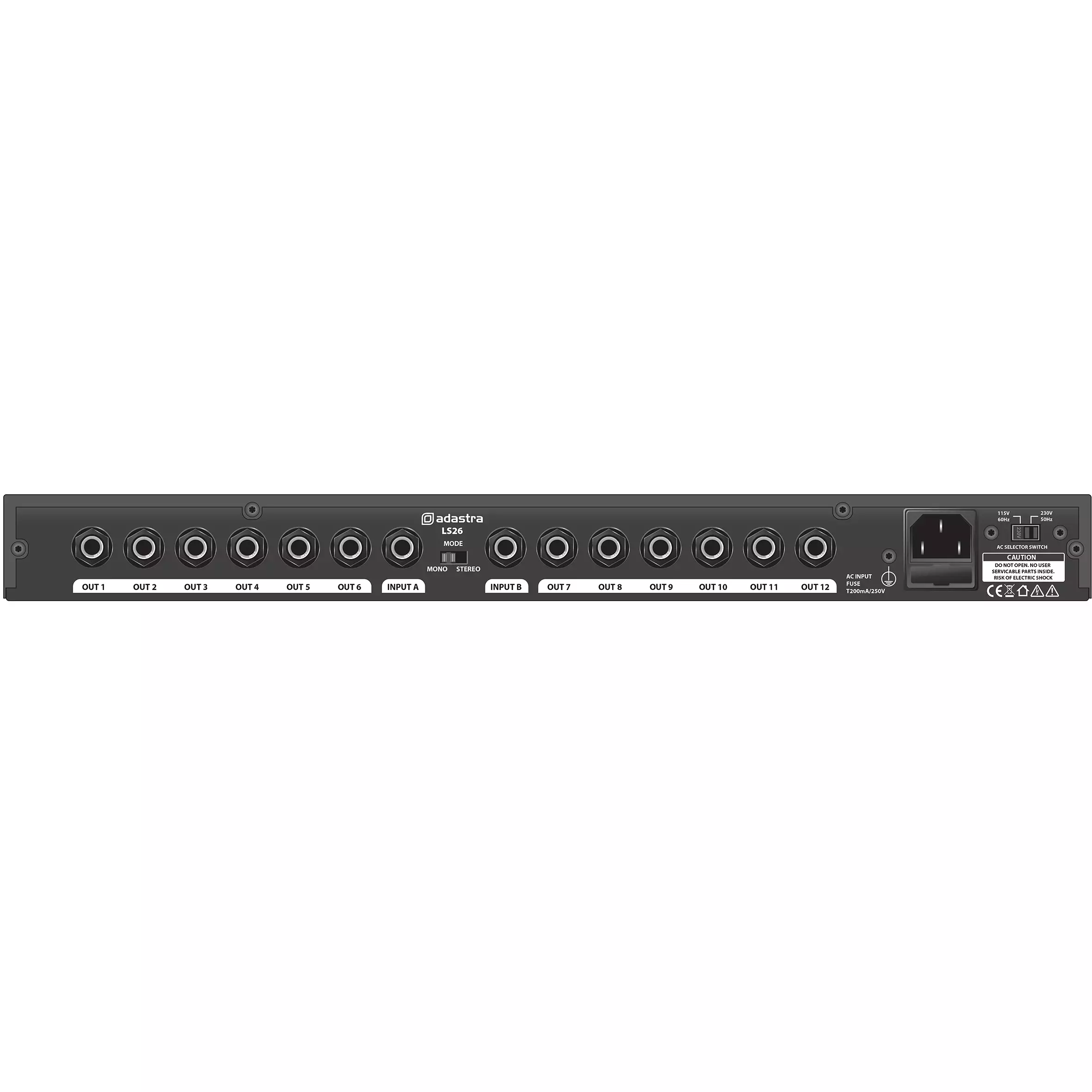

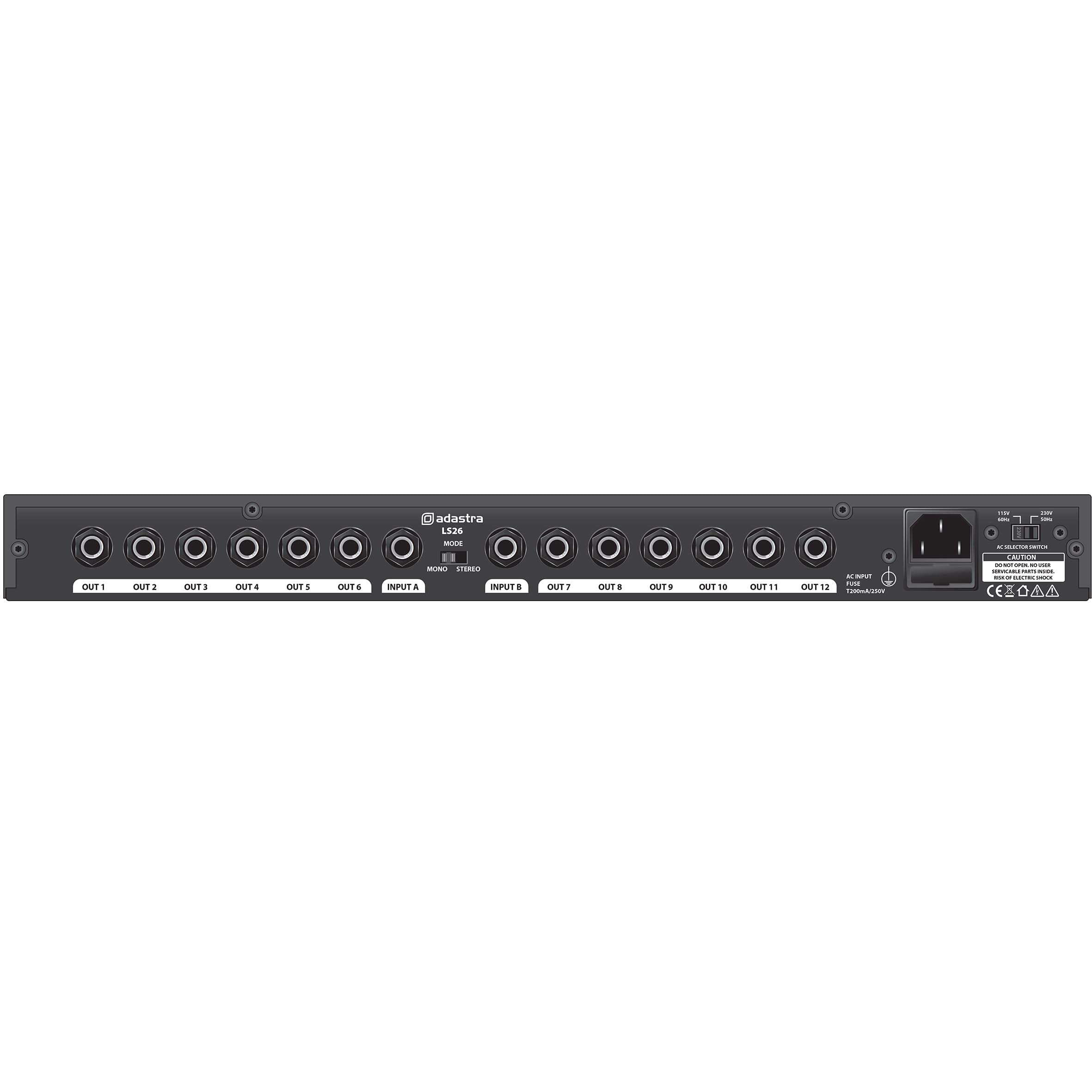

Inputs: A & B, (6.3mm jack)
Outputs: 1 – 6 & 7 – 12 (6.3mm jack)
Input impedance: 20k Ohms
Output impedance: 220 Ohms
Frequency response: 20Hz – 20kHz, +0/-1dB
Signal to noise ratio: >95dB
THD: <0.008% Dimensions: 483 x 44 x 170mm Weight: 2.0kg
