ADASTRA – DM-8 1U DIGITAL MESSAGING UNIT

Name: ADASTRA - DM-8 1U DIGITAL MESSAGING UNIT
Brand: Adastra
SKU: 953.053AD
Availability: InStock

In stock at supplier

View details

R4,795.00

1U Digital Messaging Unit

Availability: In stock

Add to quote

SKU: 953.053AD Categories: All Products Installation Mixing Consoles Mixing consoles New Products Z10 Brand: Adastra

Product Description

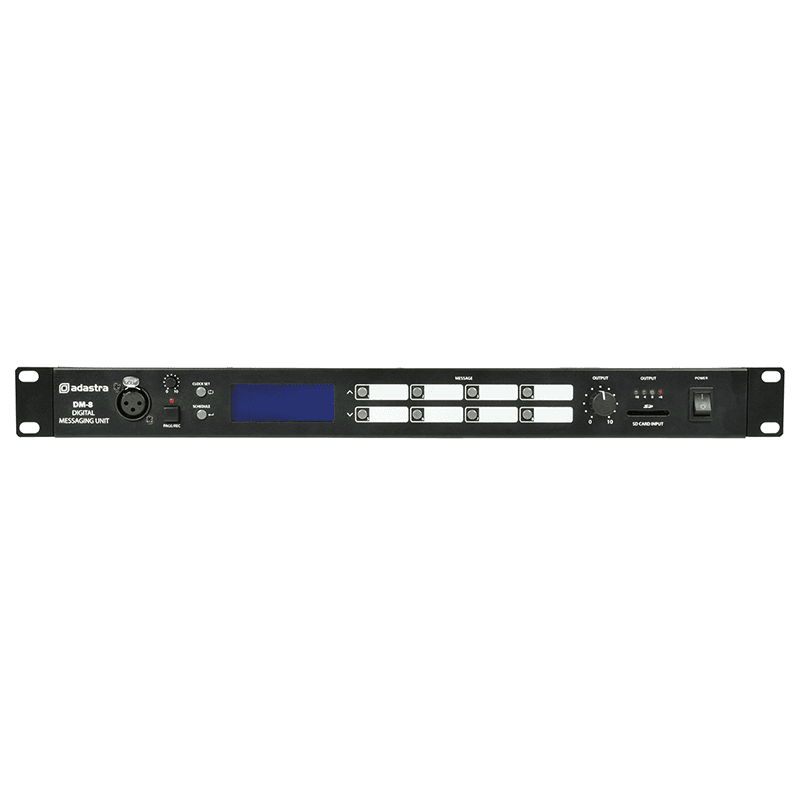

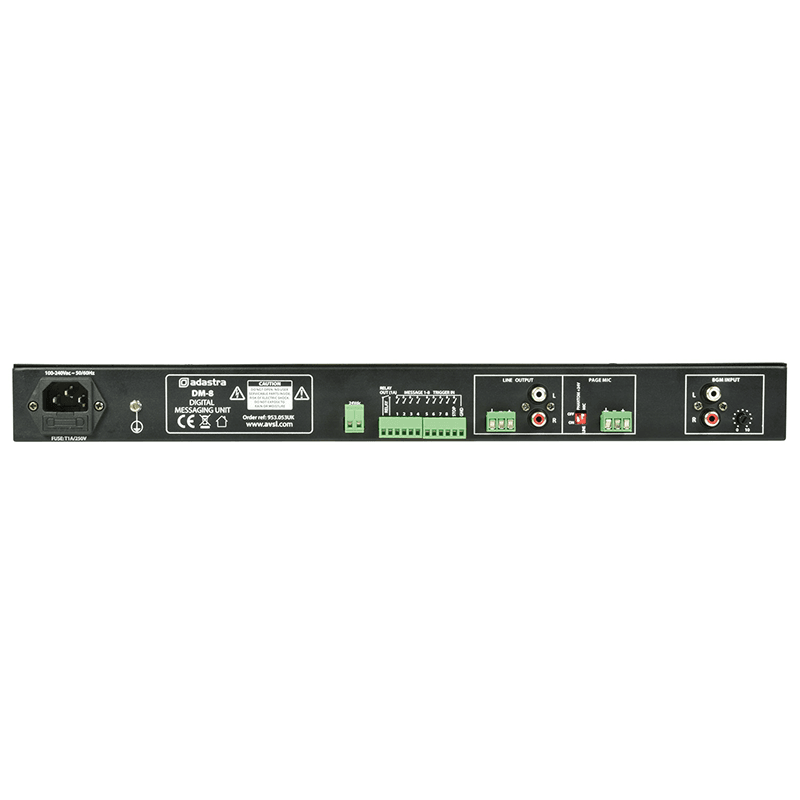

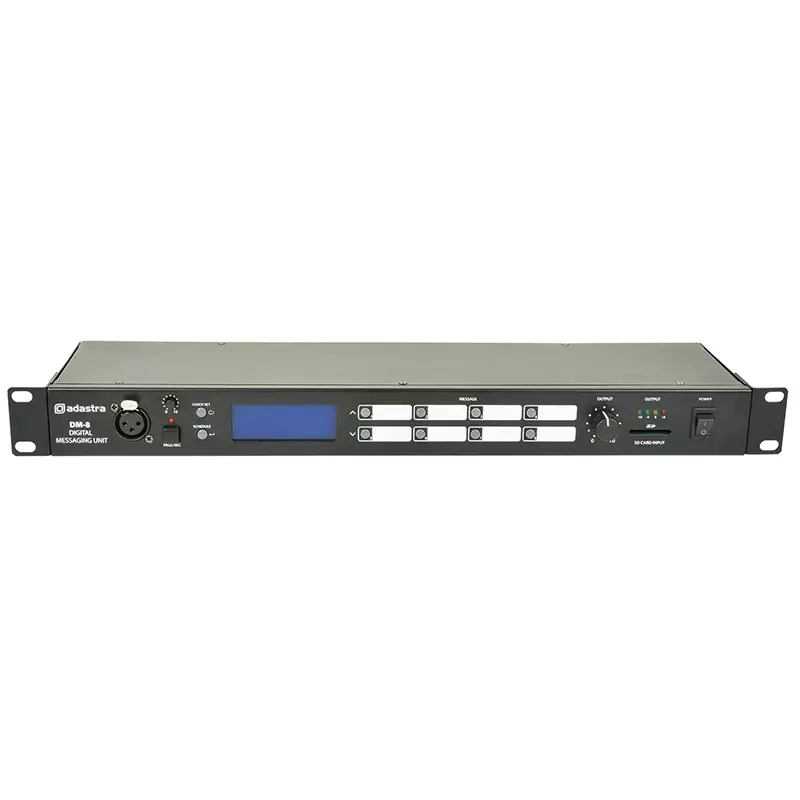

1U rack-mount digital messaging unit for scheduled audio playback. Audio files are stored on a removable SD card and may be transferred by inserting into a PC or directly recorded on the DM-8. Schedules are also stored on the SD media as a separate file, which can be edited with a PC and stored for backup. Separate SD cards may be saved with different audio messages and schedules and swapped for different routines. A mic/line input can be used for recording or for live announcements which can override SD playback. A BGM line input is provided for background music playback with its own level control and is muted when messages are playing or during paging. Up to 99 schedules can be programmed to play a particular audio file from the SD card, set by 24 hour time and day(s) of the week. The DM-8 can be added to any sound system to provide automated playback of timed announcements, music or audio alerts.

Power supply: 100-240Vac, 50/60Hz or 24Vdc

Fuse: T1AL 250V

Battery: CR2016 button cell (internal clock)

Input: XLR or terminal (bal/unbal) mic/line

Output: Mono balanced terminal or unbalanced RCA

Audio source: Internal SD card player

Time setting: 99 programmable schedules – 24 hour + day(s) setting

Mic/line channel controls: Mic/Line level, Phantom power on/off, Vox priority on/off (DIP switches)

Phantom power: +20V

Input impedance: 2.2k Ohms (mic/line)

Controls: Data Dial, Edit buttons, Message, Mic/Line, Output level, power on/off

Trigger: Message 1-8, Stop & Ground contacts
