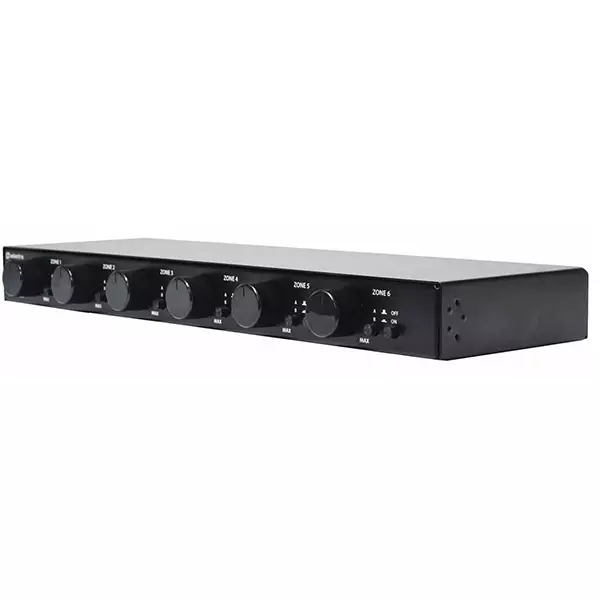

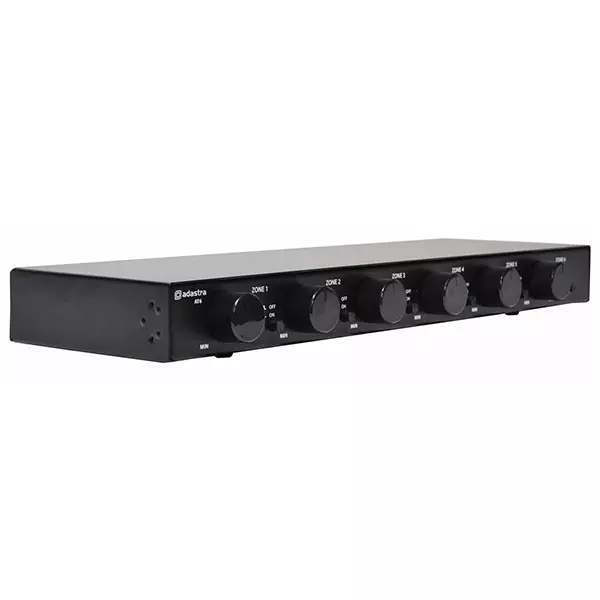

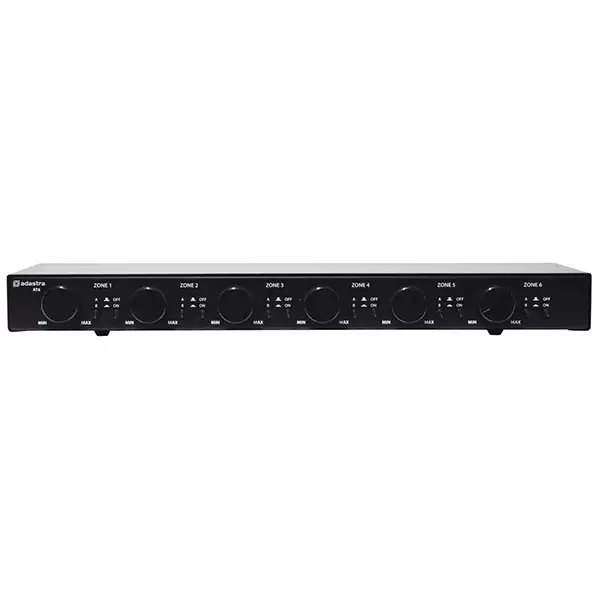

Adastra – AT6 6-WAY 100V SPEAKER SELECTOR SWITCH TWO ZONE WITH VOLUME CONTROL 6x 30W
R3,555.00
6x 30W 2 zone
Availability: In stock
Product Description

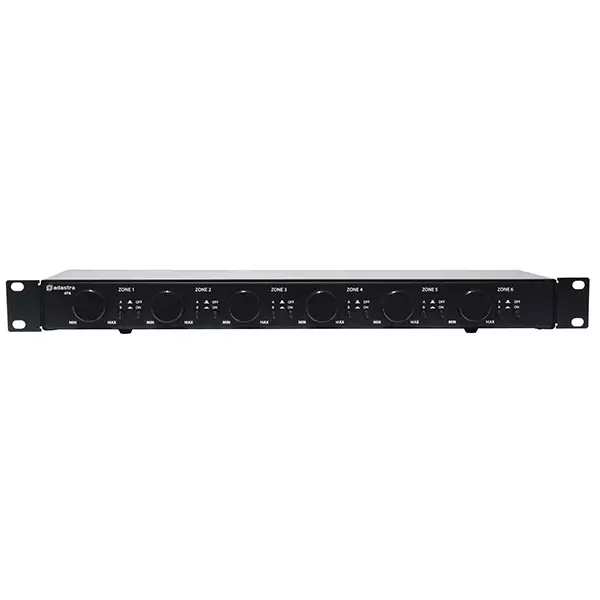

Connect an AT6 to one or two 100V amplifiers to provide a 6-zone volume and source solution for multi-room installations. Housed in a 1U rackmount enclosure, the AT6 has six output channels, which can feed up to 30W to one or more 100V speakers. Each channel has a rotary volume switch, on/off switch and an A/B source switch. When connecting 2 amplifier outputs to the AT6, one amplifier becomes input A and the other input B, so that each channel can have an independent choice of audio source and output level. 24V terminals can be connected to an emergency control panel for global muting. A completely passive and cost-effective add-on to convert single output amplifiers into a flexible zoning system.
Power handling: 30W max. per output zone

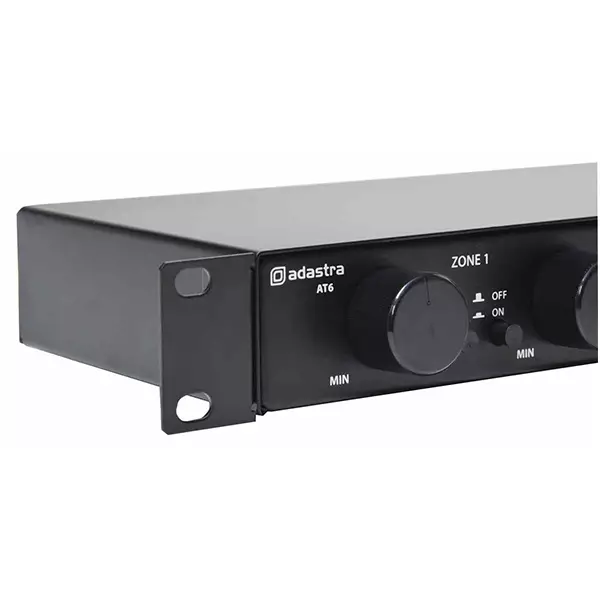

Channel controls: 11 position volume attenuator, A/B source switch, On/Off switch
Emergency control: 24V mute terminals

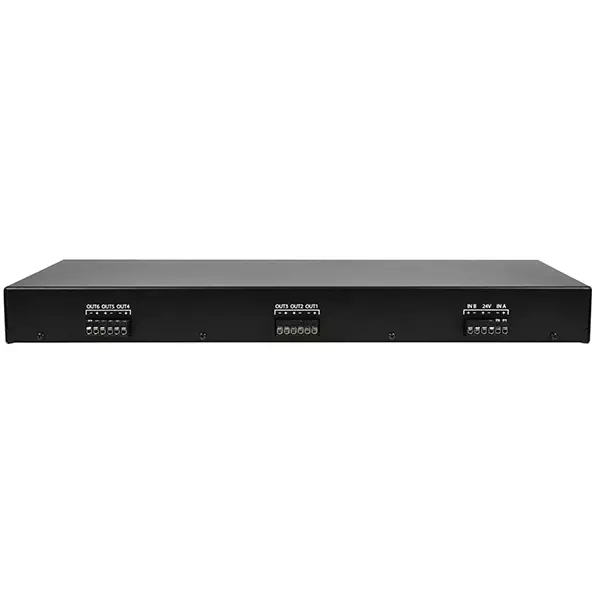

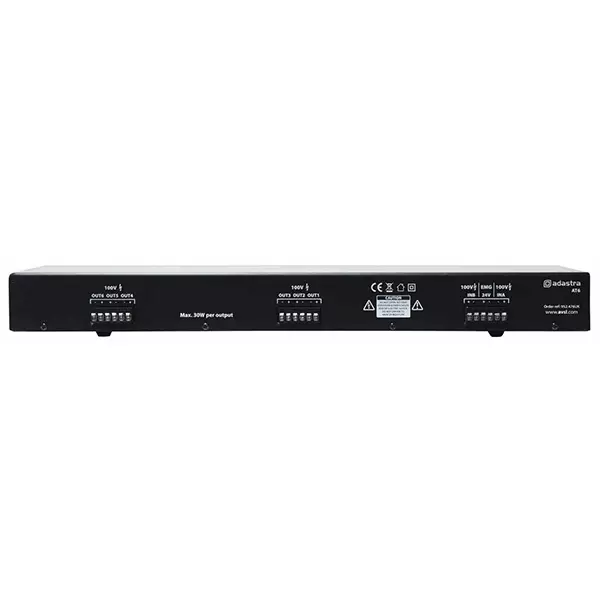

Connections: IN A + B, OUT 1-6, 24V MUTE (Euroblock screw terminals)
Dimensions: 482 x 160 x 43mm
Weight: 2.39kg
